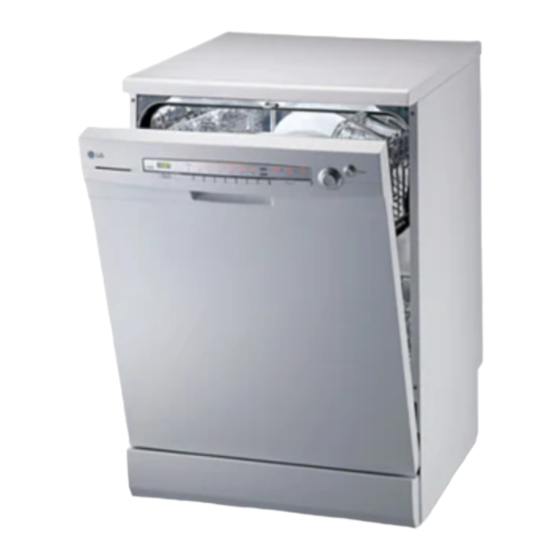

- Page 1 DISHWASHER OWNER'S MANUAL MODEL : LD-1403W1 Please read this manual carefully before operating your dishwasher. Retain it for future reference.
-
Page 2: Table Of Contents
CONTENTS SAFETY AND CAUTION INSTALLATION INSTRUCTION PARTS NAME FUNCTION OF CONTROL BUTTON HOW TO USE AND OPERATE WASH OPTIONS PROGRAMS CHECK AND CARE TROUBLE SHOOTING GUIDE SPECIFICATIONS... -
Page 3: Safety And Caution
SAFETY AND CAUTION IMPORTANT SAFETY INSTRUCTIONS CAUTION Child Safety : Keep children away from the dishwasher when the intensive wash cycle is running, as prolonged exposure to the steam vent may cause injury. Dishwasher detergents are high in alkaline. They can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open. - Page 4 SAFETY AND CAUTION Child Safety • Controls may be locked using “Child Lock” mode to prevent from all the setting from being changed by a child. • Keep children away from detergents and rinse-aids. • Do not allow children to operate the dishwasher. •...
-
Page 5: Installation Instruction
INSTALLATION INSTRUCTION Step 2 : WARNING PREPARE ELECTRICAL WIRING Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. Any plumbing CAUTION work required to install this appliance should For personal safety, remove house fuse or be carried out by a qualified plumber or open circuit breaker before installation. - Page 6 INSTALLATION INSTRUCTION Step 3 : Step 4 : PREPARE DISHWASHER FOR INSTALL THE DISHWASHER IN INSTALLATION CUPBOARD Lay the dishwasher on its back. Before sliding the dishwasher into the cupboard opening, all necessary final Adjust the legs to the needed height of height adjustment and balancing cabinet as shown in below figure.
- Page 7 INSTALLATION INSTRUCTION Step 5 : DRAIN LINE CONNECTION If the end of drain hose does not fit to the ■ When the drain hose is connected to a drain line, use a piece of rubber separate stand pipe, it is essential that an connector(not supplied) that must be tight connection is made.
- Page 8 INSTALLATION INSTRUCTION Step 6 : Step 8 : WATER SUPPLY CONNECTION HOW TO LEVEL THE PRODUCT Connect the water supply hose to the valve After installing the product, Check the ease of behind dishwasher and the water tap as shown door opening.
-
Page 9: Parts Name
PARTS NAME 1. Vapor vent 11. Adjust Leg 2. Control Panel 12. Upper Rack 3. Door Handle 13. Cutlery Rack 4. Front Cover 14. Detergent & Rinse Aid Dispenser 5. Lower Cover 15. Vapor Vent Cover 6. Process Monitor 16. Upper Spray Arm 7. -
Page 10: Function Of Control Button
FUNCTION OF CONTROL BUTTON DELAY START POWER SWITCH TIME SAVE HALF LOAD BUTTON BUTTON • If you want to delay • This function is for • In the case of a small load, use • Used to turn the machine the start of selected saving time and energy. -
Page 11: How To Use And Operate
HOW TO USE AND OPERATE 1. Loading your Dishwasher Be carefull when stacking large items as they may obstruct the detergent dispenser For the best washing performance, it is important that and cause it not to open. the dishwasher is loaded according to instructions. Before loading items into the dishwasher, you must 3. - Page 12 HOW TO USE AND OPERATE 4. Loading the Upper Rack 5. Adjusting the Upper Rack The upper rack is best loaded with more Your upper rack can be raised or lowered to cater for different sized crockery. Before delicate items, small plates, long cutlery, cups, adjusting, ensure that the rack is empty.
- Page 13 HOW TO USE AND OPERATE 6. Adding Detergent Push latch to open Dispenser • Detergent must be put into the detergent chamber before starting every program except the Pre-Wash. Place proper • Please follow the manufacturer’s instructions detergent into this printed on the manual when detemining the compartment correct dosage.
- Page 14 HOW TO USE AND OPERATE 7. Adding Rinse Aid Dispenser To fill the Rinse Aid chamber, rotate the round cap counter clockwise and remove. Fill the container to the maximum level with a good quality Rinse Aid, then replace and lock the cap.
- Page 15 HOW TO USE AND OPERATE 8. Fold down dividers 9. Separable basket ■ Fold-down dividers at the lower rack can be Slide two baskets in opposite directions, lowered to improve stacking of pots and then pull them apart. pans. ① ②...
-
