Washing Machine
This manual is made with 100% recycled paper.
WA85G5P-02898D-02_EN.indd 1
user manual
imagine
the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/register
WA80G5
WA80V3
WA85G5
WA85V3
WA90G9
WA88V3
WA95G9
WA90V3
WA85W9
WA91V3
WA95W9
WA95V3
WA90W9
WA88V4
2011-08-23
12:21:39
Advertisement
Related Manuals for Samsung WA85G5
Summary of Contents for Samsung WA85G5

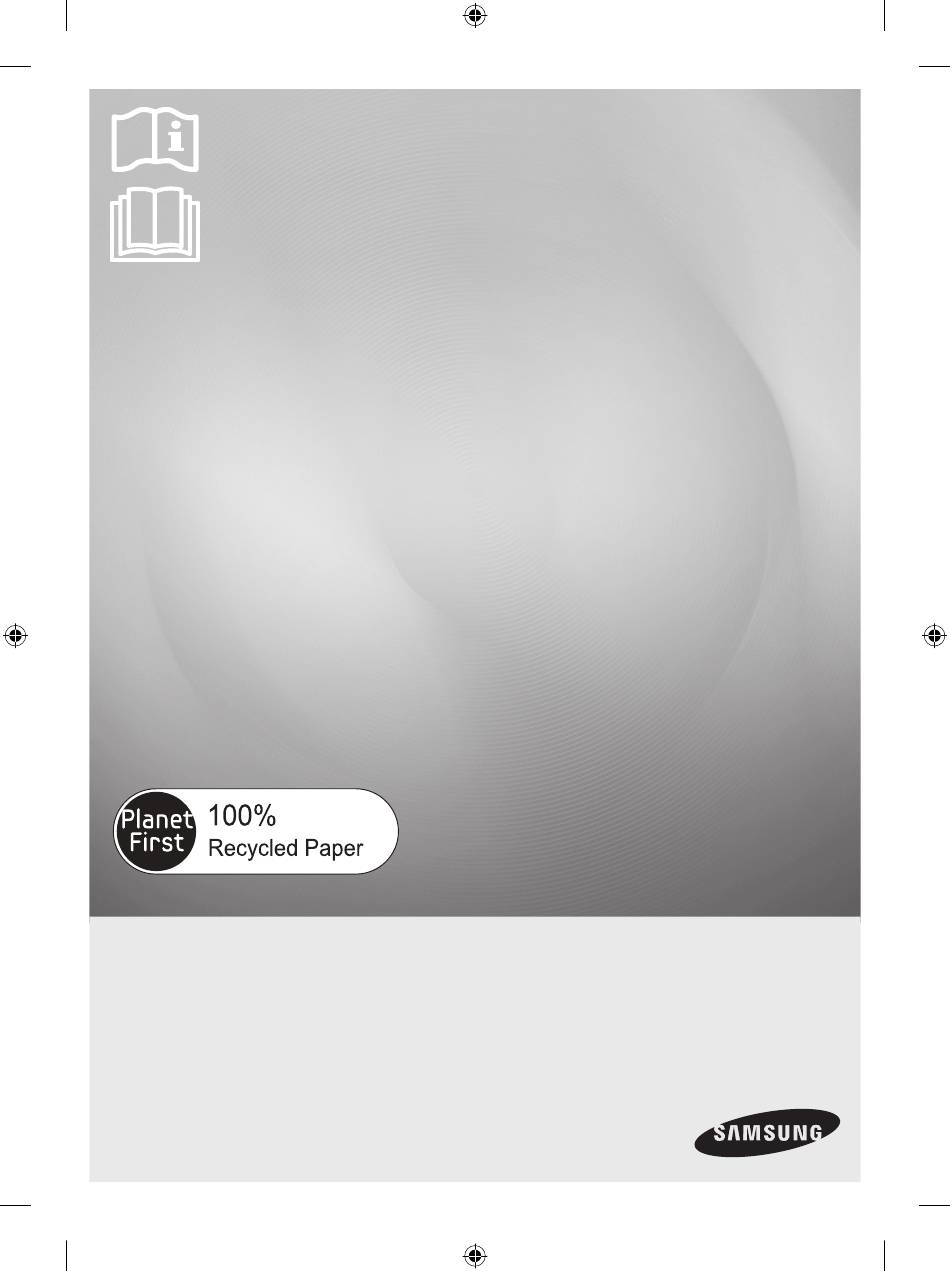

- Page 1 WA90W9 WA88V4 Washing Machine user manual This manual is made with 100% recycled paper. imagine the possibilities Thank you for purchasing a Samsung product. To receive a more complete service, please register your product at www.samsung.com/register WA85G5P-02898D-02_EN.indd 1 2011-08-23 12:21:39...
- Page 2 features • Air Turbo Drying System Air Turbo technology spins hard and fast so you can spend less time drying. Time Saving AIR TURBO saves your time, ensuring your clothes are dried 30%-40% faster than line drying alone. Especially during the rainy season and in high-humid weather, laundry that once took days to drip-dry, such as heavy jeans, bulky sweaters, and thick blankets are dried more rapidly.
- Page 3 The use for business purposes qualifies as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse.
- Page 4 contents seTTinG up your WAsher D escription of part C ontrol Panel mAnuAl funcTions M anual functions insTAllATion & mAinTenAnce E nvironment L evelling C onnecting the water supply hose A ssembling the rat protection panel 10 H ow to connect the drain hose 10 H ow to put the detergent in 10 H ow to add the fabric softener 10 W ater supply connector filter 10 C leaning the filter 10 H ow to clean the pump filter TroubleshooTinG...
- Page 5 setting up your washer DeSCRIPTION OF PART The User’s Manual is for common use. Make use of the User’s Manual depending upon your washing machine model. Water supply hose (hot) Water supply hose Be sure to keep the lid closed (cold) during washing and spinning. filter Lint will be collected in the filter during washing.
- Page 6 setting up your washer CONTROL PANeL For more details, see control panel of your washing machine. poWer buTTon Press this button once to operate. Press it again to turn the power off. Use to pause and restart the operation. To change the washing procedure during an sTArT/pAuse buTTon operation, press this button to stop, and again to restart after changing the procedure.
- Page 7 remAininG Time, DelAy Displays the remaining wash time. Displays the reserved delay start time. Displays the sTArT Time, error DisplAy error state if a problem occurs in the washing machine so that you can take action. Press this button to speed dry your laundry. Air Turbo buTTon This function can only be selected if a spin cycle is set.
- Page 8 setting up your washer SoAK ProgrAM Select this function when you wish to wash your laundry by soaking it. 1. Press the power button to “on”. 2. Press the program select button four times 3. Press the START/PAUSE button and put the proper amount of detergent into tub. 4.
- Page 9 manual functions Possible to select the function for each program. ex) If you want to wash in the quick program : Power - Select quick program - press function button once - Start/Pause button WAsh only Press the power button. Press the function select button once.
- Page 10 installation & maintenance The User’s Manual is for common use. Make use of the User’s Manual depending upon your washing machine model. eNvIRONMeNT Leave some space - Maintain at least 10cm between the washer and the wall. Place the washer on a sturdy flat surface. - If the washer is placed on an uneven or weak surface, noise or vibration occurs.
- Page 11 ASSeMBLING THe RAT PROTeCTION PANeL(OPTION) Tilt the washer a little and lift up the panel until it Insert the rat protection panel to the clicks, finally fix the panel with screw to the base assembling hole on back side to as shown in the figure. the end.
- Page 12 installation & maintenance HOW TO ADD THe FABRIC SOFTeNeR Slide and open the cover in the direction of the arrow, insert the rinse detergent, and slide and close it in the reverse direction. • When a proper amount (one time does) of fabric softener is stored in the softener inlet, it is automatically put in at the last rinsing cycle.
- Page 13 troubleshooting PROBLeM CHeCK Washing machine won’t • Is the water tap opened? work • Is the washer plugged in? • Is the power cut off? • Is there enough water? Water dose not drain • Is the drain hose down?(No pump) •...
- Page 14 washing machine won’t work? problem check & soluTion The power is cut off. Is the electric voltage normal? Is the washer plugged in? Plug in the electric cord. Water does not drain. Is the drain hose down? Put the drain hose down. Is the drain hose folded? Unfold the drain hose.
- Page 15 30 l 0.05~0.78 MPa WATeR PReSSURe WATeR USAGe 130 l (0.5 ~ 8.0 kg f/cm WASHING TyPe Stirring Type SPIN SPeeD 720 rpm WA80V3, WA85V3, WA88V3, WA91V3, WA88V4, WA80G5, WA85G5 WA80V3/G5 6.0 kg WA85V3/G5 6.5 kg HIGH 57 l MAX. MASS OF DRy CLOTH IN kg WA88V3/V4 6.8 kg WA91V3 7.0 kg...
- Page 16 1300 362 603 www.samsung.com 1800 1100 11 3030 8282 INDIA www.samsung.com 1800 3000 8282 1800 266 8282 MALAYSIA 1800-88-9999 www.samsung.com 1-800-10-SAMSUNG(726-7864) for PLDT 1-800-3-SAMSUNG(726-7864) for Digitel PHILIPPINES www.samsung.com 1-800-8-SAMSUNG(726-7864) for Globe 02-5805777 SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com VIETNAM 1 800 588 889 www.samsung.com...
