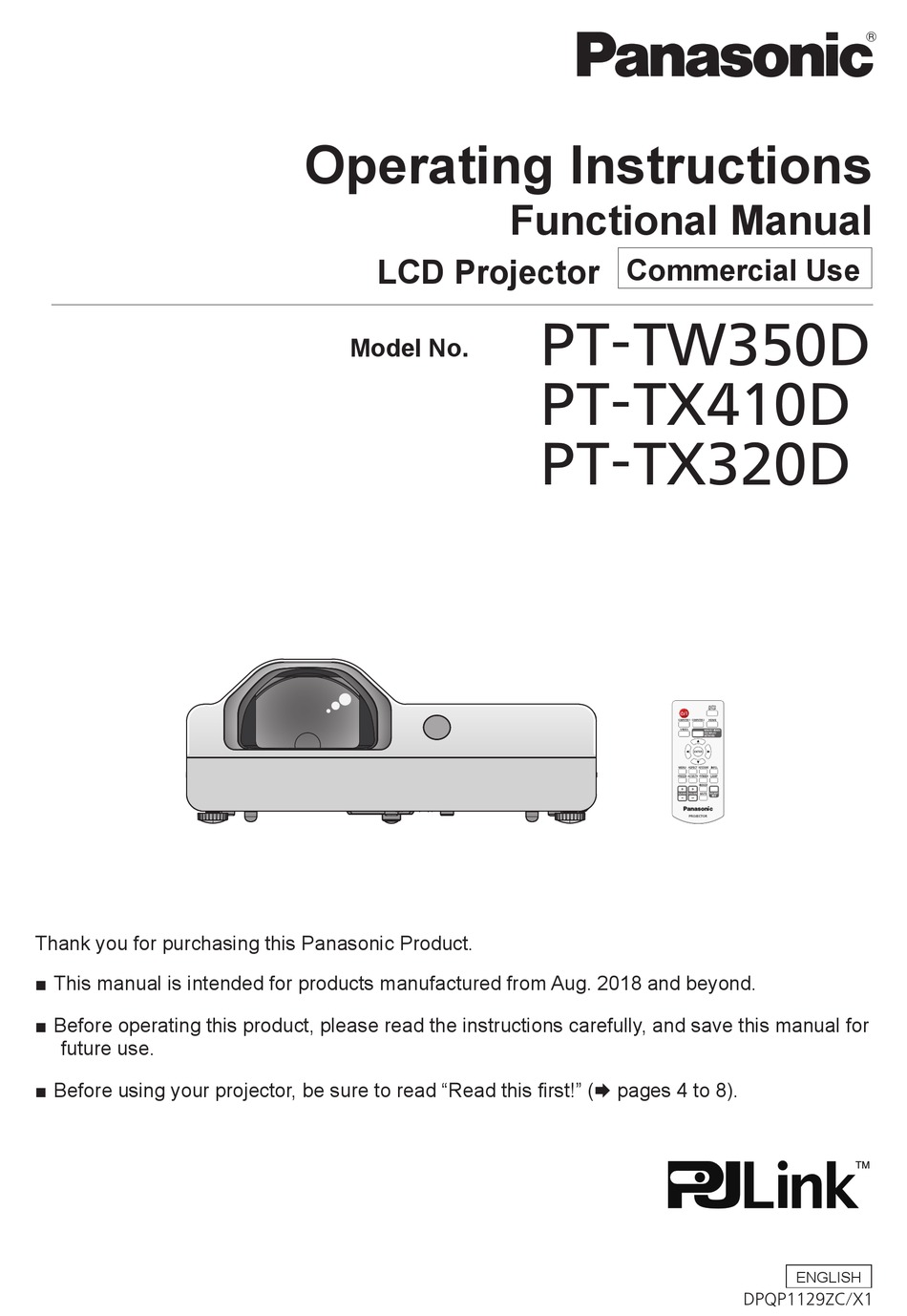

Thank you for purchasing this Panasonic Product.
■ This manual is intended for products manufactured from Aug. 2018 and beyond.
■ Before operating this product, please read the instructions carefully, and save this manual for
future use.
■ Before using your projector, be sure to read "Read this first!" (x pages 4 to 8).
Operating Instructions
LCD Projector
Model No.
Functional Manual
Commercial Use
P T-TW350D
PT-TX410D
PT-TX320D
ENGLISH
DPQP1129ZC/X1
Advertisement
Chapters
Table of Contents
Related Manuals for Panasonic PT-TW350D
Summary of Contents for Panasonic PT-TW350D
- Page 1 Model No. PT-TX410D PT-TX320D Thank you for purchasing this Panasonic Product. ■ This manual is intended for products manufactured from Aug. 2018 and beyond. ■ Before operating this product, please read the instructions carefully, and save this manual for future use.
-
Page 2: Table Of Contents
Contents Contents Contents Read this first! ..........4 Using the freeze function ........37 Using the AV mute function ........37 Using the presentation timer function ....37 Chapter 1 Preparation Switching the lamp power ........37 Using the digital zoom function ......37 Precautions for use .......... - Page 3 Contents [Auto setup] ............56 Using the PJLink protocol ........97 [Keystone] ............58 <SERIAL IN> terminal .......... 98 [Logo] ..............60 List of compatible signals ........101 [Security] .............. 62 Specifications ............103 [Power management] ........... 64 Dimensions ............105 [Filter counter] ............
-
Page 4: Read This First
Read this first! Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: 1. Remove the plug from the mains socket when this unit is not in use for a prolonged period of time. 2. To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel. - Page 5 Read this first! WARNING: „ POWER The wall outlet shall be installed near the equipment and shall be easily accessible when problems oc- cur. If the following problems occur, disconnect the power plug from the wall outlet immediately. Continued use of the projector in these conditions will result in fire or electric shock. z If foreign objects or water get inside the projector, disconnect the power plug from the wall outlet.
- Page 6 If liquid enters inside of the projector, consult your dealer. z Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Defects in the ceiling mount bracket will result in falling accidents. z Attach the supplied safety cable to the ceiling mount bracket to prevent the projector from falling down.
- Page 7 Read this first! WARNING: Remove the depleted batteries from the remote control promptly. z Leaving them in the unit may result in fluid leakage, overheating, or explosion of the batteries. CAUTION: „ POWER When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result.
- Page 8 PURPOSE. Please refer to the detailed terms and conditions thereof shown in the attached CD-ROM. At least three (3) years from delivery of this product, Panasonic will give to any third party who contacts us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under GPL V2.0, LGPL...
- Page 9 Features of the Projector Quick Steps For details, see the corresponding pages. Comfortable viewing in a bright environment 1. Set up your projector. (x page 23) ▶ The high contrast ratio 16 000 : 1 is achieved in a compact body. ▶...
-
Page 10: Chapter 1 Preparation
Preparation Chapter 1 This chapter describes things you need to know or check before using the projector. 10 - ENGLISH... -
Page 11: Precautions For Use
Chapter 1 - Preparation - Precautions for use Precautions for use Cautions when transporting f When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts. Doing so may damage the internal parts and result in malfunctions. f Do not transport the projector with the adjustable feet extended. -
Page 12: Security
Make your password as difficult to guess as possible. f Change your password periodically. f Panasonic or its affiliate company never inquires a password directly to a customer. Do not tell your password in case you receive such an inquiry. -
Page 13: Notes On Using Wireless Connection
Chapter 1 - Preparation - Precautions for use rLCD Panel The display unit of this projector comprises three LCD panels. Although an LCD panel is a product of high-precision technology, some of the pixels on the projected image may be missing or constantly lit. Please note that this is not a malfunction. -
Page 14: Storage
Depending on the specifications of the wireless LAN, a malicious third-party may be able to break security settings by special means. Panasonic asks customers to thoroughly understand the risk of using this product without making security settings, and recommends that the customer make security settings at their own discretion and responsibility. -
Page 15: Accessories
Chapter 1 - Preparation - Precautions for use Accessories Make sure the following accessories are provided with your projector. Numbers enclosed < > show the number of accessories. Wireless remote control unit <1> CD-ROM <1> (N2QAYA000116) (1JK1TW350U) Power cord AAA/R03 or AAA/LR03 battery <2> (K2CZ3YY00062) (for remote control unit) RGB signal cable <1>... -
Page 16: Contents Of The Supplied Cd-Rom
Note f The “List of Compatible Device Models” for the flat panel display compatible with the “Multi Monitoring & Control Software” can be downloaded from the Panasonic website (https://panasonic.net/cns/prodisplays/). Optional accessories Options Model No. -
Page 17: About Your Projector
Chapter 1 - Preparation - About your projector About your projector Remote control 12 <VOLUME +/–> buttons 1 Power <v/b> button (v standby / b power on) Adjusts the volume of the built-in speaker or audio Turns the projector on or off. output. -
Page 18: Projector Body
Chapter 1 - Preparation - About your projector Note f The remote control can be used within a distance of about 5 m (16'4-13/16") if pointed directly at the remote control signal receiver. The remote control can control at angles of up to ± 30 ° vertically and ± 30 ° horizontally, but the effective control range may be reduced. - Page 19 Chapter 1 - Preparation - About your projector Bottom Projection direction 12 Control panel and Indicators 14 Focus ring Adjust the focus. 13 Lamp cover (x page 93) The lamp unit is located inside. Control panel and Indicators 1 Power indicator <ON(G)/STANDBY(R)> 5 Warning indicator <WARNING>...
- Page 20 Chapter 1 - Preparation - About your projector Rear terminals 1 <VARIABLE AUDIO OUT> terminal 8 <USB A (VIEWER/WIRELESS)> terminal This is the terminal to output the audio signal input to the When using the Memory Viewer function, insert the USB projector.
-
Page 21: Preparing The Remote Control
(ii) Chapter 1 - Preparation - Preparing the remote control Preparing the remote control Inserting and Removing batteries (ii) Fig. 1 Fig. 2 Open the cover. (Fig. 1) Insert batteries and close the cover (Insert the "m" side first.). (Fig. 2) f When removing the batteries, perform the steps in reverse order. -
Page 22: Chapter 2 Getting Started
Getting Started Chapter 2 This chapter describes things you need to do before using the projector such as the setup and connections. 22 - ENGLISH... -
Page 23: Setting Up
Chapter 2 - Getting Started - Setting up Setting up Installation mode There are four ways to set up the projector. Set the [Display] menu → [Project way] (x page 48) depending on the installation location. Mounting on the ceiling and projecting forward Setting on a desk/floor and projecting from rear (Using the translucent screen) Menu item... -
Page 24: Screen Size And Throw Distance
Projected image size (m) Attention f Before installing, please read “Precautions for use” (x page 11). Projection distance For PT-TW350D All measurements below are approximate and may differ slightly from the actual measurements. (Unit: m) Projection 4:3 aspect ratio 16:9 aspect ratio... - Page 25 The unit of all the formulae is m. (Values obtained by the following calculation formulae contain a slight error.) If you want to calculate the projection distance with projected image size SD (unit: inch) by substituting, please assign 0.0254 times to the SD value. For PT-TW350D 4:3 aspect ratio 16:9 aspect ratio...
-
Page 26: Adjusting Adjustable Feet
Chapter 2 - Getting Started - Setting up Adjusting adjustable feet Lift the front of the projector and press the feet lock latch with your finger to adjust the projection angle up and down. Release your finger to lock the adjustable feet. For slight adjustment, rotate the adjustable feet. -
Page 27: Connecting
Chapter 2 - Getting Started - Connecting Connecting Before connecting f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power switch of the devices before connecting cables. f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions. - When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work. -
Page 28: Connecting Example : Av Equipment
Chapter 2 - Getting Started - Connecting <HDMI IN> terminal pin assignments and signal names Outside view Pin No. Signal names Pin No. Signal names T.M.D.S data 2+ T.M.D.S clock shield T.M.D.S clock - Even-numbered pins T.M.D.S data 2 shield T.M.D.S data 2 - T.M.D.S data 1+ —... -
Page 29: Connecting Example : Computers
Chapter 2 - Getting Started - Connecting Connecting example : Computers Computer Computer Computer Computer USB memory / Wireless module (Model No.: ET-WML100) Control computer Control computer Audio equipment Attention f When connecting the projector to a computer or an external device, use the power cord supplied with each device and commercially available shielded cables. -
Page 30: Chapter 3 Basic Operations
Basic Operations Chapter 3 This chapter describes basic operations to start with. 30 - ENGLISH... -
Page 31: Powering On/Off
Chapter 1 - Basic Operations - Powering on/off Powering on/off Connecting the power cord Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily. For details of power cord handling, refer to “Read this first!” (x page 4). Attaching Check the shapes of the <AC IN>... -
Page 32: Powering On The Projector
Chapter 1 - Basic Operations - Powering on/off Powering On the Projector Before switching on the projector, make sure all the other devices are correctly connected. (x page 27) AC IN Connect the power cord to the projector body. Connect the power plug to an outlet. f The power indicator <ON(G)/STANDBY(R)>... -
Page 33: Making Adjustments And Selections
Chapter 3 - Basic Operations - Powering on/off Making adjustments and selections It is recommended that images are projected continuously for at least 30 minutes before the focus is adjusted. Adjust the focus of the image roughly. ( page 34) Change the settings of the [Display] menu →... -
Page 34: Projecting
Chapter 3 - Basic Operations - Projecting Projecting Check the connections of the peripheral devices ( Æ page 27) and connection of the power cord (x page 31) and switch on the power (x page 32) to start the projector. Select the image and adjust the state of the image. Selecting the input signal Select an input signal. -
Page 35: Basic Operations By Using The Remote Control
Chapter 3 - Basic Operations - Basic operations by using the remote control Basic operations by using the remote control Using the automatic setup function Input search, Auto PC adjustment (during signal input from a computer) and Auto Keystone correction works at the same time. The Auto PC adjustment function can be used to automatically adjust the resolution, clock phase, and image position when analog RGB signals consisting of bitmap images such as computer signals are being input. -
Page 36: Switching The Aspect Ratio Of The Image
Chapter 3 - Basic Operations - Basic operations by using the remote control Switching the aspect ratio of the image You can switch aspect ratios according to the input signal. button Press the <ASPECT> button on the remote control. Note f For more details, refer to the [Display] menu →... -
Page 37: Using The Freeze Function
Chapter 3 - Basic Operations - Basic operations by using the remote control Using the freeze function You can freeze the projected image and stop the sound temporarily, regardless of the playing condition of the external device. button Press the <FREEZE> button on the remote control. f The video is paused and the audio is muted. -
Page 38: Controlling The Volume Of The Speaker
Chapter 3 - Basic Operations - Basic operations by using the remote control buttons Press the <D.ZOOM +> or < D.ZOOM -> button on the remote control. f The [D. zoom] individual adjustment screen is displayed. f Press asqw on the remote control to move the display position during zoom in. [D.zoom] individual adjustment Operation Adjustment... -
Page 39: Using The Daylight View Lite Function
Chapter 3 - Basic Operations - Basic operations by using the remote control Using the Daylight View Lite function The Daylight View Lite function improves the vividness of the image even if it is projected under a bright light. button Press the <DAYLIGHT VIEW>... -
Page 40: Chapter 4 Settings
Settings Chapter 4 This chapter describes the settings and adjustments you can make using the on-screen menu. 40 - ENGLISH... -
Page 41: Menu Navigation
Chapter 4 - Settings - Menu Navigation Menu Navigation The on-screen menu (Menu) is used to perform various settings and adjustments of the projector. Navigating through the menu Operating procedure button Press the <MENU> button on the remote control or the control panel. f The main menu screen appears. -
Page 42: Main Menu
Chapter 4 - Settings - Menu Navigation Press as to switch or adjust settings. f Some items will switch in order as follows each time you press Press the <ENTER> button or the <MENU> button. f The changed settings or the adjusted value is confirmed. Press as to select a sub-menu item, press the <ENTER>... -
Page 43: Sub-Menu
Chapter 4 - Settings - Menu Navigation Sub-menu The sub-menu screen of the selected main menu appears, and you can set and adjust the various items in the submenu. [Display] Sub-menu item Factory default Page [Auto PC adj.]* [Fine sync]* [H Position]* [V Position]* [H.Size]*... - Page 44 Chapter 4 - Settings - Menu Navigation Sub-menu item Factory default Page [Keystone] [Store] [Logo] [Security] [Power management] [Shut down] [Filter counter] [Test pattern] [Off] [Network] [Remote control] [ALL] [Factory default] [Memory Viewer] Sub-menu item Factory default Page [Set Slide] [Slide Transition Effect] [Slide Right] [Sort Order]...
-
Page 45: Input Menu
Chapter 4 - Settings - Input menu Input menu To select the input source directly by pressing the input selection buttons on the remote control or to select the input source in the Input screen by pressing the <INPUT/ENTER> button on the control panel. Switching the input source When using the remote control Press the input selection (<COMPUTER 1>, <COMPUTER 2>, <HDMI>, <VIDEO>, <MEMORY VIEWER/... -
Page 46: [Display] Menu
Chapter 4 - Settings - [Display] menu [Display] menu On the menu screen, select [Display] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 41) for the operation of the menu screen. fAfter selecting the item, press as to set. -
Page 47: [V Position]
Chapter 4 - Settings - [Display] menu Orientation Operation Adjustment Press the a button. The image position moves to the right. Horizontal (left and right) adjustment. Press the s button. The image position moves to the left. Note f [H Position] is not available while the image is expanded in the digital zoom function. [V Position] (Only for computer signals input) Move the image position vertically if the image position projected on the screen is shifted even when the relative position of the... -
Page 48: [Project Way]
Chapter 4 - Settings - [Display] menu [Project way] Set the projection method in accordance with the installation status of the projector. Change the projection method if the screen display is upside down or inverted. Press as to select [Project way]. Press the <ENTER>... -
Page 49: [Color Adjust] Menu
Chapter 4 - Settings - [Color adjust] menu [Color adjust] menu On the menu screen, select [Color adjust] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 41) for the operation of the menu screen. fAfter selecting the item, press as to set. -
Page 50: [Color]
Chapter 4 - Settings - [Color adjust] menu Operation Adjustment Adjustment range Press the a button. Increases the brightness of the dark (black) parts of the screen. 0 ~ +63 Press the s button. Reduces the brightness of the dark (black) parts of the screen. [Color] (Only for Video signals, S-video signals and Component signals) You can adjust the color saturation of the projected image. -
Page 51: [Sharpness]
Chapter 4 - Settings - [Color adjust] menu Press the a button. Deepen blue tone. [Blue] 0 ~ +63 Press the s button. Lighten blue tone. [Sharpness] You can adjust the sharpness of the projected image. Press as to select [Sharpness]. Press the <ENTER>... -
Page 52: [Setting] Menu
Chapter 4 - Settings - [Setting] menu [Setting] menu On the menu screen, select [Setting] from the main menu, and select an item from the sub-menu. COMPUTER 1 COMPUTER 2 Refer to “Navigating through the menu” (x page 41) for the operation of the menu screen. fAfter selecting the item, press as to set. -
Page 53: [Lamp Control]
Chapter 4 - Settings - [Setting] menu Note f It is set to [Off] when using the projector in the elevation of below 1 400 m (4 593'). It is set to [On 1] when using the projector in the elevation of above 1 400 m (4 593') and below 2 700 m (8 858'). It is set to [On 2] when using the projector in the elevation of above 2 700 m (8 858') and below 3 000 m (9 843'). -
Page 54: [Key Lock]
Chapter 4 - Settings - [Setting] menu Note f Closed caption is a function that displays text information of video signals mainly used in North America. Captions may not be displayed depending on the connected devices or contents being played back. f [Closed caption] can only be selected if an NTSC signal is input. -
Page 55: [Hdmi Setup]
Chapter 4 - Settings - [Setting] menu Press the <ENTER> button. Press as to switch the item. f The items will switch each time you press the button. f You can also press the <MUTE> button on the remote control. (x page 38) [On] Audio is not output. -
Page 56: [Expand] Menu
Chapter 4 - Settings - [Expand] menu [Expand] menu On the menu screen, select [Expand] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 41) for the operation of the menu screen. fAfter selecting the item, press asqw to set. - Page 57 Chapter 4 - Settings - [Expand] menu [Input search] This function is used to detect the signals and project the automatic input signals automatically. This function is used to adjust [Fine sync], [H position], [V position] and [H.Size] automatically [Auto PC adj.] when input the analog computer signal.
-
Page 58: [Keystone]
Chapter 4 - Settings - [Expand] menu [Keystone] You can correct the trapezoidal distortion that occurs when the projector is installed tilted or when the screen is tilted. Press as to select [Keystone]. Press the <ENTER> button. f The [Keystone] screen is displayed. Press as to select one item. - Page 59 Chapter 4 - Settings - [Expand] menu Note f The white arrows indicate that there is no correction. f A red arrow indicates the direction of correction. f An arrow disappears at the maximum correction. [Corner correction] Press as to select [Keystone]. Press the <ENTER>...
-
Page 60: [Logo]
Chapter 4 - Settings - [Expand] menu Used to correct the right side vertical lines. Extend the top and bottom while Press the w button. keeping the center part as it is. Used to correct the left side vertical Press the q button. lines. - Page 61 [Off] Displays only the countdown to project when the projector start-up. [Default] Displays the Panasonic logo and the countdown when the projector start-up. [User] Displays the image registered by the user with the capture function. *1 [User] will be unavailable when the captured image is not registered.
-
Page 62: [Security]
Chapter 4 - Settings - [Expand] menu Press the <ENTER> button. f The [Logo PIN code] input screen is displayed. Press the <ENTER> button. Enter the Logo PIN code you have set according to the steps in "Enter a Logo PIN code". r Enter a Logo PIN code i) Press as to select a number from 0 to 9. - Page 63 Chapter 4 - Settings - [Expand] menu Press as to switch the item. f The items will switch each time you press the button. The [PIN code] screen will be displayed when turn on the projector. The projector cannot be [PIN code lock] operated without entering the PIN code.
-
Page 64: [Power Management]
Chapter 4 - Settings - [Expand] menu Enter the New PIN code according to the steps in "Enter a PIN code". [Power management] This function optimizes lamp power according to the operating status to reduce power consumption. [Power management] Set the operation as following if there is no signal input. Press as to select [Power management]. -
Page 65: [Test Pattern]
Chapter 4 - Settings - [Expand] menu [Filter counter] Displays the using time of the filter. [Timer] Sets the time to display the warning icon. [Filter counter Resets the filter counter. reset] Setting [Timer] If you want to clean the air filter periodically according to the operating environment, the filter warning icon [ can be displayed on the projected screen. -
Page 66: [Remote Control]
Chapter 4 - Settings - [Expand] menu [Network setting] Press as to select [Network]. Press the <ENTER> button. f The [Network] screen is displayed. Press the <ENTER> button. f The [Network setting] screen is displayed. Press as to select an item, and change the setting according to the instructions. [On]: If a DHCP server exists in the network to which the projector is connected, the IP address will automatically be acquired. -
Page 67: [Factory Default]
Chapter 4 - Settings - [Expand] menu Press the <ENTER> button. f [Remote control] is set. Note f To specify an ID number for individual control, the ID number of a remote control must match the ID number of the projector. f When the ID number is set to [ALL], the projector will operate regardless of the ID number specified by remote control. -
Page 68: [Memory Viewer] Menu
Chapter 4 - Settings - [Memory Viewer] menu [Memory Viewer] menu On the menu screen, select [Memory Viewer] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 41) for the operation of the menu screen. fAfter selecting the item, press as to set. -
Page 69: [Best Fit]
Chapter 4 - Settings - [Memory Viewer] menu [No rotate] Rotate is disabled. [270 Degrees] Rotates 270 degrees in clockwise direction. [180 Degrees] Rotates 180 degrees. [90 Degrees] Rotates 90 degrees in clockwise direction. [Best Fit] Set the image whether or not to fit with the projected screen. Press as to select [Best Fit]. -
Page 70: [Info.] Menu
Chapter 4 - Settings - [Info.] menu [Info.] menu On the menu screen, select [Info.] from the main menu. Refer to “Navigating through the menu” (x page 41) for the operation of the menu screen. [Info.] Display the status of the projector. Press as to select [Info.]. -
Page 71: Chapter 5 Operation Of Function
Operation of Function Chapter 5 This chapter describes the operation methods of some functions. ENGLISH - 71... -
Page 72: About Memory Viewer Function
Chapter 5 - Operation of Function - About Memory Viewer function About Memory Viewer function The Memory Viewer function makes it is possible to project the still image stored in the USB memory. What you can project with the Memory Viewer function Memory Viewer function supports the following image files. -
Page 73: Playing The Pictures
Chapter 5 - Operation of Function - About Memory Viewer function f Press the <INPUT/ENTER> button on the control panel and select the input source in the Input menu. Insert the USB memory directly into the <USB A (VIEWER/WIRELESS)> terminal. f The standby screen “please press RC ENTER ”... -
Page 74: Usb Display Function
Chapter 5 - Operation of Function - USB Display function USB Display function The USB Display function makes it is possible to project the image and audio from the computer through a USB converting cable. When using the USB display function on Mac OS, the audio output is disabled. When using Windows r Windows operating environment Windows Vista 32 bit, Windows 7 32/64 bit, Windows 8.1 32/64 bit, Windows 10 32/64 bit... -
Page 75: When Using Mac Os
Chapter 5 - Operation of Function - USB Display function When using Mac OS r Mac OS operating environment Mac OS X 10.9, 10.10, 10.11 Intel Core 2 Duo 2.0 GHz or faster Amount of memory 512 MB or more Hard-disk free space 20 MB or more Display... -
Page 76: Network Connection
Chapter 5 - Operation of Function - Network connection Network connection This projector has network function that allows the following by connecting a computer. The wireless module (Model No.: ET- WML100) of the optional accessories is required if the wireless LAN is connected. f WEB control By accessing to the projector from a computer, you can perform setting, adjustment, status display, etc. -
Page 77: When Connecting Via Wireless Lan
Chapter 5 - Operation of Function - Network connection Projector settings Use the LAN cable (Straight) to connect the projector with computer. Turn on the projector. Set the [Expand] menu → [Network] → [Network setting]. f For details, refer to the [Expand] menu → [Network] (x page 66). Note f Please confirm with your network administrator before you connect to an existing network. - Page 78 Chapter 5 - Operation of Function - Network connection Press the <MEMORY VIEWER/USB DISPLAY/NETWORK> button on the remote control to switch to [Network] input. f The network input idle screen is displayed. The login password (a four-digit number that is automatically generated), projector name: PROJECTOR (fixed), IP address (Wireless LAN) and IP address (Wired LAN) will be displayed in the idle screen.
-
Page 79: About Presenter Light
For more details about how to use the software “Presenter Light”, please refer to the operating instructions of “Presenter Light Software” of the supplied CD-ROM. f Download the latest versions of “Presenter Light” software from the following URL. https://panasonic.net/cns/projector/ ENGLISH - 79... -
Page 80: About Vuemagic Pro
Chapter 5 - Operation of Function - About VueMagic Pro About VueMagic Pro (The wireless module (Model No.: ET-WML100) of the optional accessories is required if the wireless LAN is connected.) By using still image transfer application software “VueMagic Pro”, you can transfer images to the projector when iPad / iPhone / iPod touch or Android terminals are connected to this projector through the wireless LAN. -
Page 81: Web Control Function
Chapter 5 - Operation of Function - Web control function Web control function (The wireless module (Model No.: ET-WML100) of the optional accessories is required if the wireless LAN is connected.) Using Web control functions, you can perform the following operations from a computer. f Setting and adjustment of the projector f Displaying projector status f Setting of E-mail message sending... - Page 82 Chapter 5 - Operation of Function - Web control function Description of each item 1 [Logout] 5 [Image Setup] Exit the web connection screen by clicking this item. The [Image Setup] page is displayed by clicking this item. 2 [System Status] The [System Status] page is displayed by clicking this 6 [Alert Setup] item.
- Page 83 Chapter 5 - Operation of Function - Web control function [General Setup] page [Change Password for Webpage] is displayed. 1 [Enter Old password] 4 [Apply] Enters the configured password. Updates the settings. 2 [Enter New password] 5 [Power] Enters the new password. Turns on/off the power.
- Page 84 Chapter 5 - Operation of Function - Web control function [Image Setup] page 1 [Aspect] 7 [Auto PC adj.] Switches the aspect of the projected image. Executes the Auto PC adj. function. 2 [Fine sync] 8 [V Keystone] Adjusts the fine sync of the projected image. Corrects the keystone in vertical direction.
- Page 85 Chapter 5 - Operation of Function - Web control function [Alert Setup] page Set the contents of the E-mail to inform the abnormality of the projector. 1 [Alert Type] 4 [Mail Content] Selects the alert type. Enters the content of E-mail which is associated with the selected [Alert Type] and then clicks [Apply].
- Page 86 Chapter 5 - Operation of Function - Web control function [Network Setup] page 1 [LAN Setup] 2 [Wireless Setup] Sets the items of the wired LAN. Sets the items of the wireless LAN. [Obtain an IP address automatically] / [Use the [Wireless LAN] following IP address] Selects [Enable] when you want to enable the...
-
Page 87: Chapter 6 Maintenance
Maintenance Chapter 6 This chapter describes methods of inspection when there are problems, maintenance, and replacement of the units. ENGLISH - 87... -
Page 88: Power/Warning Indicators
Chapter 6 - Maintenance - Power/Warning Indicators Power/Warning Indicators When an indicator lights up If a problem should occur inside the projector, the power indicator <ON(G)/STANDBY(R)> and the warning indicator <WARNING> will inform you by lighting or blinking. Check the status of the indicators and remedy the indicated problems as follows. - Page 89 Chapter 6 - Maintenance - Power/Warning Indicators Warning Power indicator indicator Status Cause Solution <ON(G)/STANDBY(R)> <WARNING> Lighting Projecting. f Is the lamp replacement warning icon displayed when turn on or turn off the The replacement time of projector? Lighting Lighting in red the lamp unit is displayed.
-
Page 90: Maintenance/Replacement
Chapter 6 - Maintenance - Maintenance/replacement Maintenance/replacement Before performing maintenance/replacement f When you perform maintenance or replacement of the parts, make sure to turn off the power and disconnect the power plug from the wall outlet. (x page 33) f Be sure to observe the procedure “Powering Off the Projector” (x page 33) when performing power supply operation. Maintenance Outer Case Wipe off dirt and dust using a soft dry cloth. - Page 91 Chapter 6 - Maintenance - Maintenance/replacement Cleaning the air filter unit Remove the air filter unit beforehand according to the previously described procedure in “Removing the air filter unit”. Clean the air filter unit. f Vacuum dirt and dust from the air filter unit. f Do not wash the air filter unit.
-
Page 92: Replacing The Unit
Attention f Panasonic takes no responsibility for any damage or malfunction of the product resulting from use of lamp units which are not manufactured by Panasonic. Use only specified lamp units. - Page 93 Chapter 6 - Maintenance - Maintenance/replacement The displayed On-screen display time in [Lamp <WARNING> indicator counter] f The lamp replacement icon is displayed for 10 seconds. If you press any button within 10 seconds, the Over 5 700 hours icon disappears. less than 6 000 f The lamp replacement icon will display for 4 seconds...
- Page 94 Chapter 6 - Maintenance - Maintenance/replacement Resetting the lamp counter Be sure to reset the lamp counter after replacing the lamp unit. Connect the power plug, press the power <v/b> button on the control panel or on the remote control. While pressing the ▲...
-
Page 95: Troubleshooting
Chapter 6 - Maintenance - Troubleshooting Troubleshooting Please check following points. For details, see the corresponding pages. Reference Problem Cause page f The power cord may not be connected. — f No electric supply is at the wall outlet. — f The circuit breakers have tripped. -
Page 96: Chapter 7 Appendix
Appendix Chapter 7 This chapter describes specifications and after-sales service for the projector. 96 - ENGLISH... -
Page 97: Using The Pjlink Protocol
11 12 21 22 23 31 41 51 52 query NAME ? Projector name query PROJECTOR Manufacturer name INF1 ? Panasonic Returns manufacturer name. query INF2 ? Model name query TW350D / TX410D / TX320D Returns model name. Other information INF0 ? ×××××... -
Page 98: Serial In> Terminal
Chapter 7 - Appendix - Technical Information <SERIAL IN> terminal The <SERIAL IN> terminal of the projector conforms with RS-232C so that the projector can be connected to and controlled from a computer. Connection Connecting terminals on projector Computer D-Sub 9p (female) D-Sub 9p (male) Communication cable (straight) Pin assignments and signal names... - Page 99 Chapter 7 - Appendix - Technical Information Basic format Transmission from the computer starts with STX, then the command, parameter, and ETX are sent in this order. Add parameters according to the details of control. Colon(1 byte) 3 command characters (3 bytes) Parameter (undefined length) End (1 byte) Start (1 byte) Basic format (with sub command)
- Page 100 Chapter 7 - Appendix - Technical Information Cable specifications [When connected to a computer] Projector Computer (<SERIAL IN> terminal) (DTE specifications) Control commands When controlling the projector from a computer, the following commands are available. r Projector control command Command Control contents Parameter/return string Remark (parameter)
-
Page 101: List Of Compatible Signals
Chapter 7 - Appendix - Technical Information List of compatible signals The following table specifies the type of signals compatible with the projectors. f Symbols that indicate formats are as follows. V = VIDEO/S-VIDEO, R = RGB, Y = YP , H = HDMI Scanning frequency PnP *... - Page 102 Note f The number of display dots is 1 280 x 800 for the PT-TW350D and 1 024 x 768 for the PT-TX410D and PT-TX320D. A signal with a different resolution will be projected after converting the resolution to match the projector display.
-
Page 103: Specifications
3.5 A, 300 W Power consumption In standby mode (when [Standby mode] is set to [Eco]): 0.5 W In standby mode (when [Standby mode] is set to [Normal]): 6 W PT-TW350D 1.5 cm (0.59") (aspect ratio 16 : 10) Panel size PT-TX410D, PT-TX320D 1.6 cm (0.63") (aspect ratio 4 : 3) - Page 104 Chapter 7 - Appendix - Specifications 1 (High-density D-sub 15 pin female) [RGB signal] 0.7 V [p-p] 75 Ω HD/SYNC TTL high impedance, automatic positive/negative polarity compatible <COMPUTER 1 VD TTL high impedance, automatic positive/negative polarity compatible IN> (HD/SYNC and VD do not support 3 value SYNC.) signal] Y: 1.0 V [p-p] including synchronization signal, P : 0.7 V [p-p] 75 Ω...
-
Page 105: Dimensions
Chapter 7 - Appendix - Dimensions Dimensions <Unit : mm (inch)> 97 (3-13/16") 87.5 (3-7/16") 9.8 (3/8") 124.3 (4-29/32") 335 (13-3/16") 134.1 (5-9/32") 68.5 (2-11/16") 167.5 (6-19/32") Actual dimension may differ by product. ENGLISH - 105... -
Page 106: Ceiling Mount Bracket Safeguards
Ask a qualified technician to do the installation work such as mounting the projector on the ceiling. f Panasonic takes no responsibility for any damage to the projector resulting from use of a ceiling mount bracket not manufactured by Panasonic or the inappropriate choice of location for installation, even if the warranty period of the projector has not expired. -
Page 107: Index
Chapter 7 - Appendix - Index Index [HDMI setup]........55 Remote control ......17, 37 [High land] ..........52 About Memory Viewer function ...72 How to adjust the state of the image ..34 About Presenter Light ......79 Read this first!........4 [H Position] .........46 About VueMagic Pro ......80 [Red]/[Green]/[Blue] ......50 [H.Size] ..........47... - Page 108 These symbols are only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. Panasonic Corporation Web Site : https://panasonic.net/cns/projector/ © Panasonic Corporation 2016 W1116JG2078 -PT...
