Internal Use Only

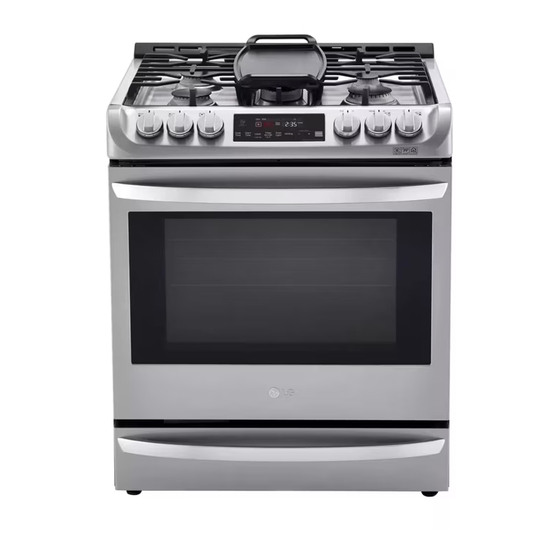

30" DUAL FUEL RANGE
SERVICE MANUAL
MODEL: LSD4913ST
CAUTION
BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
July, 2018
P/NO : MFL37118392
Printed in Korea

Advertisement

Table of Contents
loading

Related Manuals for LG LSD4913ST

Summary of Contents for LG LSD4913ST

  • Page 1 Internal Use Only 30” DUAL FUEL RANGE SERVICE MANUAL MODEL: LSD4913ST CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. July, 2018 P/NO : MFL37118392 Printed in Korea...
  • Page 2 SAFETY PRECAUTIONS • Repairs of the appliance should be carried out by a licensed technician only. Incorrect repairs may result in dangerous situations. If you need repairs, contact an LG Service Center or your dealer. • If the power cord is defective, it must be replaced by a qualified service agent with a UL listed range cord.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS (Page) GENERAL - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-1 ~ 1-5 •...
  • Page 4 (Page) COMPONENT TEST - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-1 ~ 4-4 - Oven (safety) valve - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-4 - Door switch - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-4 SCHEMATIC DIAGRAM - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-1 ~ 5-2...

  • Page 5: General

    GENERAL IMPORTANT SAFETY INSTRUCTIONS Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, injury to person, or damage when using the range. This guide don’t cover all possible conditions that may occur. For further assistance contact your service agent or manufacturer.
  • Page 6 GENERAL IMPORTANT SAFETY INSTRUCTIONS • Be sure your appliance is properly installed and grounded by a WARNING qualified technician. • Do not repair or replace any part of the appliance unless • DO NOT touch heating elements or specifically recommended in the manual. interior surfaces of oven.
  • Page 7 GENERAL IMPORTANT SAFETY INSTRUCTIONS SELF-CLEAN OVENS • Do Not Leave Children Alone - Children should not be left alone or unattended in area where appliance is in use. They should never be • Do Not Clean Door Gasket – The door gasket is essential for a allowed to sit or stand on any part of the appliance.

  • Page 8: Model & Serial Number Label And Tech Sheet Locations

    GENERAL MODEL & SERIAL NUMBER LABEL AND TECH SHEET LOCATIONS The Model/Serial Number label and Tech Sheet locations are shown below. Tech Sheet Location Model & Serial Number Location...

  • Page 9: Specifications

    GENERAL SPECIFICATIONS Model Number LSD4913 Category Slide-in oven range Overall Width 29⅞ Installation type Slide-In Color availability Control Oven Glass Touch Cooktop Knob Display Electronic clock & timer Control lock capability Audible preheat signal Special function Setting (6 categories) 1. Change hour mode on Clock 2.

  • Page 10: Using Your Range

    USING YOUR RANGE GENERAL INFORMATION Convection Bake / Roast Mode Rating Label Upper element, lower element, Rear element(some Model numbers are recorded on the rating label. model) and fan operate during convection bake. Rating label is located on the lower front left corner Convection bake should be used for cooking of the oven frame.

  • Page 11: Control Panel Features

    USING YOUR RANGE CONTROL PANEL FEATURES A. LEFT FRONT CONTROL KNOB: Use to control F. OVEN MODE KNOB: Turn the knob to select oven Left Front Burner operating mode. B. LEFT REAR CONTROL KNOB : Use to control G. GAS OVEN CONTROL : Use to control Gas Oven. Left Rear Burner C.
  • Page 12 USING YOUR RANGE CONTROL PANEL FEATURES 1. Smart Diagnosis – Use during the Smart 8. - /+ – Press the plus button (+) to increase cooking Diagnosis feature. time or oven temperature. Press the minus button (-) to decrease cooking time 2.

  • Page 13: Setting The Clock

    USING YOUR RANGE 1. SETTING THE CLOCK 2) CONVECTION AUTO CONVERSION 1. Set both oven mode knobs to the Off position. 1. Set the oven mode knob to the Off position. 2. Press Clock for three seconds. 2 .Press Setting until Auto appears in the 3.

  • Page 14: Bake, Timed Bake, Delated Timed Bake

    USING YOUR RANGE 5. BAKE, TIMED BAKE, DELAYED TIMED BAKE Desired BAKE START temperature COOK Desired time START TIME START Desired START TIME start time * This feature can also be used with the: CONVECTION BAKE and CONVECTION ROAST modes. 6.

  • Page 15: Component Access

    COMPONENT ACCESS This section instructs you on how to service each component inside the range. The components and their locations are shown below. COMPONENT LOCATIONS Lock Motor and Burner Body Micro Switch Oven light Pipe Igniter (broil) Spark module Door switch Broil burner Oven sensor Conv.Heater,...
  • Page 16 COMPONENT ACCESS REMOVING THE BACK COVER WARNING • DISCONNECT power supply cord from the outlet before servicing. • Replace all panels and parts before operating. • RECONNECT all grounding devices. - Failure to do so can result in severe personal injury, death or electrical shock.
  • Page 17 COMPONENT ACCESS REMOVING THE OVEN RELAY PCB, POWER PCB 4. To remove the Oven Relay PCB, Disconnect 8ea WARNING connectors. • DISCONNECT power supply cord from the outlet before servicing. • Replace all panels and parts before operating. • RECONNECT all grounding devices. - Failure to do so can result in severe personal injury, death or electrical shock.
  • Page 18 COMPONENT ACCESS REMOVING THE CONTROLLER 6. To remove the controller WARNING • DISCONNECT power supply cord from the outlet before servicing. • Replace all panels and parts before operating. • RECONNECT all grounding devices. You can remove the controller after unplug the - Failure to do so can result in severe personal 7ea connectors of Main PCB and Cooktop injury, death or electrical shock.
  • Page 19 COMPONENT ACCESS REMOVING THE MAIN PCB AND KEY PCB ASSEMBLY WARNING • DISCONNECT power supply cord from the outlet before servicing. • Replace all panels and parts before operating. • RECONNECT all grounding devices. - Failure to do so can result in severe personal 5.
  • Page 20 COMPONENT ACCESS REMOVING THE COOKTOP PLATE 5. Remove the vent bracket WARNING • DISCONNECT power supply cord from the outlet before servicing. • Replace all panels and parts before operating. • RECONNECT all grounding devices. - Failure to do so can result in severe personal injury, death or electrical shock.
  • Page 21 COMPONENT ACCESS ASSMBLY THE COOLING FAN WARNING • DISCONNECT power supply cord from the outlet before servicing. SPARK MODULE • Replace all panels and parts before operating. • RECONNECT all grounding devices. - Failure to do so can result in severe personal injury, death or electrical shock.
  • Page 22 COMPONENT ACCESS REMOVING THE COOKTOP PARTS 3. To remove the valve: WARNING a) Remove the manifold panel (See the step 3 on page 3-5). • DISCONNECT power supply cord b) Remove the fitting that you need to remove. from the outlet before servicing. c) Remove the ignition switch by prying on the 2 •...
  • Page 23 COMPONENT ACCESS 4. To remove the ignition switch: a) Remove the manifold panel (See the step 3 on page 3-5). b) Pry on the 2 release tabs and slide the switch off the valve stem. c) Remove the 2 connectors and remove the ignition switch.
  • Page 24 COMPONENT ACCESS REMOVING THE DOOR LATCH & DOOR SWITCH b) Remove the door latch. WARNING 5. To remove the door switch: • DISCONNECT power supply cord a) Remove the door switch from the range. from the outlet before servicing. To do this, squeeze tabs and use a ratchet extension or a small socket, and tap it out of •...
  • Page 25 COMPONENT ACCESS e) Remove the door latch from the burner box 8. To remove the door switch and unhook the actuating rod. a) Disconnect the wires from the terminal b) Remove the door switch from the range. To do this, squeeze tabs and use a ratchet extension or a small socket, and tap it out of the hole with a hammer.
  • Page 26 COMPONENT ACCESS REMOVING THE BROIL ELEMENT b) Remove the 4 screws from the front and rear WARNING brackets. • DISCONNECT power supply cord Screws from the outlet before servicing. • Replace all panels and parts before operating. • RECONNECT all grounding devices. - Failure to do so can result in severe personal injury, death or electrical shock.
  • Page 27 COMPONENT ACCESS REMOVING THE CONVECTION ELEMENT, FAN BLADE AND FAN MOTOR 7. To remove Fan blade, remove Nut by screwing 1. Disconnect power and remove oven racks. clockwise. Fan blade can be replaced from inside 2. Pull the range out of its mounting location so that oven.
  • Page 28 COMPONENT ACCESS REMOVING THE OVEN LIGHT & SOCKET ASSEMBLY WARNING CAUTION • DISCONNECT power supply cord • Be careful not to scratch or chip the from the outlet before servicing. oven liner paint when you remove • Replace all panels and parts before the oven light socket in the next operating.
  • Page 29 COMPONENT ACCESS REMOVING THE LATCH DRIVE ASSEMBLY DOOR LOCKING MECHANISM WARNING The door lock assembly is located at the back side • DISCONNECT power supply cord of range. from the outlet before servicing. The structural elements are as below. • Replace all panels and parts before 1.
  • Page 30 COMPONENT ACCESS REMOVING THE OVEN TEMPERATURE SENSORS 5. To remove an oven temperature sensor, WARNING zdisconnect the connector from the main harness and remove the mounting screw in oven cavity. • DISCONNECT power supply cord from the outlet before servicing. Main oven Sensor •...
  • Page 31 about 5° COMPONENT ACCESS REMOVING & REPLACING THE LIT-OFF OVEN DOOR AND DRAWER Replacing the Door CAUTION Step. 1 • Be careful when removing and Firmly grasp both lifting the door. sides of the door • DO NOT lift the door by the handle. at the top.
  • Page 32 COMPONENT ACCESS REMOVING & REPLACING THE LIT-OFF OVEN DOOR AND DRAWER Step. 4 CAUTION Pull the drawer away from the range. • Disconnect the electrical power to the range at the main fuse or circuit Replacing the Door breaker panel. Failure to do so can result in severe personal injury, death, or electrical shock.
  • Page 33 COMPONENT ACCESS REMOVING A SIDE PANEL 8. Pull the back of the side panel out from the range WARNING approximately 10˚ • DISCONNECT power supply cord from the outlet before servicing. • Replace all panels and parts before operating. • RECONNECT all grounding devices. - Failure to do so can result in severe personal injury, death or electrical shock.
  • Page 34 COMPONENT ACCESS REMOVING THE OVEN DOOR HANDLE & GLASS 6. To remove the door handle & air guide WARNING a) Remove 2 screws from air guide and then remove the air guide by lifting that. • DISCONNECT power supply cord from the outlet before servicing.
  • Page 35 COMPONENT ACCESS 7. To remove a hinge hanger assembly: a) Follow the step 3~4 on page 3-16. b) Place the frame assembly on a padded work surface. c) Remove 4screws from door frame middle. Outer glass 4 Screws a) Lift the outer glass and bracket out of the door liner.
  • Page 36 COMPONENT ACCESS REMOVING THE OVEN DOOR GASKET 3. Pull the ends of the gasket out of the liner holes. WARNING Liner Hole • DISCONNECT power supply cord from the outlet before servicing. • Replace all panels and parts before operating. •...
  • Page 37 COMPONENT ACCESS REMOVE THE OVEN VALVE (SAFETY VALVE) & GAS PRESSURE REGULATOR 5. To remove the gas regulator: WARNING a) Remove the 2 fittings and a gas supplier fitting. • DISCONNECT power supply cord b) Remove the 2 screws. from the outlet before servicing. •...
  • Page 38 COMPONENT TEST Before testing any of components, perform the following checks: NOTE: 1. The most common cause for control failure is corrosion on connectors. Therefore, disconnecting and reconnecting wires will be necessary throughout test procedures 2. ALL units in the first few days of use should be checked for mis-wiring or loose connections 1.
  • Page 39 Components Test procedures Results Normal: Approximately Door locking Motor 1. Refer to page 3-14 for the servicing procedure 2.6 kΩ ± 10% 2. Measure the resistance If not replace (Multiple meter scale: R x 1000) Abnormal: Infinite(open) below 5Ω (shorted) Door latch Door latch Micro Switch...
  • Page 40 Components Test procedures Results Door switch Door open Door closed 1. Refer to page 3-9 for the servicing procedure 2. Measure the resistance after cooling down (Multiple meter scale: R x 1000) Continuity Infinite Broil heater Normal: Approximately 1. Refer to page 3-10 for the servicing procedure 23 Ω...
  • Page 41 Components Test procedures Results Oven (safety) valve 1. Refer to page 3-21 for servicing procedure. Normal: Approximately 1 ~ 3 Ω 2. Measure the resistance after cooling down. If not replace (Multiple meter scale : R x 1) Upside Downside Door switch 1.

  • Page 42: Schematic Diagram

    SCHEMATIC DIAGRAM NOTE: WARNING Schematic diagram shows POWER MUST BE DISCONNECTED BEFORE oven door opened and unlocked.All elements are SERVICING THE APPLIANCE. FAILURE TO DO SO set to “OFF”. CAN RESULT IN DEATH OR ELECTRICAL SHOCK.

  • Page 43: Strip Circuits

    STRIP CIRCUITS Complete the following steps before checking electric oven circuit : 1.Check the line voltage, household fuse or circuit breaker. 2.Check for loose wiring or mis-wiring within electric range. NOTE: The following individual circuits are for use in diagnosis, and are shown in the ON position. For Model: LSD4913 BAKE / CONV.

  • Page 44: Composition Of Control

    COMPOSITION OF CONTROL Main PCB ( P/N : EBR82864011) Front Relay PCB ( P/N : EBR80595407) Back SMPS PCB ( P/N : EBR80595701) Touch PCB ( P/N : EBR79627801) Encoder PCB ( P/N : EBR80327001) Controller assembly Wi-Fi PCB ( P/N : EBR83227508) Buzzer PCB ( P/N : EBR76332902)
  • Page 45 COMPOSITION OF CONTROL Main PCB ( P/N : EBR82864011) CN52 CN22 CN53 CN20 CN31 CN51 CN40 CN03 CN01 CN50 Relay PCB ( P/N : EBR80595407) CN52 CN51 CN53...
  • Page 46 COMPOSITION OF CONTROL SMPS PCB ( P/N : EBR80595701) CN02 CN01 Encoder PCB ( P/N : EBR80327001) CN41...
  • Page 47 COMPOSITION OF CONTROL Touch PCB ( P/N : EBR79627801) Wi-Fi PCB / Buzzer PCB ( P/N : EBR83227508) ( P/N : EBR76332902)

  • Page 48: Svc Test Mode

    SVC TEST MODE 7-1 Sequence of SVC Test Mode ■ To enter the test mode, follow these steps: (1) Press the any button, and encoder is placed in the Off (2) Press the button in the following order : + M_ M Oven light (Oven Light hold for 3 seconds) (3) Press the OVEN LIGHT button again.
  • Page 49 SVC TEST MODE • Active Load Icon • SW Version Current inspecting Relay’s information is displayed (7) Whenever you input the START button, the relay operation sequence should be as seen below. ※ Relay Operation Sequence RY11 RY12 RY13 Conv. Broil C/Fan C/Fan...
  • Page 50 SVC TEST MODE 7-2 Basic Check Summary Symptom : no heating(F9) Symptom : Oven hot(F6) -. Check : All heater relays and DLB -. Check: All heater relays are relay are open open/shorted Symptom : Sensor error or no heating(F1,F2) Symptom : Door lock fail (F10) -.

  • Page 51: Troubleshooting

    TROUBLESHOOTING 8-1 Check the Failure Code ■ When the oven has a malfunction while cooking, Cooking will be canceled and log data of F-code will be recorded in EEPROM. F-code will not display during normal operation. ■ Check the failure code following these steps. 1.

  • Page 52: Failure Code Summary

    TROUBLESHOOTING 8-2 Failure Code Summary Code Description explanation Check point Sensor open Oven Thermistor is open 1. Wiring 2. Oven Sensor Sensor short Oven Thermistor is shorted. 1. Wiring 2. Oven Sensor 1. If ‘25 key short’ occurred 3 times in 90 seconds. Key short 1.

  • Page 53: Checking Flow Chart By Failure

    CHECKING FLOW CHART BY FAILURE Symptom Check Point 1. Power Failure 1. Check Electrical Wiring (Dead) 2. Check the SMPS PCB Input Voltage with CN01 2. No Display CN01 CN03 CN02 Main PCB CN03 Pin No. Voltage Vf(4.3V) -33V CN02 Thermostat CN01 SMPS PCB...

  • Page 54: Power Failed(Dead), No Display

    CHECKING FLOW CHART BY FAILURE Power Failed (Dead), No display? Go to 7 Check the AC input of SMPS (On the next PCB. Page) Plug the unit - SMPS PCB CN01 (Pin 1 and 3) Check the button beep. 120V AC? Touch the Clear button, Change the Can hear the beep...
  • Page 55 CHECKING FLOW CHART BY FAILURE Check the connecting states Replace the Main PCB between CN02 of SMPS PCB and CN03 of Main PCB. Is it OK? Reconnect. If defective harness, replace or fix. If the same phenomenon occurs even though after fixed connection, you should replace the Main PCB...

  • Page 56: No Heating, F9

    CHECKING FLOW CHART BY FAILURE Symptom Check Point 1. No heating 1. Check Electric Wiring 2. F9 2. Check Heater’s Resistance. 3. Check the Sensor. Broil RY13 RY12 Conv Heater RY11...
  • Page 57 CHECKING FLOW CHART BY FAILURE Symptom Check Point 1. No heating 1.Check Electrical Wiring 2. F9 2.Check Heater’s Resistance. 3.Check the Sensor. CN31...
  • Page 58 CHECKING FLOW CHART BY FAILURE Oven does NOT heat, F9? Check the resistance Replace the Unplug the unit of each heater. Normal? failed heater (Measure the resistance after cooling down. The resistance Reconnect. If is shown below) Is the Connector defective disconnected or loose? harness,...
  • Page 59 CHECKING FLOW CHART BY FAILURE Unplug the unit Range Of resistance Replace the Is the resistance of defective Heater Resistance[ Ω thermistor normal? Thermistor Approximately Broil 13.5 Check: Conv. Heater Pins 4 and 5 of CN31 in main PCB Normal- approximately 1.09kΩ at 25˚C Plug in the unit Is the value of thermistor Go to No 6...
  • Page 60 CHECKING FLOW CHART BY FAILURE Symptom Check Point 1. Door Lock System 1. Check the Electrical wiring Failure 2. Check the Motor’s Resistance 2. F10 3. Check the Relay PCB (Door Lock Relay) CN31...
  • Page 61 CHECKING FLOW CHART BY FAILURE Symptom Check Point 1. Door Lock System 1. Check the Electrical wiring Failure 2. Check the Motor’s Resistance 2. F10 3. Check the Relay PCB (Door Lock Relay)

  • Page 62: Door Lock System Failure,F10

    CHECKING FLOW CHART BY FAILURE Door Lock System Failure,F10? Plug in the unit Unplug the unit Note : Reconnect. If Just after self-clean start, the door lock motor Is the Connector disconnected defective starts to rotate. or loose? harness, During this time if the door lock switch does Check the following : replace or fix NOT operate properly after rotating twice,...
  • Page 63 CHECKING FLOW CHART BY FAILURE Replace the Relay PCB. If the same phenomenon occurs even though after replace Relay PCB, you should replace the Is the door lock switch Replace the Main PCB. (micro switch) normal? micro switch measure the resistance of door lock switch T normally open type Abnormal Normal...

  • Page 64: Sensing Fail / F1 / F2

    CHECKING FLOW CHART BY FAILURE Symptom Check Point 1. Sensing Fail 1.Check the Electrical Wiring 2. F1 2.Check the Test Mode 3. F2 3.Check the Sensor’s Resistance CN31 9-12...
  • Page 65 CHECKING FLOW CHART BY FAILURE Sensing Fail, F1, F2? Unplug the unit Replace the Is the resistance of Is the Connector Reconnect defective thermistor normal? disconnected or loose? or adjust the Thermistor 1. Sensor connection connection 2. CN31 of Main PCB Check: Pins 4 and 5 of CN31 wiring in main PCB Normal- approximately 1.09kΩ...
  • Page 66 CHECKING FLOW CHART BY FAILURE Plug in the unit Is the value of thermistor Replace the normal? (Refer below) Relay PCB Check with the test mode To enter the test mode, follow these steps: 1. Press the any button, and encoder is placed in the Off 2.
  • Page 67 CHECKING FLOW CHART BY FAILURE Symptom Check Point 1. Oven hot 1.Check the Resistance of the Relay. 2. F6 2.Check the Sensor’s Resistance Broil RY13 RY12 Conv Heater RY11 9-15...
  • Page 68 CHECKING FLOW CHART BY FAILURE Symptom Check Point 1. Oven hot 1.Check the Resistance of the Relay. 2. F6 2.Check the Sensor’s Resistance CN31 9-16...

  • Page 69: Oven Hot, F6

    CHECKING FLOW CHART BY FAILURE Oven hot, F6? Is the heater relay normal? Replace the Relay PCB Unplug the unit Measure the resistance of Heater relay and Live. Replace the Is the resistance of defective Normal : infinite thermistor normal? Thermistor Abnormal : shorted Check:...
  • Page 70 CHECKING FLOW CHART BY FAILURE Plug in the unit Is the DLB relay normal? Replace the Is the value of thermistor Replace the Measure the resistance relay PCB normal? (Refer below) Main PCB Check with the test mode Normal : infinite Abnormal : shorted To enter the test mode, follow these steps: 1.

  • Page 71: Key Not Working / F3 Error

    CHECKING FLOW CHART BY FAILURE Symptom Check Point 1. Key not working 1. Check the Door Locking System. 2. F3 Error 2. Check the Electrical Wiring. CN53 9-19...
  • Page 72 CHECKING FLOW CHART BY FAILURE Plug in the unit F3 error (Button short error) Or button does not input Replace the Control panel. (With Glass Touch PCB) Unplug the unit And then check button operation using key test mode Reconnect o enter the test mode, follow these steps: Check the connecting states or adjust the...

  • Page 73: Appendix

    APPENDIX Key operation Test sequence ※ How to check button operation 1. Keys should be accessed according to the above sequence and check the beep sound when key is accessed If Key is the normal operation will be the number that corresponds to the Key displayed on the 2.

  • Page 74: Exploded View

    #EV# EXPLODED VIEW INTRODUCTION MODEL: Customer Model Product Code SVC Model COOKTOP PARTS CONTROLLER PARTS DOOR PARTS 9504 9506 W229 9381 9532 DRAWER PARTS CAVITY PARTS 8511...
  • Page 75 #EV# DOOR PARTS W243 102U 1008 W222 1020 1000 1703 1015 1035 1382 W230 W222 1009 W101 102S W230 173U W101 1018 102L 1704...
  • Page 76 #EV# CONTROLLER PARTS 244A 5016 5206 2385 244E 244A 260B 260M 2001 2051 2221 2006 2053 303L 2002 260K 303R 555C 2037 555C 2090 2047 2050 260E 2042 2043 2044 2045 2046...
  • Page 77 #EV# COOKTOP PARTS 3944 3946 3945 7384 3006 3976 3977 G058 3973 3979 W294 3978 3974 3972 W294 3056 2058 W323 521L 2041 3991 3992 3960 3990 3995 3961 W323 3993 3962 3994 521R 3964 3965 3940 3951 3981 3952 3950 G039 3950...
  • Page 78 #EV# DRAWER PARTS 8514 8501 8513 8523 8507 W230 8517 1009 8504 8524 5505 8602 8512 851D 5505 851D 6008 8508...
  • Page 79 #EV# CAVITY PARTS 3947 5540 9384 3013 3024 3063 3501 5124 3057 5501 5510 5517 5063 546L 5504 5032 5039 546R 5405 W102 5535 W129 5511 5502 5408 5006 4002 5020 3208 5611 507S 5611 5535 W124 507R 5407 W233 W140 W287 5521...
