Panasonic PV-20DF63 Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. TV DVD Combo
  5. PV 20DF63
  6. Service manual
Panasonic PV-20DF63 Service Manual

Panasonic PV-20DF63 Service Manual

Hide thumbs Also See for PV-20DF63:

Advertisement

Quick Links

Download this manual

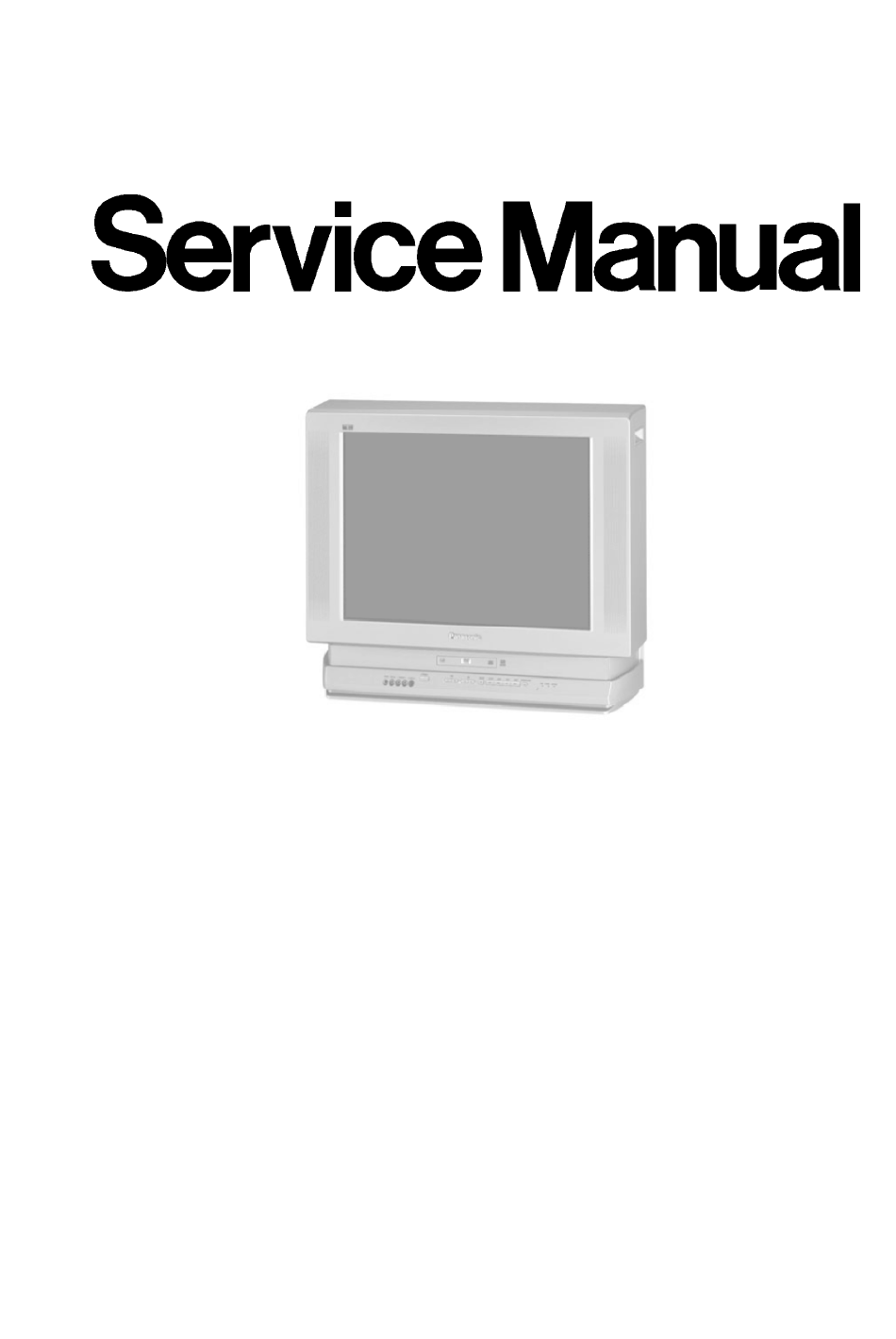

ORDER NO. MKE0303602C1
B6, B22
TV/DVD Combination
PV-20DF63 / PV-27DF63
SPECIFICATIONS
1

Advertisement

loading

Related Manuals for Panasonic PV-20DF63

Summary of Contents for Panasonic PV-20DF63

  • Page 1 ORDER NO. MKE0303602C1 B6, B22 TV/DVD Combination PV-20DF63 / PV-27DF63 SPECIFICATIONS...
  • Page 2 1. SAFETY PRECAUTIONS 1.1. GENERAL GUIDELINES 1. IMPORTANT SAFETY NOTICE There are special components used in this equipment which are important for safety. These parts are marked by in the Schematic Diagrams, Circuit Board Layout, Exploded Views and Replacement Parts List. It is essential thatthese critical parts should be replaced with manufacturer’s specified parts to prevent X-RADIATION, shock, fire, or other hazards.
  • Page 3 servicing of Combination TV/DVD whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidentsresulting in personal injury from electrical shocks. It will also protect Combination TV/DVD from being damaged by accidental shorting that may occur during servicing.
  • Page 4 picture tube to the CRT ground of receiver beforehandling the tube. 8. After servicing make the following leakage current checks to prevent the customer from being exposed to shock hazards. 1.2. LEAKAGE CURRENT COLD CHECK 1. Unplug the AC cord and connect a jumper between the two prongs on the plug.
  • Page 5 2. X-RADIATION WARNING : 1. The potential source of X-Radiation in TV sets is the High Voltage section and the picture tube. 2. When using a picture tube test fixture for service, ensure that the fixture is capable of handling 33.0 kV (For model with 20 inch CRT), 30.0 kV (For model with 27 inch CRT) without causing X- Radiation.
  • Page 6 Main C.B.A. Figure 2 3. Turn on SW1 and then turn on the set. Confirm that the picture is on the screen properly. 4. Confirm that the picture goes out of horizontal sync while getting down by varying VR. 5. If this does not occur, it means that X-ray protect circuit is not operating.
  • Page 7 2.4. LASER PRODUCT CLASS I LASER PRODUCT - This equipment is certified to comply with DHHS Rules 21 CFR Chapter 1, Subchapter J in effect as of date of manufacture. (Only for U.S.A.) This equipment is classified as a Class I (Class 1) level LASER Product and there is no hazardous LASER radiation with the safety protection.
  • Page 8 6. Use of control or adjustment or performance of procedures other than those specified herein may result in hazardous radiation exposure. 3. PREVENTION OF ELECTROSTATIC DISCHARGE (ESD) TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices.
  • Page 9 leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8.
  • Page 10 is displayed, and then the POWER button is pressed back on. 1. With power turned off, press PLAY and SKIP+ buttons on the unit together for over 3 seconds. Fig. 1-1 2. TV power comes on and the unit goes into service mode. Communication for I C bus code will be displayed.
  • Page 11 5.1.2. USAGE SCREEN MODE This function is displayed on the TV monitor: - the total elapsed "Power on" time (in days) - the total elapsed "DVD play" time (in hours). 1. With power turned, press STOP button of operation panel on the unit and 7 key on the remote together.
  • Page 12 The static electricity of your clothes will not be grounded through the wrist strap. So take care not to let your clothes touch the optical pickup. Fig. 4 5.1.4. METHOD FOR EJECTING THE DVD TRAY MANUALLY 1. Insert a Screwdriver or similar object into the Eject hole. 2.
  • Page 13 Fig. 6-1-1 3. In order to stabilize the TV Main C.B.A. and the Tuner Main C.B.A., attach the PCB Holder Piece to the C.B.A.s. Fig. 6-1-2 5.1.5.1.2. Service Position (2) Fig. 6-2 5.1.5.1.3. Service Position (3) In Service Position (3), the DVD Main C.B.A. without Extension Cables can be performed. Fig.
  • Page 14 5.1.6. HOT CIRCUIT Primary circuit exists on the TV Main C.B.A. This circuit is identified as " HOT " on the C.B.A. and in the Service Manual. Use extreme care to prevent accidental shock when servicing. 5.1.7. F.P.C. CONNECTION NOTE 5.1.7.1.
  • Page 15 5.1.8. WIRE AND LEAD POSITION DIAGRAM Fig. 8...
  • Page 16 5.1.9. HOW TO RESET ALL COMBINATION TV/DVD MEMORY FUNCTIONS To reset (clear) the select language, channel auto set and set clock functions to their initial power on condition, hold down the PLAY and SKIP- buttons of operation panel on the unit together for more than 5 seconds.
  • Page 17 and confirm this feature. 5.1.11. VARIABLE VOLTAGE ISOLATION TRANSFORMER An Isolation Transformer should always be used during the servicing of Combination TV/DVD whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resultingin personal injury from electrical shocks.
  • Page 18 Fig. D2...
  • Page 19 Fig. D3...
  • Page 20 6.1.1.1. Notes in chart 1. Removal of DVD Ass’y Fig. D4...
  • Page 21 2. Removal of Color Picture Tube Unit Place the Unit face down on a soft cloth before removing the Color Picture Tube Unit. 3. Removal of DVD Sub C.B.A. A. Remove solder portions "a," "b," and "c" on the DVD Sub C.B.A. B.
  • Page 22 7. ADJUSTMENT PROCEDURES 7.1. SERVICE FIXTURES AND TOOLS 7.2. ELECTRICAL ADJUSTMENT NOTE: Following Adjustments have been preadjusted at factory and are not required. - Purity Adjustment - Static Central Convergence Adjustment - Dynamic Convergence Adjustment 7.2.1. TEST EQUIPMENT To do all of these electrical adjustments, the following equipment is required. 1.
  • Page 23 7. Degaussing Coil 8. White Pattern Generator 9. Audio Generator 10. DVD Test Disc 7.2.2. HOW TO READ THE ADJUSTMENT PROCEDURES Fig. E1 7.2.3. FM VCO ADJUSTMENT Note: Remove the DVD unit before performing this adjustment. Purpose: To set VCO free run frequency. Symptom of Misadjustment: Even when stereophony is received, only monaural sound will be output.
  • Page 24 ---------- Mode : STEREO audio (FM Radio) Equipment : Frequency Counter 1. Connect Pin 41 of P4209 on Audio C.B.A. to GND. Fig. E2-1 2. Connect TP9201 on Audio C.B.A. to GND through a resistor (3.3 k ). Then, connect Frequency Counter to TP9201. Fig.
  • Page 25 Equipment: Oscilloscope, DVD Test Disc 1. Playback 100% Flat Field on the DVD Test Disc in DVD PLAY Mode. 2. Connect the Oscilloscope to TP8406 on the DVD Main C.B.A. and GND (TP8521 on the DVD Main C.B.A.). 3. Adjust R8044 on the DVD Main C.B.A. so that the level A becomes 1.0 V[P-P]±0.05 V[P-P].
  • Page 26 - SUB COLOR/SUB TINT ADJUSTMENT - DEFLECTION DISTORTION CORRECTION ADJUSTMENT - WHITE BALANCE ADJUSTMENT - SUB BRIGHTNESS ADJUSTMENT 7.2.7. HOW TO ENTER EVR ADJUSTMENT MODE Press and hold STOP, SKIP + and VOL - buttons of operation panel on the unit together over 5 seconds with no cassette inserted.
  • Page 27 Fig. E4-4 5. Press UP/DOWN key on the remote control to select a control function for the next adjustment if necessary. Fig. E4-5 7.2.7.2. How to release from EVR Adjustment Mode: Press and hold STOP, SKIP + and VOL - buttons of operation panel on the unit together over 5 seconds again or press the POWER button OFF to release EVR adjustment mode.
  • Page 28 Adjustment : SUB CONTRAST (EVR), Specification : Refer to descriptions below. Input : Video Input Jack, Crosshatch Pattern Signal 1 V[p-p] (75 terminated) Mode : STOP Equipment : Oscilloscope, NTSC Video Pattern Generator 1. Supply a Crosshatch Pattern Signal to the Video Input Jack. 2.
  • Page 29 Symptom of Misadjustment: The picture is will be an improper screen color mix. Test Point : TP50 (CRT C.B.A.) Adjustment : FOCUS CONTROL (Flyback Transformer), SCREEN CONTROL (Flyback Transformer), SUB BRIGHT (EVR), G DRIVE (EVR), B DRIVE (EVR), R CUT-OFF (EVR), G CUT-OFF (EVR), B CUT-OFF (EVR) Specification :...
  • Page 30 5. Turn the SCREEN CONTROL on the Flyback Transformer fully counterclockwise. 6. Press DISPLAY key on the remote control for collapse scan. (Refer "HOW TO ENTER SERVICE MODE.") 7. Adjust SUB BRIGHT in EVR adjustment mode so that the level A is (170 VDC±5 VDC: For model with 20 inch CRT), or (185 VDC±5 VDC : For model with 27 inch CRT).
  • Page 31 the picture has adequate brightness. 12. Select G DRIVE and B DRIVE in EVR adjustment mode and adjust so that the entire screen is white. Note: Before pressing DISPLAY key on the remote control for collapse scan, select the desired control function and move the shaded area to the value.
  • Page 32 Fig. E8-1 5. Select SUB COLOR in EVR adjustment mode and adjust which higher level that level C is 1.50 V[p-p]±0.15 V[p-p]. Fig. E8-2 6. Select SUB TINT in EVR adjustment mode and increase level B 1 clicks above the same level. Fig.
  • Page 33 Symptom of Misadjustment : The picture is distortion. Test Point : ---------- Adjustment : V POSITION (EVR), V SIZE (EVR), H-CENTER (EVR), (For model with 27 inch CRT) R763 (Deflection C.B.A.), R753 (Deflection C.B.A.), R766 (Deflection C.B.A.) Specification : Refer to descriptions below. Input : Video Input Jack, Crosshatch Pattern Signal,...
  • Page 34 4. (For model with 27 inch CRT) Adjust R753 so that vertical lines at Left edge and Right edge should be almost straight. 5. Supply a Monoscope Pattern Signal to the Video Input Jack. 6. Select V POSITION in EVR adjustment mode and adjust Horizontal Center Line is within the limits of A.
  • Page 35 Symptom of Misadjustment : White becomes bluish or reddish. Test Point : TP50 (CRT C.B.A) Adjustment : FOCUS CONTROL (Flyback Transformer), SCREEN CONTROL (Flyback Transformer), SUB BRIGHT (EVR), G DRIVE (EVR), B DRIVE (EVR), R CUT-OFF (EVR), G CUT-OFF (EVR), B CUT-OFF (EVR) Specification : Refer to descriptions below.
  • Page 36 5. Turn the SCREEN CONTROL on Flyback Transformer fully counterclockwise. 6. Press DISPLAY key on the remote control for collapse scan. (Refer "HOW TO ENTER SERVICE MODE.") 7. Adjust SUB BRIGHT in EVR adjustment mode so that the level A is 175 VDC±5 VDC.
  • Page 37 so that the entire screen is white. 13. Confirm that the screen is tracking the White Pattern properly. If NG, repeat the above steps 8, 9 and 12 until the screen is properly tracking the White Pattern. 14. Select SUB BRIGHT in EVR adjustment mode and adjust correctly.
  • Page 38 7.3. TEST POINTS AND CONTROL LOCATION...
  • Page 39 8.1. SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES 8.2. MAIN SCHEMATIC DIAGRAMS 8.3. AUDIO SCHEMATIC DIAGRAMS 8.4. TV MAIN SCHEMATIC DIAGRAMS 8.5. DEFLECTION SCHEMATIC DIAGRAM (Model : PV-27DF63) 8.6. TUNER MAIN SCHEMATIC DIAGRAM 8.7. CRT SCHEMATIC DIAGRAM (Model : PV-20DF63) 8.8. CRT SCHEMATIC DIAGRAM (Model : PV-27DF63)
  • Page 40 8.12. VOLTAGE CHART 9. CIRCUIT BOARD LAYOUT 9.1. MAIN C.B.A. 9.2. AUDIO/ TUNER MAIN C.B.A. 9.3. TV MAIN C.B.A. 9.4. CRT/ DEFLECTION C.B.A. 9.5. DVD MAIN/ DVD SUB C.B.A. 10. BLOCK DIAGRAMS 11. EXPLODED VIEWS (Model: PV-20DF63) 11.1. CHASSIS FRAME SECTION (1)
  • Page 41 11.2. CHASSIS FRAME SECTION (2)
  • Page 42 11.3. CHASSIS FRAME SECTION (3)
  • Page 43 11.4. PACKING PARTS AND ACCESSORIES SECTION...
  • Page 44 12. REPLACEMENT PARTS LISTS (Model: PV-20DF63) BEFORE REPLACING PARTS, READ THE FOLLOWING: 12.1. REPLACEMENT NOTES 12.1.1. General Notes 1. Use only original replacement parts: To maintain original function and reliability of repaired units, use...
  • Page 45 6. Definition of Parts supplier: A. Parts with mark "SPC" in the Remarks column are supplied from Spare Parts Center of Panasonic AVC Company. B. Parts without mark in the Remarks column are supplied from MKI. 7. Item numbers with capital letter E (Example: E10, E20, ..) in the Ref.
  • Page 46 3. When replacing the DVD Frame (Ref. No. 317), be sure to place the Rating Label (Ref. No. 318) on it. 4. When replacing the DVD Mechanism Unit (Ref. No. 242), be sure to place the Cabinet Label (Ref. No. 253) on it. 12.1.3.
  • Page 47 12.2. MECHANICAL REPLACEMENT PARTS LIST Definition of Parts supplier: 1. Parts with mark "SPC" in the Remarks column are supplied from Spare Parts Center of Panasonic AVC Company. 2. Parts without mark in the Remarks column are supplied from MKI. MECHANICAL REPLACEMENT PARTS...
  • Page 48 Ref. No. Part No. Part Name & Description Remarks LXQVB1203F2 COLOR PICTURE TUBE UNIT LXQKY1203F2 FRONT CABINET ASS'Y LXQKV1203F2 REAR COVER UNIT TBMA003 BADGE,ABS RESIN LXQAS8270RU SPEAKER UNIT LXQAS8270LU SPEAKER UNIT VKFS2235 BATTERY COVER LPE64005A BAG,POLYETHYLENE LSPG1456 PACKING CASE,PAPER LSQT0670B INSTRUCTION BOOK LSSQ0346 INFRARED REMOTE CONTROL UNIT...
  • Page 49 PNA4611M00HC INFRARED RECEIVER UNIT Ref. No. Part No. Part Name & Description Remarks VMAS1912 P.C.B. SUPPORT ANGLE LUS63008A HEAT SINK LSJA03492017 AC CORD W/PLUG,120V ENG36715G TUNER,UHF/VHF NR LML69001A ANODE LEAD CLAMPER TUC77628 HEAT SINK EYF52BC FUSE HOLDER LSSC0408 HEAT SINK LSSC0529 HEAT SINK LSSC0584...
  • Page 50 Ref. No. Part No. Part Name & Description Remarks IC4701 C0ABBB000017 IC, LINEAR IC4701 C1BB00000177 IC, LINEAR IC5301 AN15167A-VT IC, LINEAR IC5351 C1AB00001682 IC, LINEAR IC5351 C1AB00001519 IC, LINEAR IC5611 C1AB00001777 IC, LINEAR IC5611 C1AB00000408 IC, LINEAR IC5611 C1AB00001777 IC, LINEAR IC6001 MN101D06FCK IC, 8BIT MICROCONTROLLER...
  • Page 51 Ref. No. Part No. Part Name & Description Remarks D4587 MAZ41300HF DIODE ZENER 13V D4588 MAZ41300HF DIODE ZENER 13V D4591 MAZ41300HF DIODE ZENER 13V D4592 MAZ41300HF DIODE ZENER 13V D4593 MA2C165001VT DIODE SI D4593 B0AACK000004 DIODE SI D4593 1SS119 DIODE SI D4594 MA2C165001VT DIODE SI D4594...
  • Page 52 D5612 MA2C165001VT DIODE SI Ref. No. Part No. Part Name & Description Remarks D5612 B0AACK000004 DIODE SI D5612 1SS119 DIODE SI D6003 MA2C165001VT DIODE SI D6003 B0AACK000004 DIODE SI D6003 1SS119 DIODE SI D6005 MA2C165001VT DIODE SI D6005 B0AACK000004 DIODE SI D6005 1SS119 DIODE SI...
  • Page 53 Ref. No. Part No. Part Name & Description Remarks R5352 ERJ6GEYJ101V MGF CHIP 1/10W 100 R5353 ERJ6GEYJ101V MGF CHIP 1/10W 100 R5359 ERJ6GEYJ101V MGF CHIP 1/10W 100 R5361 ERJ6GEYJ221V MGF CHIP 1/10W 220 R5362 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K R5363 ERJ6GEYJ103V MGF CHIP 1/10W 10K R5381 ERJ6GEYJ563V MGF CHIP 1/10W 56K...
  • Page 54 R6012 ERJ6GEYJ561V MGF CHIP 1/10W 560...
  • Page 55 Ref. No. Part No. Part Name & Description Remarks R6013 ERJ6GEYJ102V MGF CHIP 1/10W 1K R6014 ERJ6GEYJ102V MGF CHIP 1/10W 1K R6015 ERJ6GEYJ103V MGF CHIP 1/10W 10K R6016 ERJ6GEYJ101V MGF CHIP 1/10W 100 R6017 ERJ6GEYJ101V MGF CHIP 1/10W 100 R6018 ERJ6GEYJ101V MGF CHIP 1/10W 100 R6019 ERJ6GEYJ153V MGF CHIP 1/10W 15K...
  • Page 56 Ref. No. Part No. Part Name & Description Remarks R6098 ERJ6GEYJ102V MGF CHIP 1/10W 1K R6100 ERJ6GEYJ102V MGF CHIP 1/10W 1K R6126 ERJ6GEYJ221V MGF CHIP 1/10W 220 R6127 ERJ6GEYJ221V MGF CHIP 1/10W 220 R6130 ERJ6GEYJ223V MGF CHIP 1/10W 22K R6131 ERJ6GEYJ183V MGF CHIP 1/10W 18K R6132 ERJ6GEYJ391V MGF CHIP 1/10W 390...
  • Page 57 Ref. No. Part No. Part Name & Description Remarks C4171 ECEA1HKA010 ELECTROLYTIC 50V 1UF C4591 ECEA1CKA470 ELECTROLYTIC 16V 47UF C4592 ECEA1CKA470 ELECTROLYTIC 16V 47UF C4701 ECEA1CKA100 ELECTROLYTIC 16V 10UF C4702 ECEA1CKA100 ELECTROLYTIC 16V 10UF C4703 ECJ2VF1H103Z C CHIP 50V 0.01UF C4704 ECEA1CKA100 ELECTROLYTIC 16V 10UF...
  • Page 58 Ref. No. Part No. Part Name & Description Remarks C6001 ECEA0JKA331B ELECTROLYTIC 6.3V 330UF C6002 ECJ2VC1H080C C CHIP 50V 8PF C6003 ECJ2VC1H100C C CHIP 50V 10PF C6004 ECJ2VB1E104K C CHIP 25V 0.1UF C6006 ECEA0JKA101 ELECTROLYTIC 6.3V 100UF C6009 ECEA1CKA100 ELECTROLYTIC 16V 10UF C6013 ECJ2VC1H101J C CHIP 50V 100PF C6017...
  • Page 59 Ref. No. Part No. Part Name & Description Remarks P1201 VJSS0875 CONNECTOR RECEPTACLE 13P P4005 LSJWR7N220AC CONNECTOR CABLE W/OUT PLUG,AC 18V P4006 K1MP05A00008 CONNECTOR 5P P4007 K1KB19A00007 CONNECTOR RECEPTACLE 19P P4501 K1KA02A00229 CONNECTOR 2P P4502 K1KA02A00229 CONNECTOR 2P P4591 LSJWR5N250AC CONNECTOR CABLE W/OUT PLUG P4801 K1MN16A00060...
  • Page 60 Ref. No. Part No. Part Name & Description Remarks IC4301 C0JBAR000002 IC, CMOS STANDARD LOGIC E.S.D. IC4301 CD4052BCM IC, CMOS STANDARD LOGIC E.S.D. IC4303 C0JBAR000002 IC, CMOS STANDARD LOGIC E.S.D. IC4303 CD4052BCM IC, CMOS STANDARD LOGIC E.S.D. IC4352 C0ABBB000017 IC, LINEAR IC4352 C1BB00000177 IC, LINEAR...
  • Page 61 DIODES Ref. No. Part No. Part Name & Description Remarks D4351 MA2C165001VT DIODE SI D4351 B0AACK000004 DIODE SI D4351 1SS119 DIODE SI D4352 MA2C165001VT DIODE SI D4352 B0AACK000004 DIODE SI D4352 1SS119 DIODE SI D4353 MA2C165001VT DIODE SI D4353 B0AACK000004 DIODE SI D4353 1SS119 DIODE SI...
  • Page 62 Ref. No. Part No. Part Name & Description Remarks R4378 ERJ6GEYJ562V MGF CHIP 1/10W 5.6K R4379 ERJ6GEYJ562V MGF CHIP 1/10W 5.6K R4601 ERJ6GEYJ105V MGF CHIP 1/10W 1M R4602 ERJ6GEYJ394V MGF CHIP 1/10W 390K R4603 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K R4604 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K R4605 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K...
  • Page 63 Ref. No. Part No. Part Name & Description Remarks R9216 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K R9217 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K CAPACITORS Ref. No. Part No. Part Name & Description Remarks C4301 ECEA1CKA101 ELECTROLYTIC 16V 100UF C4302 ECJ2VF1H103Z C CHIP 50V 0.01UF C4303 ECEA1CKA100 ELECTROLYTIC 16V 10UF...
  • Page 64 Ref. No. Part No. Part Name & Description Remarks C5665 ECJ2VF1H103Z C CHIP 50V 0.01UF C5666 ECEA0JKA220 ELECTROLYTIC 6.3V 22UF C5668 ECJ2VF1H103Z C CHIP 50V 0.01UF C5669 ECJ2VC1H181J C CHIP 50V 180PF C5670 ECJ2VF1H103Z C CHIP 50V 0.01UF C5671 ECJ2VF1H103Z C CHIP 50V 0.01UF C5672 ECJ2VF1H103Z C CHIP 50V 0.01UF C5673...
  • Page 65 Ref. No. Part No. Part Name & Description Remarks FL5651 LSLF0053 EMI FILTER COILS Ref. No. Part No. Part Name & Description Remarks L4351 ELESN101KA COIL 100UH L4601 G0C101KA0045 COIL 100UH L5652 ELESN150KA COIL 15UH L5653 LSLQF06R101K COIL 100UH L5654 ELESN4R7KA COIL 4.7UH L5655...
  • Page 66 TRANSISTORS Ref. No. Part No. Part Name & Description Remarks Q431 2SA1309AHA TRANSISTOR SI PNP Q431 B1ACCF000047 TRANSISTOR SI PNP Q501 B1AACN000013 TRANSISTOR SI NPN Q523 B1ACBM000001 TRANSISTOR SI PNP Q523 2SA17670QA TRANSISTOR SI PNP Q523 2SB12210QA TRANSISTOR SI PNP Q541 2SB0709ARL TRANSISTOR SI PNP CHIP...
  • Page 67 Ref. No. Part No. Part Name & Description Remarks D401 B0AAML000001 DIODE SI D401 1SR139-400 DIODE SI D402 MA2C165001VT DIODE SI D402 B0AACK000004 DIODE SI D402 1SS119 DIODE SI D503 B0HAGP000014 DIODE SI D504 MAZ40470MF DIODE ZENER 4.7V D504 B0BA4R600003 DIODE ZENER 4.7V D504 RD4.7ESAB2...
  • Page 68 Ref. No. Part No. Part Name & Description Remarks D856 B0HAGP000012 DIODE SI D857 B0HAJL000001 DIODE SI D857 B0HAGP000012 DIODE SI D858 B0HAJL000001 DIODE SI D858 B0HAGP000012 DIODE SI D859 B0JAPG000024 DIODE SI D859 B0JAPG000020 DIODE SI D859 B0JAPG000021 DIODE SI D860 B0EALR000005 DIODE SI D860...
  • Page 69 Ref. No. Part No. Part Name & Description Remarks D1514 B0JAME000049 DIODE SI D1514 B0JANE000011 DIODE SI D1514 B0JANE000022 DIODE SI D1515 B0HAJL000001 DIODE SI D1515 B0HAGP000012 DIODE SI D1516 MAZ4100NHF DIODE ZENER 10V D1516 RD10JSAB3 DIODE ZENER 10V D1518 MAZ4056NMF DIODE ZENER 5.6V D1519...
  • Page 70 Ref. No. Part No. Part Name & Description Remarks R401 ERJ6GEYJ561V MGF CHIP 1/10W 560 R402 ERDS2TJ223 CARBON 1/4W 22K R405 ERG1SJ331P METAL OXIDE 1W 330 R409 ERJ6GEYJ333V MGF CHIP 1/10W 33K R410 ERDS2TJ392 CARBON 1/4W 3.9K R411 ERJ6GEYJ823V MGF CHIP 1/10W 82K R413 ERJ6GEYJ273V MGF CHIP 1/10W 27K R414...
  • Page 71 Ref. No. Part No. Part Name & Description Remarks R586 ERDS2TJ562T CARBON 1/4W 5.6K R591 ERDS2TJ103 CARBON 1/4W 10K R592 ERDS2TJ472T CARBON 1/4W 4.7K R789 ERDS2TJ101 CARBON 1/4W 100 R801 VRESC2TK825T SOLID 1/2W 8.2M R802 ERDS2TJ472T CARBON 1/4W 4.7K R803 ERDS2TJ103 CARBON 1/4W 10K R804...
  • Page 72 Ref. No. Part No. Part Name & Description Remarks R1538 ERJ6GEYJ681V MGF CHIP 1/10W 680 CAPACITORS Ref. No. Part No. Part Name & Description Remarks C401 ECA1HM2R2B ELECTROLYTIC 50V 2.2UF C402 ECA1CM471B ELECTROLYTIC 16V 470UF C408 ECA1HGE010KB ELECTROLYTIC 50V 1UF C409 ECA1VM221B ELECTROLYTIC 35V 220UF...
  • Page 73 Ref. No. Part No. Part Name & Description Remarks C855 ECA1HHG470B ELECTROLYTIC 50V 47UF C856 ECJ2VB1H471K C CHIP 50V 470PF C857 VCESAS2D331E ELECTROLYTIC 200V 330UF C857 ECEC2DP331BB ELECTROLYTIC 200V 330UF C857 F2A2D3310002 ELECTROLYTIC 200V 330UF C857 F2B2D3310013 ELECTROLYTIC 200V 330UF C858 ECKN3D222KBP CERAMIC 2KV 2200PF C859...
  • Page 74 Ref. No. Part No. Part Name & Description Remarks C1507 F2A2D1210003 ELECTROLYTIC 200V 120UF C1507 VCESR2D121XE ELECTROLYTIC 200V 120UF C1508 F1B3D152A010 CERAMIC 2KV 1500PF C1509 F1B3A102A009 CERAMIC 500V 220PF C1510 ECJ2VB1E104K C CHIP 25V 0.1UF C1511 ECA2DHG4R7B ELECTROLYTIC 200V 4.7UF C1512 ECJ2VB1H821K C CHIP 50V 820PF C1515...
  • Page 75 Ref. No. Part No. Part Name & Description Remarks L552 J0JKA0000015 COIL L554 ELH5L4149 COIL L554 G0D790000001 COIL L801 ELF21V025A LINE FILTER L801 J0HBLH000001 LINE FILTER L802 ELF21V025A LINE FILTER L802 J0HBLH000001 LINE FILTER L850 J0JKA0000015 COIL L855 G0A100YA0001 COIL L856 VLQSAB7D220K COIL 22UH L857...
  • Page 76 Ref. No. Part No. Part Name & Description Remarks F801 K5D632AQ0002 FUSE 125V 6.3A F801 K5D632ADA001 FUSE 125V 6.3A F801 K5D632ADA008 FUSE 125V 6.3A F801 K5D632AD0002 FUSE 125V 6.3A F1501 K5D302AQ0003 FUSE 125V 3A F1501 K5D302ADA002 FUSE 125V 3A F1501 K5D302ADA006 FUSE 125V 3A F1501 K5D302AD0002 FUSE 125V 3A...
  • Page 77 MISCELLANEOUS Ref. No. Part No. Part Name & Description Remarks TMM76403-1 CLAMPER TMM77412 CLAMPER XYN3+F10S SCREW W/WASHER,STEEL XYE3+EJ10 SCREW W/WASHER,STEEL LUS63008A HEAT SINK LSJA03492017 AC CORD W/PLUG,120V LML69001A ANODE LEAD CLAMPER TUC77628 HEAT SINK EYF52BC FUSE HOLDER LSSC0408 HEAT SINK LSSC0529 HEAT SINK 12.3.4.
  • Page 78 Ref. No. Part No. Part Name & Description Remarks D9501 MA2C165001VT DIODE SI D9501 B0AACK000004 DIODE SI D9501 1SS119 DIODE SI D9502 MA2C165001VT DIODE SI D9502 B0AACK000004 DIODE SI D9502 1SS119 DIODE SI D9503 MAZ40510MF DIODE ZENER 5.1V D9503 HZS5C2TD DIODE ZENER 5.1V D9503 HZS5C3TD...
  • Page 79 Ref. No. Part No. Part Name & Description Remarks R9553 ERJ6GEYJ473V MGF CHIP 1/10W 47K R9554 ERJ6GEYJ473V MGF CHIP 1/10W 47K R9555 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K R9556 ERJ6GEYJ562V MGF CHIP 1/10W 5.6K R9557 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K CAPACITORS Ref.
  • Page 80 Ref. No. Part No. Part Name & Description Remarks P4503 K1MP05A00008 CONNECTOR 5P P4504 K1MP07A00005 CONNECTOR 7P P4505 LSJWR5N110AC CONNECTOR CABLE W/OUT PLUG P4506 VEKS5888 CONNECTOR CABLE W/PLUG P7003 VJPS0771 CONNECTOR PLUG 13P P7101 VJPS0772 CONNECTOR PLUG 19P JACKS Ref. No. Part No.
  • Page 81 Ref. No. Part No. Part Name & Description Remarks R351 ERG2ANJ153H METAL OXIDE 2W 15K R352 ERG2ANJ153H METAL OXIDE 2W 15K R353 ERG2ANJ153H METAL OXIDE 2W 15K R354 ERD25TJ272T CARBON 1/4W 2.7K R355 ERD25TJ272T CARBON 1/4W 2.7K R356 ERD25TJ272T CARBON 1/4W 2.7K R357 ERDS2TJ392 CARBON 1/4W 3.9K...
  • Page 82 Ref. No. Part No. Part Name & Description Remarks IC8001 MN2DS0002VP IC, LINEAR IC8002 LSSK0024 IC, 4K EEP ROM E.S.D. IC8003 C1DB00000918 IC, LINEAR IC8005 C0DBZFZ00011 IC, LINEAR IC8005 C0DBZFZ00010 IC, LINEAR IC8201 LSSK0020 IC, 16MBIT FLASH MEMORY E.S.D. IC8202 C0JBAH000074 IC, CMOS STANDARD LOGIC E.S.D.
  • Page 83 Ref. No. Part No. Part Name & Description Remarks R8001 ERJ3GEYJ472V MGF CHIP 1/16W 4.7K R8002 ERJ3GEYJ472V MGF CHIP 1/16W 4.7K R8004 ERJ12YJ1R0U MGF CHIP 1/2W 1 R8005 ERJ3GEYJ472V MGF CHIP 1/16W 4.7K R8013 ERJ3GEYJ221V MGF CHIP 1/16W 220 R8014 ERJ3GEYJ221V MGF CHIP 1/16W 220 R8017 ERJ3GEYJ103V MGF CHIP 1/16W 10K...
  • Page 84 Ref. No. Part No. Part Name & Description Remarks R8424 ERJ3GEYJ101V MGF CHIP 1/16W 100 R8425 ERJ3GEYJ750V MGF CHIP 1/16W 75 R8426 ERJ3GEYJ360V MGF CHIP 1/16W 36 R8427 ERJ3GEYJ360V MGF CHIP 1/16W 36 R8501 ERJ3GEYJ223V MGF CHIP 1/16W 22K R8502 ERJ3GEYJ223V MGF CHIP 1/16W 22K R8503 ERJ3GEYJ223V MGF CHIP 1/16W 22K...
  • Page 85 Ref. No. Part No. Part Name & Description Remarks R8815 ERJ6GEYJ1R0V MGF CHIP 1/10W 1 R8816 ERJ6GEYJ1R0V MGF CHIP 1/10W 1 R8817 ERJ6GEYJ1R0V MGF CHIP 1/10W 1 R8818 ERJ3GEY0R00V MGF CHIP 1/16W 0 R8901 ERJ3GEY0R00V MGF CHIP 1/16W 0 R8905 ERJ3GEYJ823V MGF CHIP 1/16W 82K R8907 ERJ3GEYJ471V MGF CHIP 1/16W 470...
  • Page 86 Ref. No. Part No. Part Name & Description Remarks C8028 ECJ1VC1H330J C CHIP 50V 33PF C8029 ECJ1VB0J105K C CHIP 6.3V 1UF C8030 ECJ1VB0J105K C CHIP 6.3V 1UF C8031 ECJ1VB0J105K C CHIP 6.3V 1UF C8032 ECJ1VB0J105K C CHIP 6.3V 1UF C8033 ECJ1VB0J105K C CHIP 6.3V 1UF C8034 ECJ1VB0J105K C CHIP 6.3V 1UF...
  • Page 87 Ref. No. Part No. Part Name & Description Remarks C8522 ECJ1VF1C104Z C CHIP 16V 0.1UF C8523 ECEA1AKA330I ELECTROLYTIC 10V 33UF C8536 ECJ1VC1H101J C CHIP 50V 100PF C8537 ECJ1VC1H101J C CHIP 50V 100PF C8544 ECJ1VB1H102K C CHIP 50V 1000PF C8545 ECJ1VB1H102K C CHIP 50V 1000PF C8553 ECJ1VB1H472K C CHIP 50V 4700PF C8555...
  • Page 88 Ref. No. Part No. Part Name & Description Remarks C8812 ECJ1VB1C104K C CHIP 16V 0.1UF C8813 ECJ1VC1H391J C CHIP 50V 390PF C8814 ECJ1VB1A105K C CHIP 16V 1UF C8815 ECJ1VB0J105K C CHIP 6.3V 1UF C8816 ECJ1VB1H472K C CHIP 50V 4700PF C8817 F1K1A106A005 C CHIP 10V 10UF C8818...
  • Page 89 Ref. No. Part No. Part Name & Description Remarks L8503 J0JBC0000010 EMI FILTER CHIP L8504 ERJ3GEY0R00V MGF CHIP 1/16W 0 L8516 ERJ3GEY0R00V MGF CHIP 1/16W 0 L8517 ERJ3GEY0R00V MGF CHIP 1/16W 0 L8601 J0JDC0000002 EMI FILTER CHIP L8602 J0JDC0000002 EMI FILTER CHIP L8620 J0JDC0000002 EMI FILTER CHIP...
  • Page 90 13.2. CHASSIS FRAME SECTION (2)
  • Page 91 13.3. CHASSIS FRAME SECTION (3)
  • Page 92 13.4. PACKING PARTS AND ACCESSORIES SECTION...
  • Page 93 14. REPLACEMENT PARTS LISTS (Model: PV-27DF63) BEFORE REPLACING PARTS, READ THE FOLLOWING: 14.1. REPLACEMENT NOTES 14.1.1. General Notes 1. Use only original replacement parts: To maintain original function and reliability of repaired units, use...
  • Page 94 A. Parts with mark "MKI" in the Remarks column are supplied from MKI. B. Parts with mark "SPC" in the Remarks column are supplied from Spare Parts Center of Panasonic AVC Company. C. Parts without mark in the Remarks column are supplied from MKA.
  • Page 95 disassemble the Infrared Remote Control Unit. However, the battery cover is available separately as a replacement part. 3. When replacing the DVD Frame (Ref. No. 317), be sure to place the Rating Label (Ref. No. 318) on it. 4. When replacing the DVD Mechanism Unit (Ref. No. 242), be sure to place the Cabinet Label (Ref.
  • Page 96 1. Parts with mark "MKI" in the Remarks column are supplied from MKI. 2. Parts with mark "SPC" in the Remarks column are supplied from Spare Parts Center of Panasonic AVC Company. 3. Parts without mark in the Remarks column are supplied from MKA. MECHANICAL REPLACEMENT PARTS...
  • Page 97 Ref. No. Part No. Part Name & Description Remarks LXQVB1273F2 COLOR PICTURE TUBE UNIT LXQKY1273F2 FRONT CABINET ASS'Y LXQKV1273F2 REAR COVER UNIT TBMA008 BADGE,ABS RESIN LXQAS8270RU SPEAKER UNIT LXQAS8270LU SPEAKER UNIT TMM7464-1 CLAMPER VKFS2235 BATTERY COVER LSKH0055 HANDLE LSPF0054 BAG,POLYETHYLENE LSPG1455 PACKING CASE,PAPER LSQT0670B...
  • Page 98 XYC26+CF8 SCREW W/WASHER,STEEL Ref. No. Part No. Part Name & Description Remarks PNA4611M00HC INFRARED RECEIVER UNIT VMAS1912 P.C.B. SUPPORT ANGLE LSSC0254 HEAT SINK LSJA03492017 AC CORD W/PLUG,120V ENG36715G TUNER,UHF/VHF NR LML69001A ANODE LEAD CLAMPER TUC77628 HEAT SINK EYF52BC FUSE HOLDER LSSC0408 HEAT SINK TUC15776...
  • Page 99 Ref. No. Part No. Part Name & Description Remarks IC4701 C0ABBB000017 IC, LINEAR IC4701 C1BB00000177 IC, LINEAR IC5301 AN15167A-VT IC, LINEAR IC5351 C1AB00001682 IC, LINEAR IC5351 C1AB00001519 IC, LINEAR IC5611 C1AB00001777 IC, LINEAR IC5611 C1AB00000408 IC, LINEAR IC5611 C1AB00001777 IC, LINEAR IC6001 MN101D06FCK IC, 8BIT MICROCONTROLLER...
  • Page 100 Ref. No. Part No. Part Name & Description Remarks D4587 MAZ41300HF DIODE ZENER 13V D4588 MAZ41300HF DIODE ZENER 13V D4591 MAZ41300HF DIODE ZENER 13V D4592 MAZ41300HF DIODE ZENER 13V D4593 MA2C165001VT DIODE SI D4593 B0AACK000004 DIODE SI D4593 1SS119 DIODE SI D4594 MA2C165001VT DIODE SI D4594...
  • Page 101 D5612 MA2C165001VT DIODE SI Ref. No. Part No. Part Name & Description Remarks D5612 B0AACK000004 DIODE SI D5612 1SS119 DIODE SI D6003 MA2C165001VT DIODE SI D6003 B0AACK000004 DIODE SI D6003 1SS119 DIODE SI D6005 MA2C165001VT DIODE SI D6005 B0AACK000004 DIODE SI D6005 1SS119 DIODE SI...
  • Page 102 Ref. No. Part No. Part Name & Description Remarks R5352 ERJ6GEYJ101V MGF CHIP 1/10W 100 R5353 ERJ6GEYJ101V MGF CHIP 1/10W 100 R5359 ERJ6GEYJ101V MGF CHIP 1/10W 100 R5361 ERJ6GEYJ221V MGF CHIP 1/10W 220 R5362 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K R5363 ERJ6GEYJ103V MGF CHIP 1/10W 10K R5381 ERJ6GEYJ563V MGF CHIP 1/10W 56K...
  • Page 103 R6012 ERJ6GEYJ561V MGF CHIP 1/10W 560...
  • Page 104 Ref. No. Part No. Part Name & Description Remarks R6013 ERJ6GEYJ102V MGF CHIP 1/10W 1K R6014 ERJ6GEYJ102V MGF CHIP 1/10W 1K R6015 ERJ6GEYJ103V MGF CHIP 1/10W 10K R6016 ERJ6GEYJ101V MGF CHIP 1/10W 100 R6017 ERJ6GEYJ101V MGF CHIP 1/10W 100 R6018 ERJ6GEYJ101V MGF CHIP 1/10W 100 R6019 ERJ6GEYJ153V MGF CHIP 1/10W 15K...
  • Page 105 Ref. No. Part No. Part Name & Description Remarks R6098 ERJ6GEYJ102V MGF CHIP 1/10W 1K R6100 ERJ6GEYJ102V MGF CHIP 1/10W 1K R6126 ERJ6GEYJ221V MGF CHIP 1/10W 220 R6127 ERJ6GEYJ221V MGF CHIP 1/10W 220 R6130 ERJ6GEYJ223V MGF CHIP 1/10W 22K R6131 ERJ6GEYJ183V MGF CHIP 1/10W 18K R6132 ERJ6GEYJ391V MGF CHIP 1/10W 390...
  • Page 106 Ref. No. Part No. Part Name & Description Remarks C4171 ECEA1HKA010 ELECTROLYTIC 50V 1UF C4591 ECEA1CKA470 ELECTROLYTIC 16V 47UF C4592 ECEA1CKA470 ELECTROLYTIC 16V 47UF C4701 ECEA1CKA100 ELECTROLYTIC 16V 10UF C4702 ECEA1CKA100 ELECTROLYTIC 16V 10UF C4703 ECJ2VF1H103Z C CHIP 50V 0.01UF C4704 ECEA1CKA100 ELECTROLYTIC 16V 10UF...
  • Page 107 Ref. No. Part No. Part Name & Description Remarks C6001 ECEA0JKA331B ELECTROLYTIC 6.3V 330UF C6002 ECJ2VC1H080C C CHIP 50V 8PF C6003 ECJ2VC1H100C C CHIP 50V 10PF C6004 ECJ2VB1E104K C CHIP 25V 0.1UF C6006 ECEA0JKA101 ELECTROLYTIC 6.3V 100UF C6009 ECEA1CKA100 ELECTROLYTIC 16V 10UF C6013 ECJ2VC1H101J C CHIP 50V 100PF C6017...
  • Page 108 Ref. No. Part No. Part Name & Description Remarks P1201 VJSS0875 CONNECTOR RECEPTACLE 13P P4005 LSJWR7N220AC CONNECTOR CABLE W/OUT PLUG,AC 18V P4006 K1MP05A00008 CONNECTOR 5P P4007 K1KB19A00007 CONNECTOR RECEPTACLE 19P P4501 K1KA02A00229 CONNECTOR 2P P4502 K1KA02A00229 CONNECTOR 2P P4591 LSJWR5N250AC CONNECTOR CABLE W/OUT PLUG P4801 K1MN16A00060...
  • Page 109 Ref. No. Part No. Part Name & Description Remarks IC4301 C0JBAR000002 IC, CMOS STANDARD LOGIC E.S.D. IC4301 CD4052BCM IC, CMOS STANDARD LOGIC E.S.D. IC4303 C0JBAR000002 IC, CMOS STANDARD LOGIC E.S.D. IC4303 CD4052BCM IC, CMOS STANDARD LOGIC E.S.D. IC4352 C0ABBB000017 IC, LINEAR IC4352 C1BB00000177 IC, LINEAR...
  • Page 110 DIODES Ref. No. Part No. Part Name & Description Remarks D4351 MA2C165001VT DIODE SI D4351 B0AACK000004 DIODE SI D4351 1SS119 DIODE SI D4352 MA2C165001VT DIODE SI D4352 B0AACK000004 DIODE SI D4352 1SS119 DIODE SI D4353 MA2C165001VT DIODE SI D4353 B0AACK000004 DIODE SI D4353 1SS119 DIODE SI...
  • Page 111 Ref. No. Part No. Part Name & Description Remarks R4378 ERJ6GEYJ562V MGF CHIP 1/10W 5.6K R4379 ERJ6GEYJ562V MGF CHIP 1/10W 5.6K R4601 ERJ6GEYJ105V MGF CHIP 1/10W 1M R4602 ERJ6GEYJ394V MGF CHIP 1/10W 390K R4603 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K R4604 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K R4605 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K...
  • Page 112 Ref. No. Part No. Part Name & Description Remarks R9216 ERJ6GEYJ222V MGF CHIP 1/10W 2.2K R9217 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K CAPACITORS Ref. No. Part No. Part Name & Description Remarks C4301 ECEA1CKA101 ELECTROLYTIC 16V 100UF C4302 ECJ2VF1H103Z C CHIP 50V 0.01UF C4303 ECEA1CKA100 ELECTROLYTIC 16V 10UF...
  • Page 113 Ref. No. Part No. Part Name & Description Remarks C5665 ECJ2VF1H103Z C CHIP 50V 0.01UF C5666 ECEA0JKA220 ELECTROLYTIC 6.3V 22UF C5668 ECJ2VF1H103Z C CHIP 50V 0.01UF C5669 ECJ2VC1H181J C CHIP 50V 180PF C5670 ECJ2VF1H103Z C CHIP 50V 0.01UF C5671 ECJ2VF1H103Z C CHIP 50V 0.01UF C5672 ECJ2VF1H103Z C CHIP 50V 0.01UF C5673...
  • Page 114 Ref. No. Part No. Part Name & Description Remarks FL5651 LSLF0053 EMI FILTER COILS Ref. No. Part No. Part Name & Description Remarks L4351 ELESN101KA COIL 100UH L4601 G0C101KA0045 COIL 100UH L5652 ELESN150KA COIL 15UH L5653 LSLQF06R101K COIL 100UH L5654 ELESN4R7KA COIL 4.7UH L5655...
  • Page 115 TRANSISTORS Ref. No. Part No. Part Name & Description Remarks Q431 2SA1309AHA TRANSISTOR SI PNP Q431 B1ACCF000047 TRANSISTOR SI PNP Q501 2SC3941H TRANSISTOR SI NPN Q523 B1ACBM000001 TRANSISTOR SI PNP Q523 2SA17670QA TRANSISTOR SI PNP Q523 2SB12210QA TRANSISTOR SI PNP Q541 2SB0709ARL TRANSISTOR SI PNP CHIP...
  • Page 116 Ref. No. Part No. Part Name & Description Remarks D401 B0AAML000001 DIODE SI D401 1SR139-400 DIODE SI D402 MA2C165001VT DIODE SI D402 B0AACK000004 DIODE SI D402 1SS119 DIODE SI D503 B0HAGP000014 DIODE SI D504 MAZ40470MF DIODE ZENER 4.7V D504 B0BA4R600003 DIODE ZENER 4.7V D504 RD4.7ESAB2...
  • Page 117 Ref. No. Part No. Part Name & Description Remarks D807 B0EAKT000030 DIODE SI D854 B0JAMD000012 DIODE SI D854 B0JAGE000001 DIODE SI D854 B0JAME000082 DIODE SI D856 B0HAJL000001 DIODE SI D856 B0HAGP000012 DIODE SI D857 B0HAJL000001 DIODE SI D857 B0HAGP000012 DIODE SI D858 B0HAJL000001 DIODE SI...
  • Page 118 Ref. No. Part No. Part Name & Description Remarks D1510 B0HAMP000061 DIODE SI D1510 B0HAMP000069 DIODE SI D1511 B0JANG000006 DIODE SI D1512 B0JANG000006 DIODE SI D1513 B0JBRD000006 DIODE SI D1514 B0JAME000079 DIODE SI D1514 B0JAME000049 DIODE SI D1514 B0JANE000011 DIODE SI D1514 B0JANE000022 DIODE SI...
  • Page 119 Ref. No. Part No. Part Name & Description Remarks R401 ERJ6GEYJ122V MGF CHIP 1/10W 1.2K R402 ERDS2TJ183T CARBON 1/4W 18K R405 ERG1SJ331P METAL OXIDE 1W 330 R409 ERJ6GEYJ223V MGF CHIP 1/10W 22K R410 ERDS2TJ223 CARBON 1/4W 22K R411 ERJ6GEYJ223V MGF CHIP 1/10W 22K R413 ERJ6GEYJ273V MGF CHIP 1/10W 27K R414...
  • Page 120 Ref. No. Part No. Part Name & Description Remarks R572 ERDS2TJ561 CARBON 1/4W 560 R573 ERDS2TJ101 CARBON 1/4W 100 R574 ERDS2TJ103 CARBON 1/4W 10K R585 ERDS2TJ393 CARBON 1/4W 39K R586 ERDS2TJ562 CARBON 1/4W 5.6K R587 ERDS2TJ123 CARBON 1/4W 12K R591 ERDS2TJ103 CARBON 1/4W 10K R592...
  • Page 121 Ref. No. Part No. Part Name & Description Remarks R1530 ERJ6GEYJ104V MGF CHIP 1/10W 100K R1531 ERJ6GEYJ122V MGF CHIP 1/10W 1.2K R1532 ERJ6GEYJ681V MGF CHIP 1/10W 680 R1534 ERJ6GEY0R00V MGF CHIP 1/10W 0 R1535 ERDS2T0T CARBON 1/4W 0 R1536 ERDS2TJ153 CARBON 1/4W 15K R1537 ERDS2TJ153...
  • Page 122 Ref. No. Part No. Part Name & Description Remarks C802 J0LE00000023 ARRESTER C803 ECKNTS103MF8 CERAMIC 250V 0.01UF C803 ECKKTS103MF8 CERAMIC 125V 0.01UF C803 F1BAH1030006 CERAMIC 125V 0.01UF C803 VCKSTQG103ZY CERAMIC 125V 0.01UF C806 VCKSRNG472ZX CERAMIC 250V 4700PF C807 VCKSRNG472ZX CERAMIC 250V 4700PF C808 VCKSRNG472ZX CERAMIC 250V 4700PF C809...
  • Page 123 Ref. No. Part No. Part Name & Description Remarks C1503 ECKATS103MF CERAMIC 250V 0.01UF C1503 ECKETS103MF CERAMIC 125V 0.01UF C1503 VCKST3G103MY CERAMIC 250V 0.01UF C1503 VCKSU3D103MY CERAMIC 125V 0.01UF C1504 F1B2E152A012 CERAMIC 250V 1500PF C1504 F1B2E152A011 CERAMIC 250V 1500PF C1504 F1B2E152A044 CERAMIC 250V 1500PF C1504...
  • Page 124 Ref. No. Part No. Part Name & Description Remarks C1550 ECEA1CKA100 ELECTROLYTIC 16V 10UF C1552 ECEA1HKAR47 ELECTROLYTIC 50V 0.47UF C1553 ECEA1CKA100 ELECTROLYTIC 16V 10UF C1555 ECJ2FB1C105K C CHIP 16V 1UF C1556 ECJ2FB0J106M C CHIP 6.3V 10UF C1557 ECJ2FB0J106M C CHIP 6.3V 10UF COILS Ref.
  • Page 125 FUSE& PROTECTOR Ref. No. Part No. Part Name & Description Remarks F801 K5D632AQ0002 FUSE 125V 6.3A F801 K5D632ADA001 FUSE 125V 6.3A F801 K5D632ADA008 FUSE 125V 6.3A F801 K5D632AD0002 FUSE 125V 6.3A F1501 K5D302AQ0003 FUSE 125V 3A F1501 K5D302ADA002 FUSE 125V 3A F1501 K5D302ADA006 FUSE 125V 3A F1501...
  • Page 126 Ref. No. Part No. Part Name & Description Remarks T501 ETH19Y70AY TRANSFORMER T551 ZTFN35501A FLYBACK TRANSFORMER T850 ETS39AG3K5NC TRANSFORMER T1501 LSTP0125 TRANSFORMER PRINTED CIRCUIT BOARD ASSEMBLY Ref. No. Part No. Part Name & Description Remarks LSEP2075A DEFLECTION C.B.A. MISCELLANEOUS Ref. No. Part No.
  • Page 127 RESISTORS Ref. No. Part No. Part Name & Description Remarks R713 ERDS2TJ471 CARBON 1/4W 470 R714 ERDS2TJ272 CARBON 1/4W 2.7K R751 ERDS2TJ101 CARBON 1/4W 100 R752 ERJ6GEYJ181V MGF CHIP 1/10W 180 R753 EVMEGSA00B14 VARIABLE 10K R755 ERDS2TJ101 CARBON 1/4W 100 R756 ERDS2TJ152 CARBON 1/4W 1.5K...
  • Page 128 Ref. No. Part No. Part Name & Description Remarks C761 ECJ2VF1H103Z C CHIP 50V 0.01UF C762 ECA1CM100B ELECTROLYTIC 16V 10UF C763 VCUSTBC224KB C CHIP 16V 0.22UF C764 ECJ2VB1H102K C CHIP 50V 1000PF C765 ECEA1HKAR33B ELECTROLYTIC 50V 0.33UF C767 ECJ2VB1C104K C CHIP 16V 0.1UF C768 ECJ2VB1H392K C CHIP 50V 3900PF C792...
  • Page 129 Ref. No. Part No. Part Name & Description Remarks D9501 MA2C165001VT DIODE SI D9501 B0AACK000004 DIODE SI D9501 1SS119 DIODE SI D9502 MA2C165001VT DIODE SI D9502 B0AACK000004 DIODE SI D9502 1SS119 DIODE SI D9503 MAZ40510MF DIODE ZENER 5.1V D9503 HZS5C2TD DIODE ZENER 5.1V D9503 HZS5C3TD...
  • Page 130 Ref. No. Part No. Part Name & Description Remarks R9553 ERJ6GEYJ473V MGF CHIP 1/10W 47K R9554 ERJ6GEYJ473V MGF CHIP 1/10W 47K R9555 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K R9556 ERJ6GEYJ562V MGF CHIP 1/10W 5.6K R9557 ERJ6GEYJ472V MGF CHIP 1/10W 4.7K CAPACITORS Ref.
  • Page 131 Ref. No. Part No. Part Name & Description Remarks P4503 K1MP05A00008 CONNECTOR 5P P4504 K1MP07A00005 CONNECTOR 7P P4505 LSJWR5N110AC CONNECTOR CABLE W/OUT PLUG P4506 VEKS5888 CONNECTOR CABLE W/PLUG P7003 VJPS0771 CONNECTOR PLUG 13P P7101 VJPS0772 CONNECTOR PLUG 19P JACKS Ref. No. Part No.
  • Page 132 Ref. No. Part No. Part Name & Description Remarks R351 ERG2ANJ153H METAL OXIDE 2W 15K R352 ERG2ANJ153H METAL OXIDE 2W 15K R353 ERG2ANJ153H METAL OXIDE 2W 15K R354 ERD25TJ272 CARBON 1/4W 2.7K R355 ERD25TJ272 CARBON 1/4W 2.7K R356 ERD25TJ272 CARBON 1/4W 2.7K R357 ERDS2TJ332 CARBON 1/4W 3.3K...
  • Page 133 Ref. No. Part No. Part Name & Description Remarks IC8001 MN2DS0002VP IC, LINEAR IC8002 LSSK0024 IC, 4K EEP ROM E.S.D. IC8003 C1DB00000918 IC, LINEAR IC8005 C0DBZFZ00011 IC, LINEAR IC8005 C0DBZFZ00010 IC, LINEAR IC8201 LSSK0020 IC, 16MBIT FLASH MEMORY E.S.D. IC8202 C0JBAH000074 IC, CMOS STANDARD LOGIC E.S.D.
  • Page 134 Ref. No. Part No. Part Name & Description Remarks R8001 ERJ3GEYJ472V MGF CHIP 1/16W 4.7K R8002 ERJ3GEYJ472V MGF CHIP 1/16W 4.7K R8004 ERJ12YJ1R0U MGF CHIP 1/2W 1 R8005 ERJ3GEYJ472V MGF CHIP 1/16W 4.7K R8013 ERJ3GEYJ221V MGF CHIP 1/16W 220 R8014 ERJ3GEYJ221V MGF CHIP 1/16W 220 R8017 ERJ3GEYJ103V MGF CHIP 1/16W 10K...
  • Page 135 Ref. No. Part No. Part Name & Description Remarks R8424 ERJ3GEYJ101V MGF CHIP 1/16W 100 R8425 ERJ3GEYJ750V MGF CHIP 1/16W 75 R8426 ERJ3GEYJ360V MGF CHIP 1/16W 36 R8427 ERJ3GEYJ360V MGF CHIP 1/16W 36 R8501 ERJ3GEYJ223V MGF CHIP 1/16W 22K R8502 ERJ3GEYJ223V MGF CHIP 1/16W 22K R8503 ERJ3GEYJ223V MGF CHIP 1/16W 22K...
  • Page 136 Ref. No. Part No. Part Name & Description Remarks R8815 ERJ6GEYJ1R0V MGF CHIP 1/10W 1 R8816 ERJ6GEYJ1R0V MGF CHIP 1/10W 1 R8817 ERJ6GEYJ1R0V MGF CHIP 1/10W 1 R8818 ERJ3GEY0R00V MGF CHIP 1/16W 0 R8901 ERJ3GEY0R00V MGF CHIP 1/16W 0 R8905 ERJ3GEYJ823V MGF CHIP 1/16W 82K R8907 ERJ3GEYJ471V MGF CHIP 1/16W 470...
  • Page 137 Ref. No. Part No. Part Name & Description Remarks C8028 ECJ1VC1H330J C CHIP 50V 33PF C8029 ECJ1VB0J105K C CHIP 6.3V 1UF C8030 ECJ1VB0J105K C CHIP 6.3V 1UF C8031 ECJ1VB0J105K C CHIP 6.3V 1UF C8032 ECJ1VB0J105K C CHIP 6.3V 1UF C8033 ECJ1VB0J105K C CHIP 6.3V 1UF C8034 ECJ1VB0J105K C CHIP 6.3V 1UF...
  • Page 138 Ref. No. Part No. Part Name & Description Remarks C8522 ECJ1VF1C104Z C CHIP 16V 0.1UF C8523 ECEA1AKA330I ELECTROLYTIC 10V 33UF C8536 ECJ1VC1H101J C CHIP 50V 100PF C8537 ECJ1VC1H101J C CHIP 50V 100PF C8544 ECJ1VB1H102K C CHIP 50V 1000PF C8545 ECJ1VB1H102K C CHIP 50V 1000PF C8553 ECJ1VB1H472K C CHIP 50V 4700PF C8555...
  • Page 139 Ref. No. Part No. Part Name & Description Remarks C8812 ECJ1VB1C104K C CHIP 16V 0.1UF C8813 ECJ1VC1H391J C CHIP 50V 390PF C8814 ECJ1VB1A105K C CHIP 16V 1UF C8815 ECJ1VB0J105K C CHIP 6.3V 1UF C8816 ECJ1VB1H472K C CHIP 50V 4700PF C8817 F1K1A106A005 C CHIP 10V 10UF C8818...
  • Page 140 Ref. No. Part No. Part Name & Description Remarks L8503 J0JBC0000010 EMI FILTER CHIP L8504 ERJ3GEY0R00V MGF CHIP 1/16W 0 L8516 ERJ3GEY0R00V MGF CHIP 1/16W 0 L8517 ERJ3GEY0R00V MGF CHIP 1/16W 0 L8601 J0JDC0000002 EMI FILTER CHIP L8602 J0JDC0000002 EMI FILTER CHIP L8620 J0JDC0000002 EMI FILTER CHIP...
  • Page 141 TO DVD M IV SPIN TO DVD M V HFMON TO DVD M V LSJB2091 VR-CD TO DVD M V VR-DVD R8647 6800 TO DVD M IV TRAYIN DVD MAIN I SCHEMATIC DIAGRAM C8646 C8643 C8642 C8641 0.01 0.01 PV-20DF63/PV-27DF63...
  • Page 142 +3.3V VSS2 Ground Clock Clock (Not used) 768 fs output VSS3 Ground VDD3 +3.3V (Not used) FSEL Frequency select (48 kHz : high / 44.1 kHz : low) 33.8688 MHz Chip enable : high I/O CHART OF IC8002, 8003 PV-20DF63/PV-27DF63...
  • Page 143 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 R8201 R8211 R8202 R8212 TO DVD M III D_GND LINK TO VOLTAGE CHART LSJB2091 DVD MAIN II SCHEMATIC DIAGRAM PV-20DF63/PV-27DF63...
  • Page 144 SDRAM data 23 DQ15 SDRAM data 15 Memory address 1 I/O DQ14 Memory data 14 +3.3V Ground +3.3V I/O DQ7 Memory data 7 I/O DQ15A-1 Memory data 15 Ground /BYTE +3.3V Memory address 16 I/O CHART OF IC8201, IC8202, IC8203, IC8204 PV-20DF63/PV-27DF63...
  • Page 145 TO DVD M I,DVD M II,DVD M IV ADOUT0 45 DATA1 VOUT7_MIXL C8511 ADOUT1 10/16V 46 DATA2 TP8513 VCOM ADOUT2 47 DATA3 VOUT1_FL TP8514 48 ZEROA VOUT2_FR TP8501 TP8502 TP8503 VOUT3_SL TP8515 TP8516 LINK TO VOLTAGE CHART TP8517 LSJB2091 TP8518 DVD MAIN III SCHEMATIC DIAGRAM PV-20DF63/PV-27DF63...
  • Page 146 IC8501 IC-DETAIL BLOCK DIAGRAM IC8502 IC-DETAIL BLOCK DIAGRAM VCOM GND SERIAL CONTROL SERIAL CONTROL DIGITAL MODULATOR FILTER SERIAL I/F LPF/AMP LPF/AMP LPF/AMP DIGITAL MODULATOR LPF/AMP SERIAL FILTER VCOM LPF/AMP LPF/AMP LPF/AMP LPF/AMP LPF/AMP LPF/AMP IC8501, IC8502 DETAIL BLOCK DIAGRAM PV-20DF63/PV-27DF63...
  • Page 147 25 SPVM2 CFIL TO DVD M I 26 VINTK CTKerr2 TKIN R8819 C8813 R8818 390P TO DVD M I 27 Vc CTKerr1 VHALF R8820 C8809 TO DVD M III D_GND LINK TO VOLTAGE CHART LSJB2091 DVD MAIN IV SCHEMATIC DIAGRAM PV-20DF63/PV-27DF63...
  • Page 148 3FG OUT SPVCC HALL BIAS SPVM1 BREAK MODE STAND-BY CONTROL HALLAMP/ REVERSE PROTECT TRAVERSE LEVEL MOTOR SHIFT DRIVE LOADING LEVEL MOTOR SHIFT DRIVE DUTY MATRIX CONTROL FOCUS ACTUATOR CURRENT DRIVE DETECTOR TRACKING ACTUATOR DRIVE SPVM2 IC8801 DETAIL BLOCK DIAGRAM PV-20DF63/PV-27DF63...
  • Page 149 (AMP) Q8905 TP8956 UM5K1N (SW) TP8952 R8907 TO DVD M I VR-CD TP8903 C8904 R8905 C8907 C8908 470P 220P LINK TO VOLTAGE CHART TO DVD M I VR-DVD LSJB2091 TO DVD M III A_GND DVD MAIN V SCHEMATIC DIAGRAM PV-20DF63/PV-27DF63...
  • Page 150 REFER TO BEGINNING OF SCHEMATIC SECTION. Do not use the part number on this diagram. MODEL MARK PV-20DF63 TUNER MAIN C.B.A. IMPORTANT SAFETY NOTICE: PV-27DF63 COMPONENTS IDENTIFIED BY THE SIGN HAVE SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY.
  • Page 151 Do not use the part number on this diagram. TO DVD MAIN C.B.A. P8802 CN8951 TP8954 TP8955 TO DVD MECHANISM CN9852 UNIT A_GND 1 LM- VOLD- 2 LM+ VOLD+ /CLOSE /OPEN SW8952 K0L1BA000015 CLOSE SW8953 K0L1BA000014 OPEN LINK TO VOLTAGE CHART LSJB2014 DVD SUB SCHEMATIC DIAGRAM PV-20DF63/PV-27DF63...
  • Page 152 PV-20DF63 / PV-27DF63 8.2. MAIN SCHEMATIC DIAGRAMS MAIN I SCHEMATIC DIAGRAM NOTE: FOR SCHEMATIC DIAGRAM AND CIRCU REFER TO BEGINNING OF SCHEMATIC TP6009 WA7.5 TO M II UNSW_5V_SYSCON TO M II SYSCON_GND TP6008 WA7.5 R6173 R6126 R6172 Q6011 R6127 SWITCHING...
  • Page 153 R6205 KEY_IN_0 CH_DN VL_DN C6213 KEY_IN_1 CH_UP VL_UP TV/FM 330/6.3V R6076 KEY_IN_2 PLAY D_PLY KEY_IN_3 ST/EJ OP/CL POWER D_STP C6411 KEY_IN_4 SKIP+ SKIP- D_STL C6412 C6413 C6414 R6407 R6408 R6409 LINK TO VOLTAGE CHART LSJB2087 MAIN I SCHEMATIC DIAGRAM PV-20DF63/PV-27DF63...
  • Page 154 PV-20DF63 / PV-27DF63 MAIN II SCHEMATIC DIAGRAM NOTE: FOR SCHEMATIC DIAGRAM AND CIRCU REFER TO BEGINNING OF SCHEMATIC VIDEO SIGNAL AUDIO SIGNAL EARPHONE JACK D5305 MA4091-M JK5301 TP4594 TP4593 (9.1V) TP5304 TP5619 TP5019 TP4014 S-VIDEO IN2 WA7.5 WA7.5 WA7.5 D4593...
  • Page 155 R5174 R5128 C5128 (AMP) R5101 R5139 R5141 C5112 R5142 L5102 R5144 3600 0.01 Q5105 R5137 2SB1218A 1200 C5104 (BUFFER) Q5102 C5107 UN2212 SWITCHING 100P R5112 TUNER IN-ON 4700 LSJB2087 3 LINE_DIGI_COM_CIRCUIT MAIN II SCHEMATIC DIAGRAM PV-20DF63/PV-27DF63 LINK TO VOLTAGE CHART...
  • Page 156 PV-20DF63 / PV-27DF63 8.3. AUDIO SCHEMATIC DIAGRAMS AUDIO I SCHEMATIC DIAGRAM NOTE: FOR SCHEMATIC DIAGRAM AND CIRCU REFER TO BEGINNING OF SCHEMATIC AUDIO SIGNAL R9013 R9014 C9017 L9001 100/6.3V 100U C9022 0.01 C9016 0.01 C9024 10/16V Q9001 2SB1218A (BUFFER) OFFSET...
  • Page 157 VJES0007 VJES0007 (INVERTER) R4375 R4374 Q4304 UN2212 (INVERTER) Q4303 UN2212 (INVERTER) Q4302 UN2212 (INVERTER) Q4301 UN2212 (INVERTER) D4353 MA165 D4354 J4201 MA165 33 32 28 27 10 9 28 27 26 25 10 9 LSJB2085 AUDIO I SCHEMATIC DIAGRAM PV-20DF63/PV-27DF63...
  • Page 158 AUDIO II SCHEMATIC DIAGRAM NOTE: FOR SCHEMATIC DIAGRAM AND CIRCU REFER TO BEGINNING OF SCHEMATIC <9V> L5658 100U R5663 TP5652 R5674 C5677 C5678 22/16V C5673 C5680 L5654 C5679 4R7U R5675 C5676 22/16V C5675 TP5651 Q5655 2SD1819A (BUFFER) L5652 R5662 C5668 Q5653 2SB1218A 0.01...
  • Page 159 PV-20DF63 / PV-27DF63 NOTE: NOTE: For placing a purchase order of the parts, SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, PARTS MARKED "PT" ARE NOT USED. be sure to use the part number listed in the parts list. ER TO BEGINNING OF SCHEMATIC SECTION.
  • Page 160 PV-20DF63 / PV-27DF63 8.4. TV MAIN SCHEMATIC DIAGRAMS TV MAIN I SCHEMATIC DIAGRAM NOTE: FOR SCHEMATIC DIAGRAM AND CIRCU REFER TO BEGINNING OF SCHEMATIC R519 8200 R508 1[S1FJ] C564 560pF/2KV C563 R554 C559 D571 RH3F014305 680P C556 R509 D505 0.24/250V...
  • Page 161 ER TO BEGINNING OF SCHEMATIC SECTION. Do not use the part number on this diagram. MARK MODEL PV-20DF63 PV-27DF63 IMPORTANT SAFETY NOTICE: Not Used COMPONENTS IDENTIFIED BY THE SIGN HAVE SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY.
  • Page 162 TV MAIN II SCHEMATIC DIAGRAM NOTE: FOR SCHEMATIC DIAGRAM AND CIRCU REFER TO BEGINNING OF SCHEMATIC CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE 6.3A 125V/250V FUSE. ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES D’ INCENDIE N’ UTILISERQUE DES FUSIBLE DE MÉME D803 6.3A 125V/250V MA167...
  • Page 163 PV-20DF63 / PV-27DF63 NOTE: COMPARISON CHART NOTE: For placing a purchase order of the parts, OF MODELS & MARKS SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, PARTS MARKED "PT" ARE NOT USED. be sure to use the part number listed in the parts list.
  • Page 164 PV-20DF63 / PV-27DF63 TV MAIN III SCHEMATIC DIAGRAM NOTE: FOR SCHEMATIC DIAGRAM AND CIRCU REFER TO BEGINNING OF SCHEMATIC CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE 3A 125V/250V FUSE. ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES D’...
  • Page 165 FROM_TNR_GND P7001 R1536 ERA15-01 Q1511 C1553 TA76431AS C1554 C1557 2SD601ARS D1528 10/16V R1541 SHUNT MA2062 REGULATOR SWITCHING R1537 15K (6.2V) CONTROL P1601 C1551 C1550 SW_5V_DVD 10/16V R1538 D_AUDIO GND_D LINK TO VOLTAGE CHART LSJB2088 TV MAIN III SCHEMATIC DIAGRAM PV-20DF63/PV-27DF63...
  • Page 166 8.5. DEFLECTION SCHEMATIC DIAGRAM (Model : PV-27DF63) DEFLECTION SCHEMATIC DIAGRAM (B) NOTE: FOR SCHEMATIC DIAGRAM AND CIRCU REFER TO BEGINNING OF SCHEMATIC R714 2700 R756 1500 R713 C794 H-PIN H-WID D704 R761 47/35V MA29T-ATA R763 R766 R768 Q753 R762 10KB 10KB 2200 R758...
  • Page 167 PV-20DF63 / PV-27DF63 NOTE: COMPARISON CHART NOTE: For placing a purchase order of the parts, OF MODELS & MARKS SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, PARTS MARKED "PT" ARE NOT USED. be sure to use the part number listed in the parts list.
  • Page 168 PV-20DF63 / PV-27DF63 8.6. TUNER MAIN SCHEMATIC DIAGRAM TUNER MAIN SCHEMATIC DIAGRAM NOTE: NOTE: FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, PARTS MARKED "P REFER TO BEGINNING OF SCHEMATIC SECTION. TUNER U7001 ENG36715G PATTERN ANTENNA C7003 Q7002 C7004 2SD1819A...
  • Page 169 NOTE: NOTE: For placing a purchase order of the parts, PARTS MARKED "PT" ARE NOT USED. be sure to use the part number listed in the parts list. Do not use the part number on this diagram. FER) C7009 TO MAIN C.B.A VIDEO SIGNAL AUDIO SIGNAL P7003...
  • Page 170 8.7. CRT SCHEMATIC DIAGRAM (Model : PV-20DF63) CRT SCHEMATIC DIAGRAM (A) NOTE: FOR SCHEMATIC DIAGRAM AND CIRCU REFER TO BEGINNING OF SCHEMATIC VIDEO SIGNAL R351 R354 2700 Q351 2SC1473-QNC R357 TO MAIN BLUE 3900 C.B.A. P5301 P351 3300 SW +12V...
  • Page 171 PV-20DF63 / PV-27DF63 NOTE: COMPARISON CHART NOTE: For placing a purchase order of the parts, OF MODELS & MARKS SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, PARTS MARKED "PT" ARE NOT USED. be sure to use the part number listed in the parts list.
  • Page 172 PV-20DF63 / PV-27DF63 8.8. CRT SCHEMATIC DIAGRAM (Model : PV-27DF63) CRT SCHEMATIC DIAGRAM (B) NOTE: FOR SCHEMATIC DIAGRAM AND CIRCU REFER TO BEGINNING OF SCHEMATIC R5061 C5058 R5069 R5064 47/160V C5064 L5056 100/16V TSK1002 L5051 TSK1002 C5051 R5058 R5054 C5052 C5061 0.01...
  • Page 173 ER TO BEGINNING OF SCHEMATIC SECTION. Do not use the part number on this diagram. MARK MODEL PV-20DF63 PV-27DF63 IMPORTANT SAFETY NOTICE: Not Used COMPONENTS IDENTIFIED BY THE SIGN HAVE SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY.
  • Page 174 8.9. DVD MAIN SCHEMATIC DIAGRAMS DVD MAIN I SCHEMATIC DIAGRAM NOTE: PARTS MARKED "PT" ARE NOT USED. DATA (VIDEO/AUDIO) SIGNAL PB VIDEO SIGNAL PB AUDIO SIGNAL R8644 R8643 Q8603 2SB1440 +1.5V REGULATOR IC8005 XC62EP1502MR REG. REGULATOR CONTROL CONTROL TP8010 R8004 L8002 BLM21PG300SN1D TO DVD M III D_3.3V...
  • Page 175 PV-20DF63 / PV-27DF63 NOTE: NOTE: For placing a purchase order of the parts, RKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list. REFER TO BEGINNING OF SCHEMATIC SECTION.
  • Page 176 DVD MAIN II SCHEMATIC DIAGRAM NOTE: PARTS MARKED "PT" ARE NOT USED. TP8201 TO DVD M III D_3.3V TO DVD M I FLASH_ROM C8201 330/6.3V IC8201 LINK TO I/O CHART LSSK0020 (16M FLASH MEMORY) TP8202 TO DVD M III IC8202 IC8203 C8203 SN74LV573A...
  • Page 177 PV-20DF63 / PV-27DF63 NOTE: NOTE: For placing a purchase order of the parts, RKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list. REFER TO BEGINNING OF SCHEMATIC SECTION.
  • Page 178 DVD MAIN III SCHEMATIC DIAGRAM NOTE: PARTS MARKED "PT" ARE NOT USED. PB VIDEO SIGNAL PB AUDIO SIGNAL w/ DVD_COMBI (VIDEO AMP IC8401 L8408 L8440 BH7862FS C9ZB00000 BLM18PG600SN1D C8430 47/6.3V C8432 C8433 L8441 L8401 BLM18PG600SN1D C8425 R8409 LK16081R0K-T C8431 47/6.3V TP8412 MUTE1 R8407...
  • Page 179 PV-20DF63 / PV-27DF63 NOTE: NOTE: For placing a purchase order of the parts, RKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list. REFER TO BEGINNING OF SCHEMATIC SECTION.
  • Page 180 DVD MAIN IV SCHEMATIC DIAGRAM NOTE: PARTS MARKED "PT" ARE NOT USED. R8801 IC8801 TO DVD M III D_3.3V C0GBL000 TP8812 (SERVO DR R8807 100K TO DVD M I 1 FG C8805 2 HB 3 SPVM1 4 HU- TO DVD MECHANISM UNIT P8801 5 HU+...
  • Page 181 PV-20DF63 / PV-27DF63 NOTE: NOTE: For placing a purchase order of the parts, RKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list. REFER TO BEGINNING OF SCHEMATIC SECTION.
  • Page 182 DVD MAIN V SCHEMATIC DIAGRAM NOTE: PARTS MARKED "PT" ARE NOT USED. R8950 R8951 R8952 R8953 C8950 1[KB] R8955 100K C8951 2700P R8954 TO DVD M I TO DVD M IV ACT-F+ TO DVD M IV ACT-F- TO DVD M IV ACT-T+ TO DVD M IV ACT-T-...
  • Page 183 PV-20DF63 / PV-27DF63 NOTE: NOTE: For placing a purchase order of the parts, RKED "PT" ARE NOT USED. FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list. REFER TO BEGINNING OF SCHEMATIC SECTION.
  • Page 184 PV-20DF63 / PV-27DF63 8.10. DVD SUB SCHEMATIC DIAGRAM DVD SUB SCHEMATIC DIAGRAM NOTE: PARTS MARKED "PT" ARE NOT USED. TO DVD MAIN C.B.A. P8802 CN8951 TP8954 TP8955 TO DVD MECHANISM CN9852 UNIT A_GND 1 LM- VOLD- 2 LM+ VOLD+ /CLOSE...
  • Page 185 REFER TO BEGINNING OF SCHEMATIC SECTION. Do not use the part number on this diagram. O DVD MECHANISM LINK TO VOLTAGE CHART LSJB2014 DVD SUB SCHEMATIC DIAGRAM PV-20DF63/PV-27DF63...
  • Page 186 8.11. INTERCONNECTION SCHEMATIC DIAGRAM INTERCONNECTION SCHEMATIC DIAGRAM NOTE: FOR SCHEMATIC DIAGRAM AND CIRCU REFER TO BEGINNING OF SCHEMATIC TUNER MAIN C.B.A. UHF/VHF TUNER/TV DEMODULATOR UNIT (25 Pins) P4503 P4504 P4505 (5 Pins) (7 Pins) (5 Pins DVD MECHANISM UNIT DVD MAIN C.B.A. MAIN C.B.A.
  • Page 187 PV-20DF63 / PV-27DF63 NOTE: COMPARISON CHART NOTE: For placing a purchase order of the parts, OF MODELS & MARKS SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, PARTS MARKED "PT" ARE NOT USED. be sure to use the part number listed in the parts list.
  • Page 188 COMPARISON CHART OF MODELS & MARKS Ref. No. of the connection parts such as lead cable, MARK MODEL flexible cable which is supplied as a replacement parts. PV-20DF63 The Number of pins of the Connector. POWER SUPPLY PV-27DF63 C.B.A. MAIN C.B.A.
  • Page 189 PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. MODEL MARK IC4701 Q5611 IC6001 IC6005 IC451 Q523 IC4501 IC752 PV-20DF63 130.0 12.2 PV-27DF63 TP501 130.2 130.0 TP502 IC5351 Q5612 Q591 TP551 -7.8 TP552 -9.5 12.2 TP553 TP554 20.0...
  • Page 190 PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. MODEL MARK IC4301 Q4301 IC5651 Q351 Q351 IC8001 PV-20DF63 12.3 PV-27DF63 131.1 142.3 12.0 12.0 Q4302 Q352 Q352 12.2 12.0 127.9 204.5 12.0 Q4303...
  • Page 191 TP8503 TP8810 TP8504 TP8811 TP8505 TP8812 TP8506 TP8813 TP8507 TP8814 -2.6 Q8906 TP8508 TP8815 -1.9 TP8509 TP8816 IC8503 TP8510 TP8817 TP8511 TP8818 IC8003 Q8907 TP8512 TP8819 TP8513 TP8514 TP8515 IC8204 TP8516 TP8517 12.0 TP8518 IC8801 TP8519 TP8520 VOLTAGE CHART PV-20DF63/PV-27DF63...
  • Page 192 DAD POWER ON) Q1504 D1520, Q1510 D1522 D1525 CONNECTOR CABLE Q1511 TP1505 SW+3.3V TP1506 IC1502 SW+5V TP1507 Q1506 TP1508 M+9V TO DAD IC1503 TP1509 UNIT D1507 TP1511 SHUNT SW+5V D1517 TP1513 REG. TP1514 Q1509 M+9V TP1515 POWER SUPPLY BLOCK DIAGRAM PV-20DF63/PV-27DF63...
  • Page 193 (FROM IC6001 (18)) C SERIAL CLOCK (FROM IC6001 (32)) 0.2 V 20 µs 0.5 V 20 µs COMPOSITE (H) S-VIDEO (FROM IC6001 (15)) IN 2 TUNER(H)/LINE(L) (FROM IC6001 (58)) DVD (H) (FROM IC6001 (2)) LINE2(H)/LINE1(L) VIDEO SIGNAL PATH BLOCK DIAGRAM PV-20DF63/PV-27DF63...
  • Page 194 R9206 FM STEREO(L) FM VCO SWITCHING (FROM IC6001(43)) P4208 CONTROL FM MOMO(H) NOT USED J4302 (FROM IC6001(19)) P4204 BEEPER Q4302 (TO IC6001(95)) P4207 A-SW CONTROL D (TO IC6001(10)) P4207 A-SW CONTROL C Q4301 AUDIO I SIGNAL PATH BLOCK DIAGRAM PV-20DF63/PV-27DF63...
  • Page 195 BLOCK CONTROL DVD AUDIO P4801 P4204 DIAGRAM Q4504 R CH 10 11 P4501 (FROM IC6001 (35)) SPEAKER SPEAKER MUTE(L) P4203 (FROM IC6001(18)) R-CH P4501 C SERIAL CLOCK P4203 (FROM IC6001(17)) C SERIAL DATA AUDIO II SIGNAL PATH BLOCK DIAGRAM PV-20DF63/PV-27DF63...
  • Page 196 HOST READY(L) HOST READY(L) P4801 DVD RESET(L) DVD RESET(L) TO/FROM DVD BLOCK DIAGRAM P4801 SERIAL DATA 0 SERIAL DATA 0 U6301 P4801 IR DATA SERIAL DATA 1 SERIAL DATA 1 RECEIVER P4801 SERIAL CLOCK SERIAL CLOCK SYSTEM CONTROL BLOCK DIAGRAM PV-20DF63/PV-27DF63...
  • Page 197 FOCUS TRANS- NOT USED NOT USED FORMER SCREEN TP553 TP554 NOT USED J5901 D503, C513 D553 +220V P5401 P501 DC CONVERT HEATER P5401 P501 Q501,Q551,T501 Q571 COLLECTOR P5401 P501 HORIZONTAL BUFFER DRIVE P5401 P501 TV Y/C PROCESS BLOCK DIAGRAM PV-20DF63/PV-27DF63...
  • Page 198 MOTOR /REVERSE P8801 PROTECT CURRENT MOTOR P8801 DETECTOR VM+6V TP8808 P8801 SPINDLE MOTOR CONTROL IC8002 (EEPROM) P8801 3,19,25,50 C SERIAL CLOCK C SERIAL CLOCK P8801 DUTY MATRIX CONTROL C SERIAL DATA C SERIAL DATA P8801 DVD I BLOCK DIAGRAM PV-20DF63/PV-27DF63...
  • Page 199 2 ms 2 ms 2 ms 2 ms 2 ms 2 ms EXT ADR(16-20) IC8203 (LATCH) IC8005 104,118,153,157,165 POWER SUPPLY C.B.A. LATCH EXT ADR(0-15) EXT ADR(8-15) REG. CONTROL JK1601 DIGITAL +A3.3V P8402 +D3.3V P1529 AUDIO DVD II BLOCK DIAGRAM PV-20DF63/PV-27DF63...
  • Page 200 DVD Main C.B.A. is defective. 10 s 10 s 10 us Repair it referring to "Cause: Spindle Motor Problem," Repair DVD Main C.B.A. and "Cause: Traverse Problem," "Cause: Pickup Pin2 of CN9852(+) TP8809 Problem." (During Unloading) (During Unloading) TROUBLESHOOTING HINTS PV-20DF63/PV-27DF63...
  • Page 201 Replace IC8801 on the DVD Main C.B.A. IC8001 on the DVD Main C.B.A. is defective. Replace IC8001 on the DVD Main C.B.A. V1 1.8 Vp-p V1 2.0 Vp-p V1 0.5 Vp-p 5 ms 5 ms 5 ms TP8801 TP8802 TP8814 TROUBLESHOOTING HINTS PV-20DF63/PV-27DF63...
  • Page 202 REFER TO BEGINNING OF SCHEMATIC SECTION. SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY. PLEASE REFER TO THE SCHEMATIC DIAGRAM AND PARTS LIST FOR PROPER PARTS CONTENT. MODEL MARK WHEN REPLACING ANY OF THESE COMPONENTS, USE ONLY THE SPECIFIED PARTS. PV-20DF63 PV-27DF63 TP5304 JK4701 J5301 VIDEO IN JK5301...
  • Page 203 C7003 R7001 J1651 D9501 C7006 D9560 D9502 D9558 P1651 P7002 C7001 R9501 C1603 D9503 C7002 L1603 P7005 L7001 D9504 C1602 R9502 U7001 UHF/VHF TUNER/TV P7010 DEMODULATORB UNIT JK9501 JK9502 JK9503 JK1601 LSJB2089 AUDIO C.B.A. LSEP2085B TUNER MAIN C.B.A. LSEP2089A PV-20DF63/PV-27DF63...
  • Page 204 WHEN REPLACING ANY OF THESE COMPONENTS, 6.3A 125V/250V NOTE: TYPE 6.3A 125V/250V USE ONLY THE SPECIFIED PARTS. PV-20DF63 FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, PV-27DF63 REFER TO BEGINNING OF SCHEMATIC SECTION. CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE 3A 125V/250V FUSE.
  • Page 205 FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, OF MODELS & MARKS REFER TO BEGINNING OF SCHEMATIC SECTION. MODEL MARK PV-20DF63 PV-27DF63 CRT C.B.A. LRP63022W (A) DEFLECTION C.B.A. LSEP2075A (B) CAUTION: WHEN SERVICING THIS C.B.A., AVOID TOUCHING HIGH VOLTAGE COMPONENTS.
  • Page 206 FOR PROPER PARTS CONTENT FOR THE MODEL YOU ARE SERVICING, CLOSE TP8955 CN8951 CN8952 PLEASE REFER TO THE SCHEMATIC DIAGRAM AND PARTS LIST. NOTE: CIRCUIT BOARD LAYOUT INCLUDES COMPONENTS WHICH ARE NOT USED. TP8954 DVD MAIN C.B.A. LSEP2091A1 LSJB2014 DVD SUB C.B.A. LSEP2014A PV-20DF63/PV-27DF63...
  • Page 207 TO TUNER MAIN C.B.A P7003 P6003 ESD_GND ESD_GND FM_RADIO_SD_L FM_RADIO_H TNR_SD_L TNR_AFC M_3S_CLK LINK TO VOLTAGE CHART M_3S_DATA TNR_CE_H SW_30V TNR_LOCK_L SW_5V_TNR LSJB2087 SW_12V MAIN I SCHEMATIC DIAGRAM TO M II SW_12V TO M II SW_5V_TNR PV-20DF63/PV-27DF63 TO M II SW_30V...
  • Page 208 TV_P_ON_H TV POWER ON(H) MTS_IN_L MTS SIGNAL(L) OSD_V V-SYNC O A_CTL_D FM AUDIO(H)/BEEPER(L) OSD_H H-SYNC I S2_IN_L S-LINE2(L) DEGAUSS_H DEGAUSS(H) S1_IN_L S-LINE1(L) VSS2_OSD Ground D_RST_L DVD RESET(L) VIDEO (Not used) CV_IN2 SYNC VCH_MUTE_H V-CHIP MUTE(H) I/O CHART OF IC6001 PV-20DF63/PV-27DF63...
  • Page 209 SW_9V R5128 C5128 R5101 2L_C_OUT R5139 R5141 C5112 3600 R5142 L5102 R5144 0.01 Q5105 R5137 2SB1218A 1200 (BUFFER) C5104 Q5102 C5107 UN2212 100P SWITCHING R5112 TUNER IN-ON 4700 LSJB2087 3 LINE_DIGI_COM_CIRCUIT MAIN II SCHEMATIC DIAGRAM LINK TO VOLTAGE CHART PV-20DF63/PV-27DF63...
  • Page 210 V . S Y N C H . V C O D E T E C T O R S E P A R A T I O N G N D COMP GENERATOR IC5101, IC5301 DETAIL BLOCK DIAGRAM PV-20DF63/PV-27DF63...
  • Page 211 UN2212 (INVERTER) Q4301 UN2212 (INVERTER) D4353 MA165 D4354 J4201 MA165 38 37 33 32 28 27 10 9 42 41 MAIN C.B.A. 28 27 26 25 10 9 45 44 LSJB2085 AUDIO I SCHEMATIC DIAGRAM LINK TO VOLTAGE CHART PV-20DF63/PV-27DF63...
  • Page 212 C5674 2SD1819A C5664 (AMP) 0.01 C5663 0.01 SEPARATION R5673 IC5651 TC90A45F SEPARATION 0.75Vp-p C5654 1/50V <9V> C5651 R5651 Q5651 2SB1218A (BUFFER) L5651 R5652 C5652 55 54 50 49 MAIN C.B.A. LSJB2085 AUDIO II SCHEMATIC DIAGRAM LINK TO VOLTAGE CHART PV-20DF63/PV-27DF63...
  • Page 213 REFER TO BEGINNING OF SCHEMATIC SECTION. Do not use the part number on this diagram. MODEL MARK PV-20DF63 PV-27DF63 IMPORTANT SAFETY NOTICE: Not Used COMPONENTS IDENTIFIED BY THE SIGN HAVE SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY.
  • Page 214 REFER TO BEGINNING OF SCHEMATIC SECTION. Do not use the part number on this diagram. MODEL MARK CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, PV-20DF63 REPLACE ONLY WITH THE SAME TYPE 6.3A 125V/250V FUSE. TV_POWER_ON_H TO M I PV-27DF63 ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES SW_12V D’...
  • Page 215 IC1501 SWITCHING CONTROL IC1503 SHUNT REGULATOR IC- DETAIL BLOCK DIAGRAM IC- DETAIL BLOCK DIAGRAM COMPARATOR OVER LATCH CURRENT PROTECT START CONTROL V-REF(2.495V) OVER VOLTAGE PROTECT DRIVE THERMAL LINK TO VOLTAGE CHART SHUTDOWN SWITCHING LSJB2088 TV MAIN III SCHEMATIC DIAGRAM PV-20DF63/PV-27DF63...
  • Page 216 PARTS MARKED "PT" ARE NOT USED. be sure to use the part number listed in the parts list. REFER TO BEGINNING OF SCHEMATIC SECTION. Do not use the part number on this diagram. MODEL MARK PV-20DF63 PV-27DF63 Not Used R714 2700 R756...
  • Page 217 TUNER MAIN SCHEMATIC DIAGRAM NOTE: NOTE: NOTE: For placing a purchase order of the parts, FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, PARTS MARKED "PT" ARE NOT USED. be sure to use the part number listed in the parts list. REFER TO BEGINNING OF SCHEMATIC SECTION.
  • Page 218 REFER TO BEGINNING OF SCHEMATIC SECTION. Do not use the part number on this diagram. MODEL MARK PV-20DF63 PV-27DF63 IMPORTANT SAFETY NOTICE: Not Used COMPONENTS IDENTIFIED BY THE SIGN HAVE SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY.
  • Page 219 REFER TO BEGINNING OF SCHEMATIC SECTION. Do not use the part number on this diagram. MODEL MARK PV-20DF63 PV-27DF63 IMPORTANT SAFETY NOTICE: Not Used COMPONENTS IDENTIFIED BY THE SIGN HAVE SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY.

This manual is also suitable for:

Pv-27df63
