Summary of Contents for Bosch HXU09AH50A

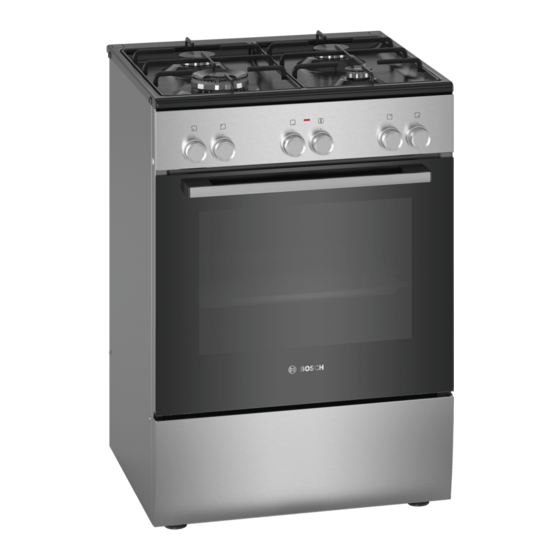

- Page 1 Free standing cooker HXU09AH50A User manual and installation instructions [en]...
-
Page 2: Table Of Contents
en Safety ATTENTION: Observe the applicable regula- Table of contents tions and only set up the appliance in well- ventilated rooms. Read through the instruc- tions before setting up and using the appli- USER MANUAL ance. Warning: The appliance is only used for cook- Safety .............. - Page 3 Safety en ▶ Connection, maintenance and setting of the been instructed on how to use the appliance gas governor must be carried out by an au- safely and have understood the resulting thorised installation specialist. dangers. Do not let children play with the appliance. WARNING ‒ Risk of suffocation! Children must not perform cleaning or user Using the gas cooking appliance leads to a...
-
Page 4: Safety
en Safety ▶ Do not place combustible objects (e.g. tea When the cooking compartment is hot, any al- towels or newspapers) on, next to or be- coholic vapours inside may catch fire. hind the appliance. ▶ Only use small quantities of drinks with a Opening the appliance door creates a high alcohol content in food. - Page 5 Safety en ▶ Never let the power cord come into contact If there is water in the cooking compartment with sharp points or edges. when it is hot, this may create hot steam. ▶ Never kink, crush or modify the power ▶...
-
Page 6: Preventing Material Damage
en Preventing material damage ▶ Before replacing the bulb, ensure that the WARNING ‒ Risk of electric shock! appliance is switched off in order to pre- When changing the bulb, the bulb socket con- vent a potential electric shock. tacts are live. ▶ Also unplug the appliance from the mains or switch off the circuit breaker in the fuse box. -
Page 7: Environmental Protection And Saving En- Ergy
Environmental protection and saving energy en The burner cup and burner cover must be in exactly Do not hold and move the appliance at the gas pipe ▶ the right position. (collector). Damage to the gas pipe may lead to gas Food may spill. - Page 8 en Installation and connection Cover saucepans with suitable lids. Use cookware that is suitable for the quantity of food. ¡ Cooking without a lid consumes considerably more ¡ Large items of cookware containing little food need energy. more energy to heat up. Lift lids as infrequently as possible.
-
Page 9: Installation And Connection
Installation and connection en The mains voltage must correspond to the voltage ¡ The distance between the top edge of the cooker specified on the rating plate. and the bottom edge of the extractor hood must Connect the wires in the power cord according to the meet the requirements of the extractor hood manu- colour coding: facturer. - Page 10 en Installation and connection Push in the plinth drawer. Note: The appliance has height-adjustable feet. This allows the appliance to be raised approx. 15 mm from the ground. ¡ Your appliance is supplied with a kit containing height-adjustable feet. ¡ Please observe the installation instructions. Adjacent units Any adjacent units must not be made of flammable ma- terials.
-
Page 11: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Your appliance 5.2 Hob You can find an overview of the parts of your appliance You can view an overview of the hob here. here. Note: On certain models, specific details such as col- Note: On certain models, specific details such as col- our and shape may differ from those pictured. - Page 12 en Familiarising yourself with your appliance Control Explanation Control Explanation Use the temperature se- You can use the four hot- Temperature selector Hotplate control lector to set the temperat- plate switches to control ure for the type of heating the output provided by and select settings for each individual hotplate.
- Page 13 Familiarising yourself with your appliance en Temperature and setting levels There are different settings for the types of heating and functions. Symbol Function Zero setting The appliance does not heat up. 50–275 Temperature range Set the temperature in the cooking compartment in °C. 1, 2, 3 Grill settings Depending on the appliance type, set the grill settings for the grill, for the large...
-
Page 14: Accessories
You will find a comprehensive range of products for side facing the appliance door and your appliance in our brochures and online: the curved lip facing downwards. www.bosch-home.com Accessories vary from one appliance to another. When Baking tray Slide the tray in with the sloping purchasing accessories, always quote the exact E.g. - Page 15 Cookware en 8 Cookware This information has been provided to help you save ¡ Place the cookware on energy and avoid damaging your cookware. the pan supports. ¡ Never place the cook- ware directly on the 8.1 Using cookware burner. The selection and positioning of the cookware affects ¡...
-
Page 16: Operating The Hotplate
en Operating the hotplate When cooking with a wok, you need a wok ring. Place the wok ring over the wok burner onto the pan support. Ensure that the wok is stable on the wok ring when you are cooking. 8.3 Suitable cookware Only use cookware with a suitable diameter. -
Page 17: Basic Operation
Basic operation en Push in the selector for your chosen burner and turn 9.4 Manually igniting the appliance it anti-clockwise to the power level you require. Note: In the event of a power cut, you can light the Press and hold the selector. burners manually. -
Page 18: Rapid Heating
en Rapid heating 11 Rapid heating To save time, you can use the rapid heating to shorten 11.1 Setting rapid heating the preheat time. To ensure an even cooking result, do not place the Only use rapid heat-up when a temperature of over food in the cooking compartment until rapid heating 100 °C has been set. -
Page 19: Cleaning And Servicing
Cleaning and servicing en Appliance door Area Suitable cleaning agents Information Door panels ¡ Hot soapy water Do not use a glass scraper or stainless steel wool. Tip: Remove the door panels in order to clean them thoroughly. → "Appliance door", Page 22 Door panel ¡... - Page 20 en Cleaning and servicing Clean using a damp sponge cloth and hot soapy 12.5 Discoloration of the burners water. After long use, the brass burner parts become darker Dry with a soft cloth. due to natural oxidation. This discolouration does not affect their usability. 12.4 Cleaning self-cleaning surfaces in the cooking compartment 12.6 Cleaning the pan support manually...
- Page 21 Cleaning aid en ¡ Do not remove the cooking zone switch. 12.10 Cleaning the cooking zone switch Clean the cooking zone switch using hot soapy wa- Clean the cooking zone switch after use if it is dirty or ter and a soft cloth. stained.
- Page 22 en Appliance door Then push the entire rail to the front and remove it. and insert it into the socket at the front. The rails fit both on the left and right sides. Shelf po- sitions 1 and 2 are located at the bottom and shelf 14.2 Attaching the rails positions 3, 4 and 5 are located at the top.
- Page 23 Appliance door en When the locking levers are open in order to detach Detach the oven door. the oven door, the hinges are secured. → "Removing the appliance door", Page 23 Position it on a cloth with its handle pointing down- wards. To remove the upper cover of the oven door, press in the tabs on the left and right using your fingers.
- Page 24 en Appliance door When attaching the oven door, ensure that both 15.4 Fitting the door panes hinges are inserted in the opening direction. When fitting the panes, ensure that the lettering "top right" is not upside down at the bottom left. Insert the pane diagonally towards the back. The notch on the hinge must engage on both sides.
-
Page 25: Troubleshooting
Troubleshooting en 16 Troubleshooting You can rectify minor faults on your appliance yourself. WARNING ‒ Risk of electric shock! Read the troubleshooting information before contacting Incorrect repairs are dangerous. after-sales service. This will avoid unnecessary costs. Repairs to the appliance should only be carried out ▶... -
Page 26: Transportation And Disposal
en Transportation and disposal Fault Cause and troubleshooting The burner flame Gas cylinder is empty. goes out while the Replace the gas cylinder. ▶ appliance is in opera- tion. Place a tea towel in the cooking compartment to 16.2 Replacing the oven light bulb prevent damage. -
Page 27: Customer Service
Customer Service en Place cardboard or similar between the front and If the original packaging is no longer available rear side to prevent knocks against the inside of the In order to guarantee sufficient protection against door glass. any transport damage, pack the appliance in pro- Secure the door and, if available, the top cover to tective packaging. - Page 28 en How it works 19.3 Good to know 19.4 Notes on baking Observe this information when preparing food. When baking, use the shelf positions indicated. ¡ The temperature and cooking time depend on the Baking on one level Shelf posi- amount of food and the recipe. Settings ranges are tion specified for this reason.
- Page 29 How it works en Topic Topic You do not want small Leave a minimum clear- You want to bake accord- Use similar items in the baked goods to stick to ance of 2 cm around ing to your own recipe. baking tables as a guide. each other when baking.
- Page 30 en How it works Meal Accessory/cookware Shelf posi- Type of Temperature Cooking tion heating in °C time, minutes Yeast cake with moist topping, 2 levels Universal pan 150–170 40–65 Baking tray Plaited loaf, plaited ring Universal pan 160–170 35–40 Swiss roll Universal pan ...
- Page 31 How it works en Meal Accessory/cookware Shelf posi- Type of Temperature Cooking tion heating in °C time, minutes Biscuits, 3 levels 5+3+1 130–150 30–40 Baking tray Universal pan Meringues Universal pan 80-100 100-150 Meringues, 2 levels Universal pan 90-100 100-150 Baking tray...
- Page 32 en How it works 19.6 Bread and bread rolls ATTENTION! When the cooking compartment is hot, any water in- The values for bread dough apply to both dough side it will create steam. The change in temperature placed on a tray and dough placed in a loaf tin. may cause damage.
- Page 33 How it works en Meal Accessory/cookware Shelf posi- Type of Temperature Cooking tion heating in °C time, minutes Pizza, frozen, thin base, x 2 Universal pan 190–210 20–25 Wire rack Pizza, frozen, deep-pan, x 1 Wire rack 180–200 20–25 Pizza, frozen, deep-pan, x 2 Universal pan ...
- Page 34 en How it works Roasting in cookware ¡ Set the cooking time (e.g. 20 + 35): For 500 g meat, calculate 20 minutes plus 35 minutes baking If you cook food in cookware, you can remove it from time with additional time. For 1.5 kg, the cooking the cooking compartment more easily and serve it dir- time would therefore be 95 minutes.
- Page 35 How it works en Tips for roasting and braising Topic Use these tips for good results when roasting and Keep the cooking com- ¡ Cook the food in a braising. partment as clean as pos- covered roasting dish sible. at a higher temperat- Topic ure.
- Page 36 en How it works Food Accessories/cook- Shelf posi- Type of Temperature Cooking ware tion heating in °C/grill time in mins setting Fillet of beef, medium, 1 kg Cookware without lid 210–220 45–55 Pot-roasted beef, 1.5 kg Cookware with lid 200–220 100–120 Sirloin, medium, 1.5 kg...
- Page 37 How it works en 19.10 Vegetables and side dishes This is where you can find information about preparing vegetable products that you can use as a side dish for your meals. Recommended settings Vegetables and side dishes Use the settings listed in the table. Food Accessories/cook- Shelf posi-...
- Page 38 en How it works be preserved. The thinner you cut the slices, the Ensure that neither fruit nor mushrooms overlap on quicker the drying process will be and the more flavour the wire rack. the dried food will retain. Settings ranges are specified Grate vegetables and then blanch them.
- Page 39 How it works en Remove the jars from the cooking compartment ATTENTION! ‒ after the specified residual heating time. If there are large temperature differences, the jars Vegetables may shatter. Once all of the jars are bubbling, reduce the tem- Do not place jars on cold or wet surfaces. ▶...
- Page 40 en How it works Recommended settings Proving dough The temperature and time are dependent on the type and quantity of the ingredients. The values in the table are therefore guide values only. Meal Accessory/cookware Shelf posi- Type of Temperature Cooking time, tion heating in °C...
- Page 41 How it works en If you can use your appliance to cook on multiple levels, position baking tins either next to one another or offset on different shelves so that they are not directly one above the other in the cooking compartment. Recommended settings Baking Meal...
-
Page 42: Installation Instructions
en Installation instructions 20 Installation instructions ¡ After converting the appliance from one The installation instructions contain instructions for the gas connection and for the gas conversion's as- gas type to another, the new gas type must sembly . be labelled on the rating plate. Note: For after-sales service only. - Page 43 Installation instructions en ¡ Do not store flammable material near this ¡ Important: appliance. When using a very large pot, leave a gap of ¡ Do not spray aerosols in the vicinity of this at least 50 mm (2’’) to avoid damaging any appliance while it is in opertaion.
- Page 44 en Installation instructions ¡ Municipal Building Codes SHOULD THE RELEVANT CONDITIONS NOT ¡ AGA Installation Code for Gas Burning Appliances BE PROPERLY SATISFIED, THE IN- (AS 5601/AG 601). STALLER, AND NOT THE MANUFACTURER, ¡ S.A.A. Wiring Code SHALL HELD LIABLE. ¡ Local Electrical Regulations ¡...
- Page 45 Installation instructions en Fit regulator (NG) to the R1/2 connection as per figure. If the appliance is set up, connected and used in a Pressure test point country that is not indicated on the rating plate, installa- tion and assembly instructions must be used that con- tain data and information on the valid connection con- ditions in the relevant country.
- Page 46 en Installation instructions The gas pressure regulator supplied with the appli- ATTENTION! ance must be installed in line with the gas pipe (NG After converting the type of gas, label the type of gas only). Pressure test point: that is now set. After converting the type of gas, affix the label with ▶...
- Page 47 Installation instructions en Use the socket wrench 7 to remove the cooker Remove the knobs one by one by holding them burner nozzles. tightly against the control panel and pulling them to- wards you slightly. If your appliance features a wok burner with side ac- cess, remove the burner nozzle as shown below.
- Page 48 en Installation instructions Note: Remove the four screws (M4) from the wok Remove the plastic covers from the front profiles on burner. the right and left. Ensure that the covers are not damaged or scratched. Unscrew the screws (T20) If burner connection screws are present on the hob, below these.
- Page 49 Installation instructions en Replacing bypass nozzles to the burner bases. Place the enamelled burner lids onto the centre of the appropriate lower parts of Use a flat-head screwdriver (no. 2) to unscrew the the burner and, in doing so, note the sizes. bypass nozzles.
- Page 50 en Installation instructions Press on the tap spindle and turn it anti-clockwise. Set the gas cooker knob to the small flame setting. Gas therefore comes to the nozzle. Check whether the flame safety system is working by keeping the flame at the "small flame" setting for a If dispersions and bubbles occur on the foamy sur- one minute.
- Page 52 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service directory.
