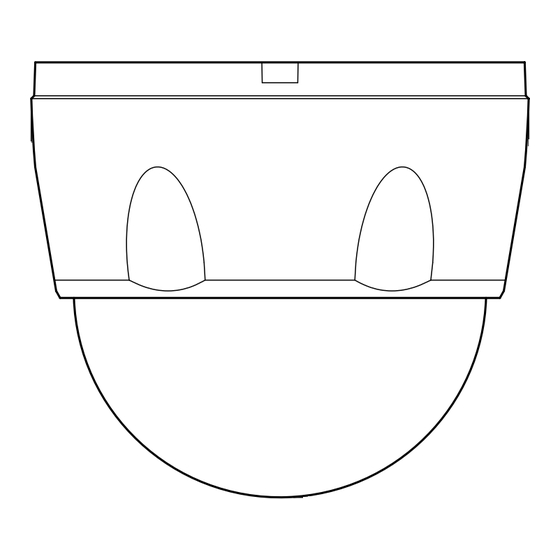

CCD COLOR CAMERA
IK-DF01A
Please read this manual thoroughly before use, and keep it handy
for future reference.
TABLE OF CONTENTS
1. Features & Description ................................................. 3
2. Cautions ........................................................................ 3
3. Components ................................................................. 3
4. Part Names & Functions ............................................... 4
5. Connections and Operations ........................................ 5
6. Installations ................................................................... 7
7. Line Lock Phase ........................................................... 9
8. Note on use and Installation ......................................... 9
9. In Case of Problems ..................................................... 10
10. Specifications ................................................................ 11
11. Exterior View ................................................................. 12
INSTRUCTION MANUAL
Record in space provided below the Model No. and
the Serial No. as found on the label on the bottom
of this unit.
Model. No. IK-DF01A Serial No.
Retain this information for future reference.
Advertisement
Table of Contents
Related Manuals for Toshiba IK-DF01A
Summary of Contents for Toshiba IK-DF01A
-
Page 1: Table Of Contents
11. Exterior View ... 12 INSTRUCTION MANUAL Record in space provided below the Model No. and the Serial No. as found on the label on the bottom of this unit. Model. No. IK-DF01A Serial No. Retain this information for future reference. -
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS 1. Read Instructions All the safety and operating instructions should be read before the product is operated. 2. Retain Instructions The safety instructions and instruction manual should be retained for future reference. 3. Heed Warnings All warnings on the product and in the instruction manual should be adhered to. - Page 3 CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightening flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
-
Page 4: Features & Description
1. FEATURES & DESCRIPTION : IK-DF01A has following function. (1) Quick install Design- you can manually set the camera direction. (2) Built in vari-focal lens with auto-iris Focal length 2.8~5.8mm (3) Incorporated 1/4type CCD image sensor gives high resolution and excellent... -
Page 5: Part Names & Functions
4. PART NAMES & FUNCTIONS : Knockout Cut with a knife or scissors and insert the cables through the knockout so the cables will not pinched when installed. "Bottom" mark The "Bottom" mark indicates the lens position. The "Bottom" mark should be on the top when installing in a ceiling. -
Page 6: Connections And Operations
5. CONNECTIONS AND OPERATIONS : • Power plugs connected equipment must be disconnected before installations. • A 75-ohm coaxial cable (3C-2V or 5C-2V) is required for standard connection. • For details of wiring and operation of equipment to be connected, refer to their operation manuals. - Page 7 5-2 Line-Lock Control • Matching the vertical synchronization with the power frequency is called the Line- Lock. • This function is activated when the SYNC menu is selected to LL. • When two or more cameras are switched by the video switcher for viewing by a monitor TV, the vertical sync.
-
Page 8: Installations
6. Installations : (1) Turn the cover left to unfasten it. (2) Connect the cable of the camera and the cable from the designated power supply with respective BNC connectors. (3) Fix the camera base to the ceiling firmly with the attached 2 screws. Otherwise it might drop and cause injury. - Page 9 6-2 Installing to Wall The camera head at shipping is set for installing the camera to the ceiling. The camera head angle should be changed when installing to a wall. "Bottom" Mark Tilt Range (1) Turn 2 screws of 1 to unfasten the camera head. Note : •...
-
Page 10: Line Lock Phase
7. LINE LOCK PHASE When a video switcher switches two or more cameras, the picture may fluctuate on the video monitor due to the different AC line phase of each camera. In this case, adjust the V PHASE controller to get a stable image. V PHASE CONTROL 8. -
Page 11: In Case Of Problems
9. IN CASE OF PROBLEMS Condition No image • Are the camera and connected equipment turned on? • Is the mode setting switch DC/AES set to OFF? Be sure to set to ON. • Are cables connected correctly? Unnatural color •... -
Page 12: Specifications
10. SPECIFICATIONS 1. Image System Image Device Pixel Elements 2. Electrical TV System Horizontal Resolution S/N Ratio Minimum Illumination Auto Gain Control (AGC) Iris Control Mode White Balance White Balance Range Line lock Vertical phase adjustment γ compensation Backlight Compensation (BLC) Video Output Signal Synchronizaiton System 3. -
Page 13: Exterior View
11. EXTERIOR VIEW φ110 83.5 （Unit : mm） - 12 -... - Page 14 2-hold φ3.2 (1/8") driver, depth about 40mm. Wall 2-TP4 X 37 - 13 -...
