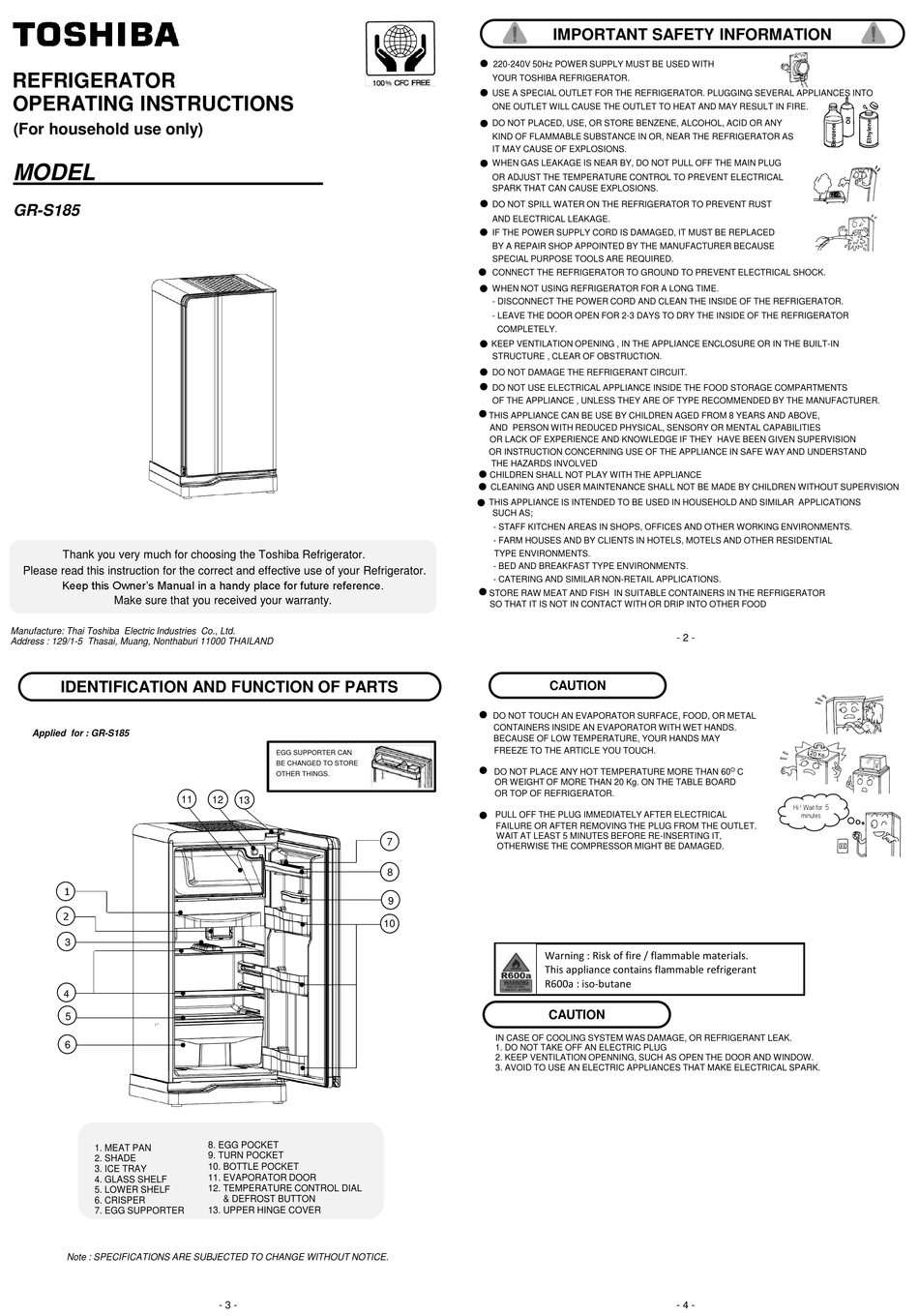

Toshiba GR-S185 Operating Instructions

REFRIGERATOR
OPERATING INSTRUCTIONS
(For household use only)
MODEL
GR-S185
Thank you very much for choosing the Toshiba Refrigerator.
Please read this instruction for the correct and effective use of your Refrigerator.
Keep this Owner's Manual in a handy place for future reference.
Make sure that you received your warranty.
Manufacture: Thai Toshiba Electric Industries Co., Ltd.
Address : 129/1-5 Thasai, Muang, Nonthaburi 11000 THAILAND
IDENTIFICATION AND FUNCTION OF PARTS
Applied for : GR-S185
11
1
2
3
4
5
6
1. MEAT PAN
2. SHADE
3. ICE TRAY
4. GLASS SHELF
5. LOWER SHELF
6. CRISPER
7. EGG SUPPORTER
Note : SPECIFICATIONS ARE SUBJECTED TO CHANGE WITHOUT NOTICE.
EGG SUPPORTER CAN
BE CHANGED TO STORE
OTHER THINGS.
12
13
8. EGG POCKET
9. TURN POCKET
10. BOTTLE POCKET
11. EVAPORATOR DOOR
12. TEMPERATURE CONTROL DIAL
& DEFROST BUTTON
13. UPPER HINGE COVER
- 3 -
IMPORTANT SAFETY INFORMATION

220-240V 50Hz POWER SUPPLY MUST BE USED WITH
YOUR TOSHIBA REFRIGERATOR.

USE A SPECIAL OUTLET FOR THE REFRIGERATOR. PLUGGING SEVERAL APPLIANCES INTO
ONE OUTLET WILL CAUSE THE OUTLET TO HEAT AND MAY RESULT IN FIRE.

DO NOT PLACED, USE, OR STORE BENZENE, ALCOHOL, ACID OR ANY
KIND OF FLAMMABLE SUBSTANCE IN OR, NEAR THE REFRIGERATOR AS
IT MAY CAUSE OF EXPLOSIONS.

WHEN GAS LEAKAGE IS NEAR BY, DO NOT PULL OFF THE MAIN PLUG
OR ADJUST THE TEMPERATURE CONTROL TO PREVENT ELECTRICAL
SPARK THAT CAN CAUSE EXPLOSIONS.

DO NOT SPILL WATER ON THE REFRIGERATOR TO PREVENT RUST
AND ELECTRICAL LEAKAGE.

IF THE POWER SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED
BY A REPAIR SHOP APPOINTED BY THE MANUFACTURER BECAUSE
SPECIAL PURPOSE TOOLS ARE REQUIRED.

CONNECT THE REFRIGERATOR TO GROUND TO PREVENT ELECTRICAL SHOCK.

WHEN NOT USING REFRIGERATOR FOR A LONG TIME.
- DISCONNECT THE POWER CORD AND CLEAN THE INSIDE OF THE REFRIGERATOR.
- LEAVE THE DOOR OPEN FOR 2-3 DAYS TO DRY THE INSIDE OF THE REFRIGERATOR
COMPLETELY.

KEEP VENTILATION OPENING , IN THE APPLIANCE ENCLOSURE OR IN THE BUILT-IN
STRUCTURE , CLEAR OF OBSTRUCTION.

DO NOT DAMAGE THE REFRIGERANT CIRCUIT.

DO NOT USE ELECTRICAL APPLIANCE INSIDE THE FOOD STORAGE COMPARTMENTS
OF THE APPLIANCE , UNLESS THEY ARE OF TYPE RECOMMENDED BY THE MANUFACTURER.

THIS APPLIANCE CAN BE USE BY CHILDREN AGED FROM 8 YEARS AND ABOVE,
AND PERSON WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES
OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION
OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN SAFE WAY AND UNDERSTAND
THE HAZARDS INVOLVED

CHILDREN SHALL NOT PLAY WITH THE APPLIANCE

CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN WITHOUT SUPERVISION

THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLD AND SIMILAR APPLICATIONS
SUCH AS;
- STAFF KITCHEN AREAS IN SHOPS, OFFICES AND OTHER WORKING ENVIRONMENTS.
- FARM HOUSES AND BY CLIENTS IN HOTELS, MOTELS AND OTHER RESIDENTIAL
TYPE ENVIRONMENTS.
- BED AND BREAKFAST TYPE ENVIRONMENTS.
- CATERING AND SIMILAR NON-RETAIL APPLICATIONS.

STORE RAW MEAT AND FISH IN SUITABLE CONTAINERS IN THE REFRIGERATOR
SO THAT IT IS NOT IN CONTACT WITH OR DRIP INTO OTHER FOOD
CAUTION

DO NOT TOUCH AN EVAPORATOR SURFACE, FOOD, OR METAL
CONTAINERS INSIDE AN EVAPORATOR WITH WET HANDS.
BECAUSE OF LOW TEMPERATURE, YOUR HANDS MAY
FREEZE TO THE ARTICLE YOU TOUCH.

DO NOT PLACE ANY HOT TEMPERATURE MORE THAN 60
OR WEIGHT OF MORE THAN 20 Kg. ON THE TABLE BOARD
OR TOP OF REFRIGERATOR.

PULL OFF THE PLUG IMMEDIATELY AFTER ELECTRICAL
FAILURE OR AFTER REMOVING THE PLUG FROM THE OUTLET.
WAIT AT LEAST 5 MINUTES BEFORE RE-INSERTING IT,
7
OTHERWISE THE COMPRESSOR MIGHT BE DAMAGED.
8
9
10
Warning : Risk of fire / flammable materials.
This appliance contains flammable refrigerant
R600a : iso-butane
CAUTION
IN CASE OF COOLING SYSTEM WAS DAMAGE, OR REFRIGERANT LEAK.
1. DO NOT TAKE OFF AN ELECTRIC PLUG
2. KEEP VENTILATION OPENNING, SUCH AS OPEN THE DOOR AND WINDOW.
3. AVOID TO USE AN ELECTRIC APPLIANCES THAT MAKE ELECTRICAL SPARK.
- 2 -
O
C
Hi ! Wait for 5
minutes
- 4 -
