Thank you for purchasing this Panasonic product.
■ To ensure correct use of this lens, please read the operating instructions supplied
with the lens and the projector carefully.
■ Before using this product, be sure to read "Read this first!" (
■ Please save this manual for future use.
Operating Instructions
Zoom Lens
ET-EMW300
ET-EMS600
ET-EMT800
Commercial Use
ET-EMW400
FRANÇAIS
ET-EMU100
Page 3).
DPQX1425ZE/X1
ENGLISH
日本語
Advertisement
Table of Contents
Related Manuals for Panasonic ET-EMW200

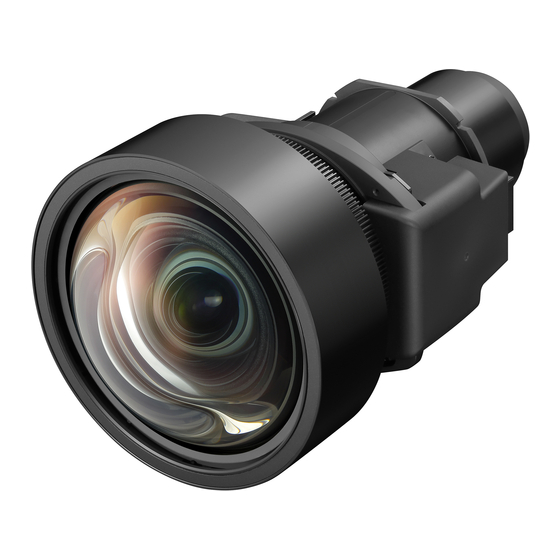

Summary of Contents for Panasonic ET-EMW200

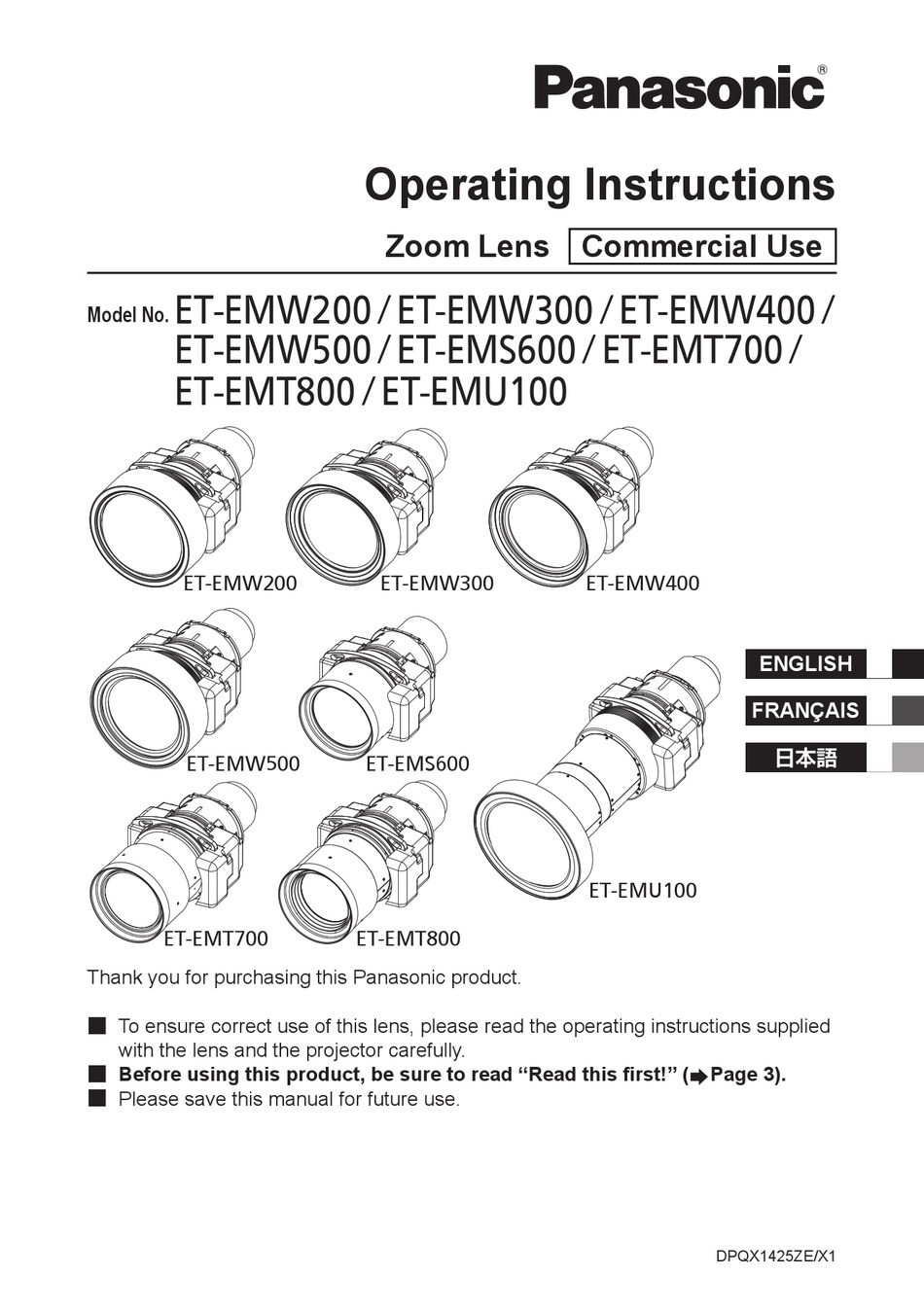

- Page 1 Operating Instructions Zoom Lens Commercial Use ET-EMW200 / ET-EMW300 / ET-EMW400 / Model No. ET-EMW500 / ET-EMS600 / ET-EMT700 / ET-EMT800 / ET-EMU100 ET-EMW200 ET-EMW300 ET-EMW400 ENGLISH FRANÇAIS 日本語 ET-EMW500 ET-EMS600 ET-EMU100 ET-EMT700 ET-EMT800 Thank you for purchasing this Panasonic product.
-
Page 2: Table Of Contents
█ Contents Read this first! ..................3 Before Use.....................4 Preparation....................5 Before replacing the projection lens ............5 Attaching the Lens / Detaching the Lens..........5 Peripheral focus adjustment function ............6 Lens calibration ..................6 Projection relationships...............7 Lens shift ranges ..................8 Specifications ..................10 Dimensions ..................10 Projected image size and Projection distance..Appendix / Annexe / 付録... -
Page 3: Read This First
Read this first! Always follow these precautions WARNING: Do not look at or place your skin into the light emitted from the lens while the projector is being used. Doing so can cause burns or loss of sight. z Strong light is emitted from the projector’s lens. Do not look at or place your hands directly into this light. -
Page 4: Before Use
Models other than the above may also be supported. Refer to the operating instructions for your projector or the website (https://panasonic.net/cns/projector/). z If the main version of the firmware of the PT-MZ16K / PT-MZ13K / PT-MZ10K is less than 1.23 or less than 2.10, the ET-EMU100 cannot be used. -
Page 5: Preparation
Preparation Before replacing the projection lens Return the projection lens to the home position before replacing or removing it. For details on how to return the lens to the home position, refer to the operating instructions of the projector. Attention z Make sure that the projector power supply is switched off before attaching or detaching the projection lens. -
Page 6: Peripheral Focus Adjustment Function
When you change the size of the projected image, the focal balance between the center and peripheral areas of the screen may shift. The ET-EMW200 / ET-EMW300 / ET-EMW400 / ET-EMW500 / ET-EMU100 is equipped with a peripheral focus adjustment function to correct the shift in focal balance between the center and peripheral areas of the screen. -
Page 7: Projection Relationships
Distance from the lens center to the lower edge of the projected image Projected image width Projected image size z Dimension for L1 (approximate values) (Unit: m) Projector ET-EMW200 ET-EMW300 ET-EMW400 ET-EMW500 ET-EMS600 ET-EMT700 ET-EMT800 ET-EMU100 model PT-MZ16K / PT-MZ13K / 0.152 0.121 0.121... -
Page 8: Lens Shift Ranges
Standard projection Origin position of position the lens mounter ET-EMW400 / ET-EMW500 / ET-EMS600 / ET-EMT700 / ET-EMT800 0.2H 0.2H Projected image width H Standard projection Origin position of position the lens mounter ET-EMW200 0.19H 0.19H Projected image width H 8-ENGLISH... - Page 9 Lens shift ranges (continued) Standard projection Origin position of position the lens mounter ET-EMW300 0.2H 0.2H Projected image width H Origin position of Standard projection the lens mounter position ET-EMU100 0.12H 0.12H 0.2H 0.2H Projected image width H Note z The home position of the projector a point of origin position for the lens shift (i.e., vertical and horizontal positions of the lens) based on the results of lens calibration.
-
Page 10: Specifications
Specifications Check the specifications of each projection lens, and use the appropriate lens for your intended use. Model No. ET-EMW200 ET-EMW300 ET-EMW400 ET-EMW500 F value 1.84 - 2.14 1.84 - 2.24 1.84 - 2.24 1.80 - 2.35 10.80 mm (7/16ʺ) - 12.31 mm (1/2ʺ) -... - Page 11 Dimensions (continued) (Unit: mm) Model number Dimensions ET-EMW300 284 (11-3/16") ET-EMW400 284 (11-3/16") ET-EMW500 285 (11-7/32") ENGLISH-11...
- Page 12 Dimensions (continued) (Unit: mm) Model number Dimensions ET-EMS600 267 (10-1/2") ET-EMT700 327 (12-7/8") ET-EMT800 334 (13-5/32") 12-ENGLISH...
- Page 13 Dimensions (continued) (Unit: mm) Model number Dimensions ET-EMU100 509 (20-1/32ʺ) ENGLISH-13...
- Page 14 Panasonic Testing Centre Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany Winsbergring 15, 22525 Amburgo, Germania Importer for UK; Panasonic Connect UK, a branch of Panasonic Connect Europe GmbH, Maxis 2, Western Road, Bracknell, Berkshire, RG12 1RT Français Български Fabriqué par: Производител:...
- Page 15 Eesti Lietuvių Tootja: Gamintojas: Panasonic Connect Co., Ltd. Panasonic Connect Co., Ltd. 4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, 4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Jaapan Japonija Maaletooja: Importuotojas: Panasonic Connect Europe GmbH Panasonic Connect Europe GmbH Volitatud esindaja ELis: Įgaliotasis atstovas ES:...
- Page 16 Polski Slovenščina Wyprodukowano przez: Proizvaja: Panasonic Connect Co., Ltd. Panasonic Connect Co., Ltd. 4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, 4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonia Japonska Importer: Uvoznik: Panasonic Connect Europe GmbH Panasonic Connect Europe GmbH Upoważniony przedstawiciel w UE: Pooblaščeni zastopnik v EU:...
- Page 17 MEMO ENGLISH-17...
- Page 18 Environment care information for users in China This symbol is only valid in China. Panasonic Connect Co., Ltd. Web Site : https://panasonic.net/cns/projector/ © Panasonic Connect Co., Ltd. 2022 Panasonic Connect North America Two Riverfront Plaza, Newark, NJ 07102 TEL: (877) 803 - 8492 Panasonic Canada Inc.
