Panasonic TH-P50U20K Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. TV
  5. TH-P50U20K
  6. Service manual

Panasonic TH-P50U20K Service Manual

Plasma television
Hide thumbs Also See for TH-P50U20K:
Table of Contents

Advertisement

Quick Links

Download this manual
TH-P50U20K
Model No.
TH-P50U20M
TH-P50U20P
TH-P50U20V
GPF13DA Chassis
© Panasonic Corporation 2010.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.PSG1004051CE
Plasma Television

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TH-P50U20K

Summary of Contents for Panasonic TH-P50U20K

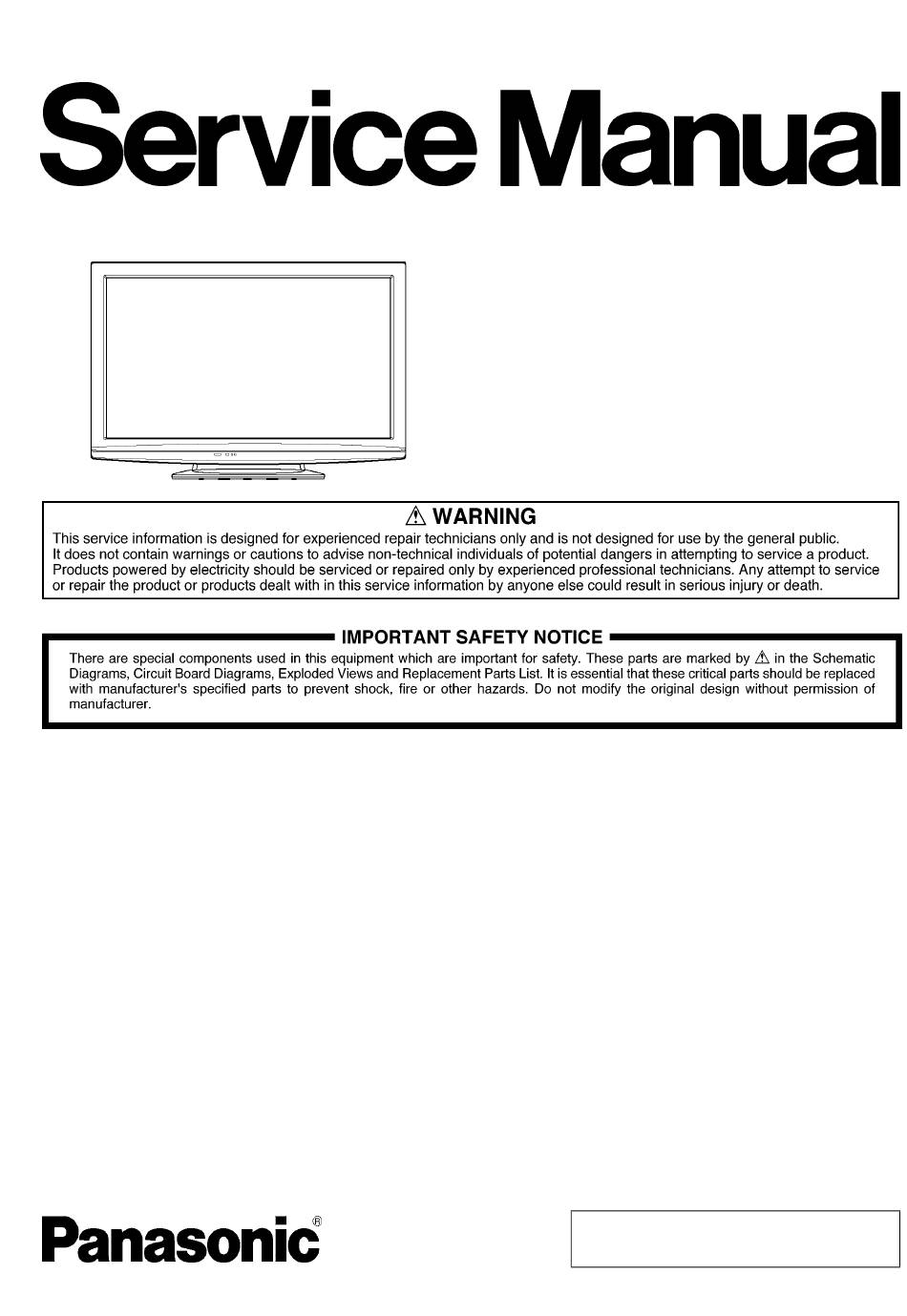

  • Page 1 ORDER NO.PSG1004051CE Plasma Television TH-P50U20K Model No. TH-P50U20M TH-P50U20P TH-P50U20V GPF13DA Chassis © Panasonic Corporation 2010. Unauthorized copying and distribution is a violation of law.
