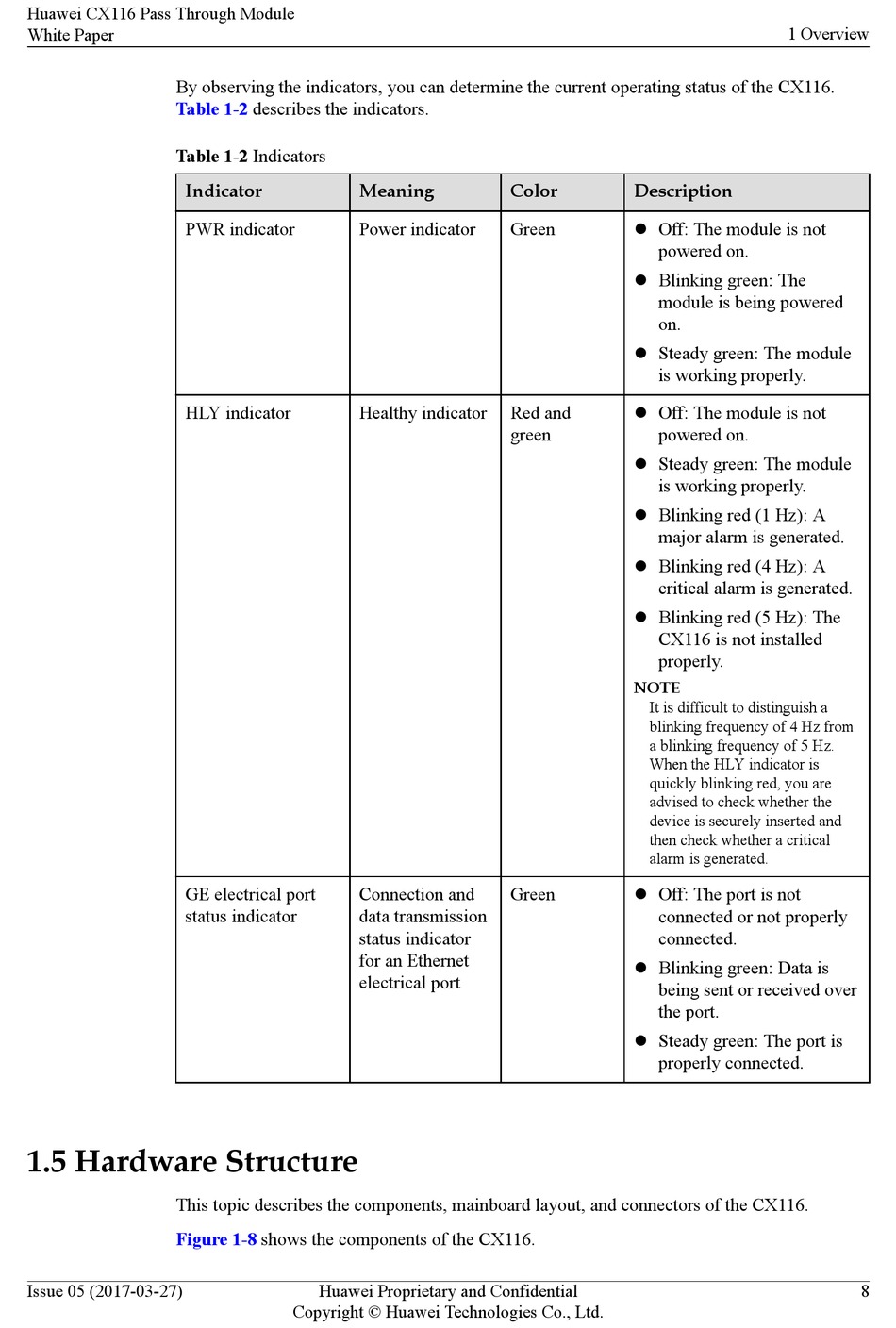

By observing the indicators, you can determine the current operating status of the CX116.
Table 1-2
Table 1-2 Indicators
Indicator
PWR indicator
HLY indicator
GE electrical port
status indicator

1.5 Hardware Structure

This topic describes the components, mainboard layout, and connectors of the CX116.
Figure 1-8
Issue 05 (2017-03-27)
describes the indicators.
Meaning
Power indicator
Healthy indicator
Connection and
data transmission
status indicator
for an Ethernet
electrical port
shows the components of the CX116.
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Color Description
Green l Off: The module is not
powered on.
l Blinking green: The
module is being powered
on.
l Steady green: The module
is working properly.
Red and l Off: The module is not
green powered on.
l Steady green: The module
is working properly.
l Blinking red (1 Hz): A
major alarm is generated.
l Blinking red (4 Hz): A
critical alarm is generated.
l Blinking red (5 Hz): The
CX116 is not installed
properly.
NOTE
It is difficult to distinguish a
blinking frequency of 4 Hz from
a blinking frequency of 5 Hz.
When the HLY indicator is
quickly blinking red, you are
advised to check whether the
device is securely inserted and
then check whether a critical
alarm is generated.
Green l Off: The port is not
connected or not properly
connected.
l Blinking green: Data is
being sent or received over
the port.
l Steady green: The port is
properly connected.
