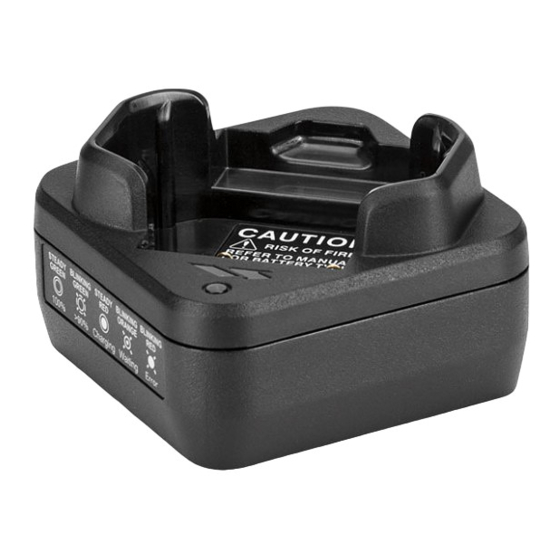

CD-66 SINGLE UNIT CHARGER
This dual battery single unit charger enables charging the FNB-V142LI battery
pack alone or along with the EVX-S24 radio. This charger requires Motorola
Solutions Authorized AC Adapter.
Important Safety Instructions
This document contains important safety and operating instructions.
Please read these instructions carefully and save them for future
reference.
Before using the battery charger, read all the instructions and cautionary
markings on (1) the charger, (2) the battery, and (3) the radio using the battery.
1. To reduce risk of damage to the power supply electric plugs and
! ! cords, pull the plug rather than the cord when disconnecting from
the AC outlet or the charger.
2. An extension cord should not be used unless absolutely
W A R N I N G
necessary. Use of an improper extension cord could result in risk of fire and
electric shock. If an extension cord must be used, make sure that the cord
size is 18 AWG for lengths of up to 6.5 feet (2.0 m), and 16 AWG for lengths
up to 9.8 feet (3.0 m).
3. To reduce risk of fire, electric shock, or injury, do not operate the charger if it
has been broken or damaged in any way. Take it to a qualified Motorola
Solutions service representative.
4. Do not disassemble the charger. It is not repairable and replacement parts
are not available. Disassembly of the charger may result in risk of electric
shock or fire.
5. To reduce risk of electric shock, unplug the charger power supply from the
AC outlet before attempting any cleaning.
6. To reduce risk of injury, charge only the rechargeable Motorola authorized
batteries. Other batteries may explode, causing personal injury and damage.
7. Use of accessories not recommended by Motorola Solutions may result in
risk of fire, electric shock, or injury.
8. This is a Class A product. In a domestic environment, this product may cause
radio interference in which case the user may be required to take adequate
measures.
Operational Safety Guidelines
• This equipment is not suitable for outdoor use. Use only in dry
locations and conditions.
• Maximum ambient temperature around the charger must not exceed
40 °C (104 °F).
• Turn the radio off when charging the battery.
• Use only Motorola Solutions authorized adapter. Do not connect an
improper AC Adapter.
• The charger and/or AC Adapter will generate a moderate amount of
heat during the charging process. This is a normal condition.
• The charger is designed for charging only and is not designed for
operation (transmit or receive) of the radio.
• The AC outlet to which the power supply is connected must be close
and easily accessible.
• Make sure the power supply cord to the charger is located where it
will not be stepped on, tripped over, or subjected to water, damage, or
stress.
• Connect the power supply only to an appropriately fused and wired
AC outlet with the correct voltage, as specified on the product.
• Disconnect from line voltage by removing the power supply from the
AC outlet.
• Periodically wipe the charging terminals in the nest of the charger
using a dry cloth to ensure good connections between the charger
and battery pack.
• Do not allow any metal objects to short the terminals in the nest of the
charger or the battery, as a short-circuit can cause overheating of the
charger circuitry, creating electrical hazard.
Table 1: Specifications
Description
Output (Charging) • Max. 1 A for radio with battery
Current • 0.7 A for stand-alone battery
Charge Time 4.5 hours
Operating Temperature +41 °F to +104 °F (+5 °C to +40 °C)
Range
Case Size (W x H x D) 2.8" x 1.8" x 2.8" (70 x 45 x 70 mm)
Weight (approximate) 2.22 oz (63 g)
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the
Stylized M logo are trademarks or registered trademarks
of Motorola Trademark Holdings, LLC and are used under
license. All other trademarks are the property of their
respective owners.
© 2017 and 2021 Motorola Solutions, Inc. All rights
reserved.
Printed in
*MN004244A01*
Value
MN004244A01-AC
Table 2: Motorola Solutions Authorized AC Adapter
Part Number
PS000042A11
PS000042A12/PS000227A12
PS000042A13/PS000227A13
PS000042A14
PS000042A15
PS000042A16
PS000042A18
Table 3: Motorola Solutions Authorized Battery
Part Number
PMNN4468
Operating Instructions
Radio
Battery
a
b
Charger
Charger
Figure 1: Inserting Stand-alone Battery or Radio into Charger
1. Connect the Micro USB plug from the AC Adapter into the Micro USB jack
on the back of the charger.
2. Connect the AC Adapter to the AC line outlet. The charger LED blinks
Green once to indicate a successful power-up.
3. Turn the radio with the battery attached off. Insert the radio with battery or
stand-alone battery into the charger by:
a. aligning the groove on each side of the radio or stand-alone battery
with the corresponding raised rail on each side of the charger pocket.
b. sliding the radio or stand-alone battery into the charger pocket,
ensuring complete contact between the charger and radio contacts.
4. When the radio or stand-alone battery is properly seated in the pocket, the
LED Indicator glows Red:
• Charging status of a radio is indicated by the LED Indicator of the
radio. When charging is completed, the LED turns off.
• Charging status of a stand-alone battery is indicated by the LED
Indicator of the charger. When charging is completed, the LED turns
to Green.
5. Remove the radio/battery from the charger and unplug the AC Adapter
from the AC line outlet.
Table 4: LED Indicator
LED Indicator
Green for approximately 1 Successful charger power-up
second
Steady Red Rapid Charging
Blinking Green Charged to 90 % or more
Steady Green Charge complete
Blinking Red Charge Error:
Reinsert the battery. If the LED continues
blinking Red, the battery is faulty. Replace a
new battery for the radio.
Blinking Yellow Charge Waiting:
Either the battery voltage is too low or the
battery temperature is too low or too high to
allow charging.
When this condition is corrected, the charger
automatically begins charging.
Location
United States of America/Japan
Europe
United Kingdom/Hong Kong
Australia/New Zealand
Argentina
China
Brazil
Description
FNB-V142LI
Turn the radio off
AC Line Outlet
AC Adapter
Status
