Page 1

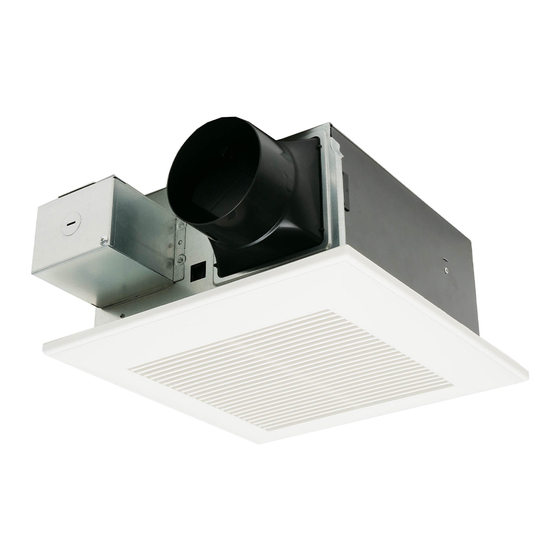

Service Manual Ventilating Fan (North AmericaMarket) FV-0511VF1 WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Page 2
1. Specification Specification for base Model fans HVI Certified performance based on HVI Procedures 915, 916, and 920.
Page 3
2. Parts Identification FV-0511VF1 Main Body Section (3 pcs) (2 pcs) (5 pcs) (2 pcs)
Page 4
2.Parts Identification FV-0511VF1 Main PCB Section (2 pcs) Main Label Secure screw tightly for ground continuity Vissez fermement pour la continuité de la mise à la terre...
Page 5
2. Parts Identification FV-0511VF1 Packing Section...
Page 6
Fan body Junction box Power switch Main control circuit Black Live (Fan) AC 120 V 60 Hz Neutral White Main (Power supply) control circuit motor (Ground wire) Green Live (Fan) Earth ground Neutral Earth ground AC 120 V 60 Hz (Power supply) Switch box Conduit...
Page 7
4. Parts List FV-0511VF1 M ain Body Section Part No. Part Name Q'ty Remark Frame Assembly FFV511VF1900 FFV511VF1910 Adapter Assembly FFV0900052S Connector Plate FFV511VF1301 Connector Assembly (V) FFV3450010S Earth Lead wire FFV2800027S Junction Cover FFV511VF1M2 Motor FFV511VF1904 Motor Support FFV511VF1802...
Page 8
PESMX2140001CE Version:2101 Service Manual Ventilating Fan (North AmericaMarket) FV-0511VFC1 WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Page 9
1. Specification Specification for base Model fans HVI Certified performance based on HVI Procedures 915, 916, and 920.
Page 10
2. Parts Identification FV-0511VFC1 Main Body Section (4 pcs) (2 pcs) (5 pcs) (2 pcs)
Page 11
2.Parts Identification FV-0511VFC1 Main PCB Section (2 pcs) Main Label Secure screw tightly for ground continuity Vissez fermement pour la continuité de la mise à la terre...
Page 12
2. Parts Identification FV-0511VFC1 Packing Section...
Page 13
Junction box Fan body Power switch Main control circuit Black Live (Fan) AC 120 V 60 Hz Neutral (Power supply) White motor Control switch Main control Do NOT connect the red signal wires to a live circuit power supply (AC 120 V 60 Hz), it will Condensation sensor damage the product.
Page 14
4. Parts List FV-0511VF1 Main Body Section Part No. Part Name Q'ty Remark FFV511VF1900 Frame Assembly FFV511FC1910 Adapter Assembly FFV08VKS3M915 Connector Plate FFV511FC1301 Connector Assy (V) FFV3450010S Earth Lead wire FFV2800027S Junction Cover FFV511VF1M2 Motor FFV511VF1904 Motor Support FFV511VF1802 Blade...
PESMX2140001CE Version:2101 Service Manual Ventilating Fan (North AmericaMarket) FV-0511VFL1 WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
2.Parts Identification FV-0511VFL1 Main PCB Section (2 pcs) Main Label Secure screw tightly for ground continuity Vissez fermement pour la continuité de la mise à la terre...
Page 19
2. Parts Identification FV-0511VFL1 Packing Section...
Page 21
4. Parts List FV-0511VFL1 Main Body Section Part No. Part Name Q'ty Remark FFV511VF1900 Frame Assembly FFV511FL1910 Adapter Assembly FFV0900074S Connector Plate FFV0900069S Connector Assembly (L) FFV511FC1301 Connector Assembly (V) FFV3450010S Earth Lead wire FFV2800027S Junction Cover FFV511VF1M2 Motor FFV511VF1904 Motor Support FFV511VF1802 Blade...
PESMX2140001CE Version:2101 Service Manual Ventilating Fan (North AmericaMarket) FV-0511VFL1K WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Page 23
1. Specification Specification for base Model fans HVI Certified performance based on HVI Procedures 915, 916, and 920.
Page 24
2. Parts Identification FV-0511VFL1K Main Body Section (3 pcs) (2 pcs) (5 pcs) (2 pcs) (1pc) Grill Assy...
Page 25
2.Parts Identification FV-0511VFL1K Main PCB Section (2 pcs) Main Label Secure screw tightly for ground continuity Vissez fermement pour la continuité de la mise à la terre...
Page 26
2. Parts Identification FV-0511VFL1K Packing Section...
Page 28
4. Parts List FV-0511VFL1K Main Body Section Part No. Part Name Q'ty Remark FFV511VF1900 Frame Assembly FFV511FL1910 Adapter Assembly FFV0900074S Connector Plate FFV0900069S Connector Assembly (L) FFV511FC1301 Connector Assembly (V) FFV3450010S Earth Lead wire FFV2800027S Junction Cover FFV511VF1M2 Motor FFV511VF1904 Motor Support FFV511VF1802 Blade...
