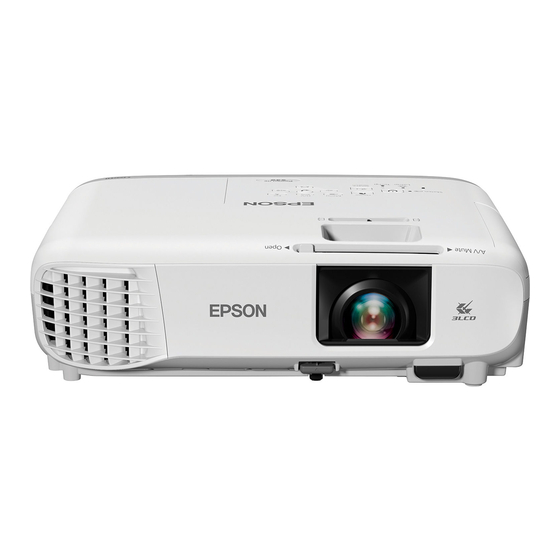

Epson PowerLite S39 User Manual
  1. Manuals
  2. Brands
  3. Epson Manuals
  4. Projector
  5. PowerLite S39
  6. User manual

Epson PowerLite S39 User Manual

Hide thumbs Also See for PowerLite S39:
Table of Contents

Advertisement

Quick Links

Download this manual
PowerLite S39/W39/X39 User's Guide
Downloaded from
ManualsNet.com
search engine

Advertisement

Table of Contents
loading

Related Manuals for Epson PowerLite S39

Summary of Contents for Epson PowerLite S39

  • Page 1 PowerLite S39/W39/X39 User's Guide Downloaded from ManualsNet.com search engine...
  • Page 2 Downloaded from ManualsNet.com search engine...

  • Page 3: Table Of Contents

    Contents PowerLite S39/W39/X39 User's Guide ....................... 9 Introduction to Your Projector ......................... 10 Projector Features..........................10 Product Box Contents........................11 Additional Components ........................ 12 Additional Projector Software and Manuals ................... 13 Optional Equipment and Replacement Parts................. 14 Warranty and Registration Information ..................15 Notations Used in the Documentation ....................
  • Page 4 Connecting to a Composite Video Source ................43 Connecting to a Video Source for Sound .................. 44 Connecting External Output Devices..................... 45 Connecting to an External Computer Monitor ................46 Connecting to External Speakers....................47 Connecting to External USB Devices .................... 49 USB Device Projection......................
  • Page 5 Turning Off the Projector ........................83 Selecting the Language for the Projector Menus................85 Adjusting the Image Height ........................ 86 Image Shape............................87 Correcting Image Shape with the Horizontal Keystone Slider ............87 Correcting Image Shape with the Keystone Buttons..............88 Correcting Image Shape with Quick Corner ..................
  • Page 6 Projector Security Features......................115 Password Security Types ......................115 Setting a Password ......................... 115 Selecting Password Security Types..................117 Entering a Password to Use the Projector................118 Saving a User's Logo Image to Display................... 119 Locking the Projector's Buttons ....................121 Unlocking the Projector's Buttons ...................
  • Page 7 Cleaning the Projector Case......................163 Air Filter and Vent Maintenance ....................163 Cleaning the Air Filter and Vents..................... 164 Replacing the Air Filter......................164 Projector Lamp Maintenance....................... 167 Replacing the Lamp ........................ 168 Resetting the Lamp Timer....................... 172 Replacing the Remote Control Batteries ..................173 Transporting the Projector........................
  • Page 8 Solutions When the Image Contains Static During Network Projection ........192 Solutions When Network Alert E-Mails are Not Received............192 Where to Get Help..........................193 Technical Specifications ........................195 General Projector Specifications ...................... 195 Projector Lamp Specifications......................198 Remote Control Specifications ......................199 Projector Dimension Specifications....................

  • Page 9: Powerlite S39/W39/X39 User's Guide

    PowerLite S39/W39/X39 User's Guide Welcome to the PowerLite S39/W39/X39 User's Guide. For a printable PDF copy of this guide, click here. Downloaded from ManualsNet.com search engine...

  • Page 10: Introduction To Your Projector

    Your projector includes these special features: Bright, high-resolution projection system • PowerLite S39: Up to 3300 lumens of color brightness (color light output) and 3300 lumens of white brightness (white light output) • PowerLite X39/W39: Up to 3500 lumens of color brightness (color light output) and 3500 lumens of...

  • Page 11: Product Box Contents

    • Automatic vertical keystone correction and innovative horizontal keystone correction slider for flexible projector placement • Epson's Instant Off and Direct Power On features for quick setup and shut down • Built-in closed captioning decoder (composite NTSC input signal only) Note: The PowerLite W39 is shown in most illustrations in this manual, unless noted otherwise.

  • Page 12: Additional Components

    This allows you to mirror your smartphone or tablet screens, watch movies, and more. Contact your device manufacturer for compatible adapter options. Unless listed as available from Epson in this table, see your local computer or electronics dealer for purchase information.

  • Page 13: Additional Projector Software And Manuals

    You can install the projector software programs listed here and view their manuals for instructions on using them. Note: If you still need help after checking this manual and the sources listed here, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help". Projector software Manual...

  • Page 14: Optional Equipment And Replacement Parts

    Optional Equipment and Replacement Parts You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada. Or you can purchase online at epsonstore.com...

  • Page 15: Warranty And Registration Information

    In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Road Service brochure for details.

  • Page 16: Projector Part Locations

    • If you still need help after checking this manual and any other sources listed here, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help". Parent topic:...
  • Page 17 Exhaust vent A/V Mute slide lever Foot release lever Lens cover Front adjustable foot Lens Remote control receiver Horizontal keystone slider Air filter/intake vent Air filter cover Kensington security lock slot Control panel Zoom ring (PowerLite X39/W39) Focus ring Lamp cover Parent topic: Projector Part Locations Downloaded from...

  • Page 18: Projector Parts - Rear

    Projector Parts - Rear PowerLite S39 AC input RS-232C port Video port L and R audio ports Monitor Out port Audio1 port Audio Out port Audio2 port Computer2 port Speaker HDMI port Computer1 port USB-B port USB-A port Wireless LAN module cover screw Downloaded from ManualsNet.com...
  • Page 19 Remote receiver PowerLite X39 PowerLite W39 AC input RS-232C port Video port L and R audio ports Downloaded from ManualsNet.com search engine...
  • Page 20 Monitor Out port Audio1 port Audio Out port Audio2 port Computer2 port Speaker HDMI port (PowerLite X39); HDMI1 and HDMI2 ports (PowerLite W39) Computer1 port Network (LAN) port USB-B port USB-A port Wireless LAN module cover screw Remote receiver Parent topic: Projector Part Locations Downloaded from ManualsNet.com...

  • Page 21: Projector Parts - Base

    Projector Parts - Base Ceiling mount holes (3) Security cable attachment point Rear feet Front adjustable foot Parent topic: Projector Part Locations Downloaded from ManualsNet.com search engine...

  • Page 22: Projector Parts - Control Panel

    Projector Parts - Control Panel PowerLite S39 PowerLite X39/W39 Source Search button (searches for connected video sources) Enter button (selects options) Downloaded from ManualsNet.com search engine...
  • Page 23 Esc button (cancels/exits functions) Volume buttons (adjust speaker volume; PowerLite X39/W39) or W and T buttons (adjust projected image size; PowerLite S39), horizontal keystone adjustment buttons, and arrow buttons Menu button (accesses projector menu system) Home button (displays Home screen)

  • Page 24: Projector Parts - Remote Control

    Projector Parts - Remote Control Power button Downloaded from ManualsNet.com search engine...
  • Page 25 Computer button (cycles through connected computer sources) HDMI/Video button (cycles through connected HDMI/video sources) Numeric buttons (enter numbers when you hold down the Num button) Auto button (automatically adjusts position, tracking, and sync settings when projecting from a computer using a VGA cable) Aspect button (selects the image aspect ratio) Num button (when held down, switches numeric buttons to number function) Menu button (accesses projector menu system)

  • Page 26: Setting Up The Projector

    Setting Up the Projector Follow the instructions in these sections to set up your projector for use. Projector Placement Projector Connections Installing Batteries in the Remote Control Opening the Lens Cover Projector Placement You can place the projector on almost any flat surface to project an image. You can also install the projector in a ceiling mount if you want to use it in a fixed location.
  • Page 27 Rear Front Ceiling Rear Ceiling Wherever you set up the projector, make sure to position it squarely in front of the center of the screen, not at an angle, if possible. If you project from the ceiling or from the rear, be sure to select the correct Projection option in the projector's menu system.

  • Page 28: Projection Distance

    Related references Projector Setup Settings - Extended Menu Projection Distance The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.
  • Page 29 PowerLite S39 4:3 Aspect Ratio Image or Screen Screen or image size Projection distance (1) Offset from lens center (2) Wide to Tele Wide to Tele 50 inches 58 to 79 inches –3.3 to 0.8 inches (–8 to 2 cm)

  • Page 30: Projector Connections

    PowerLite W39 16:10 Aspect Ratio Image or Screen Screen or image size Projection distance (1) Offset from lens center (2) Wide to Tele 50 inches 55 to 66 inches –2.4 inch (–6 cm) (139 to 168 cm) 80 inches 88 to 106 inches –3.8 inches (–10 cm) (225 to 270 cm) 100 inches...

  • Page 31: Connecting To Computer Sources

    USB port (preferably USB 2.0). Connect the projector to your computer using a USB cable. Note: An HDMI connection is recommended for projecting content requiring high bandwidth. 1. Turn on your computer. 2. Connect the cable to your projector's USB-B port. PowerLite S39 Downloaded from ManualsNet.com search engine...
  • Page 32 • Windows 10/Windows 8.x: Click EPSON_PJ_UD when it appears on the desktop, then select Run EMP_UDSE.EXE in the dialog box that appears to install the Epson USB Display software. • Windows 7/Windows Vista: Select Run EMP_UDSE.EXE in the dialog box that appears to install the Epson USB Display software.

  • Page 33: Connecting To A Computer For Vga Video

    Contact Apple for compatible adapter options. 1. If necessary, disconnect your computer's monitor cable. 2. Connect the VGA computer cable to your computer's monitor port. 3. Connect the other end to a Computer port on the projector. PowerLite S39 PowerLite X39 Downloaded from ManualsNet.com...

  • Page 34: Connecting To A Computer For Hdmi Video And Audio

    PowerLite W39 4. Tighten the screws on the VGA connector. Parent topic: Connecting to Computer Sources Related tasks Connecting to a Computer for Sound Connecting to a Computer for HDMI Video and Audio If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable. Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port.
  • Page 35 2. Connect the other end to the projector's HDMI port. PowerLite S39 PowerLite X39 PowerLite W39 Downloaded from ManualsNet.com search engine...

  • Page 36: Connecting To A Computer For Usb Mouse Control

    (Make sure the HDMI audio playback device on your computer's audio settings is set to EPSON PJ.) Note: The projector converts the digital audio signal sent from your computer into a mono analog signal for the internal speaker.

  • Page 37: Connecting To A Computer For Sound

    PowerLite W39 2. Connect the other end to any available USB port on your computer. 3. If necessary, configure your computer to work with an external USB mouse. See your computer documentation for details. Parent topic: Connecting to Computer Sources Related tasks Using the Remote Control as a Wireless Mouse Connecting to a Computer for Sound...
  • Page 38 2. Connect the other end to the projector's Audio ports. PowerLite S39 PowerLite X39 Downloaded from ManualsNet.com search engine...

  • Page 39: Connecting To Video Sources

    PowerLite W39 Parent topic: Connecting to Computer Sources Connecting to Video Sources Follow the instructions in these sections to connect video devices to the projector. Connecting to an HDMI Video Source Connecting to a Component Video Source Connecting to a Composite Video Source Connecting to a Video Source for Sound Parent topic: Projector Connections...
  • Page 40 2. Connect the other end to the projector's HDMI port. PowerLite S39 PowerLite X39 PowerLite W39 Downloaded from ManualsNet.com search engine...

  • Page 41: Connecting To A Component Video Source

    Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component video cable. 2. Connect the VGA connector to a Computer port on the projector. PowerLite S39 Downloaded from ManualsNet.com...
  • Page 42 PowerLite X39 PowerLite W39 3. Tighten the screws on the VGA connector. If your image colors appear incorrect, you may need to change the Input Signal setting in the projector's Signal menu. Parent topic: Connecting to Video Sources Related references Input Signal Settings - Signal Menu Related tasks Connecting to a Video Source for Sound...

  • Page 43: Connecting To A Composite Video Source

    If your video source has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable. 1. Connect the cable with the yellow connector to your video source's yellow video output port. 2. Connect the other end to the projector's Video port. PowerLite S39 PowerLite X39 Downloaded from ManualsNet.com...

  • Page 44: Connecting To A Video Source For Sound

    1. Connect the audio cable to your video source's audio-out ports. 2. Connect the other end of the cable to the projector's Audio port or ports. PowerLite S39 Downloaded from ManualsNet.com...

  • Page 45: Connecting External Output Devices

    PowerLite X39 PowerLite W39 Parent topic: Connecting to Video Sources Connecting External Output Devices See these sections to connect the projector to external output devices. Connecting to an External Computer Monitor Connecting to External Speakers Parent topic: Projector Connections Downloaded from ManualsNet.com search engine...

  • Page 46: Connecting To An External Computer Monitor

    1. Make sure your computer is connected to the projector's Computer port. If there are two computer ports, make sure you use the Computer1 port. 2. Connect the external monitor's cable to your projector's Monitor Out port. PowerLite S39 Downloaded from ManualsNet.com...

  • Page 47: Connecting To External Speakers

    PowerLite X39 PowerLite W39 Parent topic: Connecting External Output Devices Related references Projector Setup Settings - Extended Menu Connecting to External Speakers To enhance the sound from your presentation, you can connect the projector to external self-powered speakers. You can control the volume using the projector's remote control. You can also connect the projector to an amplifier with speakers.
  • Page 48 3. Connect one end of the cable to your external speakers as necessary. 4. Connect the stereo mini-jack end of the cable to your projector's Audio Out port. PowerLite S39 Downloaded from ManualsNet.com...

  • Page 49: Connecting To External Usb Devices

    PowerLite X39 PowerLite W39 Parent topic: Connecting External Output Devices Related references Projector Setup Settings - Extended Menu Connecting to External USB Devices Follow the instructions in these sections to connect external USB devices to the projector. Downloaded from ManualsNet.com search engine...

  • Page 50: Usb Device Projection

    USB Device Projection Connecting a USB Device or Camera to the Projector Selecting the Connected USB Source Disconnecting a USB Device or Camera From the Projector Parent topic: Projector Connections Related topics Projecting a PC Free Presentation USB Device Projection You can project images and other content without using a computer or video device by connecting any of these devices to your projector: •...
  • Page 51 2. Connect the USB cable (or USB flash drive) to the projector's USB-A port. PowerLite S39 PowerLite X39 Downloaded from ManualsNet.com search engine...

  • Page 52: Selecting The Connected Usb Source

    PowerLite W39 Note: Do not connect a USB hub or a USB cable longer than 10 feet (3 m), or the device may not operate correctly. 3. Connect the other end of the cable (if applicable) to your device. Parent topic: Connecting to External USB Devices Selecting the Connected USB Source You can switch the projector's display to the source you connected to the USB-A port.

  • Page 53: Connecting To A Document Camera

    Depending on your Epson document camera model, do one of the following to connect the document camera to your projector: • For the Epson DC-07 document camera, locate the USB cable that came with the camera and connect it to the projector's USB-A port and to the document camera's USB Type B port.

  • Page 54: Installing Batteries In The Remote Control

    PowerLite W39 Note: For additional features supported by software, connect your document camera to your computer instead of the projector. See the document camera manual for details. Parent topic: Projector Connections Installing Batteries in the Remote Control The remote control uses the two AA batteries that came with the projector. Caution: Use only the type of batteries specified in this manual.
  • Page 55 2. Insert the batteries with the + and – ends facing as shown. 3. Replace the battery cover and press it down until it clicks into place. Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame.

  • Page 56: Opening The Lens Cover

    Opening the Lens Cover To open the projector's lens cover, slide the A/V Mute slide lever until it clicks into the open position. Parent topic: Setting Up the Projector Downloaded from ManualsNet.com search engine...

  • Page 57: Using The Projector On A Network

    Controlling a Networked Projector Using a Web Browser Wired Network Projection You can project through a wired network (not supported on the PowerLite S39). To do this, you connect the projector to your network with an Ethernet cable, and then set up your projector and computer for network projection.

  • Page 58: Selecting Wired Network Settings

    2. Connect the other end of the cable to the projector's LAN port. PowerLite X39 PowerLite W39 Parent topic: Wired Network Projection Selecting Wired Network Settings Before you can project from computers on your network, you must select the network settings for the projector using its menu system.
  • Page 59 3. Select the Network menu and press Enter. 4. Select Network Configuration and press Enter. 5. Select the Basic menu and press Enter. 6. Select the following basic options as necessary: • Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the projector over the network.
  • Page 60 PJLink protocol for projector control. • Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing the Remote or Basic Control screen in Epson Web Control. (Default user name is EPSONREMOTE; default password is guest.) •...

  • Page 61: Wireless Network Projection

    Note: If your projector is connected via a LAN cable (PowerLite X39/W39) to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software. Installing the Wireless LAN Module...

  • Page 62: Installing The Wireless Lan Module

    Optional Equipment and Replacement Parts Installing the Wireless LAN Module To use the projector over a wireless network, install the Epson 802.11b/g/n wireless LAN module in the projector. Do not install any other type of wireless module. Note: The wireless LAN module is not included with your projector and is optional.
  • Page 63 2. Insert the wireless LAN module into the USB-A port. 3. Attach the wireless LAN module cover and secure it using the screw you removed. The light on the wireless LAN module turns on when the module is installed and operating. The light flashes when the module is communicating over the network.

  • Page 64: Using A Qr Code To Connect A Mobile Device

    After you select the wireless network settings for your projector, you can display a QR code on the screen and use it to connect a mobile device using the Epson iProjection app. Note: Make sure you have installed the latest version of Epson iProjection on your device. Visit epson.com/iprojection (U.S.) or...

  • Page 65: Using Quick Wireless Connection (Windows)

    Note: If you do not see the QR code after pressing the LAN button, press Enter to display it. 8. Start Epson iProjection on your mobile device. 9. Use the QR code reader feature to read the QR code and connect your device to the projector. Visit epson.com/iprojection...
  • Page 66 Note: A USB flash drive is not included with your projector. 1. Create a Quick Wireless Connection USB Key with a USB flash drive and the Epson iProjection (Windows/Mac) software. Note: See the online Epson iProjection Operation Guide for instructions.
  • Page 67 Note: In Windows Vista, if you see the AutoPlay window, select Run MPPLaunch.exe, then select Allow on the next screen. 8. Follow the on-screen instructions to install the Epson iProjection (Windows/Mac) software. Note: If you see a Windows Firewall message, click Yes to disable the firewall. You need administrator authority to install the software.

  • Page 68: Selecting Wireless Network Settings Manually

    Parent topic: Wireless Network Projection Related references Additional Projector Software and Manuals Selecting Wireless Network Settings Manually Before you can project from your wireless network, you must select the network settings for the projector using its menu system. 1. Turn on the projector. 2.
  • Page 69 • Projector Keyword lets you turn on a security password to prevent access to the projector by anyone not in the room with it. The projector displays a random keyword that you must enter from a computer using the Epson iProjection software or an iOS or Android device using the Epson iProjection app.
  • Page 70 • Display LAN Info lets you select how the projector displays network information. You can select an option to display a QR code that lets you quickly connect your iOS or Android devices with the Epson iProjection app. Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

  • Page 71: Wireless Lan Menu Settings

    Wireless LAN Menu Settings Setting Options Description Connection Mode Quick Selects the type of wireless connection: Advanced Quick: lets you directly connect to multiple devices and computers using the projector's wireless network (requires the optional wireless LAN module). Advanced: lets you connect to multiple smartphones, tablets, or computers via a wireless network access point...

  • Page 72: Selecting Wireless Network Settings In Windows

    Setting Options Description IP Settings DHCP Turns on DHCP if your network assigns addresses automatically; IP Address set to Off to manually enter the Subnet Mask network's IP Address, Subnet Mask, and Gateway Address Gateway Address SSID Display Selects whether to display the SSID on the network standby screen and the Home screen IP Address Display...

  • Page 73: Setting Up Wireless Network Security

    2. Make sure AirPort is turned on, then do one of the following: • If your projector is set up on an existing network (Advanced mode), select the network name (SSID). • If your projector is configured for Quick mode, select the projector's SSID. Parent topic: Wireless Network Projection Setting Up Wireless Network Security...

  • Page 74: Setting Up Projector Network E-Mail Alerts

    7. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus. Parent topic: Wireless Network Projection Setting Up Projector Network E-Mail Alerts You can set up the projector to send you an e-mail alert over the network if there is a problem with the projector.

  • Page 75: Network Projector E-Mail Alert Messages

    • The email address entered as the From setting • Epson Projector on the subject line • The name of the projector experiencing a problem • The IP address of the affected projector •...

  • Page 76: Controlling A Networked Projector Using A Web Browser

    8. If you want this projector to receive broadcasted messages over the network, select the Others menu and turn on the Message Broadcasting setting. Administrators can broadcast messages over the network using Epson Projector Management (Windows only). 9. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.
  • Page 77 Note: The web setup and control features support Microsoft Internet Explorer 9.0 or later, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser. Note: If you set Standby Mode to Communication On in the ECO menu, you can use a web browser to select settings and control projection even if the projector is in standby mode.
  • Page 78 4. To select projector menu settings, select Advanced to display a list of options. Note: You may need to log in to access some of the options on the Web Control screen. If you see a log in window, enter your user name and password. (The default user name is EPSONWEB and the default password is admin.) 5.
  • Page 79 Select an HDMI port source Selects the USB Display source Selects the USB device source A/V Mute button control Freeze button control Page Up and Page Down button controls Displays a QR code Volume button controls Selects the network source Selects the Screen Mirroring source Selects the Computer port source Selects a Video port source...

  • Page 80: Using Basic Projector Features

    Using Basic Projector Features Follow the instructions in these sections to use your projector's basic features. Turning On the Projector Turning Off the Projector Selecting the Language for the Projector Menus Adjusting the Image Height Image Shape Resizing the Image Focusing the Image Using the Focus Ring Remote Control Operation Selecting an Image Source...
  • Page 81 1. Connect the power cord to the projector's power inlet. 2. Plug the power cord into an electrical outlet. Note: With Direct Power On turned on, the projector turns on as soon as you plug it in. The projector's power light turns blue. This indicates that the projector is receiving power. 3.

  • Page 82: Using The Home Screen

    • Press the Source Search button on the projector or remote control to detect the video source. • Press the button for the video source on the remote control. • If the Home screen is displayed, select the source you want to project. Using the Home Screen Parent topic: Using Basic Projector Features...

  • Page 83: Turning Off The Projector

    Select the video source you want to project Display the Connection Guide Display the Help screen Display the projector's menus Select customizable menu options Select to project two images from different image sources simultaneously Correct the image shape Note: Your Home screen may look different from the illustration shown here. You can select the customizable menu options using the Custom Function 1 and Custom Function 2 settings in the Extended menu.
  • Page 84 2. Press the power button again. (To leave it on, press any other button.) The projector beeps twice, the lamp turns off, and the Status light turns off. Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the projector for transport right away (if necessary).

  • Page 85: Selecting The Language For The Projector Menus

    Caution: To avoid damaging the projector or lamp, never unplug the power cord when the Status light is on or flashing. Parent topic: Using Basic Projector Features Related references Projector Light Status Selecting the Language for the Projector Menus If you want to view the projector's menus and messages in another language, you can change the Language setting.

  • Page 86: Adjusting The Image Height

    Adjusting the Image Height If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust the image height using the projector's adjustable feet. 1. Turn on the projector and display an image. 2.

  • Page 87: Image Shape

    Image Shape You can project an evenly rectangular image by placing the projector directly in front of the center of the screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off to the side, you may need to correct the image shape for the best display quality.

  • Page 88: Correcting Image Shape With The Keystone Buttons

    Correcting Image Shape with the Keystone Buttons You can use the projector's keystone correction buttons to correct the shape of an image that is unevenly rectangular on the sides. Note: To provide the best possible image quality, adjust the projector's position to correct the image shape.
  • Page 89 3. Press a keystone button on the projector's control panel to adjust the image shape. PowerLite S39 Downloaded from ManualsNet.com search engine...
  • Page 90 PowerLite X39/W39 Note: The horizontal keystone adjustment buttons are labeled W and T on the PowerLite S39. After correction, your image is slightly smaller. Note: If the projector is installed out of reach, you can also correct the image shape with the remote control using the H/V-Keystone settings in the projector menus.

  • Page 91: Correcting Image Shape With Quick Corner

    Related references Projector Feature Settings - Settings Menu Correcting Image Shape with Quick Corner You can use the projector's Quick Corner setting to correct the shape and size of an image that is unevenly rectangular on all sides. Note: To provide the best possible image quality, adjust the projector's position to correct the image shape.
  • Page 92 3. Select the Settings menu and press Enter. 4. Select the Keystone setting and press Enter. 5. Select the Quick Corner setting and press Enter. Then press Enter again. You see the Quick Corner adjustment screen: 6. Use the arrow buttons on the projector or the remote control to select the corner of the image you want to adjust.

  • Page 93: Resizing The Image

    • If the projector includes a zoom ring, rotate it to enlarge or reduce the image size. • If the projector includes Wide and Tele buttons, press the Wide button on the projector's control panel to enlarge the image size. Press the Tele button to reduce the image size. PowerLite S39 Downloaded from ManualsNet.com...

  • Page 94: Focusing The Image Using The Focus Ring

    Note: You can also display the pattern by pressing the User button on the remote control (if the test pattern is assigned to this button). 2. To sharpen the image focus, rotate the projector’s focus ring. PowerLite S39 Downloaded from ManualsNet.com...

  • Page 95: Remote Control Operation

    PowerLite X39/W39 Parent topic: Using Basic Projector Features Remote Control Operation The remote control lets you control the projector from almost anywhere in the room, up to 19.7 feet (6 m) away. You can point it at the screen, or the front or back of the projector. Make sure that you aim the remote control at the projector's receivers within the distance and angles listed here.

  • Page 96: Using The Remote Control As A Wireless Mouse

    30° 19.7 feet (6 m) 15° Note: Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or the projector may not respond to commands. If you will not use the remote control for a long time, remove the batteries.

  • Page 97: Using The Remote Control As A Pointer

    • To move the cursor on the screen, use the arrow buttons. • To left-click, press the button once (press it twice to double-click). • To right-click, press the Esc button. • To drag-and-drop, hold the button as you move the cursor with the arrow buttons, then release at the destination.
  • Page 98 1. Make sure the connected image source you want to use is turned on. 2. For video image sources, insert a DVD or other video media and press its play button, if necessary. 3. Do one of the following: • Press the Source Search button on the projector or remote control until you see the image from the source you want.

  • Page 99: Projection Modes

    • Press the Home button on the remote control and select your image source. Note: Your Home screen may look different from the illustration shown here. Parent topic: Using Basic Projector Features Projection Modes Depending on how you positioned the projector, you may need to change the projection mode so your images project correctly.

  • Page 100: Changing The Projection Mode Using The Remote Control

    Changing the Projection Mode Using the Remote Control You can change the projection mode to flip the image over top-to-bottom. 1. Turn on the projector and display an image. 2. Hold down the A/V Mute button on the remote control for 5 to 10 seconds. The image disappears briefly and reappears flipped top-to-bottom.

  • Page 101: Image Aspect Ratio

    3. Select the Extended menu and press Enter. 4. Select the Projection setting and press Enter. 5. Select a projection mode and press Enter. 6. Press Menu or Esc to exit the menus. Parent topic: Projection Modes Image Aspect Ratio The projector can display images in different width-to-height ratios called aspect ratios.

  • Page 102: Available Image Aspect Ratios

    2. Press the Aspect button on the remote control. The shape and size of the displayed image changes, and the name of the aspect ratio appears briefly on the screen. 3. To cycle through the available aspect ratios for your input signal, press the Aspect button repeatedly.

  • Page 103: Color Mode

    Displays images using the full width of the projection area and maintains the aspect ratio of the image. Native Displays images as is (aspect ratio and resolution are maintained). PowerLite S39/X39 Aspect ratio setting Description Auto Automatically sets the aspect ratio according to the input signal and the Resolution setting.

  • Page 104: Changing The Color Mode

    Changing the Color Mode You can change the projector's Color Mode using the remote control to optimize the image for your viewing environment. 1. Turn on the projector and switch to the image source you want to use. 2. If you are projecting from a DVD player or other video source, insert a disc or other video media and press the play button, if necessary.

  • Page 105: Turning On Auto Iris

    Turning On Auto Iris In certain color modes, you can turn on the Auto Iris setting to automatically optimize the image based on the brightness of the content you project. 1. Turn on the projector and switch to the image source you want to use. 2.

  • Page 106: Controlling The Volume With The Volume Buttons

    Controlling the Volume with the Volume Buttons You can use the Volume buttons on the remote control to adjust the volume as you project a presentation with audio. You can also use the volume buttons on the projector's control panel (PowerLite X39/W39).

  • Page 107: Starting A Pc Free Slide Show

    Note: For best results, place your files on media that is formatted in FAT16/32. If you have trouble projecting from media formatted for non-Windows file systems, try formatting the media for Windows instead. You may not be able to use the security features on certain USB storage devices with PC Free features.
  • Page 108 1. Press the USB button on the projector remote control. The PC Free screen appears. 2. Do the following as necessary to locate your files: • If you need to display files inside a subfolder on your device, press the arrow buttons to highlight the folder and press the Enter button.

  • Page 109: Starting A Pc Free Movie Presentation

    4. While projecting, use the following commands to control the display as necessary: • To rotate a displayed image, press the up or down arrow button. • To move to the next or previous image, press the left or right arrow button. 5.

  • Page 110: Pc Free Display Options

    2. Do the following as necessary to locate your files: • If you need to display files inside a subfolder on your device, press the arrow buttons to highlight the folder and press the Enter button. • To move back up a folder level on your device, highlight Back to Top and press Enter. •...
  • Page 111 Setting Options Description Display Order Name Order Displays files in name order Date Order Displays files in date order Sort Order In Ascending Sorts files in first-to-last order In Descending Sorts files in last-to-first order Continuous Play Displays a slide show continuously Displays a slide show one time through Screen Switching Does not display the next file automatically...

  • Page 112: Adjusting Projector Features

    Adjusting Projector Features Follow the instructions in these sections to use your projector's feature adjustments. Shutting Off the Picture and Sound Temporarily Stopping Video Action Temporarily Zooming Into and Out of Images Projector Security Features Projector Identification System for Multiple Projector Control Projecting Two Images Simultaneously Copying Menu Settings Between Projectors Shutting Off the Picture and Sound Temporarily...

  • Page 113: Stopping Video Action Temporarily

    Note: You can also stop projection using the A/V Mute slide lever on the projector. Parent topic: Adjusting Projector Features Related references Projector Setup Settings - ECO Menu Related tasks Saving a User's Logo Image to Display Stopping Video Action Temporarily You can temporarily stop the action in a video or computer presentation and keep the current image on the screen.

  • Page 114: Zooming Into And Out Of Images

    Zooming Into and Out of Images You can draw attention to parts of a presentation by zooming into a portion of the image and enlarging it on the screen. 1. Press the E-Zoom + button on the remote control. You see a crosshair on the screen indicating the center of the zoom area. 2.

  • Page 115: Projector Security Features

    Projector Security Features You can secure your projector to deter theft or prevent unintended use by setting up the following security features: • Password security to prevent the projector from being turned on, and prevent changes to the startup screen and other settings. •...
  • Page 116 1. Hold down the Freeze button on the remote control for about five seconds or until you see this menu. 2. Press the down arrow to select Password and press Enter. You see the prompt "Change the password?". 3. Select Yes and press Enter. 4.

  • Page 117: Selecting Password Security Types

    Parent topic: Password Security Types Related tasks Selecting Password Security Types Selecting Password Security Types After setting a password, you see this menu, allowing you to select the password security types you want to use. If you do not see this menu, hold down the Freeze button on the remote control for about five seconds or until the menu appears.

  • Page 118: Entering A Password To Use The Projector

    Entering a Password to Use the Projector If a password is set up and a Power On Protection password is enabled, you see a prompt to enter a password whenever you turn on the projector. You must enter the correct password to use the projector. 1.

  • Page 119: Saving A User's Logo Image To Display

    • If you continue to enter an incorrect password many times in succession, the projector displays a request code and a message to contact Epson Support. Do not attempt to enter the password again. When you contact Epson Support, provide the displayed request code and proof of ownership for assistance in unlocking the projector.
  • Page 120 2. Press the Menu button, select the Extended menu, and press Enter. 3. Select the User's Logo setting and press Enter. You see a prompt asking if you want to use the displayed image as a user's logo. 4. Select Yes and press Enter. You see a selection box overlaying your image.

  • Page 121: Locking The Projector's Buttons

    You see the User's Logo zoom factor menu. 7. Select a zoom percentage and press Enter. You see a prompt asking if you want to save the image as the User's Logo. 8. Select Yes and press Enter. You see a completion message. 9.

  • Page 122: Unlocking The Projector's Buttons

    1. Press the Menu button. 2. Select the Settings menu and press Enter. 3. Select Lock Setting and press Enter. 4. Select the Control Panel Lock setting and press Enter. 5. Select one of these lock types and press Enter: •...

  • Page 123: Installing A Security Cable

    Installing a Security Cable You can install two types of security cables on the projector to deter theft. • Use the security slot on the projector to attach a Kensington lock. See your local computer or electronics dealer for purchase information. •...

  • Page 124: Setting The Projector Id

    Setting the Projector ID If you want to control multiple projectors from a remote control, give each projector a unique ID. 1. Press the Menu button. 2. Select the Extended menu and press Enter. 3. Select Projector ID and press Enter. 4.

  • Page 125: Matching Multiple-Projector Display Quality

    1. Turn on the projector you want the remote control to operate with exclusively. 2. Make sure you know the projector's ID number as set in the Extended menu Projector ID setting. Note: If you have forgotten the projector's ID, aim the remote control at the projector and press the ID button to temporarily display the projector's ID on the screen.
  • Page 126 4. Press the Menu button, select the Image menu, and press Enter. 5. Select settings as necessary. 6. Set the remote control ID to match the next projector, then select Image menu adjustments as necessary to match the projectors' displays. Note: The brightness and tint may not match exactly even after adjustments.

  • Page 127: Projecting Two Images Simultaneously

    Projecting Two Images Simultaneously You can use the split screen feature to simultaneously project two images from different image sources next to each other. You can control the split screen feature using the remote control, the projector menus, or the interactive function. Note: While you use the split screen feature, other projector features may not be available and some settings may be automatically applied to both images.
  • Page 128 1. Press the Split button on the remote control. The currently selected input source moves to the left side of the screen. 2. Press the Menu button. You see this screen: 3. To select an input source for the other image, select the Source setting, press Enter, select the input source, select Execute, and press Enter.

  • Page 129: Copying Menu Settings Between Projectors

    Any saved User's Logo setting on the projector will transfer to the other projector. Caution: If the copy process fails due to a power failure, communication error, or for any other reason, Epson will not be responsible for any repair costs incurred. The following settings will not transfer between projectors: •...
  • Page 130 2. Insert the flash drive into the USB-A port. PowerLite S39 PowerLite X39 Downloaded from ManualsNet.com search engine...
  • Page 131 PowerLite W39 Note: Connect the flash drive directly to the projector. Do not use a hub or your settings may not be saved correctly. 3. Press and hold the Esc button on the control panel or remote control as you connect the power cord to the projector's power inlet.

  • Page 132: Transferring Settings From A Usb Flash Drive

    Do not adjust image settings on a projector until after you transfer settings to it. Otherwise, you may have to repeat your adjustments. 1. Turn off the projector and unplug the power cord from the projector's power inlet. 2. Insert the flash drive into the USB-A port. PowerLite S39 Downloaded from ManualsNet.com search engine...
  • Page 133 PowerLite X39 PowerLite W39 Note: Connect the flash drive directly to the projector. Do not use a hub or your settings may not be saved correctly. Downloaded from ManualsNet.com search engine...

  • Page 134: Saving Settings To A Computer

    3. Press and hold the Menu button on the control panel or remote control as you connect the power cord to the projector's power inlet. 4. When all of the projector lights turn on, release the Menu button. The lights flash to indicate that settings are transferring to the projector. When the lights stop flashing, the power light turns blue and the projector enters standby mode.
  • Page 135 • macOS 10.12.x • macOS 10.13.x 1. Turn off the projector and unplug the power cord from the projector's power inlet. 2. Connect a USB cable to your projector's USB-B port. PowerLite S39 PowerLite X39 Downloaded from ManualsNet.com search engine...
  • Page 136 PowerLite W39 3. Connect the other end to any available USB port on your computer. 4. Press and hold the Esc button on the control panel or remote control as you connect the power cord to the projector's power inlet. 5.

  • Page 137: Transferring Settings From A Computer

    7. Once the file has copied, do one of the following: • Windows: Open the My Computer, Computer, or Windows Explorer utility. Right-click the name of your projector (listed as a removable disk) and select Eject. • Mac: Drag the removable disk icon for your projector from the desktop into the trash. The projector enters standby mode.
  • Page 138 2. Connect a USB cable to your projector's USB-B port. PowerLite S39 PowerLite X39 PowerLite W39 Downloaded from ManualsNet.com search engine...
  • Page 139 3. Connect the other end to any available USB port on your computer. 4. Press and hold the Menu button on the control panel or remote control as you connect the power cord to the projector's power inlet. 5. When all of the projector lights turn on, release the Menu button. The projector shows up as a removable disk on your computer.
  • Page 140 Parent topic: Copying Menu Settings Between Projectors Downloaded from ManualsNet.com search engine...

  • Page 141: Adjusting The Menu Settings

    Adjusting the Menu Settings Follow the instructions in these sections to access the projector menu system and change projector settings. Using the Projector's Menus Image Quality Settings - Image Menu Input Signal Settings - Signal Menu Projector Feature Settings - Settings Menu Projector Setup Settings - Extended Menu Projector Network Settings - Network Menu Projector Setup Settings - ECO Menu...
  • Page 142 1. Press the Menu button on the control panel or remote control. You see the menu screen displaying the Image menu settings. Downloaded from ManualsNet.com search engine...

  • Page 143: Image Quality Settings - Image Menu

    2. Press the up or down arrow button to move through the menus listed on the left. The settings for each menu are displayed on the right. Note: The available settings depend on the current input source. 3. To change settings in the displayed menu, press Enter. 4.
  • Page 144 Setting Options Description Color Mode See the list of available Color Adjusts the vividness of image Modes colors for various image types and environments Brightness Varying levels available Lightens or darkens the overall image Contrast Varying levels available Adjusts the difference between light and dark areas of the image Color Saturation Varying levels available...
  • Page 145 Setting Options Description Advanced Deinterlacing Sets whether to convert interlaced to progressive signals for certain video image types Off: for fast-moving video images Video: for most video images Film/Auto: for movies, computer graphics, and animation Auto Iris Adjusts the projected luminance based on the image brightness Normal when the Dynamic or Cinema...

  • Page 146: Input Signal Settings - Signal Menu

    Input Signal Settings - Signal Menu Normally the projector detects and optimizes the input signal settings automatically. If you need to customize the settings, you can use the Signal menu. The available settings depend on the currently selected input source. Note: You can restore the default settings of the Position, Tracking, and Sync settings by pressing the Auto button on the remote control.
  • Page 147 Setting Options Description Sync. Varying levels available Adjusts signal to eliminate fuzziness or flickering in computer images Position Up, down, left, right Adjusts the image location on the screen Auto Setup Automatically optimizes computer image quality (when On) Overscan Auto Changes the projected image ratio to make the edges visible by a selectable percentage or...

  • Page 148: Projector Feature Settings - Settings Menu

    Setting Options Description Input Signal Auto Specifies the signal type from input sources connected to computer ports Component Auto: detects signals automatically RGB: corrects color for computer/RGB video inputs Component: corrects color for component video inputs Video Signal Auto Specifies the signal type from the input sources connected to the Various video standards video ports...
  • Page 149 Setting Options Description Keystone H/V Keystone Adjusts image shape to rectangular (horizontally and Quick Corner vertically) H/V Keystone: lets you manually correct horizontal and vertical sides Quick Corner: select to correct image shape and alignment using an on-screen display Split Screen Screen Size Divides the viewing area horizontally and displays two...
  • Page 150 Setting Options Description Remote Receiver Front/Rear Limits reception of remote control signals by the selected receiver; Front Off turns off all receivers Rear User Button Power Consumption Assigns a menu option to the User button on the remote Info control for one-touch access Deinterlacing Closed Caption Test Pattern...

  • Page 151: Projector Setup Settings - Extended Menu

    Projector Setup Settings - Extended Menu Settings on the Extended menu let you customize various projector setup features that control its operation. Setting Options Description Home Screen Home Screen Auto Disp. Select various options for the projector's Home screen Custom Function 1 Home Screen Auto Disp.: controls whether Custom Function 2 the Home screen displays automatically when...
  • Page 152 Setting Options Description Display Messages Selects various display options Display Background Messages: controls whether messages are displayed on the screen Startup Screen Display Background: selects the screen A/V Mute color or logo to display when no signal is received Startup Screen: controls whether a special screen appears when the projector starts up A/V Mute: selects the screen color or logo to display when A/V Mute is turned on...
  • Page 153 Setting Options Description Operation Direct Power On Selects various operation options High Altitude Mode Direct Power On: turns on the projector when you plug it in Auto Source Search High Altitude Mode: regulates the projector’s Auto Power On operating temperature at altitudes above 4921 HDMI EQ Setting feet (1500 m) Auto Source Search: automatically detects...

  • Page 154: Projector Network Settings - Network Menu

    Setting Options Description Schedule Settings Schedule Schedules projector events to occur automatically at selected dates and times Schedule Reset Setup Complete Language Various languages available Selects the language for projector menu and message displays (not changed by Reset option) Parent topic: Adjusting the Menu Settings Projector Network Settings - Network Menu Settings on the Network menu let you view network information and set up the projector for monitoring...
  • Page 155 MAC Address IPv6 Address (Manual) IPv6 Address (Auto) Display the QR Code — Displays a QR code for connecting with iOS or Android devices using the Epson iProjection app Network Configuration Accesses additional network Configures your network settings menus Parent topic:...

  • Page 156: Projector Setup Settings - Eco Menu

    Related tasks Selecting Wired Network Settings Projector Setup Settings - ECO Menu Settings on the ECO menu let you customize projector functions to save power. When you select a power-saving setting, a leaf icon appears next to the menu item. Setting Options Description...
  • Page 157 Setting Options Description Sleep Mode Automatically places the projector in standby mode after an interval of inactivity Sleep Mode Timer 1 to 30 minutes Sets the interval for Sleep Mode Lens Cover Timer Automatically turns off the projector after 30 minutes if the lens cover is closed A/V Mute Timer Automatically turns off the...

  • Page 158: Projector Information Display - Info Menu

    Lamp Hours Displays the number of hours (H) the lamp has been used in Normal and ECO Power Consumption modes; if the information is displayed in yellow, obtain a genuine Epson replacement lamp soon Source Displays the name of the port to which the current input source is...

  • Page 159: Event Id Code List

    Information item Description Refresh Rate Displays the refresh rate of the current input source Sync Info Displays information that may be needed by a service technician Status Displays information about projector problems that may be needed by a service technician Serial Number Displays the projector's serial number Event ID...

  • Page 160: Projector Reset Options - Reset Menu

    Key exchange failed. Check the wireless LAN security settings and make sure that the security certificate is installed correctly. 0920 The internal battery that saves the projector's date and time settings is running low. Contact Epson for help. Parent topic: Projector Information Display - Info Menu Projector Reset Options - Reset Menu You can reset most of the projector settings to their default values using the Reset All Config option on the Reset menu.
  • Page 161 • User's Logo • Schedule Settings • Language • Network menu items • Lamp Hours • Password • Zoom (PowerLite S39) • Date & Time • Display Background • Startup Screen • A/V Mute Parent topic: Adjusting the Menu Settings Downloaded from ManualsNet.com...

  • Page 162: Maintaining And Transporting The Projector

    The only parts you should replace are the lamp, air filter, and remote control batteries. If any other part needs replacing, contact Epson or an authorized Epson servicer. Warning: Before cleaning any part of the projector, turn it off and unplug the power cord. Never open any cover on the projector, except as specifically explained in this manual.

  • Page 163: Cleaning The Projector Case

    Filter maintenance intervals will depend on the environment. If regular maintenance is not performed, your Epson projector will notify you when the temperature inside the projector has reached a high level. Do not wait until this warning appears to maintain your projector filter as prolonged exposure to high temperatures may reduce the life of your projector or lamp.

  • Page 164: Cleaning The Air Filter And Vents

    Related references Projector Light Status Cleaning the Air Filter and Vents Clean the projector's air filter or vents if they get dusty, or if you see a message telling you to clean them. 1. Turn off the projector and unplug the power cord. 2.
  • Page 165 2. Carefully open the air filter cover. Downloaded from ManualsNet.com search engine...
  • Page 166 3. Pull the air filter out of the projector. Note: Air filters contain ABS resin and polyurethane foam. Dispose of used air filters according to local regulations. Downloaded from ManualsNet.com search engine...

  • Page 167: Projector Lamp Maintenance

    4. Place the new air filter in the projector as shown and push gently until it clicks into place. 5. Close the air filter cover. Parent topic: Air Filter and Vent Maintenance Related references Optional Equipment and Replacement Parts Projector Lamp Maintenance The projector keeps track of the number of hours the lamp is used and displays this information in the projector's menu system.

  • Page 168: Replacing The Lamp

    Resetting the Lamp Timer Parent topic: Projector Maintenance Related references Projector Light Status Projector Information Display - Info Menu Replacing the Lamp Before you replace the lamp, let the projector cool down for at least one hour so the lamp will not be hot. Warning: Let the lamp fully cool before replacing it to avoid injury.
  • Page 169 4. Slide the lamp cover out and lift it off. 5. Loosen the screws securing the lamp to the projector. The screws do not come all the way out. Downloaded from ManualsNet.com search engine...
  • Page 170 6. Grasp the raised section of the lamp and gently pull the lamp out of the projector. Note: The lamp(s) in this product contain mercury. Please consult your state and local regulations regarding disposal or recycling. Do not put in the trash. 7.
  • Page 171 8. Push in the lamp firmly and tighten the screws to secure it. Caution: Do not over-tighten the screws. 9. Replace the lamp cover and tighten the screw to secure it. Note: Be sure the lamp cover is securely installed or the lamp will not come on. Downloaded from ManualsNet.com search engine...

  • Page 172: Resetting The Lamp Timer

    Reset the lamp timer to zero to keep track of the new lamp's usage. Parent topic: Projector Lamp Maintenance Related references Optional Equipment and Replacement Parts Related tasks Resetting the Lamp Timer Resetting the Lamp Timer You must reset the lamp timer after replacing the projector's lamp to clear the lamp replacement message and to keep track of lamp usage correctly.

  • Page 173: Replacing The Remote Control Batteries

    6. Press Menu or Esc to exit the menus. Parent topic: Projector Lamp Maintenance Related tasks Replacing the Lamp Replacing the Remote Control Batteries The remote control uses two AA manganese or alkaline batteries. Replace the batteries as soon as they run out.

  • Page 174: Transporting The Projector

    3. Insert the batteries with the + and – ends facing as shown. 4. Replace the battery cover and press it down until it clicks into place. Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame.
  • Page 175 • When shipping the projector for repairs, place it in its original packing materials, if possible, or use equivalent materials with cushioning around the projector. Mark the box "Fragile." Note: Epson shall not be liable for any damages incurred during transportation. Parent topic:...

  • Page 176: Solving Problems

    • The Help option on the Home screen can display information about common problems, if the projector is operating. • The solutions in this manual can help you solve many problems. If none of these solutions help, you can contact Epson for technical support. Parent topic: Solving Problems...

  • Page 177: Projector Light Status

    Projector Light Status The lights on the projector indicate the projector status and let you know when a problem occurs. Check the status and color of the lights and look for a solution in the table here. Power light Status light Lamp light Temp (temperature) light Projector status...
  • Page 178 • Clean or replace the air filter • If operating the projector at high altitude, turn on High Altitude Mode • If the problem persists, unplug the projector and contact Epson for help Downloaded from ManualsNet.com search engine...
  • Page 179 Epson for help Flashing blue Flashing Flashing Auto iris error; turn the projector off, orange orange unplug it, and contact Epson for help Flashing blue Orange Orange Power error; turn the projector off, unplug it, and contact Epson for help Note: If the lights display a pattern not listed in the table above, turn the projector off, unplug it, and contact Epson for help.

  • Page 180: Using The Projector Help Displays

    Related concepts Air Filter and Vent Maintenance Projector Lamp Maintenance Related references Projector Setup Settings - Extended Menu Where to Get Help Related tasks Turning Off the Projector Using the Projector Help Displays You can display information to help you solve common problems using the projector's Help system. 1.

  • Page 181: Solutions When No Image Appears

    Solutions When the Image is Not Rectangular Solutions When the Image Contains Noise or Static Solutions When the Image is Fuzzy or Blurry Solutions When the Image Brightness or Colors are Incorrect Solutions to Sound Problems Parent topic: Solving Problems Solutions When No Image Appears If no image appears, try the following solutions: •...

  • Page 182: Solutions When Image Is Incorrect Using The Usb Display Function

    • For images projected with Windows Media Center, reduce the screen size from full screen mode. • For images projected from applications using Windows DirectX, turn off DirectX functions. • If the mouse cursor flickers, select Make the movement of the mouse pointer smooth in the Epson USB Display Settings program on your computer.

  • Page 183: Displaying From A Pc Laptop

    • Press the Home button on the remote control to select from a list of available sources (shown in black text). • Turn on the connected computer or video source, and press its play button to begin your presentation, if necessary. •...

  • Page 184: Displaying From A Mac Laptop

    Displaying From a Mac Laptop If you see the "No Signal" message when you display from a Mac laptop, you need to set up the laptop for mirrored display. (See your laptop manual for details.) 1. Open the System Preferences utility and select Displays, Display, or Color LCD. 2.

  • Page 185: Solutions When The Image Is Not Rectangular

    • Check your computer display settings to disable dual display and set the resolution within the projector's limits. (See your computer manual for details.) • Check the resolution assigned to your presentation files to see if they are created for a different resolution than you are projecting in.

  • Page 186: Solutions When The Image Is Fuzzy Or Blurry

    • If you connected an extension power cable, try projecting without it to see if it caused interference in the signal. • If you are using the USB Display function, turn off the Transfer layered window setting in the Epson USB Display Settings program on your computer.

  • Page 187: Solutions When The Image Brightness Or Colors Are Incorrect

    • If you are projecting from a computer, press the Auto button on the remote control to automatically adjust the tracking and sync. If any bands or overall blurriness remain, display a uniformly patterned image on the screen and manually adjust the Tracking and Sync settings. •...

  • Page 188: Solutions To Sound Problems

    • If you are using the USB Display function, turn on the Output audio from the projector setting in the Epson USB Display Settings program on your computer. • If you are using a Mac and you do not hear sound from an HDMI source, make sure your Mac supports audio through the HDMI port.

  • Page 189: Solutions To Projector Power Or Shut-Off Problems

    Remote Receiver setting is turned on in the projector's menu, if available. • The power cord may be defective. Try another power cord. If that doesn't work, disconnect the cord and contact Epson. Parent topic: Solving Projector or Remote Control Operation Problems...

  • Page 190: Solutions To Password Problems

    • If you set a Epson Web Control password and forgot the user ID or password, try entering the following: • User ID: EPSONWEB • Default password: admin • If you set a Remote password (in Epson Web Control) and forgot the user ID or password, try entering the following: • User ID: EPSONREMOTE • Default password: guest Downloaded from ManualsNet.com...

  • Page 191: Solving Network Problems

    • If you lose the remote control, you cannot enter a password. Order a new one from Epson. Parent topic: Solving Projector or Remote Control Operation Problems Related concepts Password Security Types Solving Network Problems Check the solutions in these sections if you have problems using the projector on a network.

  • Page 192: Solutions When The Image Contains Static During Network Projection

    Note: You cannot change the user ID. • You may need to log in to access some options on the Web Control screen. If you see a log in window, enter EPSONWEB as the user ID and enter the password set in the projector's Network menu as the password.

  • Page 193: Where To Get Help

    Epson with your questions. Speak to a Support Representative To use the Epson PrivateLine Support service, call (800) 637-7661. This service is available for the duration of your warranty period. You may also speak with a projector support specialist by dialing (562) 276-4394 (U.S.) or (905) 709-3839 (Canada).
  • Page 194 To purchase a replacement remote control, call (562) 276-4394 (U.S.) or (905) 709-3839 (for dealer referral in Canada). Parent topic: Solving Problems Downloaded from ManualsNet.com search engine...

  • Page 195: Technical Specifications

    Supported Video Display Formats USB Display System Requirements General Projector Specifications Type of display Poly-silicon TFT active matrix Resolution PowerLite S39: 800 × 600 pixels (SVGA) PowerLite X39: 1024 × 768 pixels (XGA) PowerLite W39: 1280 × 800 pixels (WXGA)
  • Page 196 Color reproduction Full color, up to 1 billion colors Brightness PowerLite S39: Normal Power Consumption mode: White light output 3300 lumens (ISO 21118 standard) Color light output 3300 lumens ECO Power Consumption mode: White light output 2050 lumens (ISO 21118 standard) Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions.
  • Page 197 Contrast ratio 15000:1 with Auto Iris on, Dynamic Color Mode, Zoom Wide, and Normal Power Consumption mode Image size PowerLite S39: (in native aspect ratio) 23 inches (0.58 m) to 350 inches (8.89 m) PowerLite W39: 33 inches (0.84 m) to 320 inches (8.13 m) PowerLite X39: 30 inches (0.76 m) to 300 inches (7.62 m)

  • Page 198: Projector Lamp Specifications

    USB Type B port compatibility USB 1.1 and 2.0 compliant for USB display, external mouse or keyboard control, or firmware update USB Type A port compatibility One USB 1.1 and 2.0 compliant port for USB device input, Epson document camera display, wireless LAN module, or firmware update...

  • Page 199: Remote Control Specifications

    Lamp life PowerLite S39: Normal Power Consumption mode: Up to about 6000 hours ECO Power Consumption mode: Up to about 10000 hours PowerLite W39/X39: Normal Power Consumption mode: Up to about 6000 hours ECO Power Consumption mode: Up to about 12000 hours Note: Turn off this product when not in use to prolong the life of the projector.

  • Page 200: Projector Electrical Specifications

    Projector Electrical Specifications Rated frequency 50/60 Hz Power supply 100 to 240 V AC ±10% 2.9 to 1.3 A Power consumption Operating: (100 to 120 V) Normal Power Consumption mode: 325 W ECO Power Consumption mode: 230 W Standby: 0.2 W (Communication Off), 2.0 W (Communication On) Power consumption Operating: (220 to 240 V)

  • Page 201: Projector Safety And Approvals Specifications

    For best results, your computer's monitor port or video card resolution should be set to display in the projector's native resolution. However, your projector includes Epson's SizeWise chip that supports other computer display resolutions, so your image will be resized to fit automatically.
  • Page 202 Display format Refresh rate (in Hz) Resolution (in pixels) SXGA 70/75/85 1152 × 864 60/75 1280 × 1024 60/75 1280 × 960 SXGA+ 60/75 1400 × 1050 WSXGA+ 1680 × 1050 UXGA 1600 × 1200 WUXGA (Reduced Blanking) 1920 × 1200 Component video SDTV (480i/480p) 720 ×...

  • Page 203: Usb Display System Requirements

    Display format Refresh rate (in Hz) Resolution (in pixels) SXGA+ 1400 × 1050 WSXGA+ 1680 × 1050 UXGA 1600 × 1200 SDTV (480i/480p) 720 × 480 SDTV (576i/576p) 720 × 576 HDTV (720p) 50/60 1280 × 720 HDTV (1080i) 50/60 1920 ×...
  • Page 204 Requirement Windows Memory 2GB or more (4GB or more recommended) Hard disk space 20MB or more Display Resolution between 640 × 480 and 1920 × 1200, 16-bit color or greater Note: USB Display operation is not guaranteed for Windows Vista without service packs or with Service Pack 1.

  • Page 205: Notices

    FCC Compliance Statement Binding Arbitration and Class Waiver Trademarks Copyright Notice Recycling Epson offers a recycling program for end of life products. Please go to this site for information on how to return your products for proper disposal. Parent topic:...

  • Page 206: Important Safety Instructions

    Important Safety Instructions Follow these safety instructions when setting up and using the projector: • Do not look into the lens when the projector is on. The bright light can damage your eyes. Avoid standing in front of the projector so the bright light does not shine into your eyes. •...
  • Page 207 • Never allow objects of any kind to enter any openings in the projector. Do not leave objects, especially flammable objects, near the projector. Never spill liquid of any kind into the projector. • If you are using two or more projectors side-by-side, leave at least 2 feet (60 cm) of space between the projectors to allow for proper ventilation.
  • Page 208 Doing so may cause an unstable display and could lead to projector damage. Do not use or store the projector where it may be exposed to sudden changes in temperature. • Do not store the projector outside of the required temperature range of 14 to 140 °F (–10 to 60 °C) or in direct sunlight for long periods of time.

  • Page 209: Restriction Of Use

    Restriction of Use When this product is used for applications requiring high reliability/safety such as transportation devices related to aviation, rail, marine, automotive; disaster prevention devices; various safety devices; or functional/precision devices, you should use this product only after giving consideration to including fail- safes and redundancies into your design to maintain safety and total system reliability.
  • Page 210 Symbol Approved Standards Description IEC60417 Caution, hot surface No.5041 To indicate that the marked item can be hot and should not be touched without taking care. IEC60417 Caution, risk of electric shock No.6042 To identify equipment that has risk of electric shock.
  • Page 211 Symbol Approved Standards Description — Positioning of cell To identify the battery holder itself and to identify the positioning of the cell(s) inside the battery holder. IEC60417 Protective earth No.5019 To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth electrode.

  • Page 212: Fcc Compliance Statement

    Symbol Approved Standards Description ISO 3864 Contact prohibition To indicate injury that could occur due to touching a specific part of the equipment. — Never look into the optical lens while the projector is on. — To indicate that the marked item don’t place anything on projector.

  • Page 213: Binding Arbitration And Class Waiver

    1. DISPUTES, BINDING INDIVIDUAL ARBITRATION, AND WAIVER OF CLASS ACTIONS AND CLASS ARBITRATIONS 1.1 Disputes. The terms of this Section 1 shall apply to all Disputes between you and Epson. The term "Dispute" is meant to have the broadest meaning permissible under law and includes any dispute, claim,...
  • Page 214 1.3 Pre-Arbitration Steps and Notice. Before submitting a claim for arbitration, you and Epson agree to try, for sixty (60) days, to resolve any Dispute informally. If Epson and you do not reach an agreement to resolve the Dispute within the sixty (60) days), you or Epson may commence an arbitration. Notice to Epson must be addressed to: Epson America, Inc., ATTN: Legal Department, 3840 Kilroy Airport Way,...
  • Page 215 Epson's last written offer, if any, to settle the Dispute, Epson will: (i) pay you $1,000 or the amount of the award, whichever is greater; (ii) pay you twice the amount of your reasonable attorney's fees, if any;...

  • Page 216: Trademarks

    Agreement by sending a written letter to the Epson Address within thirty (30) days of your assent to this Agreement (including without limitation the purchase, download, installation of the...

  • Page 217: Copyright Notice

    Seiko Epson Corporation. The information contained herein is designed only for use with this Epson product. Epson is not responsible for any use of this information as applied to other products.

  • Page 218: Copyright Attribution

    Copyright Attribution © 2019 Epson America, Inc. 4/19 CPD-54237R1 Parent topic: Copyright Notice Downloaded from ManualsNet.com search engine...

This manual is also suitable for:

Powerlite w39Powerlite x39

Table of Contents
