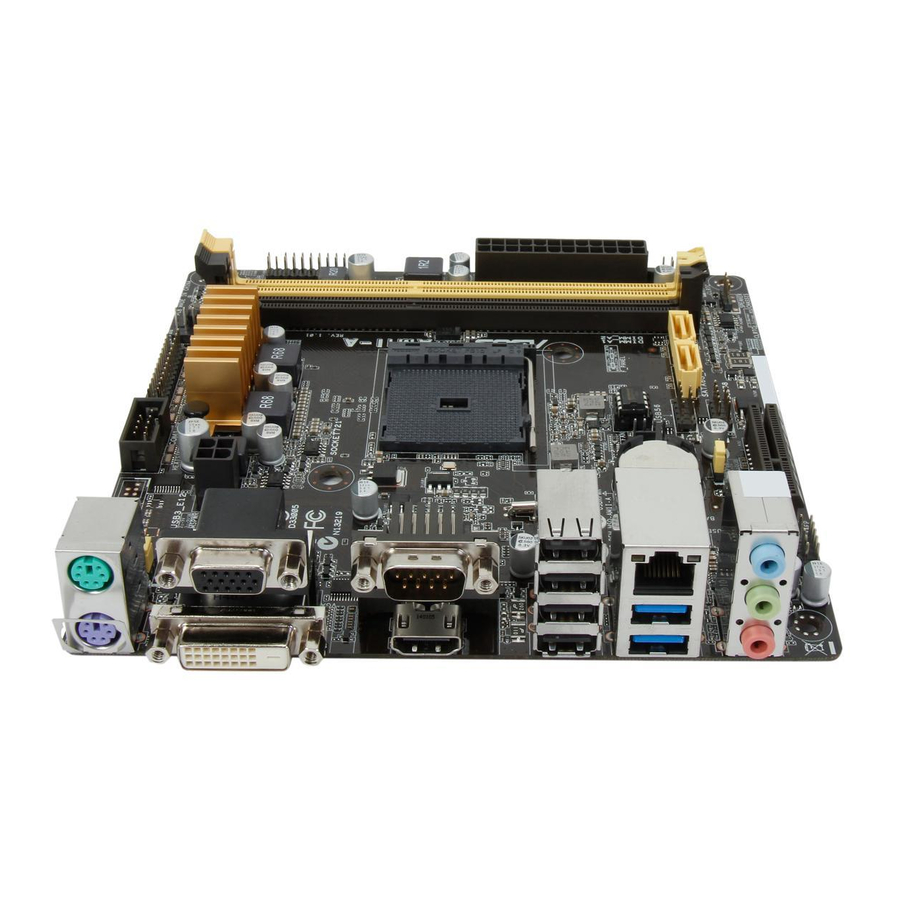

Summary of Contents for Asus AM1I-A

  • Page 1 AM1I-A...
  • Page 2 INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

  • Page 3: Table Of Contents

    My Favorites ................2-10 Main menu .................. 2-11 Ai Tweaker menu ................ 2-13 Advanced menu ................. 2-15 Monitor menu ................2-21 Boot menu .................. 2-24 Tools menu ................. 2-30 2.10 Exit menu ..................2-31 Appendices Notices .......................A-1 ASUS contact information ...............A-3...

  • Page 4: Safety Information

    Safety information Electrical safety • before relocating the system. • When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device. •...
  • Page 5 Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information. Optional documentation that may have been added by your dealer. These documents are not part of the standard package.

  • Page 6: Package Contents

    Package contents Check your motherboard package for the following items. Motherboard ASUS AM1I-A motherboard Cables 2 x Serial ATA 6.0 Gb/s cables Accessories 1 x I/O Shield Application DVD Support DVD Documentation User Guide If any of the above items is damaged or missing, contact your retailer.
  • Page 7 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFreen BIOS 3, F12 Printscreen function, F3 Shortcut function and ASUS DRAM SPD (Serial Presence Detect) memory information OS Support ®...
  • Page 8 Support DVD Drivers ASUS utilities ASUS Update Anti-virus software (OEM version) Form factor Mini-ITX form factor: 6.7 in x 6.7 in (17.0cm x 17.0cm) viii...

  • Page 9: Product Introduction

    1.2.2 Screw holes Place four screws into the holes indicated by circles to secure the motherboard to the chassis. Do not overtighten the screws! Doing so can damage the motherboard. ASUS AM1I-A...
  • Page 10 Place this side towards the rear of the chassis 1.2.3 Motherboard layout 17.0cm(6.7in) KBMS COM1 ATX12V Super USB1-4 CHA_FAN LAN_USB3_12 BIOS BATTERY 8111GR USB56 SATA6G_1 SATA6G_2 USB78 AUDIO PCIEX4 SPEAKER AAFP 15 14 11 10 Chapter 1: Product introduction...

  • Page 11: Accelerated Processing Unit (Apu)

    This motherboard comes with a AM1 socket designed for AMD ® Sempron™ and Athlon™ Series APUs. correct orientation. DO NOT force the APU into the socket to prevent bending the pins and damaging the APU! AM1I-A APU socket AM1 ASUS AM1I-A...
  • Page 12 1.3.1 APU installation Chapter 1: Product introduction...
  • Page 13 1.3.2 APU heatsink and fan assembly installation Apply the Thermal Interface Material to the APU heatsink and APU before you install the heatsink and fan if necessary. To install the APU heatsink and fan assembly ASUS AM1I-A...
  • Page 14 To uninstall the APU heatsink and fan assembly Chapter 1: Product introduction...

  • Page 15: System Memory

    Channel A DIMM_A1 & A2 AM1I-A 240-pin DDR3 DIMM sockets Ensure to insert the DIMM into DIMM_A2 socket if you install only one memory module. You may install 1GB, 2GB, 4GB, 8GB and 16GB unbuffered non-ECC DDR3 DIMMs into the DIMM sockets.
  • Page 16 2.5 Ai Tweaker menu for manual memory frequency adjustment. memory load (2 DIMMs) or overclocking condition. • Visit the ASUS website at: www.asus.com for the latest QVL. 1.4.3 Installing a DIMM Chapter 1: Product introduction...

  • Page 17: Expansion Slots

    Assign an IRQ to the card. Install the software drivers for the expansion card. When using PCI cards on shared slots, ensure that the drivers support “Share IRQ” or that groups, making the system unstable and the card inoperable. ASUS AM1I-A...
  • Page 18 1.5.3 PCI Express x4 slot This motherboard has a PCI Express x4 slot that supports PCI Express x4 graphic card IRQ assignments for this motherboard PCIEx4 shared – – – – – – Realtek LAN controller – shared – – –...

  • Page 19: Jumpers

    CLRTC Normal Clear RTC (Default) AM1I-A Clear RTC RAM To erase the RTC RAM: Turn OFF the computer and unplug the power cord. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5-10 seconds, then move the cap back to pins 1-2.
  • Page 20 DRAM in slow refresh, power supply in reduced power mode). KBMSPWR +5VSB (Default) AM1I-A Keyboard & Mouse wakeup The total current consumed must NOT exceed the power supply capability (+5VSB) whether under normal condition or in sleep mode. USB device wake-up (USBRPWR, USBPWR5~8) These jumpers allow you to enable or disable the USB device wake-up feature.
