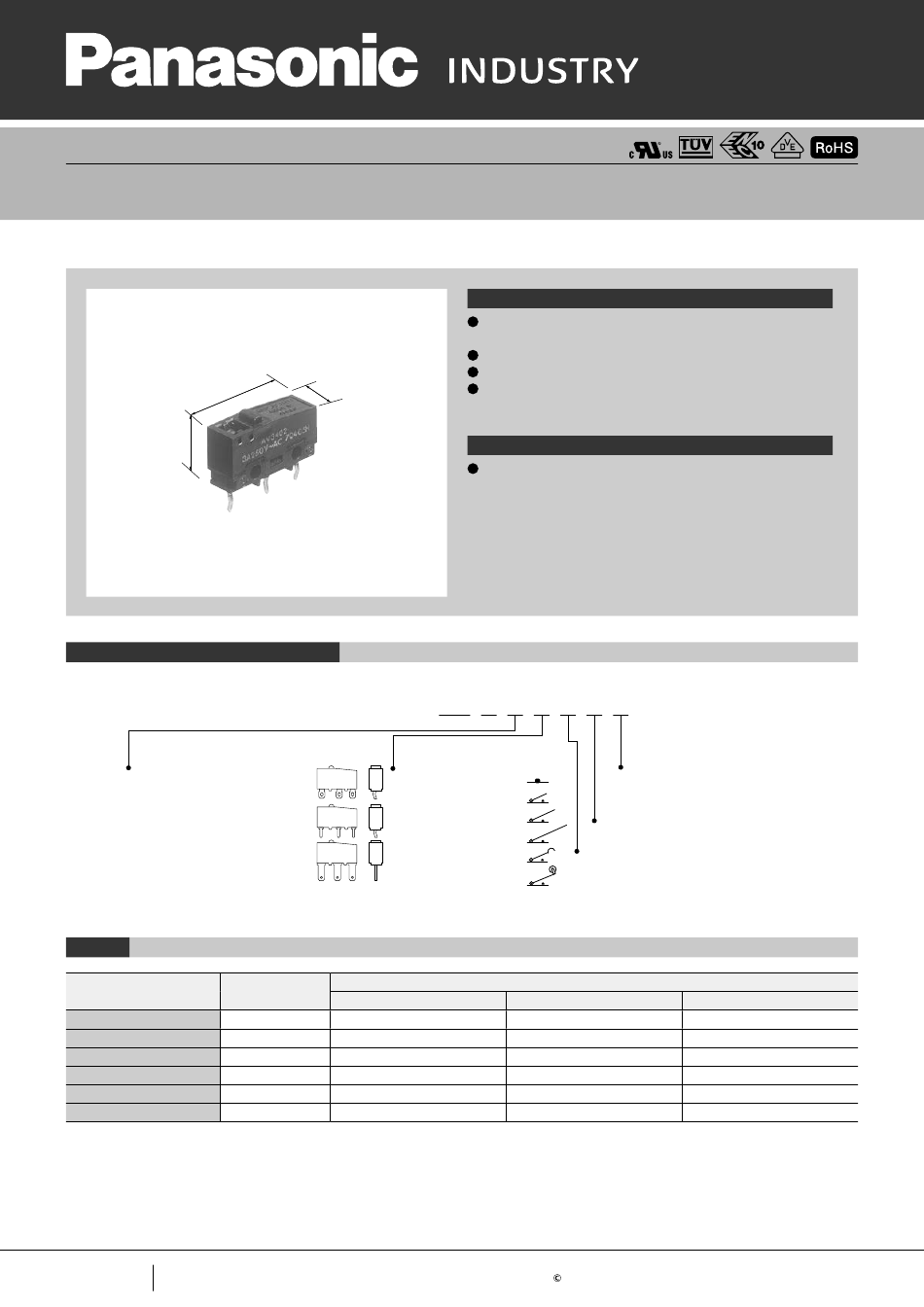

For detection: Non Seal Type Switches
AV3 (FS) Switches Contact gap 1 mm Type
Subminiature Size Door Inter-lock Switches
19.8
11.1
ORDERING INFORMATION (PART NO.)
Terminals
2: Solder terminal without guard
4: Self-standing P/C board terminal
8: .110 Quick-connect terminal
Note) When ordering, please add "-A" at the end of the part number.
TYPES
Operating Force
Actuator
Pin plunger
Short hinge lever
Hinge lever
Long hinge lever
Simulated roller lever
Roller lever
2021.10
industrial.panasonic.com/ac/e/
6.4
(Unit ： mm)
Actuators
0: Pin plunger
1: Short hinge lever
2: Hinge lever
3: Long hinge lever
4: Simulated roller lever
5: Roller lever
(OF) Max.
Solder terminal
1.47 N
AV3205G3
0.59 N
AV3215G3
0.54 N
AV3225G3
0.44 N
AV3235G3
0.54 N
AV3245G3
0.59 N
AV3255G3
FEATURES
Complies with IEC62368-1 secondary circuit
insulation distance standards (basic insulation)
Subminiature size realized as door interlock switches
Excellent operating position accuracy
Protection grade: IP40
TYPICAL APPLICATIONS
Office equiment (printers, copiers, etc.)
AV 3
5
G
G: Contact gap More than 1 mm type
Operating Force (OF)
by pin plunger (Max.)
5: 1.47 N
Part number
Self-standing P/C board terminal
AV3405G3
AV3415G3
AV3425G3
AV3435G3
AV3445G3
AV3455G3
ー 1 ー
Panasonic Corporation 2021
3
Safety standard
3: UL/C-UL, TÜV, ENEC/VDE
.110 Quick- connect terminal
AV3805G3
AV3815G3
AV3825G3
AV3835G3
AV3845G3
AV3855G3
AECTB11E 202110
