TABLE OF CONTENTS
1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide ----------------------------------------- 3
4 Disassembly and Assembly Instructions ---------------- 5
5 Schematic Diagram ---------------------------------------------- 9
6 Exploded View and Replacement Parts List -----------10
Model No.
Asia
PAGE
© Panasonic Electric Works Co., Ltd. 2009.
All rights reserved. Unauthorized copying and distri-
bution is a violation of law.
Order Number PCD0906A61CE
ES-WD71

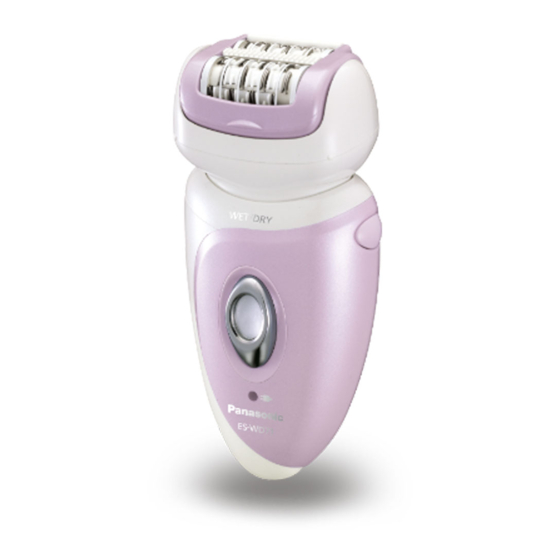

Epilator
PAGE
Advertisement
Related Manuals for Panasonic ES-WD71
Summary of Contents for Panasonic ES-WD71
-
Page 1: Table Of Contents
4 Disassembly and Assembly Instructions ---------------- 5 5 Schematic Diagram ---------------------------------------------- 9 6 Exploded View and Replacement Parts List -----------10 © Panasonic Electric Works Co., Ltd. 2009. All rights reserved. Unauthorized copying and distri- bution is a violation of law. -
Page 2: Warning
1 Warning Caution: • Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder- ing iron, please be careful not to heat too long. -
Page 3: Troubleshooting Guide
3 Troubleshooting Guide... -
Page 5: Disassembly And Assembly Instructions
4 Disassembly and Assembly Instructions Follow the procedure below to disassemble the main unit. 4.1. Disassembly Instructions [MAIN UNIT] Follow the procedure below to disassemble the main body. 1. Remove the cap and the epilation head. Loosen three tapping screws on top and take out the mounting base B. - Page 6 4. Remove the side cover from upper side. Loosen one screw on bottom. 5. Insert the motor remove jig into the connecting area of adaptor and push up the motor block. Take out the motor assembly. 6. Loosen two screws at the rear and take off the Mounting base B.
- Page 7 7. Unsolder the three locations, battery terminals, motor lead wires and plug chassis. NOTE: If the motor lead wires are attached the opposite pole, the rotation speed will be decrease and the life of motor will become short. 8. Lift up the plug chassis.
- Page 8 4.2. Assembly Instructions [MAIN UNIT] For assembly, reverse the order of disassembly. 1. Confirm the colors of each lead wire when soldering with motor. 2. Put fuse onto the motor and fixed it with the motor cush- ion. 3. Press fit the plug chassis into the motor base block until clicking between the hook of plug chassis and the hole of motor base.
-
Page 9: Schematic Diagram
5 Schematic Diagram... -
Page 10: Exploded View And Replacement Parts List
6 Exploded View and Replacement Parts List Model No. : ES-WD71 Exploded View... - Page 11 Model No. : ES-WD71 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks WESWD51X7157 PROTECTION CAP 1 [BG] WESWD51P3107 GENTLE CAP 1 [BG] WESWD51P3117 BIGINNER CAP 1 [BG] WESWD51W1067 EPILATION HEAD (LEGS/ARMS) 1 [BG] WESWD51L9397 TAPPING SCREW...
