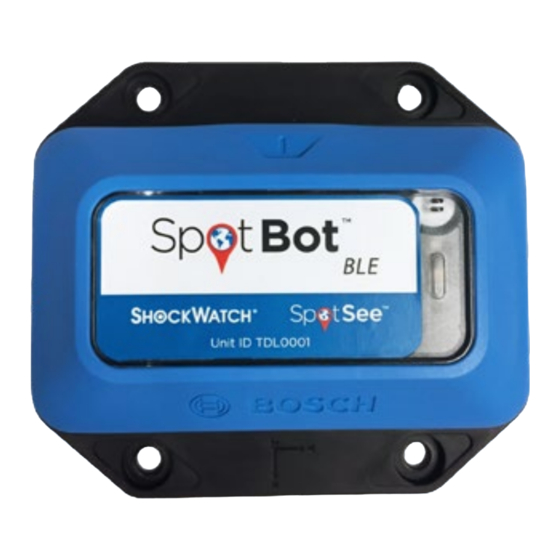

SpotBot BLE Impact Recorder
Quick Start Guide
Connection (Figure 1)
1. Start the SpotBot BLE app. You will
find the mobile app 'SpotBot BLE'
online at the Apple or Google Play
store, free of charge.
2. Activate Bluetooth on your
smartphone.
3. To activate the SpotBot BLE press the
button on the device for 0.3 - 1.5sec.
4. To find the activated SpotBot BLE
tap 'Search'.
5. Choose the SpotBot BLE and confirm
the connection by tapping 'Pair'.
Full description at
https://shockwat.ch/SpotBotBLE
solutions@shockwatch.com.au
Configuration (Figure 2)
1. To configure your app follow the
steps shown in the app (email (option)
for data transfer, device name, PIN,
logging parameter)
2. To start logging immediately tap
'Start logging and disconnect'.
To start logging later, tap 'Disconnect' in
the app. When desired, press the button
for 2-5sec on the SpotBot BLE to start
logging. The SpotBot BLE blinks three
times green to confirm that logging
has started.
Figure 1
https://shockwat.ch/SpotBotBLE
1300 074 625
shockwatch.com.au
Note: 'No SpotBot BLE Access!'
You cannot configure the SpotBot BLE
without a valid PIN. It is impossible
to reset the PIN; even at the factory.
Always make a note of the PIN and
store it in a safe place.
Note: 'Convention for Characters'
For email and device only defined
characters are useable.
These characters are allowed:
[A-Z] [a-z] [0-9] [@.,;^|+-*_ ]
Mar 2020
TM
