Sealey AK455.V2 Instructions

Sealey AK455.V2 Instructions

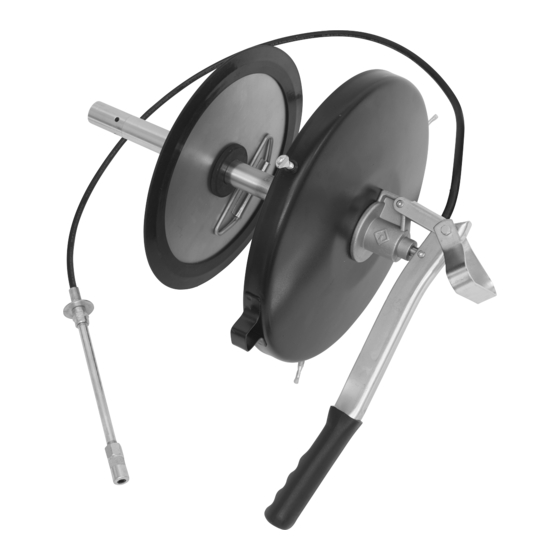

12.5kg extra-heavy-duty bucket greaser with follower plate

Advertisement

Quick Links

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Wear eye
instructions
protection
1. SAFETY
WARNING! Ensure health & safety, local authority and general workshop practice regulations are strictly adhered to when using this
equipment.
Familiarise yourself with the product application and limitations, as well as the specific potential hazards peculiar to this product.
9
Maintain pump in good condition. Use an authorised service agent.
9
Replace or repair damaged parts. Use only genuine parts only. Non authorised parts will invalidate warranty.
9
Ensure safety eye protection, protective clothing and gloves are worn when using this product.
9
Keep the work area clean, uncluttered and ensure there is adequate lighting.
9
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip footware.
9
Keep children and unauthorised persons away from the working area.
9
Dispose of waste grease in accordance with local authority regulations.
9
DO NOT: dismantle, tamper with or adapt the pump for any other purpose other than for which it is designed.
8
DO NOT: use the pump if has been dropped or mishandled. Check the pump to ensure there is no damage.
8
DO NOT: allow unauthorised persons to operate the pump.
8
DO NOT: point the pump at yourself or at other persons or animals.
8
DO NOT operate the pump when you are tired, under the influence of alcohol, drugs or intoxicating medication.
8
When not in use store in a dry, safe, childproof area.
9
2. INTRODUCTION
Solid steel pump and carry handle. Supplied with follower plate to prevent cavitation and ensure smooth flow of grease. Suitable for
repetitive filling of high pressure low volume grease. Suitable for 12.5kg grease buckets. Includes rigid extension and 4-jaw coupler.
3. SPECIFICATION
Model no: .................................................................... AK455
Delivery pressure: ..................... 240-410 bar (3500-6000 psi)
Delivery per stroke: ..................................................... 1.5cm³
Hose length: ............................................................. 1200mm
4. ASSEMBLY
Unpack the product and check contents. Should there be any damaged or missing parts contact your local supplier immediately.
4.1.
Unscrew locking adaptor (fig 2 - 2) from pump assembly (fig 2 - 1).
4.2.
Insert pump assembly through drum cover (fig 1 - 1) and secure with the locking adaptor.
4.3.
Remove the bolt and nut (fig 1- 4) holding the carry handle (fig 1 - 5).
4.4.
Assemble the carrying handle with the lever handle (fig 1 - 6) by re-inserting the bolt and lock nut.
WARNING! Ensure the bolt is properly tightened to ensure that the carrying handle does not become detached during usage or
transportation.
4.5.
Remove the plastic blanking plug in pump outlet.
4.6.
Assemble hose assembly (fig 1 - 2) into pump outlet (fig 1 - 3) located in pump assembly (fig 2 - 2), using a thread sealant.
4.7.
Thread the 3 retaining thumb screws (fig 1 - 9) into threaded inserts, on drum cover, taking care not to protrude through.
4.8.
TO REMOVE AIR POCKETS IN CONTAINER
4.8.1.
Take a 12.5kg container of grease and hold the container about 25mm above the ground and taking care allow the container to drop
to the floor, the effect of which will settle the contents.
4.9.
ASSEMBLY OF PUMP TO THE CONTAINER
4.9.1.
Remove the lid from the container and push the follower plate (fig 1 - 8) into the grease, handle side uppermost, until a small quantity
of grease appears through the central aperture.
4.9.2.
Install the pre-assembled pump unit and drum cover through the central aperture of the follower plate onto the grease container until
it seats firmly and secure with the 3 retaining wing screws (fig 1 - 9).
© Jack Sealey Limited
12.5KG EXTRA-HEAVY-DUTY BUCKET
GREASER WITH FOLLOWER PLATE
MODEL NO:
Wear protective
Wear protective
gloves
clothing
Original Language Version
AK455.V2
AK455.V2 Issue 1 01/02/21
