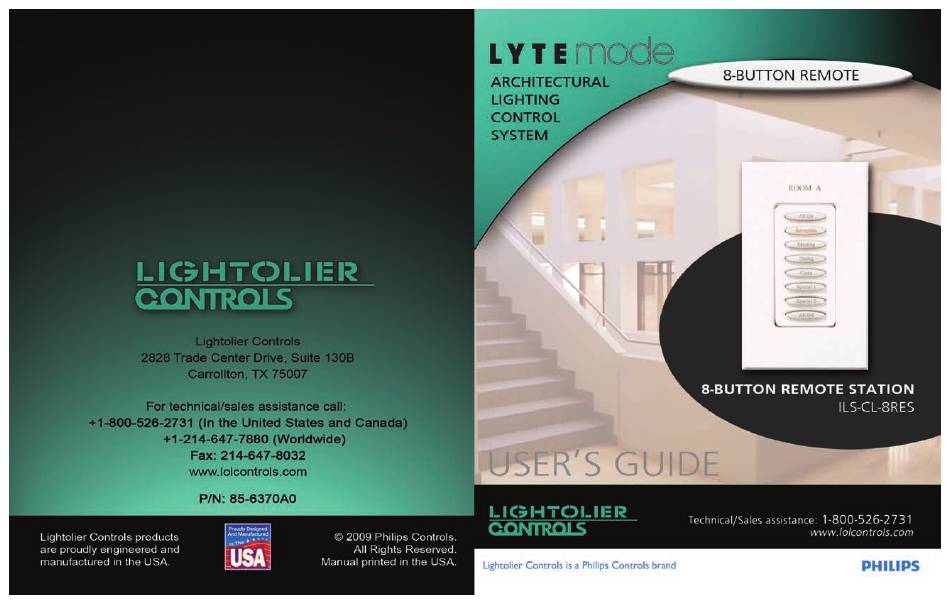

Philips ILS-CL-8RES User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Philips ILS-CL-8RES

Summary of Contents for Philips ILS-CL-8RES

  • Page 2 Controls supplier which agrees in advance to handle the return and replacement by factory authorization). If the product or part is found by Philips Controls to have been This manual is for informational use only and is subject to change without notice.

  • Page 3: Table Of Contents

    Table of Contents Customer Service ..............2 Lytemode System Overview ...........3 Room Combine Switch Overview ...........4 Installation ................5 Setting ILS Network ID ............6 Setup ..................8 Mode .................8 ID Address ..............10 LED Intensity ..............11 Display Version ..............12 Operation ................13 Setting Combine IDs (Method 1) ........13 Setting Combine IDs (Method 2) ........15 Combine/Un-combine Rooms ........16 Factory Defaults and Troubleshooting ........17...

  • Page 4: Customer Service

    Customer Service Technical and Sales assistance for Lytemode products are available worldwide. Phone: +1-800-526-2731 (In the United States and Canada) +1-214-647-7880 (Worldwide) Customer Service...

  • Page 5: Lytemode System Overview

    Lytemode System Overview The Lytemode System is designed to control architectural lighting by distributing both power and intelligence. The system provides processing power and control at each respective Master or Remote Station, eliminating the need for a central processor. Lytemode Master Stations provide individual control for up to 16 channels, 13 scenes plus “Off”, and adjustable fade times.

  • Page 6: Room Combine Switch Overview

    Room Combine Switch Overview The Lytemode Room Combine Switch provides easy partition control of meeting rooms, banquet halls, and other large partitioned spaces. When partitions are open, the Room Combine Switch links the Master Stations in each room so that adjustments to one Master Station are duplicated on all linked Master Stations, maintaining a uniform look throughout the expanded space.

  • Page 7: Installation

    Installation The Lytemode ILS Network consists of a single CAT5e cable connecting all ILS modules in a daisy chain manner. All units connect to the network using a 9-pin connector (included). To install: Step 1. Unpack unit and inspect for any signs of shipping damage. Ensure that two mounting screws are included.

  • Page 8: Setting Ils Network Id

    Setting ILS Network ID Lytemode products are controlled by the Intelligent Lytemode System (ILS) protocol. All Lytemode ILS devices must be given an ID (or address), which identifies the device on the network and allows it to avoid network collisions when transmitting data. Standard IDs are in the range of 1 to 255.
  • Page 9 ILS Network Addressing: Remotely Device Sub-ID Devices / ID Notes * Polled? Remote 1-255 Multiple Two Button Auto Remote Global Remote 1-255 Multiple Remote Keypad 1-255 Remote I/O 1-255 Room Combine 1-255 Mini-Master 1-255 Master 1-255 RS-232 Port Auto Smart Matrix 1-255 Dimmer Rack Capio Dimmer...

  • Page 10: Setup

    Setup This section describes how to program the unit’s Mode, Address, LED Brightness, and display the unit’s Version. Mode The unit can be set to function in one of several Modes as follows: Step 1. Press and hold D and E for 3 seconds. A LED will blink rapidly.
  • Page 11 Mode Function 0 – RCGP Remote (1-8) Used to Display and Select Partition Switches 1-8. 1 – RCGP Remote (9-16) Used to Display and Select Partition Switches 9-16 2 – RCGP Remote (17-24) Used to Display and Select Partition Switches 17-24 3 –...

  • Page 12: Id Address

    ID Address Because there are not enough buttons/LEDs to address the full 0-255 ID range, the ID must be entered in two stages. The three most significant ID bits are entered first, followed by the five least significant ID bits. Step 1.

  • Page 13: Led Intensity

    While in the Addressing Mode, the device will transmit a Network Test Command every 2 seconds (ON/A LED will blink). All devices on the network will blink an LED to indicate their reception of this command. If a receiving device matches the transmitted ID, it will blink all of its LEDs.

  • Page 14: Display Version

    Display Version The software version can be displayed as follows: Step 1. Press and hold G and H for 3 or more seconds. The Version is displayed in binary format on B-H. Step 2. Add up values for each illuminated LED and then add 1.00.

  • Page 15: Operation

    Operation Setting Combine IDs (Method 1) Each of the 8/16 buttons can be programmed to combine two rooms (or IDs) when the button’s LED is turned On. To program the two IDs into each button, do the following: Step 1. Press and hold A and H buttons for 3 seconds (Mode 3 unit).
  • Page 16 Step 7. Enter three MSBs (most significant bits) of second ID on bottom three buttons (refer to ID Values below). Step 8. Press A. Top button will now blink FOUR times and then delay. Step 9. Enter five LSBs (least significant bits) of second ID on bottom five buttons (refer to ID Values below).

  • Page 17: Setting Combine Ids (Method 2)

    Setting Combine IDs (Method 2) An alternate method for programming the buttons is as follows: Step 1. Press and hold A and H buttons for 3 seconds. After 3 sec, all eight buttons will start to blink. Step 2. Press button to be programmed (switches 1-8) or press button (switches 9-16) on a second unit set to Mode 1 or press button (switches 9-16) on a third unit set to Mode...

  • Page 18: Combine/Un-Combine Rooms

    Combine/Un-combine Rooms After the Room Combine Switch has been programmed, rooms can be combined (LED On) and un-combined (LED Off) by pressing the desired button. If a button is pressed and the LED blinks and turns back Off, Note: then the unit has not been properly programmed. Operation...

  • Page 19: Factory Defaults And Troubleshooting

    Factory Defaults and Troubleshooting Resetting Factory Defaults To set the unit back to its Factory Defaults, do the following: Step 1. Press and hold A and H for 3 or more seconds. (All LEDs will start to blink.) Step 2. While still holding A/H buttons, also press and hold C.

  • Page 20: Troubleshooting

    Troubleshooting In order to determine if all Lytemode ILS Network devices are communicating, a network test signal can be sent by placing the device in the Addressing Mode. While in this mode, the device will transmit a Network Test Command every 2 seconds (ON/A LED will blink).

  • Page 21: Installing Custom Buttons

    Installing Custom Buttons Custom engraved buttons* are available for Lytemode products. If you received custom buttons with your unit or obtain them in the future, use the following procedure for installation. To install custom buttons: Step 1. At 8-button unit, remove faceplate. Step 2.

  • Page 22: Specifications

    Specifications Electrical: • Input Power: +18-26 VDC (powered from Lytemode ILS network) • Current: 20mA • Temperature - Storage: -25° to 85° C - Operating: 0° to 40° C - Relative Humidity: 30-90% (non-condensing) Accessories Part Number Description ILSCK8B__* Color Kit for 8-Button Remote Station CE8BES*** Custom Engraved 8-Button Keypad Membrane COMFP2__**...
