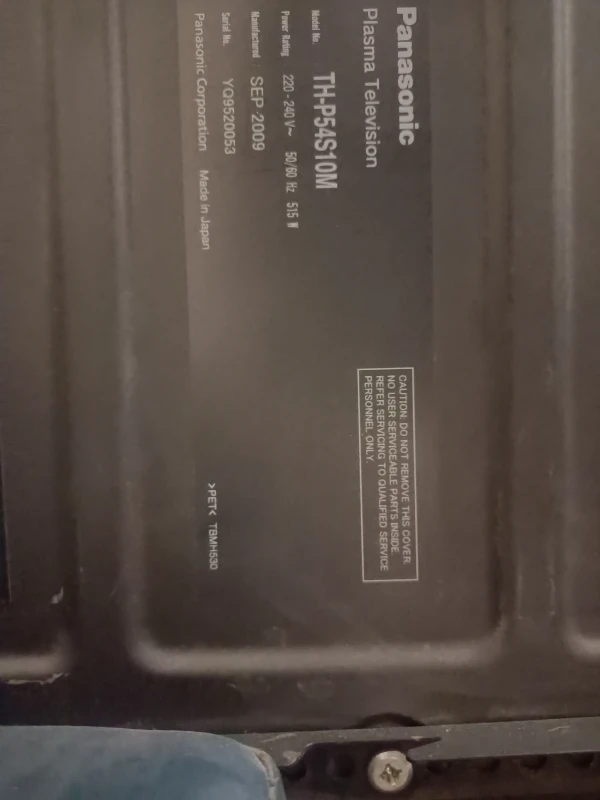

TH-P54S10M
Model No.
GPF12DA Chassis
© Panasonic Corporation 2009.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.ITD0909105CE
Plasma Television

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TH-P54S10M

Summary of Contents for Panasonic TH-P54S10M

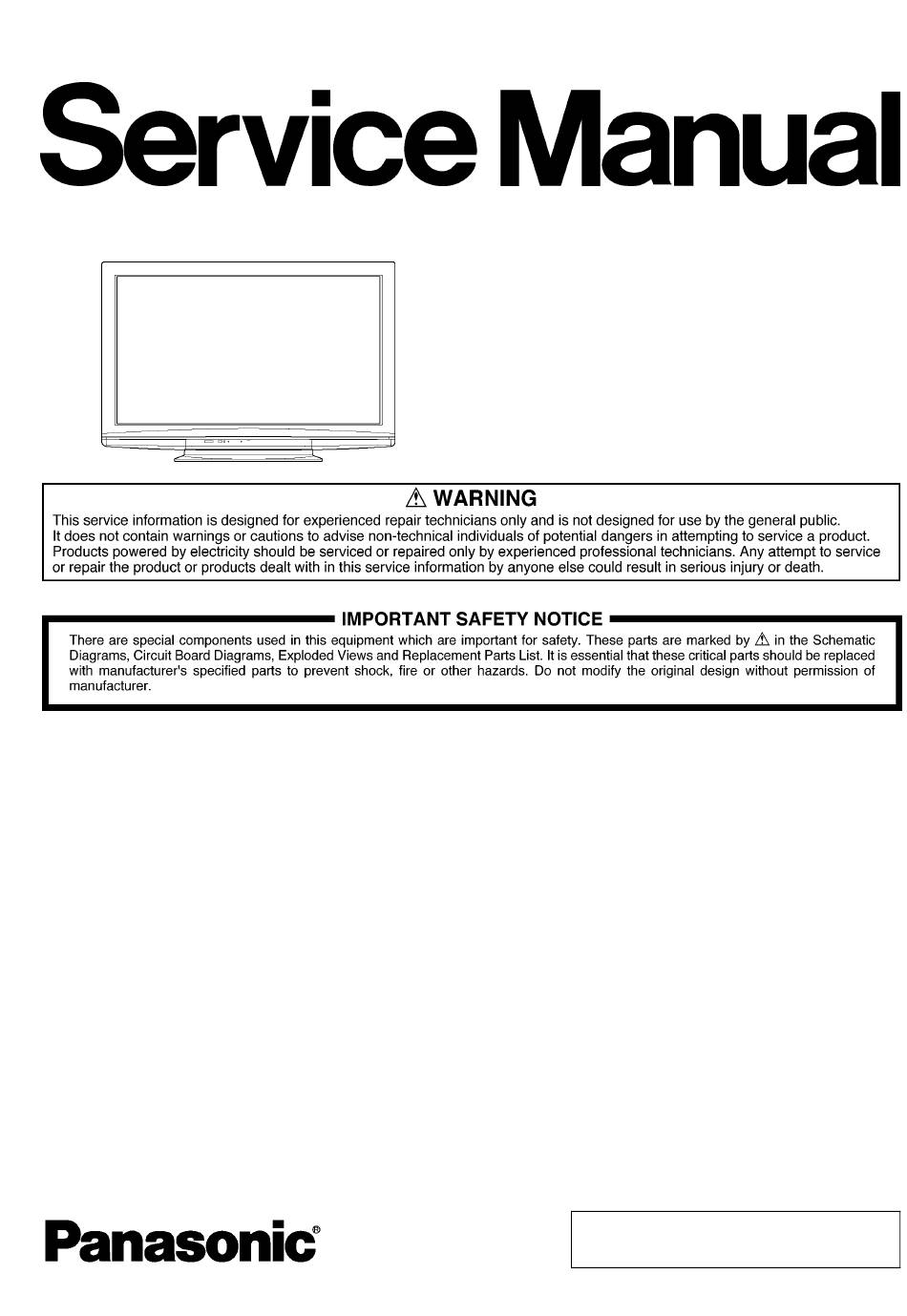

  • Page 1 ORDER NO.ITD0909105CE Plasma Television TH-P54S10M Model No. GPF12DA Chassis © Panasonic Corporation 2009. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 11.1. Caution statement. -------------------------------------- 41 1.1. General Guidelines ----------------------------------------3 11.2. Wiring (1) -------------------------------------------------- 41 1.2. Touch-Current Check--------------------------------------3 11.3. Wiring (2) -------------------------------------------------- 42 2 Warning --------------------------------------------------------------4 11.4. Wiring (3) -------------------------------------------------- 43 2.1. Prevention of Electrostatic Discharge (ESD) 12 Schematic Diagram -------------------------------------------- 45 to Electrostatically Sensitive (ES) Devices ----------4 12.1.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

  • Page 4: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.

  • Page 5: About Lead Free Solder (Pbf)

    2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

  • Page 6: Service Navigation

    3 Service Navigation 3.1. Service Hint Board Name Function Board Name Function Power Supply Data Driver (Lower Right) DC-DC Converter, Tuner Data Driver (Lower Center) Speaker out, AV Terminal, AV Switch, PC Data Driver (Lower Left) Digital Signal Processor, SYSTEM MPU, HDMI Switch Scan Drive Peaks-AVC Sustain Drive...

  • Page 7: Applicable Signals

    3.2. Applicable signals COMPONENT (Y, P ), HDMI * Mark: Applicable input signal Signal name COMPONENT HDMI 525 (480) / 60i 525 (480) / 60p 625 (576) / 50i 625 (576) / 50p 750 (720) / 60p 750 (720) / 50p 1,125 (1,080) / 60i 1,125 (1,080) / 50i 1,125 (1,080) / 60p...

  • Page 8: Specifications

    4 Specifications Power Source AC 220-240 V, 50 / 60 Hz Power Consumption Average use 515 W Standby condition 0.4 W Display panel Aspect Ratio 16:9 137 cm (diagonal) 1,198 mm (W) × 673 mm (H) Visible screen size 2,073,600 (1,920 (W) × 1,080 (H)) [5,760 × 1,080 dots] Number of pixels Sound 160 mm ×...
  • Page 9 Monitor Output RCA PIN Type × 2 AUDIO L - R 0.5 V [rms] (high impedance) RCA PIN Type × 1 1.0 V [p-p] (75 Ω) VIDEO Others HDMI1 - 3 Input TYPE A Connectors This TV supports “HDAVI Control 4” function. HIGH-DENSITY D-SUB 15PIN R, G, B/ 0.7 V [p-p] (75 Ω) PC Input HD, VD/TTL Level 2.0 - 5.0 V [p-p] (high impedance)

  • Page 10: Service Mode

    5 Service Mode 5.1. How to enter into Service Mode While pressing [VOLUME ( - )] button of the main unit, press [0] button of the remote control three times within 2 seconds. 5.1.1. Key command [1] button...Main items Selection in forward direction [2] button...Main items Selection in reverse direction [3] button...Sub items Selection in forward direction [4] button...Sub items Selection in reverse direction...
  • Page 11 5.1.2. Contents of adjustment mode • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. 5.1.3. How to exit Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

  • Page 12: Service Tool Mode

    5.2. Service tool mode 5.2.1. How to access 1. Select [SRV-TOOL] in Service Mode. 2. Press [OK] button on the remote control. 5.2.2. Display of SOS History SOS History (Number of LED blinking) indication. From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment. This indication will be cleared by [Self-check indication and forced to factory shipment setting].

  • Page 13: Hotel Mode

    5.3. Hotel mode 1. Purpose Restrict a function for hotels. item Function 2. Access command to the Hotel mode setup menu Hotel Mode Select hotel mode ON/OFF In order to display the Hotel mode setup menu, please Initial INPUT Select input signal modes. enter the following command (within 2 second).

  • Page 14: Troubleshooting Guide

    6 Troubleshooting Guide Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 6.1. Check of the IIC bus lines 6.1.1. How to access Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

  • Page 15: Power Led Blinking Timing Chart

    6.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

  • Page 16: No Power

    6.3. No Power First check point There are following 2 states of No Power indication by power LED. 1. No lit 2. Red is lit then turns red blinking a few seconds later. (See 6.2.)

  • Page 17: No Picture

    6.4. No Picture...

  • Page 18: Local Screen Failure

    6.5. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1...

  • Page 19: Service Fixture & Tools

    7 Service Fixture & Tools 7.1. SC jig Purpose: To find the failure board (SC or SU/SD) when the power LED is blinking 7 times. SC jig: Jumper connector to connect to SC50 connector on SC board Part number: TZSC09187 How to use: Caution: Remove SC jig from SC board after inspection.

  • Page 20: Disassembly And Assembly Instructions

    8 Disassembly and Assembly Instructions 8.1. Remove the Rear cover 3. Remove the Adjustment cover. , ×3 4. Remove the screws (×2 1. See Service Hint (Section 3) 5. Remove the Rear terminal cover. 8.2. Remove the P-Board Caution: To remove P.C.B. wait 1 minute after power was off for dis- charge from electrolysis capacitors.

  • Page 21: Remove The A-Board

    8.5. Remove the A-Board 8.6. Remove the Speakers 1. Remove the Tuner unit. (See section 8.4.) 1. Unlock the cable clampers to free the cable. 2. Remove two EDGE SADDLES at top of case. 2. Disconnect the relay connector. Twist the EDGE SADDLE to press up at the back and pull 3.

  • Page 22: Remove The Gk-Board

    8.8. Remove the GK-Board 8.10. Remove the SD-Board 1. Remove the Control button unit. (See section 8.7.) 1. Remove the Control button unit. (See section 8.7.) 2. Remove the flexible cables (SD1B, SD2B, SD3B, SD4B 2. Remove the screws (×2 and SD5B) connected to the SD-Board.

  • Page 23: Remove The Sc-Board

    8.11. Remove the SC-Board 8.12. Remove the SS2-Board 1. Remove the SU-Board and SD-Board. (See section 8.9. 1. Remove the Tuner unit. (See section 8.4.) and 8.10.) 2. Disconnect the bridge connector (SS21-SS24) and dis- 2. Unlock the cable clampers to free the cable. connect the flexible cable (SS58).

  • Page 24: Remove The Hanger Metals And The Stand Brackets

    8.14. Remove the Hanger metals and 8.15. Remove the C1-Board the Stand brackets 1. Remove the Control button unit. (See section 8.7.) 2. Remove the Hanger metal R and the Stand bracket R. 1. Remove the Plasma panel section from the servicing (See section 8.14.) stand and lay on a flat surface such as a table (covered 3.

  • Page 25: Remove The Plasma Panel Section From The Cabinet Assy (Glass)

    8.18. Remove the Plasma panel sec- 3. Remove the Rear cover hooks (L, R). tion from the Cabinet assy (glass) 1. Remove the cabinet assy and the plasma panel fastening screws (×2 8.19. Remove the S-Board 1. Remove the Cabinet assy. (See section 8.18.) 2.

  • Page 26: Remove The K-Board

    4. Disconnect the connector (S1B). 9. Remove the screw (×1 5. Remove the Power button. 10. Remove the claw (×1 6. Remove the screw (×1 ) and remove the S-Board. 11. Disconnect the connector (K1) and remove the K-Board from LED Panel. 8.21.

  • Page 27: Measurements And Adjustments

    9 Measurements and Adjustments 9.1. Adjustment Procedure 9.1.1. Driver Set-up 9.1.1.1. Item / Preparation 1. Input a white signal to plasma video input. 2. Set the picture controls as follows. Picture menu: Dynamic PNR: Min Aspect: 16:9 Caution 1. First perform Vsus adjustment. 2.
  • Page 28 9.1.2. Initialization Pulse Adjust 1. Input the White signal to plasma video input. 2. Set the picture controls as follows. Picture menu: Dynamic PNR: Min Aspect: 16:9 3. Connect Oscilloscope to TPSC1 (SC). Check the voltage (T2) at 100μs period on the down slop. Test point Volume Level...
  • Page 29 9.1.4. Adjustment Volume Location 9.1.5. Test Point Location...

  • Page 30: Adjustment

    9.2. Adjustment 9.2.1. Sub-Contrast adjustment Name of measuring instrument Connection Remarks RF generator Base Band signal generator HD signal generator Steps Remarks Adjustment of TV (RF system) Ref.: RF signal modulation spec. Note: UK models: 80% In adjustment, you must setting to modulation of signal at 85%. Other models: 90% 1.
  • Page 31 Steps Remarks Another procedure Adjustment of AV system 1. PAL 100% Full White or Split Colour bar receive AV1(or AV2), shown as below. 2. Goes into service adjustment mode. 3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ Contrast ]. Adjustment 1.
  • Page 32 9.2.2. RF white balance adjustment Name of measuring instrument Connection Remarks W/B pattern RF input Color analyzer Panel surface (Minolta CA-100 or equivalent) Steps Remarks • Make sure the front panel to be used on the final set is fitted. Picture menu : Dynamic •...
  • Page 33 9.2.3. 1080i white balance adjustment Name of measuring instrument Connection Remarks 1080i W/B pattern Component input Color analyzer Panel surface (Minolta CA-100 or equivalent) Steps Remarks • Make sure the front panel to be used on the final set is fitted. Picture menu : Dynamic •...

  • Page 35: Block Diagram

    10 Block Diagram 10.1. Main Block Diagram DIGITAL SIGNAL PROCESSOR HDMI SD CARD 1,2,3 DDR2 EEPROM CLOCK GEN SD CARD I/F XRST RESET SIF,AM Dig/Ana Tuner VIDEO PROCESSOR Digital Video in HDMI Rx V,Y,PB,PR MAIN Y/U/V AUDIO PROCESSOR FLASH Temp MEMORY sensor Peaks AVC...

  • Page 36: Block (1/4) Diagram

    10.2. Block (1/4) Diagram JK8302 JK3107A SPEAKER L SPEAKER R SD CARD SLOT JK3100 HEADPHONE D3015 JK3001 JK4501 JK4500 JK4502 TU2901A MONITOR DIGITAL PC IN HDMI1 HDMI2 HDMI3 AUDIO OUT Tuner DIGITAL SIGNAL PROCESSOR IC2301 IIC_TUNER AUDIO AMP D2017 Q2022 SIF,AM HP OUT SOUND SOS...

  • Page 37: Block (2/4) Diagram

    10.3. Block (2/4) Diagram DIGITAL SIGNAL PROCESSOR FOR FACTORY USE FOR FACTORY USE IC9300 PD3H CN0100 CN0101 IIC2 VIDEO DATA *PLASMA AI VIDEO DATA *CPG with SS *H/V Sync Control VIDEO DATA *Sub Filed Processor +3.3V(P) IC9303 *Plasma AI P3.3V +5V(P) ADDR/DATA Config(CCLK,DDTATA,PROGB),...

  • Page 38: Block (3/4) Diagram

    10.4. Block (3/4) Diagram POWER SUPPLY COLD COLD 5A 250V Q201,Q202 Q601,Q602 L604,L605 F201 T201 Vsus RESONANCE Vsus SS11 D254-D257 IC601 Vsus IC201 IC251 +15V(P) Q603-Q606 PC201 Vsus Vsus PFC CONTROL POWER Vsus PHOTO COUPLER ERROR DET VR251 CONTROL PC202 Q608 PHOTO COUPLER 5A 250V...

  • Page 39: Block (4/4) Diagram

    10.5. Block (4/4) Diagram SCAN DRIVE TPVSUS Vsus SC50 FACTORY TPVSET IC16791 VSET GEN. 16V-F SHUNT REG DC/DC IPD CIRCUIT CONVERTER SUSTAIN DRIVE IC16788,89 VF_GND Q16604 PC16601 CPH2 IC16771 PHOTO COUPLER TPVSUS Q16607 IC16661 Vad+5V Vsus PC16603 Q16661 SCAN OUT (UPPER) IPD CIRCUIT +15V CERS...

  • Page 41: Wiring Connection Diagram

    11 Wiring Connection Diagram 11.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull. 11.2. Wiring (1)

  • Page 42: Wiring (2)

    11.3. Wiring (2)

  • Page 43: Wiring (3)

    11.4. Wiring (3)

  • Page 45: Schematic Diagram

    12 Schematic Diagram 12.1. Schematic Diagram Note...

  • Page 46: P(P-1)-Board (1/2) Schematic Diagram

    12.2. P(P-1)-Board (1/2) Schematic Diagram P(P-2)-BOARD (P51) CONTROL P(P-1)-BOARD ETX2MM761MGN (1/2)

  • Page 47: P(P-1)-Board (2/2) Schematic Diagram

    12.3. P(P-1)-Board (2/2) Schematic Diagram P(P-1)-BOARD ETX2MM761MGN (2/2) P(P-2)-BOARD (P55) P(P-2)-BOARD (P53) STB CONTROL COMPARATOR COLD P(P-2)-BOARD (P57) MULTI POWER CONTROL Vsus POWER CONTROL COLD COLD ERROR CONTROL +5V(P) +15V ERROR Vsus ERROR DET Vsus SS-BOARD (SS11) SC-BOARD A-BOARD (SC2) (A25) C3-BOARD A-BOARD...

  • Page 48: P(P-2)-Board Schematic Diagram

    12.4. P(P-2)-Board Schematic Diagram P(P-1)-BOARD (P58) P(P-2)-BOARD ETX2MM761MGN COLD P(P-1)-BOARD (P52) COLD P(P-1)-BOARD (P56) P(P-1)-BOARD (P54)

  • Page 49: Gk, K And S-Board Schematic Diagram

    12.5. GK, K and S-Board Schematic Diagram GK-BOARD S-BOARD TNPA4875AB TNPA4858AB R3775 7.15k R3770 14.3k R3771 R3772 POWER SW 6.65k 1.74k SW2500 K0F162B00002 C1-BOARD (C14) KEYSCAN *S1B KEYSCAN C3752 P-BOARD 1000p (P34) K-BOARD TNPA4857AC C2515 D2524 MAZ80560ML 0.01u *D2520 B3AGB0000057 *R2525 *R2531 1.27k...

  • Page 50: A-Board (1/20) Schematic Diagram

    12.6. A-Board (1/20) Schematic Diagram A-BOARD (1/20) JTAG REF No. 0900-0999 SUB3.3V TO 1/20 R0902 IC8001 TRST TP0904 R0901 EXB28V680JX TRST TP0901 TP0900 TP0903 TP0902 R0900 R0905 R0906 R0907 R0963 SUB3.3V SUB3.3V SUB3.3V TO 2/20 R0956 R0955 R0960 R0959 R0958 R0957 R0962 R0961...

  • Page 51: A-Board (2/20) Schematic Diagram

    12.7. A-Board (2/20) Schematic Diagram Peaks IC8001 MN2WS0059 A-BOARD (2/20) PCI BUS I/F FOR ADV7470 LOSD OUT--> PIO SERIAL I/F TO 4/20 Peaks-COMMON TO 5/20 TO 9/20 VOUTENB *IC8001 VOUTENB TO 4/20 PCRST *IC8001 PCRST VI1ENB *IC8001 VI1ENB VI1P0 REF No. 8000-8999 VI1CKOUT *IC8001 VI1CKOUT...

  • Page 52: A-Board (3/20) Schematic Diagram

    12.8. A-Board (3/20) Schematic Diagram NO USE A-BOARD (3/20) SUB3.3V *L8301 Peaks-DEST *C8328 J0JHC0000045 10V 1u 30.0MHz *X8301 REF No. 8000-8999 H0J300500027 *IC8302 *C8311 *C8312 C0DBFYY00028 1.8V VOUT TP8301 *R8313 2.2M *C8319 *C8327 0.1u *L8304 J0JHC0000045 2.2u *C8335 *C8340 *C8334 *C8333 0.1u 0.1u...

  • Page 53: A-Board (4/20) Schematic Diagram

    12.9. A-Board (4/20) Schematic Diagram A-BOARD (4/20) SUB3.3V Peaks-DEST R8663 R8716 R8661 REF No. 8000-8999 R8746 TO 2/20 R8575 TO 5/20 ECLK R8576 XECS0 AA_XECS0 R8577 XECS1 R8667 XECS2 TO 3/20 SUB5V R8578 XECS4 AA_XEAS R8401 C8409 C8343 C8344 C8345 C8408 C8405 0.1u...

  • Page 54: A-Board (5/20) Schematic Diagram

    12.10. A-Board (5/20) Schematic Diagram A-BOARD (5/20) Peaks-MODEL SUB3.3V REF No. 8000-8999 C8581 0.1u L8580 J0JHC0000075 C8580 C8582 0.1u R8581 0.1u *IC8580 EEPROM SUB3.3V NOR FLASH TVRQ371AH C8508 *IC8502 SUB3.3V SUB_SD_3.3V 0.01u TVRQ439AD TO 2/20 R8801 R8511 R8644 4.7k XECS7 SUB_SD_3.3V EEPROM_WP TP8563...

  • Page 55: A-Board (6/20) Schematic Diagram

    12.11. A-Board (6/20) Schematic Diagram A-BOARD (6/20) GenX REF No. 1100-1499 SUB3.3V R1225 R1224 R1181 TO 2/20 TP1107 G-PEAKS_SERIAL_SBO SBI2 TP1108 G-PEAKS_SERIAL_SBI R1179 SBO2 D1107 R1182 MA3X704A0L G-HDMI_CEC_PU_ON TO 8/20 G-HDMI_CEC G-HDMI_CEC G-HDMI_5V_DET0 G-HDMI_5V_DET0 G-HDMI_5V_DET1 G-HDMI_5V_DET1 G-HDMI_5V_DET2 G-HDMI_5V_DET2 G-HDMI_5V_DET3 G-HDMI_5V_DET3 G-HPD0 G-HPD1 G-HPD1...

  • Page 56: A-Board (7/20) Schematic Diagram

    12.12. A-Board (7/20) Schematic Diagram A-BOARD (7/20) REF No. 4500-4799 IC4510 C1AB00003045 PowerSupply TVDD_3.3V DVDD_1.8V VAVDD_1.8V C1AB00003045 SUB5V C4626 C4642 C4628 1.8V DGND IC4510 0.1u IC4510 TVDD DGND IC4510 0.1u IC4510 DVDD DGND IC4510 AGND IC4510 0.1u IC4510 VAVDD DGND IC4510 IC4510 TVDD...

  • Page 57: A-Board (8/20) Schematic Diagram

    12.13. A-Board (8/20) Schematic Diagram A-BOARD (8/20) ADV_V REF No. 4500-4799 TO 6/20 G-HDMI_CEC G-HDMI_CEC Q4533 B1ABCF000231 R4525 G-HPD1 R4641 R4507 Q4501 B1ABCF000231 R4501 R4503 R4530 G-HDMI_5V_DET1 DVDDIO_3.3V D4611 C4501 C4503 R4533 B0BC5R6A0275 STB5V HDMI1 R4529 D4541 R4672 0.1u 0.1u MA2J11100L JK4501 TO 7/20...

  • Page 58: A-Board (9/20) Schematic Diagram

    12.14. A-Board (9/20) Schematic Diagram A-BOARD (9/20) ADV_V REF No. 4500-4799 TO 7/20 R4628 PC_HS HSIN PC_VS R4629 VSIN R4610 AVSW_R027PIN_FBOUT/TDET10 FBIN *R4622 RGB_FB *R4609 1.2k SUB9V TO 2/20 TO 7/20 L4511 VI1ENB R4635 VI1ENB J0JYC0000068 EXB28V680JX VI1P10 VI1CKOUT TO 12/20 RGB_FB ADV_P0 VI1CKOUT...

  • Page 59: A-Board (10/20) Schematic Diagram

    12.15. A-Board (10/20) Schematic Diagram A-BOARD (10/20) TP2008 Q2022 SUB9V R2142 B1ADCE000022 To SOS 2.2k G-SOUND_SOS OPERATE R2115 C2301 ADV_A R2141 2.2k 0.1u REF No. 2000-2499 SOUND15V S_15V R2114 D2014 L2023 2.2k MA2J11100L G1C3R0ZA0156 C2302 R2118 C2407 C2412 L2018 0.1u D2017 J0JHC0000042 MA2J11100L...

  • Page 60: A-Board (11/20) Schematic Diagram

    12.16. A-Board (11/20) Schematic Diagram A-BOARD (11/20) AVSW REF No. 3000-3399 PC IN *JK3001 K1FY115B0021 TO 12/20 PC_R_TERMINAL PC_G_TERMINAL TO 6/20 PC_B_TERMINAL QLINK_AV1 PC_HD_TERMINAL G-QLINK2 *R3288 PC_VD_TERMINAL TO 6/20 QLINK_AV2 G-QLINK1 *R3287 D3015 SUB3.3V K7AAAY000003 *JK3100B TO 7/20 R3030 K1U927A00006 TO 12/20 SPDIF_OUT <...

  • Page 61: A-Board (12/20) Schematic Diagram

    12.17. A-Board (12/20) Schematic Diagram TO 13/20 VIDEO TO 11/20 A-BOARD (12/20) C3092 IC3001 A_AV2_YPbPr *R3140 JS3012 AVSW E_AV1_RED(15PIN)/A_AV2C_PR__TERMINAL AVSW_R091PIN_PRIN2/R3 *R3188 REF No. 3000-3399 TO 13/20 C3090 *R3138 JS3013 VIDEO E_AV1_GREEN(11P)/A_AV2C_Y__TERMINAL AVSW_R089PIN_CYIN2/G3 *R3075 TO 11/20 C3091 *R3139 JS3014 C3144 A_AV2 IC3001 L3017 R3240...

  • Page 62: A-Board (13/20) Schematic Diagram

    12.18. A-Board (13/20) Schematic Diagram A-BOARD (13/20) AVSW REF No. 3000-3399 AVSW5V SUB9V AVSW5V IC3003 C0DBGYY00281 SUB6V VOUT C3118 C3119 R3014 R3112 R3113 C3143 0.1u SUB9V_VIDEO TO 11/20 C3146 TP3008 TO 9/20 PC_HS PC_HS TO 12/20 TO 10/20 TP3009 PC_VS AVSW_R076PIN_FBIN/O1 AV_L PC_VS...

  • Page 63: A-Board (14/20) Schematic Diagram

    12.19. A-Board (14/20) Schematic Diagram F15V L5604 L5605 PA5600 G1C100MA0203 K5H5022A0031 J0JHC0000075 STB3.3V Q5608 TP5604 VJ5629 C5611 C5699 R5670 2SB0709A0L TO 6/20 A-BOARD (14/20) C5696 C5697 G-SOS R5668 C5728 R5671 2.2k SUB1.2V_1.8V C5626 TUNER 0.1u 0.1u C5700 C5612 C5624 CTL1 R5669 SUB6V REF No.

  • Page 64: A-Board (15/20) Schematic Diagram

    12.20. A-Board (15/20) Schematic Diagram A-BOARD (15/20) P2.5V 3.3V P15V C9899 C9926 PGND C9077 C9078 VOUT PGND PGND R9897 ON/OFF P3.3V L9001 IC9808 G1C3R3Z00004 Q9807 C0CBCAC00365 2SD0601A0L C9073 C9072 R9898 FPGA2.5V C9071 C9080 6.3V 6.3V R9899 0.1u BOOT 200p PSET R9079 C9076 C9074...

  • Page 65: A-Board (16/20) Schematic Diagram

    12.21. A-Board (16/20) Schematic Diagram A-BOARD (16/20) P3.3V C9469 0.1u *IC9303 PD3H_ROM TVRQ758 P3.3V R9385 4.7k R9402 R9592 P3.3V P2.5V R9009 P1.2V C9889 FR_RMD15 R9010 FR_RMD14 FR_RMD13 FR_RMD12 R9011 FR_RMD11 FR_RMD10 R9618 FR_RMD09 R9578 FR_RMD08 4.7k XI_DONE FR_RMD07 R9586 SFLATCH FR_RMD06 FP_SIU R9587...

  • Page 66: A-Board (17/20) Schematic Diagram

    12.22. A-Board (17/20) Schematic Diagram A-BOARD (17/20) IC9300 AP20 D_TRST IC9300 TRST Low Active C9972 D_TMS IC9300 IC9300 IC9300 OCKOUTD for LVDS_TX D_TCK X9900 IC9300 MN84528 C9971 IC9300 OCKOUTU H0J200500076 PD3H D_TDO IC9300 R9966 D_TDI IC9300 IC9300 AP19 to FLASH P1.2V L9900 L8R_ROMRST...

  • Page 67: A-Board (18/20) Schematic Diagram

    12.23. A-Board (18/20) Schematic Diagram A-BOARD (18/20) IC9300 MN84528 PD3H P3.3V P1.8V_DDR2 P1.8V DDR-Terminate R9702 L9904 to DDR J0JHC0000117 IC9300 IC9300 IC9300 IC9300 IC9300 AM20 VSS IC9300 MLVVSS IC9300 LVVSS IC9300 VDDIO IC9300 MLVVDD33 IC9300 MLVVDD33 IC9300 VDD33 C9701 0.1u C9921 0.1u IC9300...

  • Page 68: A-Board (19/20) Schematic Diagram

    12.24. A-Board (19/20) Schematic Diagram A-BOARD (19/20) DDR2_0 IC9902 C3ABRY000040 P1.8V_DDR2 C9993 L8R_DM0 IC9902 0.1u IC9902 IC9902 L8R_DM1 IC9902 IC9902 IC9902 IC9902 IC9902 L8R_XDQS0 IC9902 UDQS IC9902 IC9902 L8R_DQS0 IC9902 UDQS C9989 IC9902 IC9902 L8R_XDQS1 IC9902 LDQS L8R_DQS1 IC9902 LDQS IC9902 VDDL IC9902...

  • Page 69: A-Board (20/20) Schematic Diagram

    12.25. A-Board (20/20) Schematic Diagram A-BOARD (20/20) STB5V REF No. 2750-2899 CN0101 REF No. 0600-0899 TP1062 CN0100 FACTORY USE STB3.3V FACTORY USE TP0154 TP0101 STB5V TEMP SENSOR STB5V STB3.3V TO 6/20 R0180 TP0102 IC1000 G-SRQ_GENX IIC_CONT/SRQ C1ZBZ0003775 IIC_CONT TO 1,14/20 TP0104 GenX8_SCL (GenX8 Loarder/E2PROM)

  • Page 70: C1-Board (1/2) Schematic Diagram

    12.26. C1-Board (1/2) Schematic Diagram C1-BOARD TNPA4770 (1/2) ZA17101 ZA17104 K4AD01Z00001 K4AD01Z00001 ZA17102 K4AD01Z00001 ZA17103 K4AD01Z00001 C17133 C17134 250V 250V 0.15u 0.15u C1_P5_3.3V PANEL DATA DRIVER C17102 C17135 C17131 C17132 C17136 250V 250V 250V 250V 0.15u 0.15u 0.15u 0.15u C1_P5_3.3V C1_P5_3.3V PANEL DATA PANEL DATA...

  • Page 71: C1-Board (2/2) Schematic Diagram

    12.27. C1-Board (2/2) Schematic Diagram C1-BOARD TNPA4770 (2/2) *R17105 *R17104 GK-BOARD (GK1) AC_LED1 AB_LED1 AC_ODED1 AB_ODED1 AC_PCD1 AB_PCD1 AC_CLRD1 AB_CLRD1 R17142 C1_P5_3.3V EXB38V470JV 5V_DET 5V/P3.3V_DET R17126 P5V/P3.3V P5V/P3.3V AB_LED1 AB_ODED1 ODE1 AB_PCD1 AB_CLRD1 CLR1 DD1_2- DD1_2- DD1_2+ DD1_2+ DD1_1- DD1_1- DD1_1+ DD1_1+ DRVCLK1-...

  • Page 72: C2-Board (1/2) Schematic Diagram

    12.28. C2-Board (1/2) Schematic Diagram C2-BOARD TNPA4771 (1/2) A-BOARD TERM (A31) C21_P5_3.3V C2_P5_3.3V R17204 R17241 EXB38V470JV AB_LED1_C1 AA_LED1 5V/P3.3V_DET AB_LED1 C2_P5_3.3V *C17241 AB_ODED1_C1 100p AB_ODED1 P5V/P3.3V R17242 P5V/P3.3V EXB38V470JV AA_ODED1 AB_PCD1_C1 AA_PCD1 AB_PCD2 AB_LED1_C1 AB_CLRD1_C1 AA_PCD2 AB_CLRD1 AA_CLRD1 AB_ODED1_C1 C2_P5_3.3V ODE1 AB_PCD1_C1 C17213...

  • Page 73: C2-Board (2/2) Schematic Diagram

    12.29. C2-Board (2/2) Schematic Diagram C2-BOARD TNPA4771 (2/2) ZA17204 ZA17203 K4AD01Z00001 K4AD01Z00001 A-BOARD CB10 (A32) TERM ZA17201 ZA17202 K4AD01Z00001 K4AD01Z00001 SS_5V C22_P5_3.3V C2_P5_3.3V R17293 5V_DET_O 5V/3.3V_DET_O 5V_DET_I 5V/3.3V_DET_I C2_P5_3.3V P5V/P3.3V SS_5V P5V/P3.3V DRVSOS8 C2_P5_3.3V SS_5V NC(NUEL) AA_CLRD2 C17215 C17214 AB_UEH 0.1u 0.1u R17245...

  • Page 74: C3-Board (1/2) Schematic Diagram

    12.30. C3-Board (1/2) Schematic Diagram C3-BOARD TNPA4772 (1/2) SS_5V 5V/3.3V_DET_O R17326 220k 5V/3.3V_DET_I C3_P5_3.3V P5V/P3.3V SS_5V AB_CLRD2_C3 AC_CLRD2 P5V/P3.3V SS-BOARD P-BOARD AC_PCD4 (SS33) (P35) AB_PCD4_C3 AC_ODED2 AB_ODED2_C3 AC_LED2 AB_LED2_C3 R17345 EXB38V470JV DRVSOS8_C3 DRVSOS8 NC(NUEL) AB_UEH AB_USL AB_USH AB_UML AB_UMH AB_CLRD2_C3 CLR2 AB_PCD4_C3 C17331...

  • Page 75: C3-Board (2/2) Schematic Diagram

    12.31. C3-Board (2/2) Schematic Diagram C3-BOARD TNPA4772 (2/2) C17336 C17339 C17340 250V 250V 250V C17335 0.15u 0.15u 0.15u 250V 0.15u CB13 CB15 R17399 4.7k C3_P5_3.3V C3_P5_3.3V PANEL DATA PANEL DATA DRIVER DRIVER C17305 C17307 ZA17304 K4AD01Z00001 ZA17301 C17337 C17338 K4AD01Z00001 250V 250V 0.15u...

  • Page 76: Sc-Board (1/4) Schematic Diagram

    12.32. SC-Board (1/4) Schematic Diagram SC-BOARD TNPA4844AM (1/4) P-BOARD (P2) VSUS VSUS *C16412 *C16413 *C16415 *C16419 220V 250V 220V 220V 300u 1.5u 300u 300u A-BOARD (A20) IC16561 SC20 C0JBAZ002692 TP16 TP17 BUFFER TP18 C16563 C16562 100u TP36 R16561 EXB38V470JV TP24 TP46 AA_SIU CERS...

  • Page 77: Sc-Board (2/4) Schematic Diagram

    12.33. SC-Board (2/4) Schematic Diagram VSUS IC16771 16V_F Vad+5V C0CBADC00072 16V_F *D16401 SC-BOARD TNPA4844AM (2/4) VOUT B0FACR000006 R16536 C16771 C16772 R16534 4.7u *D16402 B0FACR000006 IC16501 C0ZBZ0001324 Q16501 B1HFPFA00001 C16502 R16503 C16401 R16504 630V 4.7u 5600p C16503 *Q16402 C16535 470u 2PG0110000RP R16511 R16512 C16501...

  • Page 78: Sc-Board (3/4) Schematic Diagram

    12.34. SC-Board (3/4) Schematic Diagram VSUS 16V_F 16V_F R16602 TP65 TP66 AA_CPH2 VSET VSUS PC16601 D16608 R16606 MAZ81200ML B3PBA0000498 Q16604 R16604 B1CHPM000001 AA_CERS R16869 R16613 D16619 PC16603 C16602 R16633 D16606 R16609 B0ECKP000047 B3PBA0000498 B0ECKM000038 SC-BOARD TNPA4844AM (3/4) D16616 MA3X152E0L C16604 R16611 R16614 C16603...

  • Page 79: Sc-Board (4/4) Schematic Diagram

    12.35. SC-Board (4/4) Schematic Diagram R16719 TP45 VSUS:190V AA_SEL TP41 VSET:290V AA_SIU TPVSUS TP64 R16720 VSET TPVSET SC-BOARD TNPA4844AM (4/4) TP42 VSUS AA_OC2 L16699 D16715 R16721 G0C471KA0167 B0ECHR000001 C16823 C16822 IC16788 R16735 R16744 R16749 630V 400V 187k 127k TP43 AA_CLK R16731 5600p VSET GEN.

  • Page 80: Ss-Board (1/2) Schematic Diagram

    12.36. SS-Board (1/2) Schematic Diagram SS-BOARD TNPA4783AM (1/2) R16031 *Q16001 B1JADN000006 R16001 R16032 Q16141 R16033 P-BOARD VSUS:192V *Q16002 B1HFPFA00001 (P11) B1JADN000006 TPVSUS R16141 SS11 D16032 R16002 C16002 L16271 MA2J11100L R16034 630V G0ZZ00002183 5600p VSUS VSUS Q16055 *C16203 *C16201 *C16202 R16171 *C16012 *C16013 *C16018...

  • Page 81: Ss-Board (2/2) And Ss2-Board Schematic Diagram

    12.37. SS-Board (2/2) and SS2-Board Schematic Diagram SS-BOARD TNPA4783AM (2/2) TP51 *D16284 TP53 MA3X152D0L *R16287 *C16284 330k 0.1u TP54 *SS53 C16285 R16288 330k ZA16003 0.1u K4CD01000011 D16285 MA3X152D0L R16289 C16286 330k 0.1u TP56 PANEL C16280 R16281 SUSTAIN R16284 C16287 R16290 ELECTRODE Q16280 220k...

  • Page 82: Printed Circuit Board

    13 Printed Circuit Board 13.1. P(P-1)-Board P(P-1)-BOARD (FOIL SIDE) ETX2MM761MGN...
  • Page 83 P(P-1) Parts Location Parts Location P-BOARD (FOIL SIDE) P-BOARD (COMPONENT SIDE) TRANSISTOR TEST POINT TRANSISTOR TEST POINT IC201 Q201 IC201 Q201 IC202 Q202 IC251 Q202 IC251 Q203 IC301 Q301 IC301 Q204 IC352 Q302 IC352 Q301 IC501 Q351 IC501 Q302 IC551 Q401 IC551 Q303...
  • Page 84 P(P-1)-BOARD (COMPONENT SIDE) ETX2MM761MGN...

  • Page 85: P(P-2)-Board

    13.2. P(P-2)-Board P(P-2)-BOARD (FOIL SIDE) ETX2MM761MGN P(P-2)-BOARD (COMPONENT SIDE) ETX2MM761MGN P(P-2)

  • Page 86: Gk, K, S And Ss2-Board

    13.3. GK, K, S and SS2-Board SS2-BOARD (FOIL SIDE) TNPA4804 S-BOARD (FOIL SIDE) TNPA4858AB T N P A 4 8 5 8 P b F TNPA4804 S E E R E V E R S E 1 SS2 P b F F O R O R D E R N O .

  • Page 87: A-Board

    13.4. A-Board A-BOARD (FOIL SIDE) TZTNP01ECUY I C 2 8 0 2 I C 9 0 0 1 L5604 C5611 C5612 TP2872 I C 8 4 0 1 C5701 C5698 C2818 C2817 TP9196 IC9001 IC2802 C2877 CL8754 R8641 R8643 TP5400 CL8475 C2878 R8346...
  • Page 88 A-BOARD (COMPONENT SIDE) TZTNP01ECUY A 2 5 VJ2870 C2871 C N 8 7 0 1 D2870 C2870 C5700 C5699 R9901 CL8471 CL9007 R9839 CL8472 CL8473 C8343 CL8474 Q5602 Q5601 CL8466 C2801 CN8701 L2870 I C 9 0 0 3 C9062 C9044 FL9805 D2805...

  • Page 89: C1-Board

    13.5. C1-Board C1-BOARD (FOIL SIDE) TNPA4770 P b F T N P A 4 7 7 0 S E E R E V E R S E F O R O R D E R N O . C1-BOARD (COMPONENT SIDE) TNPA4770 ZA101 1 C1...

  • Page 90: C2-Board

    13.6. C2-Board Parts Location C2-BOARD IC IC IC17201 IC17202 IC17203 IC17211 C2-BOARD (FOIL SIDE) TNPA4771 P b F T N P A 4 7 7 1 S E E R E V E R S E F O R O R D E R N O . C2-BOARD (COMPONENT SIDE) TNPA4771 I C 2 1 1...

  • Page 91: C3-Board

    13.7. C3-Board C3-BOARD (FOIL SIDE) TNPA4772 P b F T N P A 4 7 7 2 1 S E E R E V E R S E F O R O R D E R N O . 1 2 3 C3-BOARD (COMPONENT SIDE) TNPA4772 ZA301...

  • Page 92: Sc-Board

    13.8. SC-Board SC-BOARD (FOIL SIDE) TNPA4844AM Z A 4 2 1 Z A 4 2 2 Z A 4 1 2 Z A 4 1 1 T P 8 1 T P 7 8 T P 5 9 T P 8 0 T P 7 9 T P 5 1 T P 6 1...
  • Page 93 Parts Location Parts Location SC-BOARD (FOIL SIDE) SC-BOARD (COMPONENT SIDE) TEST POINT PHOTO COUPLER TEST POINT TP41 Q16606 TP42 Q16607 IC16464 PC16461 IC16784 TP43 Q16608 IC16465 PC16480 TP46 IC16786 Q16621 TP44 TP66 IC16471 PC16601 IC16788 Q16622 TP45 TP68 IC16490 PC16603 IC16791 TP51 Q16623...
  • Page 94 SC-BOARD (COMPONENT SIDE) TNPA4844AM Z A 4 1 2 Z A 4 2 1 Z A 4 1 1 Z A 4 2 2 R 4 7 9 Q 4 7 1 R 7 9 1 H.V. DANGER H.V. DANGER C 4 7 2 D 7 9 1 H.V.

  • Page 95: Ss-Board

    13.9. SS-Board Parts Location SS-BOARD (FOIL SIDE) TEST POINT TP26 TPSS1 TP27 TPSOS8 IC16304 TP28 TPVe TP29 TPVSUS TRANSISTOR TP30 Q16001 TP31 TP33 Q16002 VOLUME TP34 Q16003 TP10 TP36 Q16004 TP13 VR16001 Q16021 TP38 TP14 Q16022 TP39 TP16 TP40 Q16023 TP17 TP41 Q16024...
  • Page 96 Parts Location SS-BOARD (COMPONENT SIDE) TRANSISTOR TEST POINT Q16051 Q16052 IC16131 Q16001 TPSS1 IC16151 Q16002 Q16055 TPSOS8 IC16241 Q16003 Q16056 TPVe IC16251 Q16004 Q16101 TPVSUS Q16102 IC16304 Q16021 Q16141 IC16312 Q16022 Q16023 Q16161 PHOTO COUPLER VOLUME Q16024 Q16191 Q16041 Q16251 VR16001 PC16191 Q16280...

  • Page 97: Exploded View And Replacement Parts List

    14 Exploded View and Replacement Parts List 14.1. Exploded View and Mechanical Replacement Parts List 14.1.1. Exploded View...
  • Page 98 14.1.2. Packing 1...
  • Page 99 14.1.3. Packing 2...
  • Page 100 14.1.4. Packing 3...
  • Page 101 MD54F12A1J PLASMA DISPLAY PANEL N2QAYB000370 REMOTE CONTROL TBLA3689 STAND POLE R TBLA3690 STAND POLE L TBLX0102 PEDESTAL STAND TBMA339 PANASONIC SHEET BADGE TBX3EA00101 POWER BUTTON THEJ016J SCREW(AC INRET:2) THEL0429 SCREW(BC-TU:6 SIDE-T:2 AC:1 CONT:2 ) THEL065Z SCREW(BC T:3) THEL073N SCREW THTD020J...
  • Page 102 Ref. Safety Part No. Part Name & Description Q'ty Remarks TPDA2087 TOP CUSHION TPDA2088 BOTTOM CUSHION TPDA2089 PEDESTAL CUSHION TPDA2123 BOTTOM CENTER CUSHION TPDF2120 ACCESSORIES PAD TPEB362 POLY BAG (SCREW STAND-TV) TPEB384 BAG (PEDESTAL STAND) TPEH170 PROTECT COVER TPEH273 TOP PROTECT SHEET TPEH448 BOTTOM PROTECT SHEET TPEP027...
  • Page 103 Ref. Safety Part No. Part Name & Description Q'ty Remarks XYN4+F10FJ SCREW(HANGER METAL ASSY:8) XYN5+F25FN SCREW XZB17X19C03 POLY BAG (STAND POLE) XZBT6506 POLY BAG (INSTRUCTION BOOK)

  • Page 104: Electrical Replacement Parts List

    14.2. Electrical Replacement Parts List 14.2.1. Replacement Parts List Notes...
  • Page 105 14.2.2. Electrical Replacement Parts List Safety Ref. No. Part No. Part Name & Pcs Remarks Description Safety Ref. No. Part No. Part Name & Pcs Remarks C2114 F1G1C104A116 C 0.10UF, K, 16V Description C2115 F1G1C104A116 C 0.10UF, K, 16V C2117 F1G1C104A116 C 0.10UF, K, 16V K1KA14A00248 14P CONNECTOR C2118...
  • Page 106 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C2409 F1G1H102A730 C 1000UF, 50V C3108 F1J1A106A043 C 0.010UF, K, C2410 F1J1E105A171 C 1 UF 25V C3109 F1J1A106A043 C 0.010UF, K, C2411 F1J1E105A171 C 1 UF 25V C2412...
  • Page 107 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C4632 F1G1C104A116 C 0.10UF, K, 16V C5658 F1G1E103A123 C 0.010UF, K, C4633 F1J1A106A043 C 0.010UF, K, C5696 F2G1E470A021 C 47PF, J, 25V C4634 F1G1C104A116 C 0.10UF, K, 16V C5697...
  • Page 108 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C8063 F1H0J1050012 C 1UF, K, 16V C9044 F1J1A475A039 C 4.7UF, K, 10V C8064 F1H0J1050012 C 1UF, K, 16V C9045 F1G1C104A116 C 0.10UF, K, 16V C8065...
  • Page 109 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C9155 F1H1A1050032 C 10UF, 50V C9869 F1K1E106A136 C 10UF, Z, 25V C9156 F1H1A1050032 C 10UF, 50V C9872 F1K1E106A136 C 10UF, Z, 25V C9157 F1H1A1050032 C 10UF, 50V C9874...
  • Page 110 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C9996 F1G1C104A116 C 0.10UF, K, 16V C16535 F1H1H104A970 C 0.1UF, K, 50V C9997 F1G1C104A116 C 0.10UF, K, 16V C16536 F1H1H104A970 C 0.1UF, K, 50V C16002...
  • Page 111 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C17104 F1H1A1050032 C 10UF, 50V D2530 MAZ8056GML ZENER DIODE C17105 F1H1A1050032 C 10UF, 50V D2870 B0JCME000037 DIODE C17131 F1L2E154A028 E 1500UF, 25V D2871 MAZ8120GML...
  • Page 112 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D16402 B0FACR000006 DIODE D16713 B0ECHR000001 DIODE D16407 MA22D3900L DIODE D16714 MAZ815000L ZENER DIODE D16411 MA2J1110GL DIODE D16715 B0ECHR000001 DIODE D16421 MA3DF40001TV ZENER DIODE D16717...
  • Page 113 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description IC16131 C0ZBZ0000895 IC L3030 J0JCC0000287 CHIP INDUCTOR IC16151 C0ZBZ0001324 IC L3034 J0JCC0000364 CHIP INDUCTOR IC16241 C0JBAZ002811 IC L3035 J0JCC0000364 CHIP INDUCTOR IC16251 C0BBBA000024 IC...
  • Page 114 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description L16472 G0ZZ00002183 PEAKING COIL Q9302 2SD0601ARL TRANSISTOR L16697 G0C102KA0187 PEAKING COIL Q9807 2SD0601ARL TRANSISTOR L16698 G0C681MA0065 PEAKING COIL Q16001 B1JADN000006 TRANSISTOR L16699...
  • Page 115 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description Q16815 B1ABCN000007 TRANSISTOR R0949 ERJ2GEJ680 M 68 OHM, J,0.063W Q16816 2SD0601AQL TRANSISTOR R0950 ERJ2GEJ680 M 68 OHM, Q16817 B1CBGD000001 FET J,0.063W Q16818...
  • Page 116 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R2003 ERJ2GEJ105 M 1MOHM, R2531 D1BB2700A055 M 270 OHM, 1/10W J,0.063W R2542 D0GB473JA057 M 47KOHM,J,1/16W R2006 ERJ2GEJ471 M 470 OHM, R2556 D0GB103JA041 M 10K OHM J 1/ J,0.063W...
  • Page 117 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R3103 ERJ2GEJ472 M 4.7KOHM, R3771 D1BD6651A044 M6.65KOHM, 1/10W J,0.063W R3772 D1BD1741A044 M1.74KOHM, 1/10W R3112 D0YAR0000007 M 0 OHM 1/4W R3775 ERJ6ENF7151 M7.15KOHM, 1/10W...
  • Page 118 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R4624 ERJ2GEJ103 M 10KOHM, R5472 ERJ2GEJ470 M 47 OHM, J,0.063W J,0.063W R4626 D1BB2200A055 M 220 OHM, 1/10W R5473 ERJ2GEJ473 M 47KOHM, J,0.063W...
  • Page 119 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8004 D1BB2402A055 M 24KOHM, 1/10W R8101 ERJ2GEJ103 M 10KOHM, J,0.063W R8005 D1BB1002A055 M 10KOHM, 1/10W R8260 ERJ2GEJ102X M 1K OHM J 1/4W R8006 D1BB2402A055 M 24KOHM, 1/10W R8272...
  • Page 120 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8617 ERJ2GEJ680 M 68 OHM, R8724 ERJ2GEJ680 M 68 OHM, J,0.063W J,0.063W R8618 ERJ2GEJ103 M 10KOHM, R8726 ERJ2GEJ680 M 68 OHM, J,0.063W J,0.063W...
  • Page 121 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R9086 ERJ2GEJ470 M 47 OHM, R9205 ERJ2GEJ333 M 33KOHM, J,0.063W J,0.063W R9087 ERJ2GEJ101 M 100 OHM, R9206 ERJ2GED563X M 56KOHM J,0.063W ,J,0.063W...
  • Page 122 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R9409 ERJ2GEJ470 M 47 OHM, R9871 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W R9410 ERJ2GEJ470 M 47 OHM, R9872 D1BB1002A055 M 10KOHM, 1/10W J,0.063W R9873 ERJ14YJ5R6U...
  • Page 123 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16131 D0GD101JA036 M 100 R16317 ERJ6RBD272 M 2.7KOHM 1/10W OHM,J,0.25W R16318 ERJ6RBD623 M 62KOHM,J,1/10W R16132 D0GD101JA036 M 100 R16319 ERJ6RBD2491 M 2.49KOHM, 1/...
  • Page 124 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16509 ERJT08J1R0V M 1.8OHM,J, R16631 D0GD103JA036 M 10KOHM,J,0.25W 0.33W R16633 ERJ6GEYJ223 M 22KOHM,J,1/10W R16511 ERJ6GEYF473 M 47KOHM,J,1/10W R16634 ERJ6GEYJ471 M 470 OHM,J,1/ R16512...
  • Page 125 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16723 ERJ3GEYJ220 M 22 OHM,J,1/16W R16832 D1BD7152A044 M71.5KOHM, 1/10W R16731 ERG2FJS104D M 100KOHM, J, 2W R16833 D0GD103JA036 M 10KOHM,J,0.25W R16733 ERJ6GEYJ474 M 470KOHM,J,1/...
  • Page 126 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R17131 ERJT14J6R8U C6.8 OHM, J,1/4W R17314 ERJ3GEYJ101 M 100 OHM,J,1/ R17132 ERJT14J6R8U C6.8 OHM, J,1/4W R17315 ERJ3GEYJ101 M 100 OHM,J,1/ R17133 ERJT14J6R8U C6.8 OHM, J,1/4W...
  • Page 127 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description X8001 H0J270500120 CRYSTAL C358 ACKZE1E471LT 25V 470PF X9900 H0J200500076 CRYSTAL C359 ACMEB104K5T CERAMIC CHIP CAPACITOR C401 ECQE2104SKF 250V 0.1PF ZA16001 K4CD01000011 AV TERMINAL C402...
  • Page 128 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D201 VDERA83-004T DIODE L602 AYJ3170207Y 7A 7mH D202 VDERA83-004T DIODE L604 ETB42AY12GAD CHOKE COIL D203 VDAG01AT DIODE L605 ETB42AY12GAD CHOKE COIL D204 VDAG01AT...
  • Page 129 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R205 ERJ6ENF3903 M 390KOHM,J,1/ R308 ERJ6ENF3903 M 390KOHM,J,1/ R206 ERJ6ENF3903 M 390KOHM,J,1/ R309 ERG12SJ680J M 68 OHM, J,1/2W R310 ERG12SJ220J M 22 OHM, J,1/2W...
  • Page 130 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R504 ARRCR1F8253T METAL GLAZE R630 ERJ3GEYJ471 M 470 OHM,J,1/ FIXED RESISTOR R505 ARRCR1F8253T METAL GLAZE R633 ERJ6GEYJ221V M 220 OHM,J,1/ FIXED RESISTOR R506 ARRCR1F8253T METAL GLAZE...
  • Page 131 Safety Ref. No. Part No. Part Name & Pcs Remarks Description T201 ETB42BZ148AD TRANS T301 ETB42LZ118AD TRANS T501 ETB25AH118BH TRANS VR251 EVMEASA01B55 VARIABLE RESIS- VR401 EVMEASA01B54 VARIABLE RESIS- Z501 ERZVGAD471 VARISTOR Z601 ERZVGED751 VARISTOR Z602 ERZVGAD471 VARISTOR ZD203 MA4270NMTA ZENER DIODE ZD204 MA4270NMTA ZENER DIODE...

Table of Contents
