Product Division Terminals
User Manual
GB
GSM-Com 608

Advertisement

Table of Contents
loading

Related Manuals for Bosch GSM-Com 608

Summary of Contents for Bosch GSM-Com 608

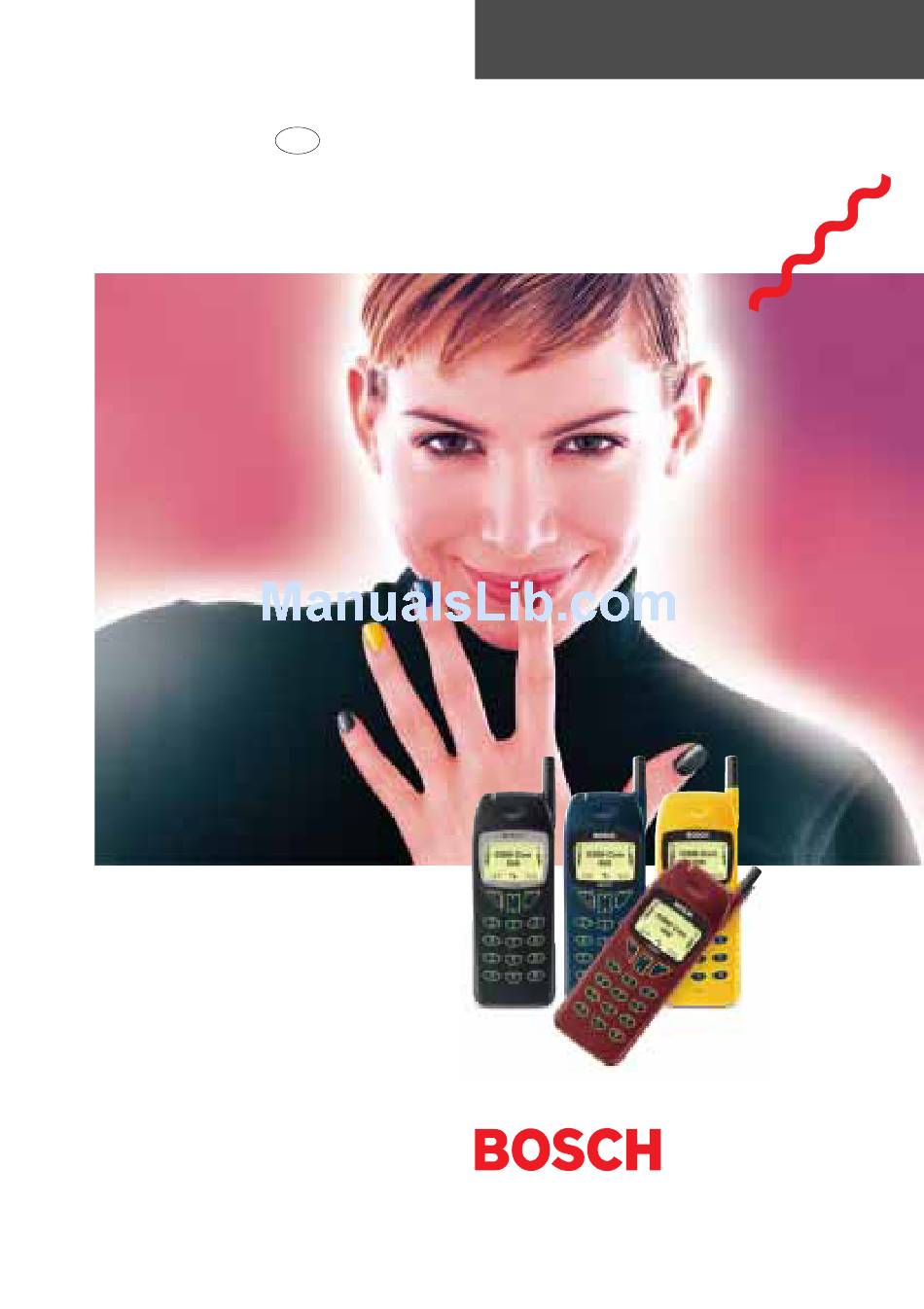

  • Page 1 Product Division Terminals User Manual GSM-Com 608...

  • Page 2: Precautions

    PRECAUTIONS For your safety Please pay special attention to the fol- lowing simple guidelines. Breaking the rules may be dangerous or illegal. In-car safety Do not use your mobile phone when driving a vehicle except from in emer- gency cases. Always park the vehicle and take the ignition before using the phone.

  • Page 3: Table Of Contents

    Precautions ....Keypad functions ... Display symbols ... . Before you start .

  • Page 4: Keypad Functions

    KEYPAD FUNCTIONS LED (Status indicator) Slow green flash: Your phone is in contact with a network. Fast green flash: Indicates an incoming call. Slow red flash: Your phone cannot get in con- tact with a network. Fast red flash: The battery needs recharging. On/off key Press the key for one second to switch your telephone on or off.

  • Page 5: Display Symbols

    Introduction Making a call Enter phone number. Press CALL Answering a call The telephone rings. Press ANSWER Ending a call Press Back to standby mode Press EXIT The telephone automatically returns to stand- by mode when no key has been pressed for 60 seconds.

  • Page 6: Before You Start

    BEFORE YOU START Insert rechargeable battery When changing the battery your phone should always be switched off. Charge the battery The battery supplied with this telephone is com- pletely discharged. The telephone will initiate charging as soon as you have inserted the charger plug.

  • Page 7: Insert Sim Card

    Insert SIM card Before you can make a call on your mobile phone you have to insert the SIM card. Should you have forgotten to insert the SIM card the telephone will ask you to do so. Before inserting the SIM card into the phone please make sure that any plastic remains from the frame punching have been removed.

  • Page 8: Making Your First Call

    MAKING YOUR FIRST CALL Selection of language The display language of your phone is normally the national language of the country in which you purchased your SIM card. If this is not the case the display language will be English. You have the option of choosing between different languages.

  • Page 9: Emergency Calls

    MAKING YOUR FIRST CALL Emergency calls In most cases emergency calls can be made with or without a SIM card. To make an emergency call without a SIM card just enter the worldwide mobile phone emergency number 112, press and confirm by pressing CALL Answering a call 1.

  • Page 10: When In Conversation

    OPTIONS WHEN IN CONVERSATION Your telephone supports the following network options: Having more than one conversation at a time, placing calls on hold, switching between calls, joining calls and transferring a conversation to another phone number. However, some ser- vices may not be available on all networks. How to proceed 1.

  • Page 11: Keypad Lock

    How to lock the keypad To avoid making calls accidentally you can lock the keypad. 1. Press MENU 2. Press If you try to activate one of the keys, the display will tell you that the keypad is locked. How to unlock the keypad The keypad lock is automatically disabled –...

  • Page 12: Phone Book

    PHONE BOOK You can store names and telephone numbers in a phone book. The entries are stored on the SIM card and the number of entries is dependent on the capacity of the SIM card. Each name may (depending on SIM card) contain up to 20 characters and each telephone number up to 40 digits.

  • Page 13: Speed Dialling

    If you have a voice mail number stored in your phone book this should be stored under loca- tion 1. How to find a name and a telephone number 1. Press 2. Enter one or more letters of the name you wish to find.

  • Page 14: Phone Book Editing

    PHONE BOOK EDITING How to edit a name or a telephone number 1. Press to enter the List menu system. 2. Select Phone book and press SELECT 3. Select Edit entry and press 4. Enter one or more letters of the entry you wish to edit or select it by using 5.

  • Page 15: Fixed Numbers

    PREFIX TELEPHONE NUMBERS Fixed numbers Your telephone offers you the possibility of making an alternative phone book if this feature is available on your SIM card. With the help of this alternative phone book you can restrict the use of your phone only to numbers stored in this special phone book.

  • Page 16: List Menu System

    LIST MENU SYSTEM Information about outgoing, answered and missed calls as well as SMS messages are automatically stored in lists: Outgoing calls • View names/phone numbers of your latest outgoing calls Answered calls • View names/phone numbers of your latest answered calls Missed calls •...

  • Page 17: Outgoing Calls

    OUTGOING CALLS / ANSWERED CALLS Outgoing calls Your phone has memory for your last 10 dialled telephone numbers. How to see the list of last outgoing calls 1. Press to enter the List menu system. Outgoing calls 2. Select 3. Scroll through the telephone numbers. 4.

  • Page 18: Missed Calls

    MISSED CALLS Missed calls Your phone remembers the last 10 incoming calls which you did not answer. The display will tell you how many missed calls your phone has received. If, for instance, there are 15 missed calls the standby display will show .

  • Page 19: Messages

    Short Message Services (SMS) Your phone can receive and send short text mes- sages via the network. On some networks you have to subscribe to this facility. There are two types of messages: point-to-point messages which you can both receive and send, and cell broadcast messages which you can only receive.

  • Page 20: Save Message

    MESSAGES How to read a message again 1. Press to enter the List menu system. 2. Select Messages and press Inbox 3. Select by pressing 4. Scroll through the list of messages and confirm your choice by pressing How to send a message Before you can send a message you have to enter your network operator's telephone number for this special service.
  • Page 21 Cell broadcast messages To select whether you want the cell broadcast op- tion to be on or off you must enter the Message setup menu and select Broadcast setup (see page 31). These are general messages broadcast to a group of telephones and are available to network sub- scribers only.

  • Page 22: Setup Menu System

    SETUP MENU SYSTEM The setup menu system offers you the possibility of setting the individual sub menus and options according to your own personal wishes. Network services (Menu 1) 11 Call divert 12 Call barring 13 Call waiting 14 Closed user group Tones setup (Menu 2) 21 Ring tone 22 Trembler (optional extra)

  • Page 23: Menu Numbers

    How to access the Setup menu system 1. Press MENU 2. Select the menu you want to access using 3. Confirm by pressing SELECT 4. Select the sub menu you want to access using 5. Confirm by pressing SELECT Menu numbers On the right hand side in the first line of the dis- play you will always see the number of the menu and sub menu in which you are operating.

  • Page 24: Call Divert

    CALL DIVERT You have the option of diverting all calls or choosing to divert incoming calls only if un- answered. The unanswered calls option diverts calls – if you are busy – if you do not reply – if there is no contact Registration To enable a call divert you must register it first.

  • Page 25: Divert All Calls

    How to activate call divert for all calls 1. Press MENU 2. Select Network services by pressing SELECT 3. Confirm by pressing SELECT more to indicate that you want access to the call divert menu. 4. Select using Divert all calls Register –...

  • Page 26: Call Barring

    CALL BARRING You can set up call barring for different types of outgoing and incoming calls to restrict the use of your phone. You have to activate the type of call barring you wish to set up. You are asked to specify whether you want the call barring to apply for all ser- vices, speech, data services, fax services or message services (SMS).

  • Page 27: Call Waiting

    CALL BARRING / CALL WAITING Incoming call barring Select All calls if you want to bar all in- coming calls. Select Roaming incoming calls to be barred only when you are connected to a foreign network. Cancelling call barrings Call barrings can be cancelled individually or by Cancel all selecting Call waiting...

  • Page 28: Tones Setup

    TONES SETUP How to adjust tones 1. Press MENU 2. Select Tones setup using SELECT 3. Confirm by pressing 4. Select using either Ringing tone Trembler (Optional extra) Message tone Broadcast tone Key tone Factory settings 5. Confirm by pressing SELECT 6.

  • Page 29: Phone Setup

    This menu offers you the possibility of setting some of the telephone's options according to your own personal wishes. How to set up options 1. Press MENU 2. Select Phone setup using 3. Confirm by pressing SELECT 4. Select using either Language Auto redial...

  • Page 30: Preferred List

    PHONE SETUP Preferred list The list of networks on your SIM card defines the order of preference in which your phone will se- lect a network in automatic mode. Network ope- rators offer different services and call charges; therefore it may be beneficial for you to make a preferred list of your own.

  • Page 31: Message Setup

    Send message setup Before you can send a message you have to enter your network operator's telephone number for this special service. Contact your network opera- tor to obtain this number. 1. Press MENU 2. Select Message setup and confirm by pressing SELECT 3.

  • Page 32: Phone Book Setup

    PHONE BOOK SETUP / CALL TIMERS AND CHARGE Fixed dialling In order to enable you to make use of fixed dial- ling numbers stored in an alternative phone book defined by you, select Fixed dialling on To enable the alternative phone book you have to enter your PIN2 code.

  • Page 33: Security

    PIN code To prevent misuse of your SIM card, e.g. if it is lost or stolen, you can select a PIN code to be entered each time you switch on the phone. The PIN code is a 4 to 8-digit number of your own choice, which you can change any time you like.

  • Page 34: Calculator

    CALCULATOR You can use your mobile phone as an ordinary calculator. How to use the calculator 1. Press MENU Calculator 2. Select using 3. Confirm by pressing Your telephone now acts as a normal calculator. The equal-sign ( ) is found on the right hand function key.

  • Page 35: Important Notice

    IMPORTANT NOTICE Batteries Never dispose of old batteries in your household refuse. Return them to the place of purchase or take them to a recycling centre so that they may be disposed of in an environmentally friendly manner. Care of your phone To clean your phone, wipe over with a soft cloth.

  • Page 36: Accessories

    ACCESSORIES Hands-free car installation When your phone is placed in the cradle, it will switch on automatically with the car ignition. You can select whether you want the telephone to switch off automatically with the car ignition after a delay of 1 hour or whether you want to switch it off manually.

  • Page 37: Desk Top Charge Stand

    ACCESSORIES Desk top charge stand The desk top charge stand is powered by means of the charger supplied with your telephone. When the desk top charge stand is on the power lamp will always show green. When you place the telephone in the desk top charge stand you have to make sure that the battery symbols on the display start flashing.

  • Page 38: Other Accessories

    ACCESSORIES Belt clip The belt clip can be removed or fitted by means of a screwdriver. In the retail box you will find the necessary screws and labels for mounting the belt clip. How to fit the belt clip: Remove the label (A) on the back of the phone. The belt clip can now be fitted by means of a screwdriver.

  • Page 39: Index

    Accessories Answered calls Answering a call 5, 9 Any key answer Auto answer Automatic redial Automatic switch off Battery Battery level indicator Before sending messages Before you start Belt clip Broadcast channel list Broadcast language Broadcast setup Calculator Call barring Call divert Call timers/charge Call waiting...
  • Page 40 Fast Travel Charger - US For power / outfit Light 650 mAh NiMH battery 550 mAh NiMH battery AAA Vibra-Alarm 480 mAh NiMH battery High Power 1800 mAh NiMH battery Belt clip Red identification numbers refer to the right accessory. GSM-Com 608...
  • Page 41 Bosch Telecom GmbH Produktbereich Endgeräte Kleyerstr. 94, 60326 Frankfurt/Main, Tel. (0 180) 5 2214 92 Fax (0 180) 5 2214 93 N.V. Robert Bosch S.A. Rue Henri Genessestraat 1, 10 70 Bruxelles / Brussel Tel. (02) 5 25 5460 Robert Bosch A/S Telegrafvej 1, 2750 Ballerup, Tel.
