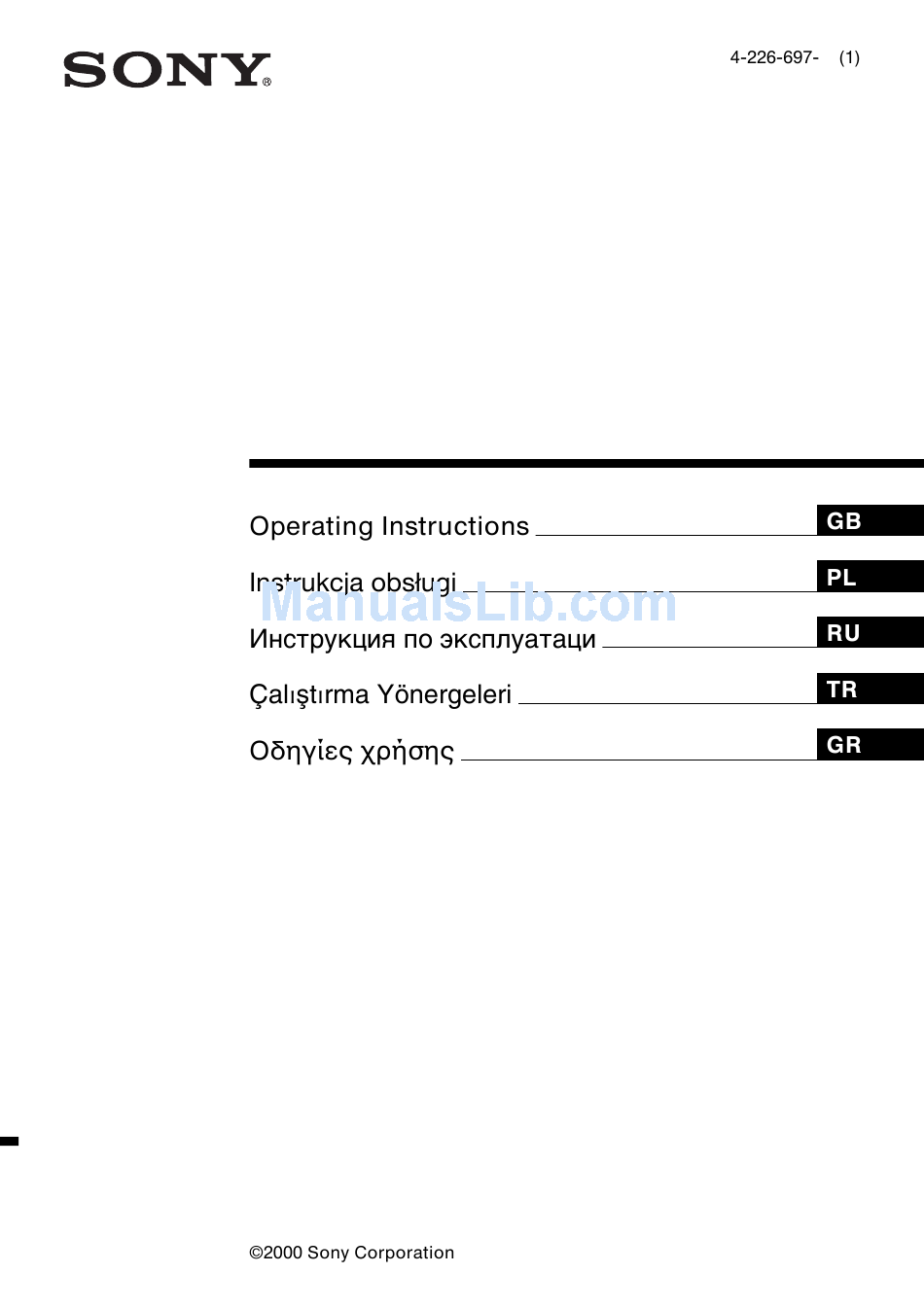

  • Page 1 Micro Satellite System SA-VE315 SA-VE312...
  • Page 2 WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
  • Page 3: Table Of Contents

    Troubleshooting ... 11 Specifications ... 11 About this manual The instructions in this manual are for SA-VE315 and SA-VE312, Sony Micro Satellite Systems. Differences between the systems • SA-VE315 The SA-VE315 is a 5.1 channel speaker system consisting of two front speakers, two rear speakers, one center speaker, and one subwoofer.
  • Page 4: Hooking Up The System

    Hooking up the system Connect the speaker system to the speaker output terminals of an amplifier. Make sure power to all components (included the subwoofer) is turned off before starting the hook-up. Hookup A (for SA-VE315) This configuration is used when the amplifier is connected to a DVD player, LD player, VCR or other video devices.
  • Page 5 Hookup B (for SA-VE315) Try this configuration instead of “Hookup A” in the following situations: — When there are no jacks on the amplifier for a subwoofer. — When you want a stronger bass sound from the subwoofer. Front (Right) Amplifier CENTER Rear (Right)
  • Page 6 Hooking up the system (continued) Hookup C (for SA-VE312) This configuration is used when the amplifier is connected to a CD player, MD deck, cassette deck, or other audio devices. Front (Right) Amplifier Terminal connections Notes • Make sure the plus (+) and the minus (–) terminals on the speakers are matched to the corresponding plus (+) and minus (–) terminals on the amplifier.
  • Page 7: Positioning The Speakers

    Positioning the speakers Location of each speaker Center* Subwoofer Front (Left) Rear* (Left) *SA-VE315 only Each speaker should face the listening position. Better surround effect will result if all speakers are set at the same distance from the listening position. Place the front speakers at a suitable distance to the left and right of the television.
  • Page 8: Listening To The Sound

    Listening to the sound POWER POWER POWER indicator First, turn down the volume on the amplifier. The volume should be set to minimum before you begin playing the program source. Turn on the amplifier and select the program source. Press POWER on the subwoofer. The POWER indicator on the subwoofer lights up green.
  • Page 9 Setting your amplifier to enjoy movies (SA-VE315 only) For the Dolby Digital (AC-3) If your amplifier is connected internally or externally with a Dolby Digital (AC-3) processor, you should use the setup menus for the amplifier to specify the parameters of your speaker system.
  • Page 10: Precautions

    Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine. If you have any questions or problems concerning your speaker system, please consult your nearest Sony dealer.
  • Page 11: Troubleshooting

    Should you encounter a problem with your speaker system, check the following list and take the indicated measures. If the problem persists, consult your nearest Sony dealer. There is no sound from the speaker system. • Make sure all the connections have been correctly made.
  • Page 12 Specifications (continued) SA-WMS315 (subwoofer) System Speaker system Speaker unit Enclosure type Continuous RMS power output Reproduction frequency range High frequency cut-off frequency Inputs LINE IN (input pin jack) SPEAKER IN (input terminals) Outputs LINE OUT (output pin jack) SPEAKER OUT (output terminals) General Power requirements Power consumptions...
  • Page 15 • • ; “ ” “ ” “ ”...
  • Page 16 LINE IN WOOFER OUT CENTER FRONT eE Ee REAR...
  • Page 17 “ ” — — CENTER FRONT SPEAKER eE Ee REAR SPEAKER...
  • Page 18 Podłączanie zestawu (kontynuacja) • • • • • FRONT SPEAKER eE Ee SPEAKER...
  • Page 19 • • *Tylko dla zestawu SA-VE315 WS-FV10 WS-TV10...
  • Page 20 Lokalizacja głośników (kontynuacja) POWER LEVEL MODE MOVIE MUSIC • • • • LEVEL MODE MOVIE POWER MUSIC LEVEL MODE “ ”...
  • Page 21 “ ” “ ” “ ”...
  • Page 22 • • • • • • • • • • • • — — — — —...
  • Page 23 • • • • • • • •...
  • Page 24 Dane techniczne (kontynuacja) System...
  • Page 28 LINE IN WOOFER OUT CENTER FRONT eE Ee REAR...
  • Page 29 CENTER FRONT SPEAKER eE Ee REAR SPEAKER...
  • Page 30 Подключение системы (Продолжение) FRONT SPEAKER eE Ee SPEAKER...
  • Page 31 WS-FV10 WS-TV10...
  • Page 32 Расположение громкоговорителей (Продолжение) POWER LEVEL MODE MOVIE MUSIC LEVEL MODE MOVIE POWER MUSIC LEVEL MODE...
  • Page 36 Технические характеристики (Продолжение)
  • Page 38 UYARI Yangın veya elektrik çarpması tehlikesi nedeniyle cihazınızı yağmurdan veya nemden koruyun.
  • Page 39 İçindekiler Bu el kitabı hakkında Söz konusu sistemler arasındaki farklar: SA-VE315 SA-VE312...
  • Page 40 LINE IN WOOFER OUT CENTER FRONT eE Ee REAR...
  • Page 41 CENTER FRONT SPEAKER eE Ee REAR SPEAKER...
  • Page 42 Sistemin kurulması (devamı) FRONT SPEAKER eE Ee SPEAKER...
  • Page 44 POWER LEVEL MODE MOVIE MUSIC LEVEL MODE MOVIE POWER MUSIC...
  • Page 48 Teknik özellikler (devamı)
  • Page 52 LINE IN WOOFER OUT CENTER FRONT eE Ee REAR...
  • Page 53 CENTER FRONT SPEAKER eE Ee REAR SPEAKER...
  • Page 54 Σύνδεση του συστήµατος (συνεχίξεταί) FRONT SPEAKER eE Ee SPEAKER...
  • Page 56 POWER LEVEL MODE MOVIE MUSIC LEVEL MODE MOVIE POWER MUSIC...
  • Page 60 Τεχνικά χαρακτηριστικά (συνεχίξεταί) Sony Corporation Printed in China...
