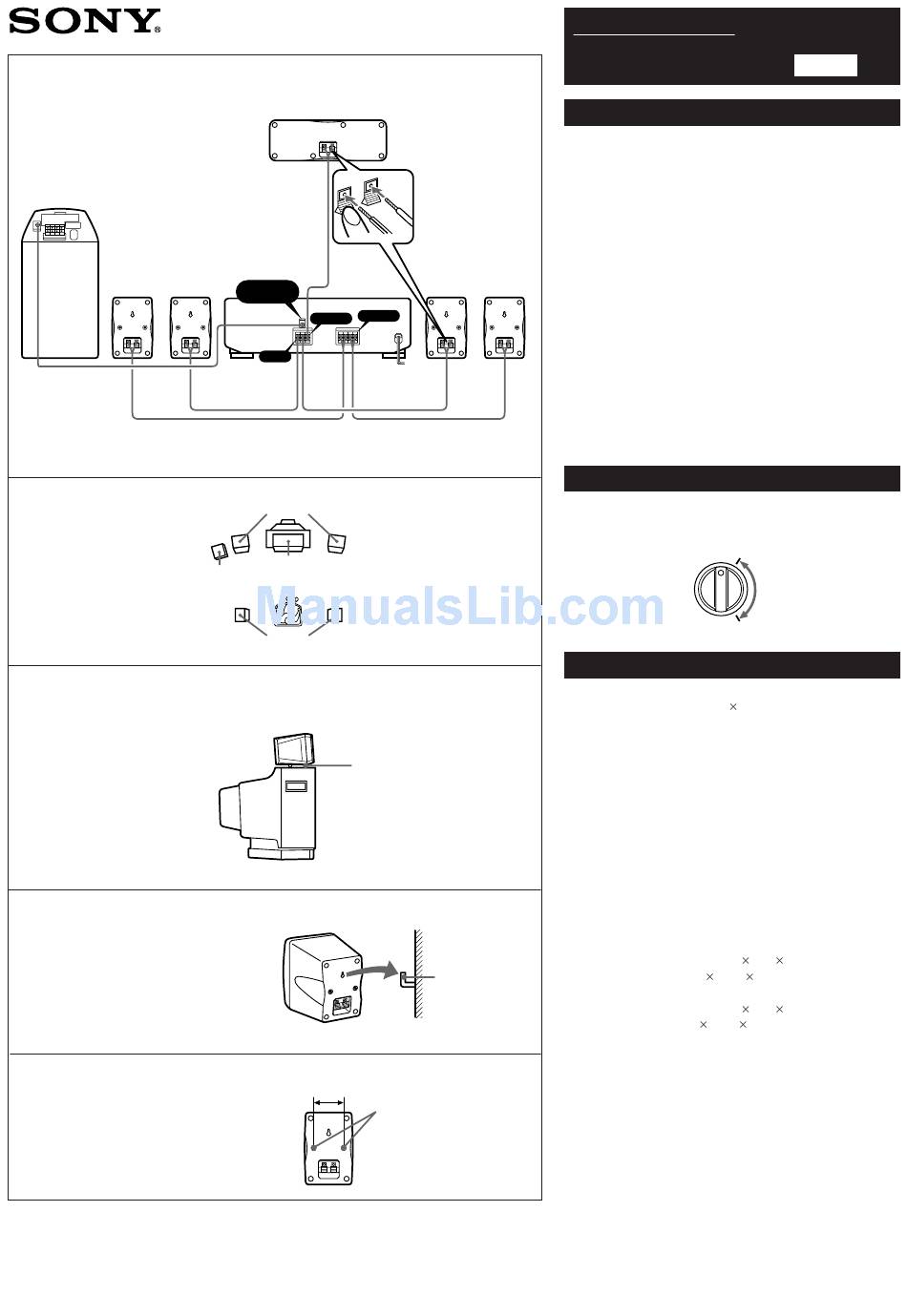

Sony SA-VE100 Instruction & Operation Manual

When connecting to speaker terminals (FRONT, REAR, CENTER, SURROUND
MIX out)
SA-W10
SS-V17 SS-V17
(Front, R) (Rear, R)
} }
]
See the instruction manual supplied with SA-W10 for details of the
superwoofer's connection.
Installing the speaker systems
To put the SS-CN17 on your TV set, attach a foot (supplied) to each bottom
corner of the speaker, and make sure that the speaker is completely flat on top
of the TV.
To hang SS-V17 with a hook on the wall
To install SS-V17 with speaker stands
© 1996 by Sony Corporation
SS-CN17
} ]
}
AV Amplifier
etc.
MIX AUDIO
OUT
CENTER
]
REAR
SS-V17
SS-CN17
SA-W10
SS-V17
Feet
60mm
Printed in Malaysia
3-810-994-21(1)
]
]
}
SS-V17 SS-V17
(Rear, L) (Front, L)
FRONT
} }
] ]
Hook
Nut (M5)
Speaker System
SA-VE100
Precautions
• Avoid driving the speaker system continuously with a
wattage exceeding the maximum input power of this
speaker system.
• Before connecting, turn off the amplifier to avoid
damaging the speaker system.
• If the +/– connection is incorrect, the bass tones seem
to be missing and the position of the instruments
becomes obscure.
In case color irregularity is observed on nearby
TV screen
With the magnetically shielded types of SS-CN17,
SS-V17 and SA-W10, the speakers can be installed near a
TV set. However color irregularity may still be observed
on the TV screen depending on the type of your TV set.
If color irregularity is observed...
n Turn off the TV set once, then turn it on after 15 to
30 minutes.
If color irregularity is observed again...
n Place the speakers more apart from the TV set.
Adjusting the cut-off frequency of SA-W10
When you use the superwoofer SA-W10 with SS-CN17
and SS-V17, set the CUT OFF FREQ control on the
SA-W10 within the range shown in the illustration
below.
50Hz 200Hz

Specifications

Speaker system
SS-CN17: Full range
SS-V17: Full range, magnetically shielded
Speaker unit
1
8 cm (3 / inches, cone type)
4
Enclosure type
Bass reflex
Rated impedance
8 ohms
Power handling capacity
Maximum input power: 120 W
Sensitivity
SS-CN17: 89 dB (1 W, 1 m)
SS-V17: 87 dB (1 W, 1 m)
Frequency range
85 - 20,000 Hz
Dimensions
SS-CN17: Approx. 280
1 3
(11 / 4 /
8
including front grille
SS-V17: Approx. 110
(4 3 / 6 3 /
8 8
including front grille
Mass
SS-CN17: Approx. 1.7 kg (3 lb 11 oz)
SS-V17: Approx. 920 g / pc (2 lb)
Supplied accessories
Speaker cords (Gray)
SS-CN17:2.5 m (1)
SS-V17: 2.5 m (2) (for front speakers)
10 m (2) (for rear speakers)
Feet (4)
* As for the specifications of the SA-W10, see the
instruction manual supplied with the SA-W10.
Design and specifications are subject to change without
notice.
English
2, magnetically shielded
110 140 mm
5
5 / inches) (w/h/d)
8 8
160 140 mm
5 5 / inches) (w/h/d)
8
