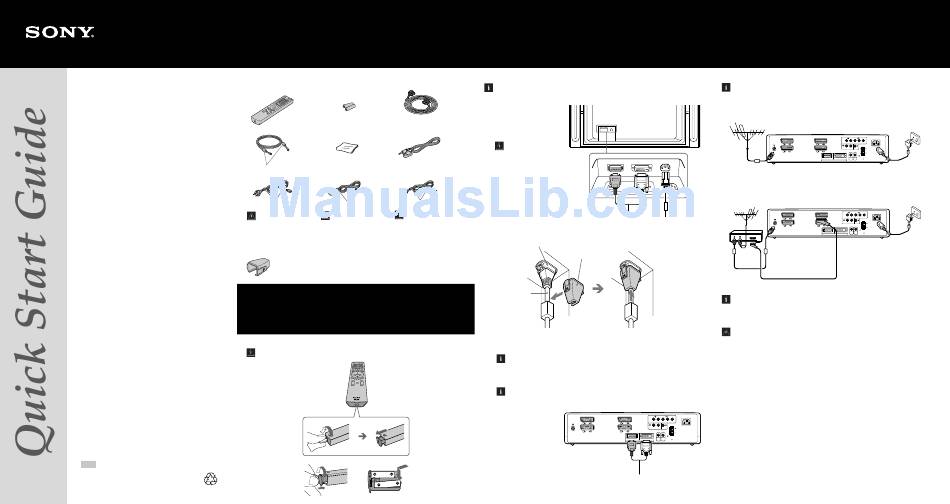

Sony KE-42MR1 Quick Start Manual

KE-42MR1 Checking the
KE-50MR1
Accessories Supplied
Thank you for purchasing this Sony One Remote Control
product. (RM-972):
After following this step by step guide
One Coaxial Cable:
you will be able to:
Insert Batteries into the Remote
Do not remove ferrite cores.
Control.
Two Mains Leads (Type C-4):
Connect the Display Unit to the Media
Receiver Unit.
Do not remove ferrite cores.
Connect the AC Cable, Aerial and VCR
to your TV.
Select the language of the menu
One Mains Plug holder:
screens.
Select the country in which you wish to
operate the set.
Inserting Batteries into
Set the current time.
the Remote Control
Tune your TV.
Change the broadcast channels into a
different order.
View TV Programmes.
GB 4-093-109-01 (1)
©2002 by Sony Corporation Printed in Spain
Ecological Paper - Totally Chlorine Free
1
Two size AAA batteries One Display Interface Cable:
(R03 Type):
One Cleaning Cloth: One AV Mouse:
Two Mains Leads (Type BF): Two Mains Leads (Type C-5):
Do not remove ferrite cores. Do not remove ferrite cores.
• Use these mains leads (with
Use these mains leads (with • Use these mains leads
safety earth) if you use the safety earth) if you use the
(with safety earth) if you
set in the Swiss
set outside the United use the set in the United
Kingdom. Kingdom. Confederation.
• These mains leads may not
• See "NOTICE FOR
be supplied depending on
CUSTOMERS IN THE
the country.
UNITED KINGDOM" on
page 2 of the instruction
manual when using the
mains leads.
• These mains leads may not
be supplied depending on
the country.
2
Make sure you insert the supplied batteries using the correct polarity.
Always remember to dispose of used batteries in an environmentally friendly way.
m
<
Connecting the
3
Display Unit to the
Media Receiver Unit
• Use the supplied display interface cable.
• Use the supplied mains lead for the display unit (Type C-4, Type BF or Type C-5, see
step 1).
1
Connect the supplied
display interface cable and
the supplied mains lead for
the display unit to the
display unit.
Do not connect to the
mains before all
connections are
completed.
SONY EXCLUSIVE CABLE ONLY AC IN
BLACK WHITE
DISPLAY SIGNAL IN
2
Secure the mains plug to the display's AC IN jack.
AC IN (Power
supply input) jack of
Mains plug
the display unit
holder
(supplied)
Mains lead
(supplied)
a Attach the mains plug holder b Clip on the AC IN jack until
(supplied) to the mains lead. you hear clicking.
To unplug the mains lead pull down the mains plug holder by pushing in both
sides of the holder, then pull out the plug.
3
Install the display unit using the specified wall-mount bracket or stand.
Before installing the display unit, check the installation instructions of your wall-
mount bracket or stand.
4
Connect the supplied
5 5
display interface cable to
R/D/D/D L/G/S/I Y P B /C
1/ 3/ (SMARTLINK)
the media receiver unit.
R/D/D/D L/G/S/I W/G/W/G
2/ 4/ (SMARTLINK)
SPEAKER IN
BLACK WHITE CTRL AV 180W (6 ) MAX
S MOUSE
DISPLAY SIGNAL OUT
Connecting the AC
Cable, Aerial and VCR
• Use the supplied mains lead for the media receiver unit (Type C-
4, Type BF or Type C-5, see step 1).
• Use the supplied coaxial cable for aerial connection.
• Other connecting cables are not supplied.
Connecting an aerial
R/D/D/D
1/ 3/ (SMARTLINK)
R/D/D/D
2/ 4/ (SMARTLINK)
BLACK WHITE
DISPLAY SIGNAL OUT
Connect the supplied
coaxial cable.
Connecting a VCR with an aerial
R/D/D/D
1/ 3/
(SMARTLINK)
R/D/D/D
VCR
2/ 4/ (SMARTLINK)
BLACK WHITE
OUT IN DISPLAY SIGNAL OUT
Scart lead is optional.
• The Scart lead is optional, however if you use a Scart lead to connect your VCR it
can improve picture and sound quality when using it.
• For more details of VCR connection, please refer to the section "Connecting
Optional Equipment" on page 61 of the instruction manual.
If you do not have a Scart lead, after automatically tuning the TV, tune in the VCR
test signal to the TV programme number "0" by using the "Manual Programme
Preset" option. (for details of how to manually programme these presets, see page 39,
step A of the instruction manual).
Refer to your VCR instruction manual to find out how to find the output channel of
your VCR.
B P R /C R
AC IN
CENTRE
4
5 5
L/G/S/I Y P B /C B P R /C R
AC IN
L/G/S/I W/G/W/G
CENTRE
SPEAKER IN
CTRL AV
S MOUSE 180W (6 ) MAX
Connect the supplied mains
lead (Type C-4, Type BF or
Type C-5, with safety earth).
5 5
L/G/S/I Y P /C P /C
B B R R
AC IN
L/G/S/I W/G/W/G
CENTRE
CTRL AV SPEAKER IN
180W (6 ) MAX
S MOUSE
Connect the supplied
mains lead (Type C-4,
Type BF or Type C-5, with
safety earth).
