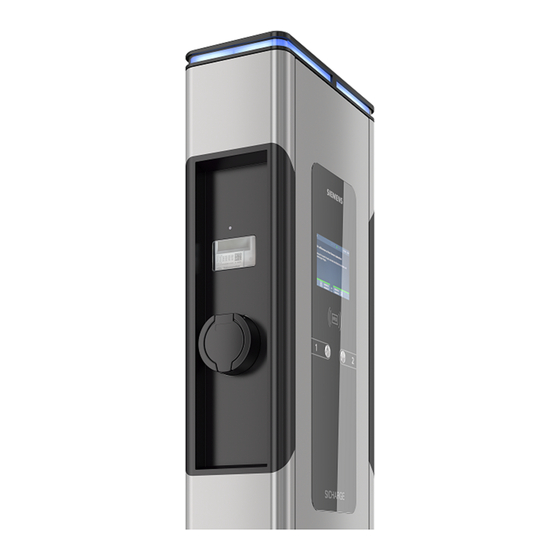

Installing and updating the SICHARGE CC AC22 firmware
SICHARGE
Installing and updating the
SICHARGE CC AC22 firmware
Installation Manual
A5E51219648-AA
Introduction
Safety instructions
Installing and updating the
local firmware
Updating via remote
connection
Troubleshooting
List of abbreviations
1
2
3
4
5
A
Advertisement
Table of Contents
Related Manuals for Siemens SICHARGE CC AC22
Summary of Contents for Siemens SICHARGE CC AC22
- Page 1 Installing and updating the SICHARGE CC AC22 firmware Introduction Safety instructions Installing and updating the local firmware SICHARGE Updating via remote connection Installing and updating the Troubleshooting SICHARGE CC AC22 firmware List of abbreviations Installation Manual A5E51219648-AA...
- Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
-
Page 3: Table Of Contents
Creation of the firmware image ................... 7 Firmware update ......................... 7 Reinstalling the firmware ..................... 8 Updating via remote connection ......................10 Troubleshooting ..........................11 List of abbreviations ..........................12 Abbreviations ........................12 Installing and updating the SICHARGE CC AC22 firmware Installation Manual, , A5E51219648-AA... -
Page 4: Introduction
Siemens accepts no liability for the use of the open-source software over and above the intended program sequence, or for any faults caused by modifications to the software. -
Page 5: Safety Instructions
In order to protect plants, systems, machines, and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial security concept. Siemens’ products and solutions constitute one element of such a concept. Operators of the charging station are responsible for preventing unauthorized access to their plants, systems, machines, and networks. -
Page 6: Installing And Updating The Local Firmware
• USB keyboard Two USB ports are located on the LCHI board for the PC of the charging station: ① Power button ② USB ports Figure 3-1 Setup Installing and updating the SICHARGE CC AC22 firmware Installation Manual, , A5E51219648-AA... -
Page 7: Creation Of The Firmware Image
This step is generally sufficient to update the charging station. In some cases, however, it may be necessary to carry out a new installation, which is described in the next section. Installing and updating the SICHARGE CC AC22 firmware Installation Manual, , A5E51219648-AA... -
Page 8: Reinstalling The Firmware
5. With Skip Image installation "N" must be selected (press Enter or enter and confirm with "N"). 6. Wait until the installation has ended after several minutes and the system automatically restarts. Installing and updating the SICHARGE CC AC22 firmware Installation Manual, , A5E51219648-AA... - Page 9 Installation is now complete. Example of the installation if an operating system was previously installed on the SSD. The user inputs are shown in red in this example. Installing and updating the SICHARGE CC AC22 firmware Installation Manual, , A5E51219648-AA...
-
Page 10: Updating Via Remote Connection
The update file, which you can download here (https://support.industry.siemens.com/cs/ww/en/ps/28775/dl), is generally used for the update via OCPP (file name wkosupdate_vxxocppyy_zz.aaa.zip) Installing and updating the SICHARGE CC AC22 firmware Installation Manual, , A5E51219648-AA... -
Page 11: Troubleshooting
Repeat the installation. • Repeat the installation and during the installation procedure search for error messages about problems with package dependency. Please ask the manufac- turer for support. Installing and updating the SICHARGE CC AC22 firmware Installation Manual, , A5E51219648-AA... -
Page 12: List Of Abbreviations
List of abbreviations Abbreviations LCHI board Charge controller of the Sicharge CC AC22 WKOS Designation of the operating system of the charging station Installing and updating the SICHARGE CC AC22 firmware Installation Manual, , A5E51219648-AA...
