Page 1
Thank you for purchasing the HW-01H. This HW-01H brings you a high speed wireless network connection. This document will help you understand your HW-01H so you can start using it right away. Please read this document carefully before using your HW-01H.
Page 2
Getting to Know Your HW-01H Note: The HW-01H function descriptions and illustrations in this document are for your reference only. The product you have purchased may vary. Application Scenarios Wi-Fi devices (such as smartphones, tablet computers, and game consoles) or computers can all access the Internet through HW-01H.
Page 3
Scenario 1: Connecting multiple Scenario 2: Connecting multiple devices through Wi-Fi devices through Wi-Fi and USB simultaneously...
Page 4

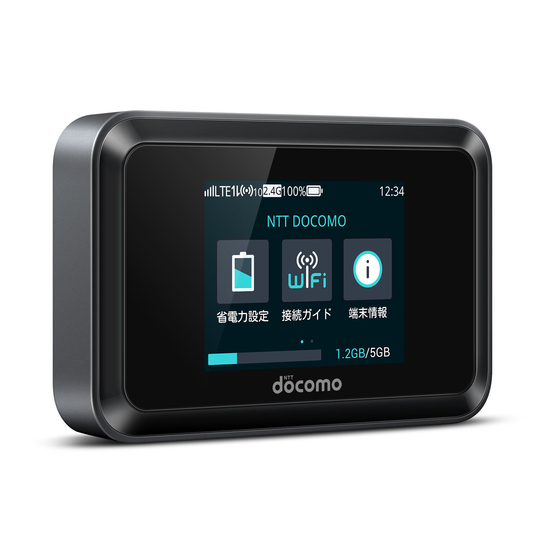

Appearance Power button Lanyard hole Screen Micro USB port...
Page 5
Screen Status bar Character zone When connect to 3G/LTE network, show the operator name When connect to public Wi-Fi hotspot, show the SSID name of the hotspot When SIM card is not normal, show "PIN1 code required"/"PIN unlock code ...
Page 6
Data usage information If user set the data information, show used data and total data.If user turn off the display of data on Home screen, hide this zone. Power save settings user can tap on to view information of “Power save settings”. ...
Page 7
Menu user can tap on to view more functions. Signal icon R: when in roaming status; Show network mode, including "3G/LTE". : when connecting to public Wi-Fi hotspot. Icon of traffic. Show the icon when connect to network. When there is upload and download data the icon changes color.
Page 8
Wi-Fi Mode Show it when connected to USB cable and HW-01H supports Charging with standard functions process. If connected to USB cable only for charging, hide this icon. Battery : Battery level from low to high.
Page 9
Flying mode If the device’s temperature is in [54,58) degree, show the icon.
Page 10
SSID and Wireless Network Encryption Key When a Wi-Fi device establishes a connection to the HW-01H for the first time, you may need to enter the default Service Set Identifier (SSID) and wireless network encryption key. These are printed on the HW-01H.
Page 11
Only use chargers compatible with the HW-01H and provided by a designated manufacturer. Use of an incompatible charger or one from an unknown manufacturer may cause the HW-01H to malfunction, fail, or could even cause a fire. Such use voids all warranties, whether expressed or implied, on the product.
Connecting to the Internet via Wi-Fi The HW-01H's management parameters have been preset according to your operator's requirements. You can quickly connect to the Internet by following these steps: Step 1: Turn on the HW-01H Press and hold the button until the screen lights up, indicating that the HW-01H is turned on.
Page 14
Click View available wireless networks to view a list of available wireless networks. Select the wireless network connection with the HW-01H's SSID and click Connect. Note: If the wireless network connection is encrypted, enter the correct wireless ...
Step 3: Connect to the Internet If data is transmitted, the HW-01H will automatically connect to the Internet. If data is not transmitted for a period of time, the HW-01H will automatically disconnect from the network connection. Logging In to the Web Management Page Make sure the connection between the HW-01H and the Wi-Fi device or computer is working normally.
Pressing any button causes the display screen to light up. When the HW-01H is being powered only by the battery, you can choose to enable or disable the automatic Wi-Fi turnoff function. If this function is enabled and if no Wi-Fi devices access the HW-01H for a period of time, the Wi-Fi turns off automatically.
Page 17
If you forget some configuration parameters, you can restore the HW-01H to its factory settings and then configure the HW-01H again. Press and hold the RESET button until the display screen turns off. The HW-01H is then restored to its factory settings.
Page 18
Select Scan to search for wireless networks. A list of access points will be displayed on the screen. Select the access point with the HW-01H's SSID, and press the ► button on the PSP. Confirm the SSID, and enter the correct wireless network encryption key.
Page 19
next step, and then press the X button to save settings. Select Test Connection to test whether the network connection is successful. You can now open the browser and access the network.
Page 20
The tablet computer automatically searches for wireless connections and displays a list of access points. Select the access point with the HW-01H's SSID. If required, enter the correct wireless network encryption key, and tap Join. (The lock icon indicates that the encryption key is required to connect to this wireless network.)
Page 21
Tips When the HW-01H is in use for an extended period of time, it will become warm and may overheat. Should this happen, the HW-01H will automatically close the network connection and turn off to protect itself from damage. If this occurs, place the HW-01H in a well ventilated space to allow the heat to dissipate, then turn it on and continue to use it as normal.
