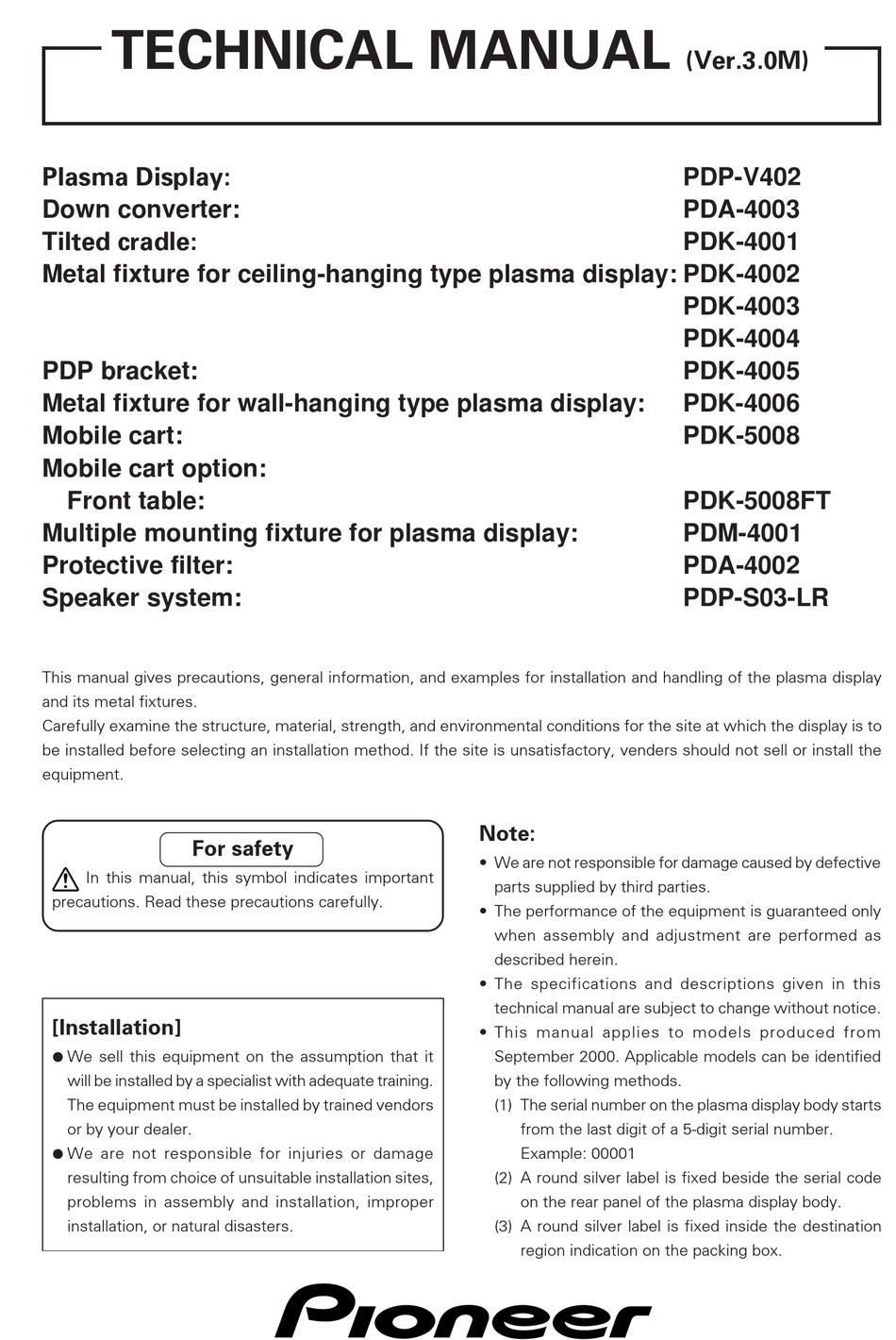

TECHNICAL MANUAL
Plasma Display:
Down converter:
Tilted cradle:
Metal fixture for ceiling-hanging type plasma display: PDK-4002
PDP bracket:
Metal fixture for wall-hanging type plasma display:
Mobile cart:
Mobile cart option:
Front table:
Multiple mounting fixture for plasma display:
Protective filter:
Speaker system:
This manual gives precautions, general information, and examples for installation and handling of the plasma display
and its metal fixtures.
Carefully examine the structure, material, strength, and environmental conditions for the site at which the display is to
be installed before selecting an installation method. If the site is unsatisfactory, venders should not sell or install the
equipment.
For safety
In this manual, this symbol indicates important
precautions. Read these precautions carefully.
[Installation]
¶ We sell this equipment on the assumption that it
will be installed by a specialist with adequate training.
The equipment must be installed by trained vendors
or by your dealer.
¶ We are not responsible for injuries or damage
resulting from choice of unsuitable installation sites,
problems in assembly and installation, improper
installation, or natural disasters.
Note:
• We are not responsible for damage caused by defective
parts supplied by third parties.
• The performance of the equipment is guaranteed only
when assembly and adjustment are performed as
described herein.
• The specifications and descriptions given in this
technical manual are subject to change without notice.
• This manual applies to models produced from
September 2000. Applicable models can be identified
by the following methods.
(1) The serial number on the plasma display body starts
from the last digit of a 5-digit serial number.
Example: 00001
(2) A round silver label is fixed beside the serial code
on the rear panel of the plasma display body.
(3) A round silver label is fixed inside the destination
region indication on the packing box.
(Ver.3.0M)
PDP-V402
PDA-4003
PDK-4001
PDK-4003
PDK-4004
PDK-4005
PDK-4006
PDK-5008
PDK-5008FT
PDM-4001
PDA-4002
PDP-S03-LR
