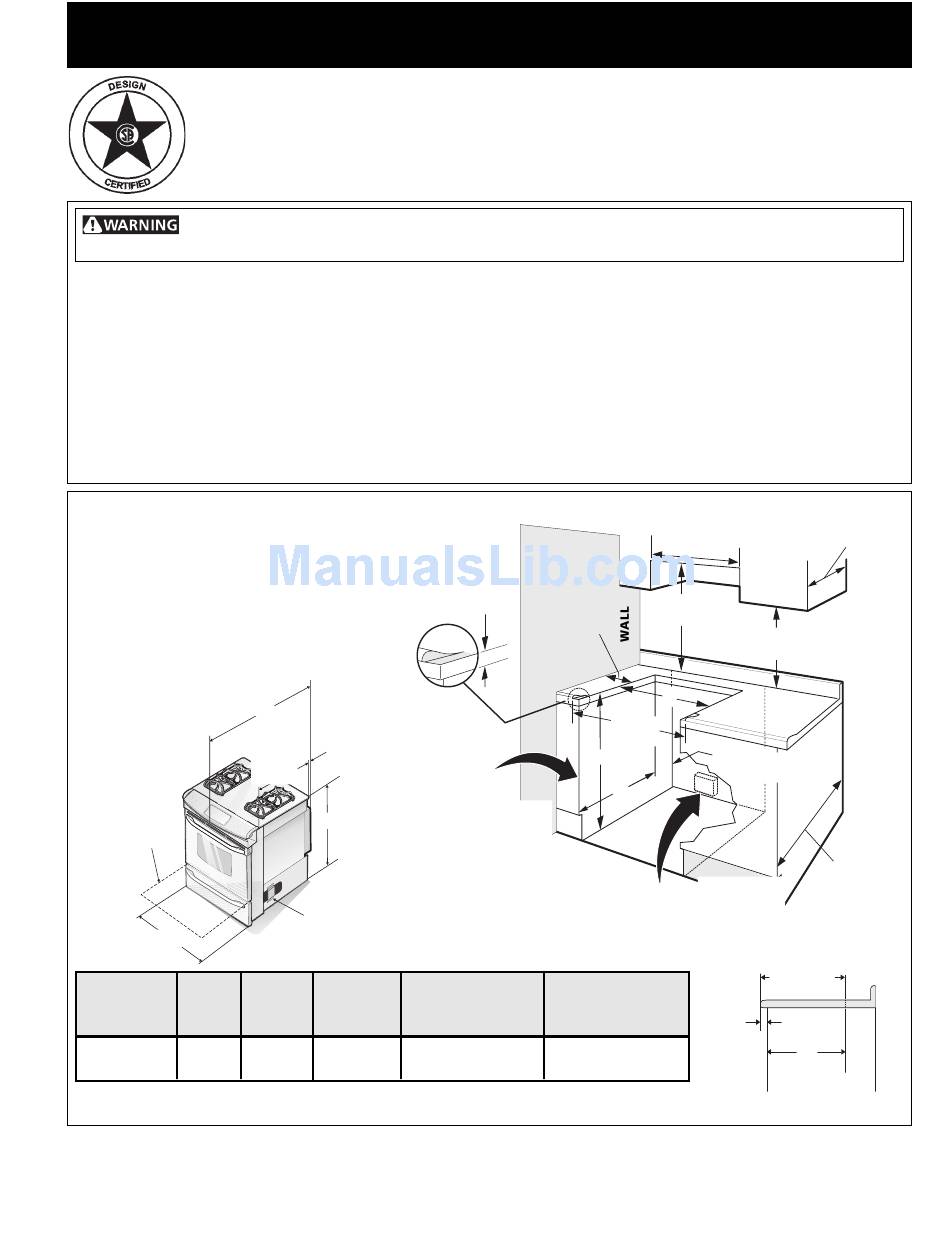

30" DUAL FUEL SLIDE-IN RANGE INSTALLATION INSTRUCTIONS
INSTALLATION AND SERVICE MUST BE PERFORMED BY
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or death.
FOR YOUR SAFETY:
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Do not pinch the power supply cord or the flexible gas conduit
between the range and the wall.
Do not seal the range to the side cabinets.
**NOTE: 30" (76.2 cm) minimum clearance between the
cooktop and the bottom of the cabinet when the bottom of
wood or metal cabinet is protected by not less than ¼" (0.64
cm) flame retardant millboard covered with not less than No. 28
MSG sheet metal, 0.015" (0.4 mm) stainless steel, 0.024" (0.6
mm) aluminum, or 0.020" (0.5 mm) copper.
36" (91.4 cm) minimum clearance when the cabinet is
unprotected..
• NOTE: Allow at
least 19 ¼" (48.9 cm)
clearance for door
• Door Open
(see note)
B
B.WIDTH
A. HEIGHT
35 3/8" (90 cm)
30"
36 3/8" (92 cm)
(76,2 cm)
G. Minimum Cutout Depth is increased to 24" (61 cm) with backguard.
NOTE: Wiring diagram for these appliances are enclosed in this booklet.
(Models with an Electric Oven and a Gas Cooktop)
A QUALIFIED INSTALLER.
Shave Raised Edge
to Clear
31 1/2" (81 cm)
Wide Cooktop Rim.
C
Locate Cabinet
Doors 1" (2.5
1 5/16"
cm) Min.
(3.33 cm)
21 3/4"
from Cutout
(55.5 cm)
Opening.
* Note: For 29" (73.7
A
cm) cutout wide
opening, you must call
for optional side
panels and clear wide
cooktop rim as shown
in the "Countertop
.
Preparation" section
Regulator
(see page 6).
F. MINIMUM
C. DEPTH
CUTOUT
TO FRONT
OF RANGE
WIDTH
21 3/4" (55,2 cm) Min.
30"
28 5/16"
(76,2 cm)
(71,9 cm)
22 1/8" (56,2 cm) Max.
10" Min.
(25.4 cm
1 ½" Max.
Min.)
(3.8 cm Max.)
From Wall
Both Sides
H
Grounded Jonction Box or Wall
Outlet Should Be Located 8" to
17" (20.3 cm to 43.2 cm) From
Right Cabinet and 2" to 4" (5.1
cm to 10.2 cm) From Floor.
H. HEIGHT
G. CUTOUT
OF
DEPTH
COUNTERTOP
36" (91,4 cm) standard
35 3/8" (90 cm) min.
1
30" Min.
(76.2 cm Min.)
30" Min.**
(76.2 cm Min.**)
18" Min.
(45.7 cm) Min.
F
31 1/2"
(81 cm)
Exact
Approx. 1 7/8"
(4.8 cm)
G
22 7/8"*
(58.1 cm) min.
23 1/4"*
(59.05 cm) max.
1 1/8"
(2.86 cm)
FRONT
OF
CABINET
* For cutouts below 22 7/8", appliance
will slightly show out of the cabinet.
P/N 318201661 (0305) Rev. A
Español – páginas 12-22
Wiring Diagrams - pages 23-24
13"
(33 cm)
24" Min.
(61 cm Min.)
G
Ref.
English – pages 1-11

Advertisement

Table of Contents
loading

Summary of Contents for Frigidaire GLCS378DSA

  • Page 1 Do not pinch the power supply cord or the flexible gas conduit between the range and the wall. Do not seal the range to the side cabinets. **NOTE: 30" (76.2 cm) minimum clearance between the cooktop and the bottom of the cabinet when the bottom of wood or metal cabinet is protected by not less than ¼"...
  • Page 2: Important Notes To The Installer

    Gas Code ANSI Z223.1—latest edition, in United States or with CAN/CGA-B149.1 and CAN/CGA-B149.2 standards in Canada. This range has been design certified by the American Gas Association. As with any appliance using gas and generating heat, there are certain safety precautions you should follow.
  • Page 3: Power Supply Cord Kit (U.s.a.)

    See below for 3 or 4 conductor wire connection. Range Connection Opening Size Chart Refer to chart below for range connection opening size and power supply cord kit ampere rating information. See serial plate on range for kilowatt rating data.
  • Page 4: Electrical Connection To The Range (U.s.a.)

    30" DUAL FUEL SLIDE-IN RANGE INSTALLATION INSTRUCTIONS (Models with an Electric Oven and a Gas Cooktop) 3. Electrical Connection to the Range (U.S.A.) This appliance is manufactured with the neutral terminal connected to the frame. Three Conductor Wire Connection to Range...
  • Page 5: Direct Electrical Connection To The Circuit Breaker, Fuse Box Or Junction Box

    30" DUAL FUEL SLIDE-IN RANGE INSTALLATION INSTRUCTIONS (Models with an Electric Oven and a Gas Cooktop) Four Conductor Wire Connection to Range (mobile homes) 1. Remove the 3 screws at the lower end of the rear wire cover, then raise the lower end of the rear wire cover (access cover) upward to expose range terminal connection block (see Figure 3).
  • Page 6: Cabinet Construction

    5" (12.7 cm) beyond the bottom of the cabinet. Countertop Preparation • The cooktop sides of the range fit over the cutout edge of your countertop. • If you have a square finish (flat) countertop, no countertop preparation is required.
  • Page 7: Gas Supply Installation

    Checking for leaks with a flame may result in a fire or explosion. All openings in the wall or floor where the range is to be installed must be sealed. Tighten all connections if necessary to prevent gas leakage in the cooktop or supply line.
  • Page 8: Moving The Appliance For Servicing And Cleaning

    Make sure the range is cold. Remove the service drawer (warmer drawer on some models) and open the oven door. Lift the range at the front and slide it out of the cut-out opening without creating undue strain on the flexible gas conduit.
  • Page 9: Range Installation

    1. Installation Without Side Panel(s) A. The range cooktop overlaps the countertop at the sides and the range rests on the floor. The cooktop is 31 1/2" (81 cm) wide. B. Install base cabinets 30" (76.2 cm) apart. Make sure they are plumb and level before attaching cooktop.
  • Page 10: When All Hookups Are Complete

    Your serial plate also tells you the rating of the burners, the type of fuel and the pressure the range was adjusted for when it left the factory. Before You Call for Service Read the Avoid Service Checklist and operating instructions in your Owner's Guide.
  • Page 11: Important Safety Warning

    3/16"(0,48 cm) Diameter Masonry Drill Bit (if installing in concrete) Anti-Tip Brackets Installation Instructions Brackets attach to the floor at the back of the range to hold both rear leg levelers. When fastening to the floor, be sure that screws do not penetrate electrical wiring or plumbing.
  • Page 12 INSTRUCCIONES DE INSTALACION PARA LA ESTUFA DE FUEL DUAL DE 30" (Para Modelos con un Horno Eléctrico y una Estufa a Gas) LA INSTALACION Y EL SERVICIO DEBEN SER EFECTUADOS POR IMPORTANTE: GUARDE ESTAS INSTRUCCIONES PARA USO DEL LEA Y GUARDE ESTAS INSTRUCCIONES PARA REFERENCIA FUTURA. Si la información contenida en este manual no es seguida exactamente, puede ocurrir un incendio o explosión causando daños materiales, lesión personal o la muerte.
  • Page 13: Notas Importantes Para El Instalador

    INSTRUCCIONES DE INSTALACION PARA LA ESTUFA DE FUEL DUAL DE 30" (Para Modelos con un Horno Eléctrico y una Estufa a Gas) Notas importantes para el Instalador 1. Lea todas las instrucciones contenidas en este manual antes de instalar la estufa. 2.
  • Page 14 INSTRUCCIONES DE INSTALACION PARA LA ESTUFA DE FUEL DUAL DE 30" (Para Modelos con un Horno Eléctrico y una Estufa a Gas) • En caso de una interruptión del servicio eléctrico, es pasible de encender los quemadores de superficie a mano.
  • Page 15 INSTRUCCIONES DE INSTALACION PARA LA ESTUFA DE FUEL DUAL DE 30" (Para Modelos con un Horno Eléctrico y una Estufa a Gas) 2. Cordón de fuente de energía conectado de fabrica (Canadá solamente) Esta estufa viene de fabrica equipada con un cordón de fuente de energía (vea a la figura 2).
  • Page 16 INSTRUCCIONES DE INSTALACION PARA LA ESTUFA DE FUEL DUAL DE 30" (Para Modelos con un Horno Eléctrico y una Estufa a Gas) el tornillo de puesta a tierra, usando el agujero en el marco donde se quitó el tornillo de puesta a tierra (vea figura 5).
  • Page 17: Construcción Del Armario

    INSTRUCCIONES DE INSTALACION PARA LA ESTUFA DE FUEL DUAL DE 30" (Para Modelos con un Horno Eléctrico y una Estufa a Gas) Donde los códigos locales NO permitan conectar el conductor de puesta a tierra del eléctrodoméstico al neutral (blanco), o si está conectado con un sistema a 4 alambres (vea figura 7): 1.
  • Page 18: Instalación De La Alimentación De Gas

    INSTRUCCIONES DE INSTALACION PARA LA ESTUFA DE FUEL DUAL DE 30" (Para Modelos con un Horno Eléctrico y una Estufa a Gas) 5. Instalación de la alimentación de Esta unidad ha sido ajustada para operar con un múltiple de admisión para gas natural de 4"(10,16 cm) (1.0 kPa). Un regulador de presión convertible esta conectado a la válvula distribuidora y DEBE ser conectado en serie con la tubería de suministro de gas.
  • Page 19: La Mudanza Del Aparato Para Reparaciones O Limpieza

    INSTRUCCIONES DE INSTALACION PARA LA ESTUFA DE FUEL DUAL DE 30" (Para Modelos con un Horno Eléctrico y una Estufa a Gas) Conversión para uso de Propano Líquido (continuación) La conversión debe ser efectuado por un técnico de servicio capacitado, de acuerdo con las instrucciones del fabricante y con todos los códigos y requisitos de las autoridades correspondentes.
  • Page 20: Instalación De La Estufa

    INSTRUCCIONES DE INSTALACION PARA LA ESTUFA DE FUEL DUAL DE 30" (Para Modelos con un Horno Eléctrico y una Estufa a Gas) 8. Instalación de la estufa Mientras se desembala la estufa, no deseche los cuatro (4) pernos de embalaje. Reemplácelos como patas niveladoras y para ajustar la altura de la unidad.
  • Page 21: Después De Terminar La Instalación

    INSTRUCCIONES DE INSTALACION PARA LA ESTUFA DE FUEL DUAL DE 30" (Para Modelos con un Horno Eléctrico y una Estufa a Gas) conectores a la tubería de suministro de gas hayan sido comprobados por escapes y la estufa haya sido conectada eléctricamente.
  • Page 22 INSTRUCCIONES DE INSTALACION PARA LA ESTUFA DE FUEL DUAL DE 30" (Para Modelos con un Horno Eléctrico y una Estufa a Gas) 11. Importante Advertencia de Seguridad Para reducir el riesgo de que la estufa se vuelque, es necesario asegurarla al piso instalando los soportes antivuelco y los tornillos suministrados con la estufa.
  • Page 23 WIRING DIAGRAM - DIAGRAMA DE LA INSTALACIÓN ALÁMBRICA Wiring diagram for models equipped with that timer Diagrama de la instalación alámbrica para modelos equipado con este programador...
  • Page 24 WIRING DIAGRAM - DIAGRAMA DE LA INSTALACIÓN ALÁMBRICA Wiring diagram for models equipped with that timer Diagrama de la instalación alámbrica para modelos equipado con este programador...
