Maintenance

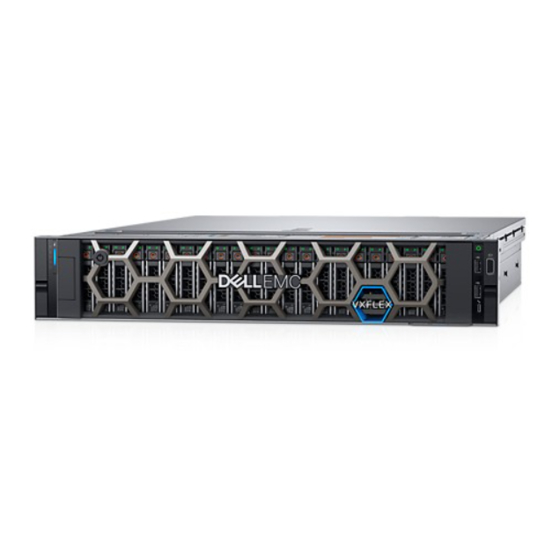

Dell EMC VxFlex Ready Node 14G
Server Inspection Guide
P/N 302-004-342
REV 03
June 2018
Preface................................................................................................................... 2
Introduction............................................................................................................ 3
Prerequisites.......................................................................................................... 5
checklist............................................................................... 4
disks................. 6
Advertisement
Related Manuals for Dell EMC VxFlex Ready Node 14G
Summary of Contents for Dell EMC VxFlex Ready Node 14G
-
Page 1: Table Of Contents
Maintenance Dell EMC VxFlex Ready Node 14G Server Inspection Guide P/N 302-004-342 REV 03 June 2018 Preface........................2 Introduction......................3 Hardware installation checklist................4 Prerequisites......................5 Verify the status of the system hardware, storage controller, and disks....6... -
Page 2: Preface
Maintenance Preface As part of an effort to improve its product lines, Dell EMC periodically releases revisions of its software and hardware. Therefore, some functions described in this document might not be supported by all versions of the software or hardware currently in use. -
Page 3: Introduction
EMC products, go to Dell EMC Online Support at https://support.emc.com. Technical support Go to Dell EMC Online Support and click Service Center. You will see several options for contacting Dell EMC Technical Support. Note that to open a service request, you must have a valid support agreement. Contact your Dell EMC sales representative for details about obtaining a valid support agreement or with questions about your account. -
Page 4: Hardware Installation Checklist
Maintenance Check the sensors. Enable the disk utility. Verify the drive status. Prepare the hardware for failure analysis, if necessary. Hardware installation checklist This section includes a hardware checklist to be used by the CE. It is the CE's responsibility to complete this checklist. Customer Name: CE Name: Customer Location:... -
Page 5: Prerequisites
Server Inspection Guide Drives seated (do *NOT* pull drives yet) Bezels installed if available Rack stable and castor wheels locked Network cables labelled and clicked-in Hardware checks: (post power-up) Item Observation Notes Server responds to power- button All PSUs power-on Rear fan-spin (feel air-flow) PSU has no amber LED on Server has no amber LED on... -
Page 6: Verify The Status Of The System Hardware, Storage Controller, And Disks
Procedure <BMC/iDRAC_IP_address> . 1. From a browser, go to http:// 2. In the DELL Console Login window, type the user name and password, and then click Login. The Dashboard displays the high-level status of all hardware devices in the System Health pane. - Page 7 Server Inspection Guide The rebuild of Disk 0 in Backplane 1 of Integrated RAID Controller 1 failed due to errors on the source physical disk. A block on Disk 0 in Backplane 1 of Integrated RAID Controller 1 was punctured by the controller. If either of these alerts appears in the system event log, one of the disks on the SDS may have failed and requires replacement.
