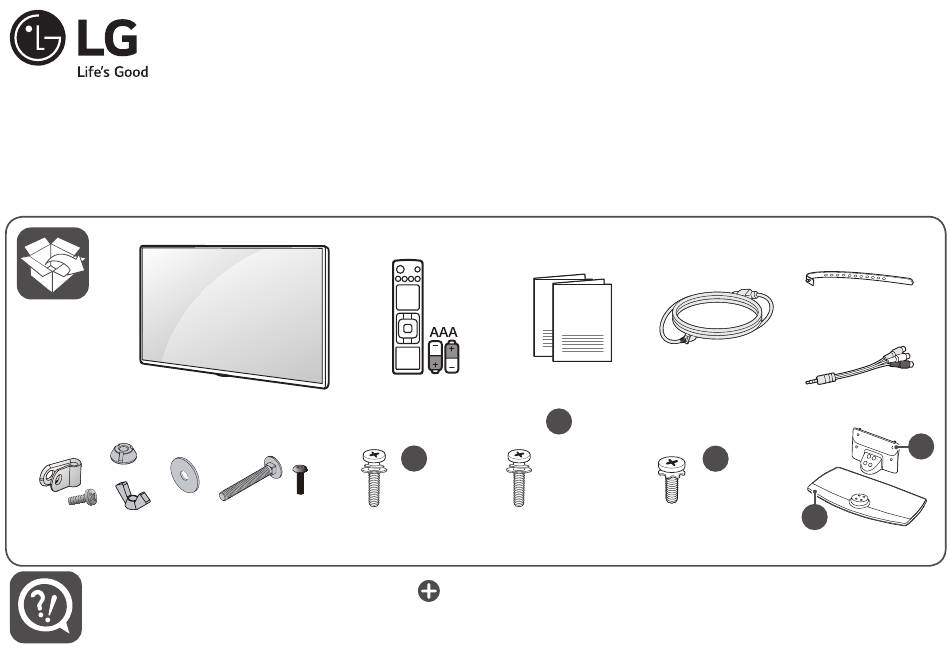

Please read this manual carefully before operating your set and retain it for future reference. 55UT570H9UA 55UT570H0UA ESPAÑOL Guía Rápida de Configuración 43UT560H9UA 43UT670H0UA Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas. 50UT560H9UA 49UT670H0UA FRANÇAIS...
Page 2
ENGLISH Read Safety and Reference. WARNING : To prevent injury, this apparatus must be securely attached to the desk/wall in accordance with the Safety and Reference. ESPAÑOL Leer Seguridad y Consultas. ADVERTENCIA : Para prevenir daños, este aparato debe ser instalado a la mesa/pared de acuerdo a la guía de Seguridad y Consultas. FRANÇAIS Lisez Sécurité...
Page 4
SPEAKER OUT LINE OUT AUDIO LINE OUT RS-232C IN (CONTROL&SERVICE) GAME CONTROL / M.P.I. M.P.I. TV-LINK CFG...
Page 9
OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 43UT570H0UA 43UT670H0UA 49UT770H0UA 43UT570H9UA 49UT570H0UA 49UT670H0UA 55UT770H0UA 50UT570H9UA...
Important Safety Instruction • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. •...
Page 11
Warning! Safety instructions - Near flammable objects such as gasoline or candles, or expose the TV to direct air conditioning. - Do not install in excessively dusty places. Otherwise, this may result in fire, electric shock, CAUTION combustion/ explosion, malfunction or product deformation.
Page 12
• Use only an authorized attachments / accessories - TV with a three-prong grounded AC plug must be approved by LG Electronics. Otherwise, this may connected to a three-prong grounded AC outlet. result in fire, electric shock, malfunction, or product Ensure that you connect the earth ground wire to damage.
Page 13
• Moving • The device must be easily accessed to a location - When moving, make sure the product is turned outlet near the access. Some devices are not made off, unplugged, and all cables have been removed. by turning on / off button, turning off the device It may take 2 or more people to carry larger TVs.
55UT570H0UA 49UT770H0UA 49UT670H0UA 50UT570H0UA Model 55UT670H0UA 43UT570H9UA 55UT770H0UA 50UT570H9UA 55UT570H9UA 43UT560H9UA 55UT560H9UA 50UT560H9UA VESA (A x B) 200 x 200 300 x 300 Standard screw Number of screws • Use at least two people to move a large TV. LSW240B...
Mounting on a Table • When transporting the TV by hand, hold the TV as shown in the following illustration. 1 Lift and tilt the TV into its upright position on a table. - Leave a 10 cm (4 inches) (minimum) space from the wall for proper ventilation.
Using the Kensington Security (TYPE A) System (optional) (Depending upon model) The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http:// www.kensington.com.
Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. The LG wall mount is easy to adjust or to connect the cables. When you do not use LG’s wall (Depending upon model)
Page 18
Connections • Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse. You can connect various external devices to the TV. • For more information of screws and wall For more information on external device’s connection, mount bracket, refer to the Separate refer to the manual provided with each device.
Other connections External Devices Supported external devices are: Blu-ray player, HD Connect your TV to external devices. For the best receivers, DVD players, VCRs, audio systems, USB picture and audio quality, connect the external device storage devices, PC, gaming devices, and other and the TV with the HDMI cable.
External Speakers Method of volume control port (Depending upon model) • Cable Spec. Each Up / Down pin is pulled to 3.3 V with CPU GPIO. EXTERNAL SPEAKER OUT SPEAKER OUT LINE OUT CPU detects transition GND / UP / DOWN AUDIO from 3.3 V to GND LINE OUT...
Using the Button Network setup (Depending upon model) You can simply operate the TV functions, using the button. Wired network connection This TV can be connected to a Pro:Centric server via the port. After making the physical connection, the TV needs to be set up for network communication.
Adjusting the Angle of the (TYPE A) TV to suit view (Depending on model) Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view. 20˚ 20˚ • When adjusting the angle of the product, watch out for your fingers.
Page 23
(TYPE B) (Power) Turns the TV on or off. Not functional. Selects the remote’s operating mode: TV. Selects the remote’s operating mode: DVD. Changes the input source. Not functional. Number button Enters numbers. (Dash) Inserts a dash between numbers such as 2-1 and 2-2.
Displays and removes Pro:Centric Application. performance. The customer is responsible to ensure Shows the information of the current the compatibility of their equipment with any LG program. Electronics software. If needed, please consult with Displays and removes the electronic program LG Electronics and update new software versions guide of Pro:Centric Application.
Page 25
• Generated Sound • The TV turns off suddenly. - Cracking noise A cracking noise that occurs - Check the power control settings. The power when watching or turning off the TV is supply may be interrupted. generated by plastic thermal contraction due to - Check if the auto-off function is activated on the temperature and humidity.
Page 26
Settings To set additional picture options ) [Picture] [Picture Mode Settings] [Picture Options] To select Picture Mode Adjusts detailed setting for images. • [Noise Reduction] Eliminates noise in the picture. ) [Picture] [Picture • [MPEG Noise Reduction] Eliminates noise generated Mode Settings] [Picture Mode] while creating digital picture signals.
Specifications Product specifications may be changed without prior notice due to upgrade of product functions. Estimated yearly energy consumption indicated on the FTC label is measured in accordance with the Test Procedures for Television Sets (USA only). The actual energy consumption depends on the usage environment (The content watched, TV settings, etc.). Broadcasting Specifications Television system ATSC, NTSC-M, 64 &...
Page 28
HDMI (DTV) supported mode HDMI (PC) supported mode • Use HDMI IN 1 for PC mode. Horizontal Vertical (Depending upon model) Resolution Frequency (kHz) Frequency (Hz) Horizontal Vertical 31.46 59.94 Resolution 640 x 480p Frequency (kHz) Frequency (Hz) 31.50 60.00 640 x 350 31.46 70.09 31.47...
• ULTRA HD Video : 3840 x 2160, 4096 x 2160 File • Some HEVC encoded ULTRA HD videos other than Codec Format the content officially provided by LG Electronics may not be played. VC-1 Advanced Profile • Some codecs can be supported after a software Video (except for WMVA), VC-1 .asf...
Page 31
KEY CODES (TYPE A) * This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) R/C Button (Green) R/C Button R/C Button (Red) R/C Button R/C Button (Yellow) R/C Button R/C Button (Blue) R/C Button R/C Button R/C Button R/C Button...
Page 32
KEY CODES (TYPE B) * This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) R/C Button (Green) R/C Button R/C Button (Red) R/C Button R/C Button (Yellow) R/C Button R/C Button (Blue) R/C Button R/C Button R/C Button R/C Button...
(TV) (TV) (PC) (PC) • LG TV supports PL2303 chip-based (Vendor ID : 0 x 0557, Product ID : 0 x 2008) USB to serial converter which is RS-232C IN (CONTROL & SERVICE) not made nor provided by LG. (TV) (PC) •...
Page 34
(PC) (TV) (PC) RS-232C with RS-232C Cable (TV) (PC) (TV) (PC) DE9 (D-Sub 9pin) Type RS-232C IN RS-232C IN (CONTROL & SERV (PC) (CONTROL & SERVICE) (PC) RS-232C IN (TV) (CONTROL & SERVICE) (PC) (TV) RS-232C IN (CONTROL & SERVICE) (PC) (TV) (TV)
Page 35
RS-232C configurations 7-Wire Configurations 3-Wire Configurations (Standard RS-232C cable) (Not standard) D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9 RS-232C configurations (75UT770H0UA Only) 7-Wire or 3-Wire Configuration IR-OUT D-Sub 9 Phone-Jack Set ID For Set ID number, see “Real data mapping (Hexadecimal : Decimal)”. 1 Press to access the main menus.
TRANSMISSION / RECEIVING PROTOCOL * (Depending upon Model) Transmission (Command1)(Command2)( )([Set ID])( )(Data)(Cr) (Command 1) : First command to control the TV. (j, k, m or x) (Command 2) : Second command to control the TV. ([Set ID]) : You can adjust the set ID to choose desired monitor ID number in option menu. Adjustment range is 1 to 99.
Page 38
1 Power (Command: k a) 3 Screen Mute (Command: k d) ► To control power on or off of the set. ► To select screen mute on/off. Transmission Transmission (k)(a)( )([Set ID])( )(Data)(Cr) (k)(d)( )([Set ID])( )(Data)(Cr) Data 00 : [Off] Data 00 : Screen mute off (Picture on) / Video mute off Data 01 : [On] Data 01 : Screen mute on (Picture off)
Page 39
7 [Brightness] (Command: k h) 11 OSD Select (Command: k l) ► To adjust screen brightness. You can also adjust ► To select OSD (On Screen Display) on/off when brightness in the picture settings. controlling remotely. Transmission Transmission (k)(h)( )([Set ID])( )(Data)(Cr) (k)(l)( )([Set ID])( )(Data)(Cr) Data Min : 00 to Max : 64 Data 00 : [Off]...
Page 40
13 [Balance] (Command: k t) 16 Tune Command (Command: m a) * This command may work differently Depending ► To adjust balance. You can also adjust balance in upon model and signal. the audio settings. * For Europe, Mid-East, Colombia, Asia except South Transmission Korea and Japan Model (k)(t)( )([Set ID])( )(Data)(Cr)
Page 41
• Tune Command Examples: • Analog Antenna/Cable 1 Tune to the Analog antenna (PAL) Channel 10. Data 00 : Physical Channel Number [Set ID] = All = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 00 & 01 = Channel Data is 10 = 00 0a - Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125) Data 02 = Analog Antenna TV = 00...
Page 42
• Tune Command Examples: • Digital Antenna/Satellite 1 Tune to the Analog cable (NTSC) channel 35. Data 00 : xx (Don’t care) (Data 01)(Data 02) : Major Channel Number [Set ID] = All = 00 Data 01 : High byte Channel Data Data 00 = Channel Data is 35 = 23 Data 02 : Low byte Channel Data Data 01 &...
Page 43
17 [Channel] Skip/Add (Command: m b) 20 Input select (Command: x b) (Main Picture Input) ► To skip current channel for next time. ► To select input source for main picture. Transmission Transmission (m)(b)( )([Set ID])( )(Data)(Cr) (x)(b)( )([Set ID])( )(Data)(Cr) Data 00 : Del(ATSC,ISDB)/Skip(DVB) Data 00 : DTV Data 01 : Add...
Page 44
If not use the remote-controller with data formats recommended, IR output signals will be suppressed automatically by IR receiver. In this case, LG does not guarantee IR working function. To make sure of this matter, here are two methods as below.
IQ, Dolby Audio, Dolby Atmos, and the double-D available for download. symbol are trademarks of Dolby Laboratories LG Electronics will also provide open source code Licensing Corporation. to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
Regulatory FCC Radio Frequency Interference Requirements (for UNII devices) (For USA) FCC Notice High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. (For USA) These radar stations can cause interference with and/ This equipment has been tested and found to or damage this device.
Industry Canada Statement RSS-247 Requirement (For Canada) (For Canada) [For having wireless function (WLAN, Bluetooth,...)] [For product having the wireless function using 5 GHz frequency bands] This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and (1) The device for operation in the band 5150–5250 Economic Development Canada’s licence-exempt MHz is only for indoor use to reduce the potential for RSS(s).
NOTE TO CABLE/TV INSTALLER Symbols (For USA and Canada) Refers to alternating current (AC). This reminder is provided to call the CATV system Refers to direct current (DC). installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines Refers to class II equipment.
CHILD SAFETY: PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER TECHNOLOGY INDUSTRY CARES Manufacturers, retailers and the rest of the consumer technology industry are committed to making products safe and enjoyable. As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations.
