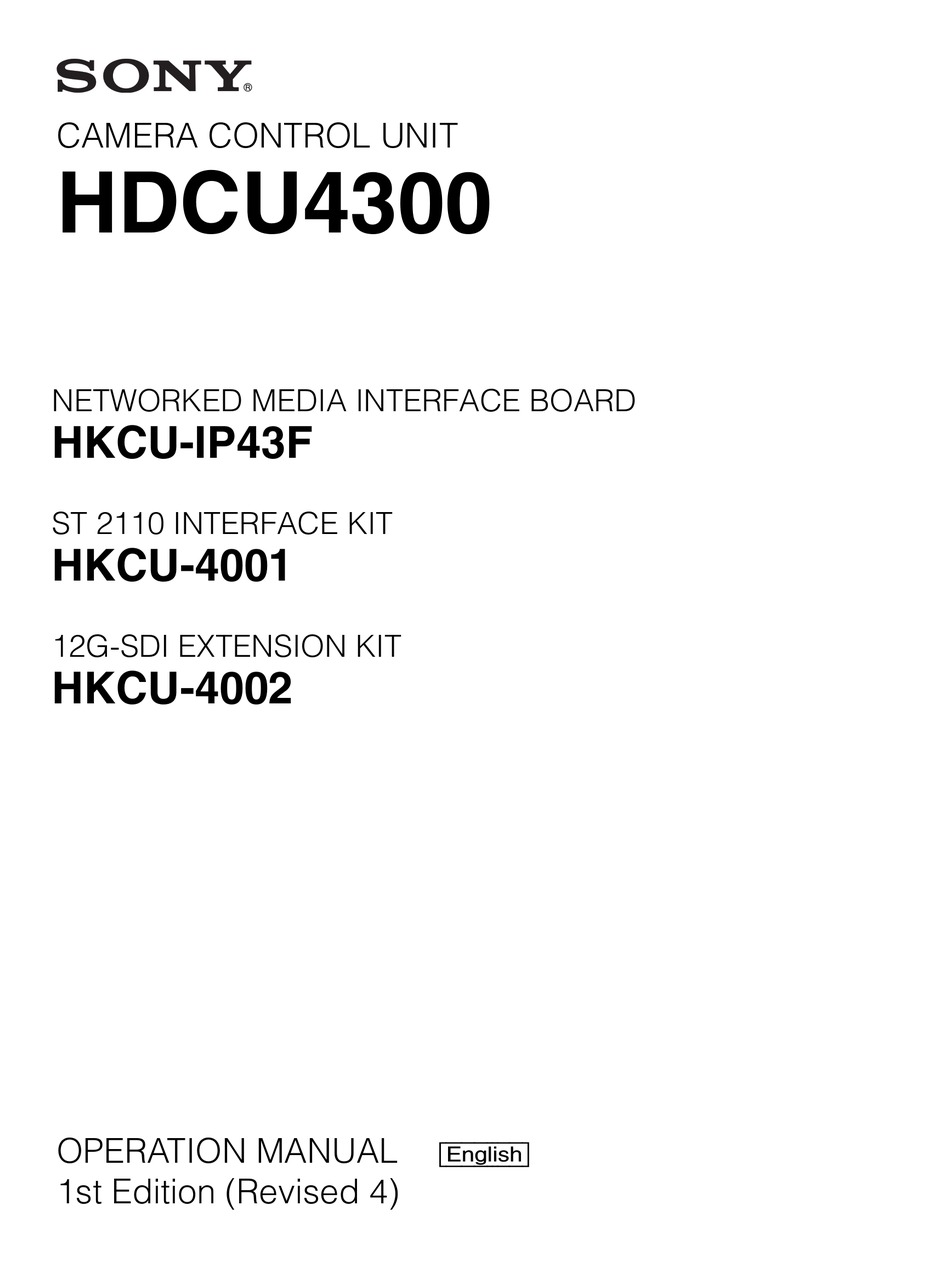

CAMERA CONTROL UNIT
HDCU4300
NETWORKED MEDIA INTERFACE BOARD
HKCU-IP43F
ST 2110 INTERFACE KIT
HKCU-4001
12G-SDI EXTENSION KIT
HKCU-4002
OPERATION MANUAL
1st Edition (Revised 4)
[English]

Advertisement

Table of Contents
loading

Related Manuals for Sony HKCU-IP43F

Summary of Contents for Sony HKCU-IP43F

  • Page 1 CAMERA CONTROL UNIT HDCU4300 NETWORKED MEDIA INTERFACE BOARD HKCU-IP43F ST 2110 INTERFACE KIT HKCU-4001 12G-SDI EXTENSION KIT HKCU-4002 OPERATION MANUAL [English] 1st Edition (Revised 4)

  • Page 2: Table Of Contents

    Overview..............3 System Configuration ............4 Location and Function of Parts........ 7 Front Panel...............7 Rear Panel ...............9 HKCU-IP43F Networked Media Interface Board (Option) ...............10 HKCU-4001 ST 2110 Interface Kit (Option) ....11 HKCU-4002 12G-SDI Extension Kit (Option) ....11 Connections and Settings ........12 4K System Connection...........12...

  • Page 3: Overview

    4K video shooting and HD high frame rate video shooting. Any one of the following option products (sold separately) can be installed in the unit at a time. HKCU-IP43F Networked Media Interface Board Enables output of video signals and audio signals as IP signals.

  • Page 4: System Configuration

    Microphone a) Supplied with HDLA1500 series (Part No.: A-1128-405-A) tripod) b) Install NXLK-IP40F SDI-IP Converter Board (option). c) Only one of the HKCU-IP43F, HKCU-4001, and HKCU-4002 can be used at a time. Tripod d) Install HKCU-4002 12G-SDI Extension Kit (option).
  • Page 5 HDC-P43 connection example Sync signal input Return video input AC-DN10/DN10A AC Adapter 4K Video 2K Video AC power supply Monitor Monitor HDC-P43 Multi Single-mode fiber cable Purpose Camera Lens (ST connectors, 1 pair) Optical fiber (for ENG/EFP) cable CCA-5 HKCU-SM100 HDCU4300 CCU Extension RCP-3000/1000 series...
  • Page 6 IP transmission connection example Audio Mixer Multi Viewer HDCU4300 Video Server HDC4300 Color Camera IP switch × 2 10G/25G PTP Master × 2 IP Live System Manager × 2 HDCU4300 HDC4300 Color Camera IP Intercom IP switch 10G/1G MSU-1000 series Master Setup Unit IP Tally System IP switch...

  • Page 7: Location And Function Of Parts

    NMI STATUS indicator or NETWORK indicator page in the NETWORK menu is set to either BRIDGE or MCS, this indicates that the unit cannot connect • NMI STATUS indicator (when HKCU-IP43F is installed) correctly with external control equipment (MSU-1000/ Displays the NMI-LAN status.
  • Page 8 This locks out operation of the front panel menu operation To use a headset with a plug other than an XLR 5-pin plug, area. consult a Sony service or sales representative. n Call button h MAIN POWER switch and indicator...

  • Page 9: Rear Panel

    MSU-1000 series Master Connection Type and BNC Connector Assignment” (page 17). Setup Unit. For details on the setup menu, contact a Sony service or sales (LAN-COM) connector (RJ-45 8-pin) representative. Used to connect to a LAN. Connect a LAN HUB (10BASE-T/ 100BASE-TX), using a LAN cable (shielded type of category 5 Refer also to the Master Setup Unit manual.

  • Page 10: Hkcu-Ip43F Networked Media Interface Board (Option)

    2 REFERENCE connectors (BNC-type) For details on how to select the signal, contact a Sony service Input an HD tri-level reference sync signal or SD reference or sales representative.

  • Page 11: Hkcu-4001 St 2110 Interface Kit (Option)

    The HDCU4300 supports 4K 2-system 12G-SDI output or 6G-SDI output by installing an HKCU-4002 in the HDCU4300. HDCU4300 software version 1.50 or later is required. For details about installation, contact a Sony service or sales representative. a 12G/6G-SDI output connectors These connectors are 12G-SDI output connectors or 6G-SDI output connectors.

  • Page 12: Connections And Settings

    Connections and Settings 4K System Connection A 4K format camera system is formed by connecting the unit HD signals down-converted from 4K signals can be output and a video camera (HDC4300 or HDC-P43 ) with optical from SLOT2 and SLOT3. fiber cables.

  • Page 13: Hd Cutout Video System

    HD CUTOUT Video System An HD signal can be extracted from the 4K signal by installing The cutout HD signal is output from SLOT1. the optional SZC-2001/2001M/2001W HD CUTOUT Software HD video down-converted from 4K signals can be output from in the HDCU4300.

  • Page 14: Hfr Video System

    HFR Video System The unit can transfer HFR video and perform signal processing for the following formats according to the connected camera. Yes: Supported, No: Not supported HFR format Connected device HDC4300, HDC-P43 (without option) HDC4300, HDC-P43 (when SZC-4002 series installed on the unit) 1080/59.94P (2x) 1080/50P (2x) 720/59.94P (2x)
  • Page 15 Connection example (4x HD) LEVEL LEVEL PROD PROD REAR INCOM REAR INCOM FRONT FRONT Optical fiber cable INTERCOM 1 INTERCOM 2 DC OUT EARPHONE REMOTE TRACKER CRANE PROMPTER HD PROMPTER signal output /GEN LOCK RET CTRL SDI 1 FRONT MIC AES/EBU LINE LINE...

  • Page 16: Hdr Video System

    HDR Video System When a 4K format camera system is selected, the dynamic Live: Characteristics based on the traditional Look derived range of the camera can be enhanced to produce HDR video from current SDR images. A powerful image with strong output from SLOT1 by setting HDR MODE to Live HDR.

  • Page 17: Relationship Between Connection Type And Bnc Connector Assignment

    Relationship between Connection Type and BNC Connector Assignment The names of output interfaces in Table 1 correspond to connector assignments in Table 2 (page 19). Check the output interface for the format you want to use in Table 1, then check the signal assignments to BNC connectors in Table 2.
  • Page 18 Operation Frame rate Slot1 Slot2/Slot3 mode Output format Output interface Output format HD HFR 59.94(8x) 1080/59.94i(8x), Quad-Link-2 1080/59.94i(1.5G), 720/59.94P(1.5G) , 525/59.94i 720/59.94P(8x) 50(8x) 1080/50i(8x), Quad-Link-2 1080/50i(1.5G), 720/50P(1.5G) , 625/50i 720/50P(8x) 59.94(6x) 1080/59.94i(6x), Triple-Link-2 1080/59.94i(1.5G), 720/59.94P(1.5G) , 525/59.94i 720/59.94P(6x) 50(6x) 1080/50i(6x), Triple-Link-2 1080/50i(1.5G), 720/50P(1.5G) , 625/50i...

  • Page 19: Paint Functions In Hdr Mode And Color Space

    Figure 1: Slot numbers and BNC connectors SLOT1 SLOT3 SLOT2 Table 2: Relationship between output interface and BNC connector assignment MAIN Output 4K / HD HFR/HD CUTOUT SLOT 1 Operation mode Output interface SDI OUT 1-2 SDI OUT 3-4 SDI OUT 5- 6 SDI OUT 7- 8 Quad-Link-1 Link-1...
  • Page 20 Paint function HDR MODE setting LIVE HDR Gamma ON/OFF (Fixed OETF) R/G/B/Master Step Gamma Black R/G/B/Master Black Gamma ON/OFF Range R/G/B/Master Flare ON/OFF R/G/B/Master Knee ON/OFF (Fixed OFF) Knee Point R/G/B/Master Knee Slope R/G/B/Master Auto Knee ON/OFF Auto Knee Point Limit Auto Knee Auto Slope Detail ON/OFF...
  • Page 21 Paint function HDR MODE setting LIVE HDR Matrix ON/OFF User Matrix ON/OFF User Matrix R-G/G-B/B-R/R-B/G-R/B-G Multi Matrix ON/OFF Multi Matrix Phase Multi Matrix Hue/Saturation Adaptive Matrix ON/OFF Adaptive Matrix Level Preset Matrix ON/OFF Preset Matrix Preset V Mod Saw ON/OFF R/G/B/Master Low Key Saturation ON/OFF...
  • Page 22 Paint functions that can be adjusted when COLOR SPACE is selected Paint function COLOR SPACE setting BT.709 BT.2020 BT.2020 COLOR MODE setting WIDE-F WIDE-BC Gain Step Gain Master White Gain White R/G/B Balance/C Temp Gamma ON/OFF R/G/B/Master Step Gamma Black R/G/B/Master Black Gamma ON/OFF...
  • Page 23 Paint function COLOR SPACE setting BT.709 BT.2020 BT.2020 COLOR MODE setting WIDE-F WIDE-BC Saturation ON/OFF Saturation Matrix ON/OFF (Fixed OFF) User Matrix ON/OFF User Matrix R-G/G-B/B-R/R-B/G-R/B-G Multi Matrix ON/OFF Multi Matrix Phase Multi Matrix Hue/Saturation Adaptive Matrix ON/OFF Adaptive Matrix Level Preset Matrix ON/OFF Preset Matrix Preset V Mod Saw...

  • Page 24: Pws-100Nm1 Connection Settings

    Speed ALAC ON/OFF PWS-100NM1 Connection Settings When an HKCU-IP43F is installed and a PWS-100NM1 IP must be configured in the NETWORK menu and also on the Live System Manager station is connected, settings on the PWS-100NM1. NETWORKED MEDIA INTERFACE page and IP LIVE page...

  • Page 25: Status Display

    Camera settings Status Display H DC 430 0 HJ2 2eX 7.6 B F: 4.7 The CCU system status can be monitored using a video monitor connected to the PIX connector. For information on monitoring and changing settings, see “Menu Settings” (page 28). Displaying the Status Screen The menu screen is controlled using the knob and levers in the MENU control block on the front panel.
  • Page 26 Camera and unit audio status Notes • Items that are turned off using the <DISPLAY> page *Au dio * 0 3/0 5 settings of the VIDEO/MONITOR menu are not displayed. • A “-” mark is displayed for each item when a camera is not Ca mer a M IC Gai n C H1 :60dB connected.
  • Page 27 S L OT 1- 2 S T AT US : Displays any warning that occurs. STATUS: 12G/6G-SDI connector output status (“-----” is NMI-LAN connector status (when HKCU-IP43F displayed when there is no output) is installed) LAN-1 and LAN-2 connector status (when...

  • Page 28: Menu Settings

    IP stream transmission status Menu Settings * I P Stream* 0 6/ 07 O U T VIDEO 4K IN R ET UR N1 VIDEO HD1 - -- -- The CCU system and peripheral settings can be checked and VIDEO HD2 modified using a video monitor connected to the PIX VIDEO HD3 connector.
  • Page 29 To select an item in the CCU MENU The question mark (?) changes back to the pointer (,), and the item setting is registered. Turn the CONTROL knob to move the pointer (,) up/down to the desired menu item, then press the CONTROL knob. The Repeat steps 1 to 3 to change other settings on the most recently viewed page in the selected menu is displayed.

  • Page 30: Menu Tree

    LOOK (S09) 1st F COLOR (S11) b) c) 2nd F SLOT2 a) Displayed when HKCU-4002 is installed b) Displayed when HKCU-IP43F is installed c) Displayed when HKCU-4001 is installed SLOT3 OUTPUT FORMAT2 SLOT4 (NMI) (S06) b) c) IP OUT(4K) OETF...
  • Page 31 VIDEO/MONITOR menu AUDIO/INTERCOM menu MIC GAIN CAM MIC GAIN COLOR BAR 4K/HD (A01) (V01) AUDIO OUT DELAY MF-CB (A02) ANALOG OUT SLOPE CH1 : LEVEL CH1 : ADJUST SOURCE SELECT CH2 : LEVEL CH2 : ADJUST BAR-CHARACTER INTERCOM INTERCOM CH MOVING SYMBOL (A03) PRODUCER INTERFACE...
  • Page 32 MAINTENANCE menu NETWORK menu IP ADDRESS IP ADDRESS I/F SETTINGS SLOT3 (SDI I/O) (N01) SUBNET MASK (M01) CHARACTER/SYNC OUT MIC/WF REMOTE DEFAULT GATEWAY REAR PREVIEW MAC ADDRESS TRUNK/PROMPTER1 TRUNK LINE CNS SETTINGS CNS MODE (N02) MCS MODE (M02) CHANNEL MODE CCU NO INTERFACE PROMPTER...
  • Page 33 MULTICAST ADDRESS PACKET LOSS (N09) RETURN LAN1-1 ROUND-TRIP MIN IP ADDRESS ROUND-TRIP AVERAGE PORT SRC IP a) Displayed when HKCU-IP43F is installed RETURN LAN1-2 b) Displayed when HKCU-4001 is installed IP ADDRESS PORT SRC IP RETURN LAN2-1 IP ADDRESS PORT...
  • Page 34 NAME (D05) ROM VERSION BOARD STATUS POWER(NET) (NMI) POWER(CN) (D06) NMI1 SFP+ MODULE NMI2 SFP+ MODULE BOARD S/N BOARD STATUS (HKCU-4001) FAN1 (D06) FAN2 NET1 NET2 BOARD S/N a) Displayed when HKCU-IP43F is installed b) Displayed when HKCU-4001 is installed...

  • Page 35: Menu List

    Menu List Note The following conventions are used in the menu list table. Settings column values (e.g. ON, OFF, 0): Default settings are underlined Execute using ENTER: Press the CONTROL knob or move the CANCEL/ENTER lever to the ENTER position to execute. SYSTEM OPERATION menu SYSTEM OPERATION Page name...
  • Page 36 SYSTEM OPERATION Page name Item Set value Indication Page No. <MULTI FORMAT> SYSTEM 1.001(525), 1.000(625) Selects the operating frequency of the system. BASE FORMAT When 1.001(525) is selected in Selects the format of the HD system. SYSTEM: 1080/59.94P, 1080/59.94I, 1080/ 29.97PsF, 1080/23.98PsF, 720/ 59.94P When 1.000(625) is selected in...
  • Page 37 SYSTEM OPERATION Page name Item Set value Indication Page No. <OUTPUT FORMAT> SLOT1 See “Formats settable for SLOT1-1” Sets the output signal format of the connector of (page 41). SLOT1-1. OETF SDR, S-Log3, HLG Sets the gamma curve of the SLOT1 video output. Fixed to SDR when HDR MODE is OFF.
  • Page 38 Item Set value Indication Page No. <OUTPUT FORMAT2> SLOT4(NMI) (When HKCU-IP43F is installed) C: Characters are not added. (When HKCU-IP43F or See “Formats settable for SLOT4 Sets the output signal format of the SLOT4-1 HKCU-4001 is installed) (NMI) (when HKCU-IP43F is connector.
  • Page 39 INPUT SDI IN1, Sets the return video input signal to display when SDI IN2, RET1 is selected on the camera. S08 (When HKCU-IP43F SDI I/O1, or HKCU-4001 is SDI I/O2 installed) To use the VBS IN 3 input, select SDI I/O1 and set [When the HKCU-4001 is installed] FORMAT to NTSC or PAL.
  • Page 40 HD CUTOUT OFF, ON Turns the HD cutout function ON/OFF. Enabled only when HDC(HD CUTOUT) is selected in CHU MODE. S10 (When HKCU-IP43F or HKCU-4001 is The cutout HD signal from the 4K source is output installed) from SLOT1. MODE SIMPLE HD, Selects the cutout mode.
  • Page 41 4K/HFR FORMAT BASE FORMAT 4K/HFR FORMAT selection options settings When CHU MODE is HDC4300/HDC-P43 When CHU MODE is HDC(HD CUTOUT) 1080/59.94P 4096x2160/59.94P, 1080/59.94P, 1080/59.94P(2x), 1080/59.94P(3x), 4096x2160/59.94P 1080/59.94P(4x) 1080/59.94I 4096x2160/59.94P, 1080/59.94P, 1080/59.94P(2x), 1080/59.94P(3x), 4096x2160/59.94P 1080/59.94P(4x), 1080/59.94I(6x), 1080/59.94I(8x) 1080/29.97PsF 4096x2160/29.97P, 1080/29.97P – 1080/23.98PsF 4096x2160/23.98P, 1080/23.98P –...
  • Page 42 4K/HFR FORMAT settings SLOT1 selection options When CHU MODE is HDC4300/HDC-P43 When CHU MODE is HDC(HD CUTOUT) 1080/59.94P(3x) 1080/59.94P(3x)/3G-A – 1080/59.94P(3x)/3G-B 1080/59.94I(3x) 1080/59.94P(4x) 1080/59.94P(4x)/3G-A – 1080/59.94P(4x)/3G-B 1080/59.94I(4x)/3G-B 1080/59.94I(4x) 1080/59.94I(6x) 1080/59.94I(6x)/3G-B – 1080/59.94I(8x) 1080/59.94I(8x)/3G-B – 720/59.94P 720/59.94P – 720/59.94P(2x) 720/59.94P(2x)/3G-B – 720/59.94P(2x) 720/59.94P(3x) 720/59.94P(3x)
  • Page 43 – 1080/24PsF 1080/24PsF, 1080/50I, 625/50I – 720/50P 720/50P, 625/50I 720/50P, 625/50I Formats settable for SLOT4 (NMI) (when HKCU-IP43F is installed) SLOT1-1 settings SLOT4(NMI) selection options When CHU MODE is HDC4300/HDC-P43 When CHU MODE is HDC(HD CUTOUT) 4096x2160/59.94 3840x2160/59.94P/2SI/3G-A, 1080/59.94I –...
  • Page 44 SLOT1-1 settings SLOT4(NMI) selection options When CHU MODE is HDC4300/HDC-P43 When CHU MODE is HDC(HD CUTOUT) 4096x2160/50 3840x2160/50P/2SI/3G-A, 1080/50I – 3840x2160/50 1080/50 1080/50I 1080/50I Other settings SLOT4 output not supported SLOT4 output not supported 1) If SLOT4-1 is set to 4K, SLOT4-2 is unavailable. If SLOT4-1 is set to HD, SLOT4-2 is also set to HD. Formats settable for IP OUT BASE SLOT1-1 settings...
  • Page 45 BASE SLOT1-1 settings SLOT1 OETF IP OUT selection options FORMAT settings 1080/50P 4K speed SDR, S-Log3, HLG IP OUT(4K)-1 1080/50I 3840x2160/50P * 4K output OETF is same as SLOT1 OETF. IP OUT-1, IP OUT-2 1080/50P/3G-A, 1080/50I IP OUT(HD)-3 1080/50I * HD output OETF is SDR (fixed). 1080/50P SDR, S-Log3, HLG IP OUT(4K)-1...
  • Page 46 Formats settable for RETURN FORMAT BASE FORMAT settings RETURN FORMAT selection options SDI IN1, SDI IN2 SDI IN3, SDI IN4 IP RET1, IP RET2 1080/59.94P 1080/59.94P 1080/59.94P 1080/59.94P, 1080/59.94I 1080/59.94I(PsF), 1080/59.94I(PsF), 1080/59.94I(PsF) 525/59.94I(PsF) 525/59.94I(PsF), NTSC 1080/29.97PsF 1080/59.94P 1080/59.94P – (IP RET not supported) 1080/59.94I(PsF), 1080/59.94I(PsF), 525/59.94I(PsF)
  • Page 47 VIDEO/MONITOR menu VIDEO/MONITOR Page name Item Set value Description Page No. <COLOR BAR> 4K/HD SDR-LOOK BAR 16:9(100%), Selects the color bar of 4K output/HD output. SDR-LOOK BAR 16:9(75%), SMPTE 16:9(BLACK), SMPTE 16:9(–I/Q), BAR 4:3(100%), BAR 4:3(75%), SMPTE 4:3(BLACK), SMPTE 4:3(–I/Q), MF-ARIB(75%), MF-ARIB(100%), MF-ARIB(+I), MF-SMPTE(–I,Q), MF-SMPTE(75%,Q),...
  • Page 48 VIDEO/MONITOR Page name Item Set value Description Page No. <COLOR BAR> HFR CHANNEL OFF, ON Sets channel identification mark superimposition on MARK HD HFR output video. See “HFR channel marker” (page 50). <BAR CHARACTER> BAR CHARACTER Sets the character string to be displayed on each of lines 1 to 16.
  • Page 49 VIDEO/MONITOR Page name Item Set value Description Page No. <MONITOR> ASPECT MARKER OFF, ON Sets aspect marker display. SELECT 4:3, 13:9, 14:9, EU VISTA, VISTA, Selects the marker type. CINEMA, FOLLOW DC MODULATION OFF, ON Sets the mask function for outside the marker frame. ON/OFF MODULATION –99 to 99 0...
  • Page 50 4K 2SI diamond marker HFR channel marker This function is for displaying a test pattern like the following in the This function is for displaying a marker in the video area of HD HFR area at the bottom right of the 4K color bar during 4K 2 sample output.
  • Page 51 AUDIO/INTERCOM Page name Item Set value Description Page No. <INTERCOM> INTERCOM CH 1CH(PROD), 2CH(PROD&ENG) Selects the intercom channel number to be used. PRODUCER CLEAR COM, 4WIRE, RTS Sets the producer line intercom system. INTERFACE SIDETONE –99 to 99 0 Sets the side tone cancel level. (Setting is possible CANCEL when CLEAR COM or RTS is selected) TERMINATION...
  • Page 52 AUDIO/INTERCOM Page name Item Set value Description Page No. <IP AUDIO> AUDIO OUT CLEAR COM, 4WIRE, RTS Sets the producer line intercom system. FORMAT L24/48kHz/1ms/2ch, Sets the audio format. L24/48kHz/1ms/4ch, (When HKCU-4001 is L24/48kHz/1ms/8ch, installed) L24/48kHz/0.125ms/2ch, L24/48kHz/0.125ms/4ch, L24/48kHz/0.125ms/8ch, L24/48kHz/0.125ms/16ch CH ORDER MIC1, MIC2, AES/EBU1, Displays the channel order.
  • Page 53 MAINTENANCE menu MAINTENANCE Page name Item Set value Description Page No. <I/F SETTINGS> SLOT3 (SDI I/O) Top (SDI I/O 1) Sets the functions to assign to the SLOT3 (SDI I/O) SLOT3-1 OUT, connectors. SDI IN3/HD PROMPTER IN The top one is the SDI I/O 1 connector setting. Bottom (SDI I/O 2) The bottom one is the SDI I/O 2 connector setting.
  • Page 54 MAINTENANCE Page name Item Set value Description Page No. <MENU SETTINGS> PAGE RESUME ON, OFF Turns the menu mode resume page display function on/off. ALARM JUMP ON, OFF Turns the error-related page display function on/off for when an error occurs while in menu mode. RE DIRECTION CATEGORY STD, RVS...
  • Page 55 MAINTENANCE Page name Item Set value Description Page No. <SWITCH ASSIGN> ASSIGNABLE NONE, BARS, CAM POWER, Sets the function to be assigned to the assignable SWITCH FORCE LEGACY, LASER DIODE button on the front panel. NONE: No assignment. BARS: Sets the color bar output to ON/OFF. CAM POWER: Sets camera power to ON/OFF.
  • Page 56 NMI LAN1, NMI LAN2 Selects the network interface to configure/display. INTERFACE> INTERFACE DHCP OFF, ON Enables or disables DHCP. (When HKCU-IP43F is IP ADDRESS 0.0.0.0 to 255.255.255.255 When DHCP enabled: Displays the IP address installed) assigned using DHCP for the selected network interface.
  • Page 57 NETWORK Page name Item Set value Description Page No. <NETWORK GENLOCK> PORT LAN1, LAN2 Selects the port of the HKCU-4001 for setting NETWORK GENLOCK. NETWORK DISABLE, ENABLE Enables/disables network genlock for the selected (When HKCU-4001 is GENLOCK port. installed) PROFILE ST2059-2 Displays the supported profile.
  • Page 58 The settings vary depending on the Sets IP Live System Manager (LSM). installed) installed option. DISABLE: Does not communicate with LSM. When HKCU-IP43F is installed: LAN1: Communicates with LSM using LAN1 only. (When HKCU-4001 is LAN1, LAN1&LAN2 LAN1&LAN2: Communicates with LSM using LAN1...
  • Page 59 NETWORK Page name Item Set value Description Page No. <MULTICAST MULTICAST AUTO, MANUAL Displays the mode of the multicast address setting of ADDRESS 1> ADDRESS the IP stream. VIDEO OUT(4K) Settings for the IP 4K OUT1 output video signal LAN1-1 (When HKCU-4001 is installed) IP ADDRESS...
  • Page 60 Sets the Ping transmit port. IP ADDRESS 0.0.0.0 to 255.255.255.255 Sets the IP address of the Ping transmit destination. PING EXEC Sends a Ping. (When HKCU-IP43F is STATISTICS Displays the Ping execution result. installed) TRANSMITTED 0 to 5 [packets] Number of transmitted packets.
  • Page 61 Unit model name SERIAL NUMBER Serial number HKCU-4001 Displays the serial number of the HKCU-4001 (When HKCU-4001 is installed) HKCU-IP43F Displays the serial number of the HKCU-IP43F (When HKCU-IP43F is installed) <VERSION1> APPLICATION Unit software version Unit software version UPDATER...
  • Page 62 Page name Item Display Description Page No. <BOARD STATUS(NMI)> POWER(NET) POWER(CN) (When HKCU-IP43F is NMI1 SFP+ Displays the SFP+ module status of NMI1. installed) MODULE OK, ABSENT OK: SFP+ module is inserted successfully. ABSENT: SFP+ module is not inserted. OK, FAULT...

  • Page 63: Appendix

    CCU:FORCE LEGACY FORCE LEGACY is set for CNS the life expectancy of these parts is guaranteed. For details on MODE parts replacement, contact your Sony representative. CCU:PS FAN STOP Power supply block FAN error CCU:PS CABLE SHORT CAMERA connector optical fiber...

  • Page 64: Specifications

    SDI I/O 3G/HD/SD SDI I/O (SLOT3) Specifications BNC-type (2) 3G-SDI: SMPTE ST424/425 Level-A/B, 0.8 Vp-p, 75 ohms, 2.970 Gbps/ 2.967 Gbps HDCU4300 HD-SDI: SMPTE ST292, 0.8 Vp-p, 75 ohms, 1.485 Gbps/1.4835 Gbps General SD-SDI: SMPTE ST259, 0.8 Vp-p, Power requirements 100 V to 240 V AC, 50/60 Hz 75 ohms, 270 Mbps Current consumption...
  • Page 65 HZC-CSM10 Camera System Management Software Screws M3×8 (6) SZC-4002/4002M/4002W HFR Software Screws M2.6×5 (2) SZC-2001/2001M/2001W HD CUTOUT Software Wire saddle (4) HKCU-IP43F Networked Media Interface Board Protective tape (1) HKCU-4002 12G-SDI Extension Kit Label (1) HKCU-4001 ST 2110 Interface Kit Operating Instructions (1)
  • Page 66 To meet the requirements of the software copyright holders, 5 °C to 40 °C (41 °F to 104 °F) Operating Sony is obligated to inform you of the content of these temperature licenses. –20 °C to +60 °C (–4 °F to +140 °F)
  • Page 67 HDCU4300 (SY) Sony Corporation 4-589-990-15 (2) © 2016...
