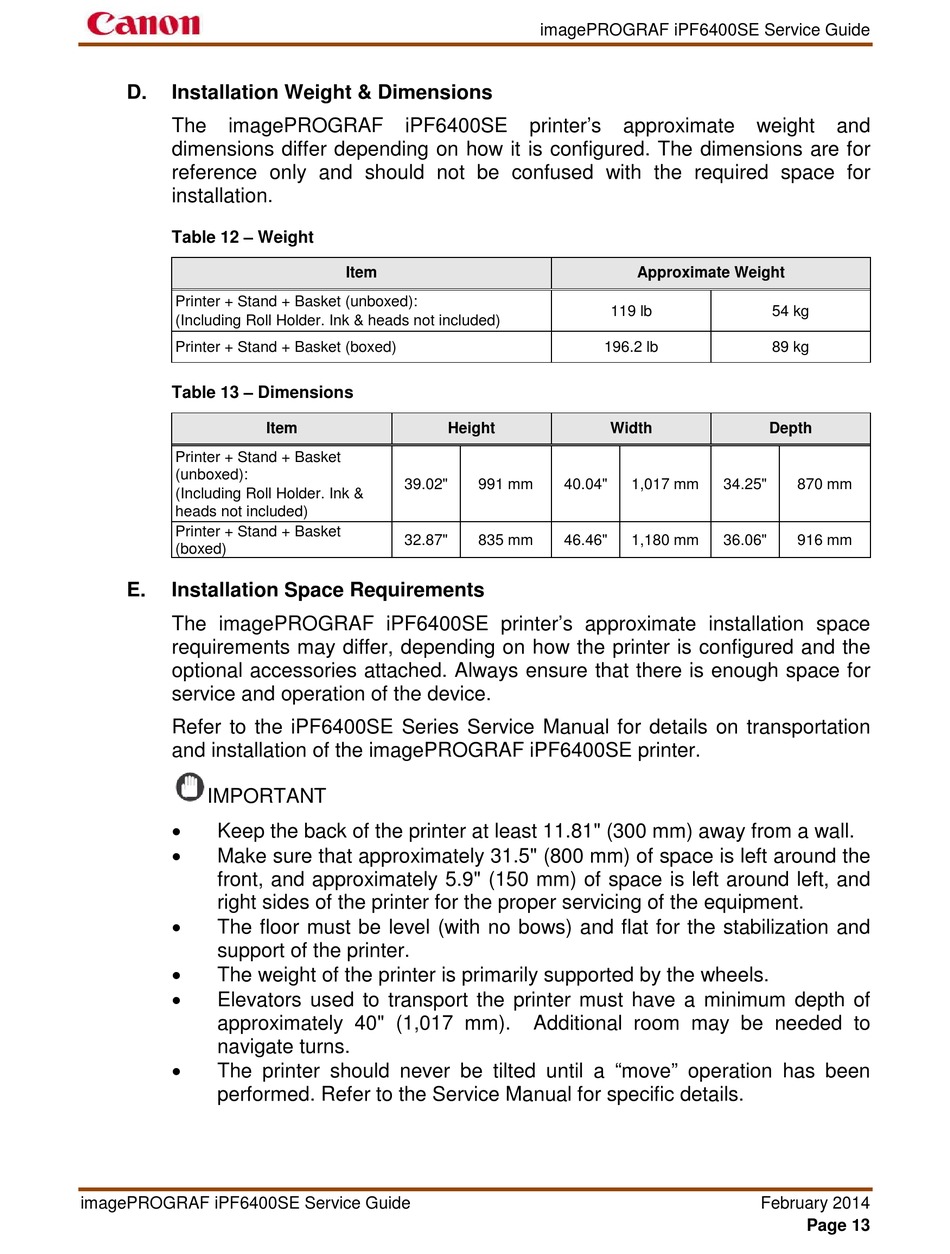

D. Installation Weight & Dimensions
The imagePROGRAF
dimensions differ depending on how it is configured. The dimensions are for
reference only and should not be confused with the required space for
installation.
Table 12 – Weight
Printer + Stand + Basket (unboxed):
(Including Roll Holder. Ink & heads not included)
Printer + Stand + Basket (boxed)
Table 13 – Dimensions
Printer + Stand + Basket
(unboxed):
(Including Roll Holder. Ink &
heads not included)
Printer + Stand + Basket
(boxed)
E.

Installation Space Requirements

The imagePROGRAF iPF6400SE printer's approximate installation space
requirements may differ, depending on how the printer is configured and the
optional accessories attached. Always ensure that there is enough space for
service and operation of the device.
Refer to the iPF6400SE Series Service Manual for details on transportation
and installation of the imagePROGRAF iPF6400SE printer.
IMPORTANT

Keep the back of the printer at least 11.81" (300 mm) away from a wall.

Make sure that approximately 31.5" (800 mm) of space is left around the
front, and approximately 5.9" (150 mm) of space is left around left, and
right sides of the printer for the proper servicing of the equipment.

The floor must be level (with no bows) and flat for the stabilization and
support of the printer.

The weight of the printer is primarily supported by the wheels.

Elevators used to transport the printer must have a minimum depth of
approximately 40" (1,017 mm).
navigate turns.

The printer should never be tilted until a "move" operation has been
performed. Refer to the Service Manual for specific details.
imagePROGRAF iPF6400SE Service Guide
iPF6400SE
Item
Item
39.02"
32.87"
imagePROGRAF iPF6400SE Service Guide
printer's approximate
119 lb
196.2 lb
Height Width
991 mm 40.04"
835 mm 46.46"
Additional room may be needed to
weight
Approximate Weight
54 kg
89 kg
Depth
1,017 mm 34.25" 870 mm
1,180 mm 36.06" 916 mm
February 2014
Page 13
and
