BDL6520QL
V1.00
www.philips.com/welcome
User Manual (English)

Advertisement

Table of Contents
loading

Related Manuals for Philips BDL6520QL

Summary of Contents for Philips BDL6520QL

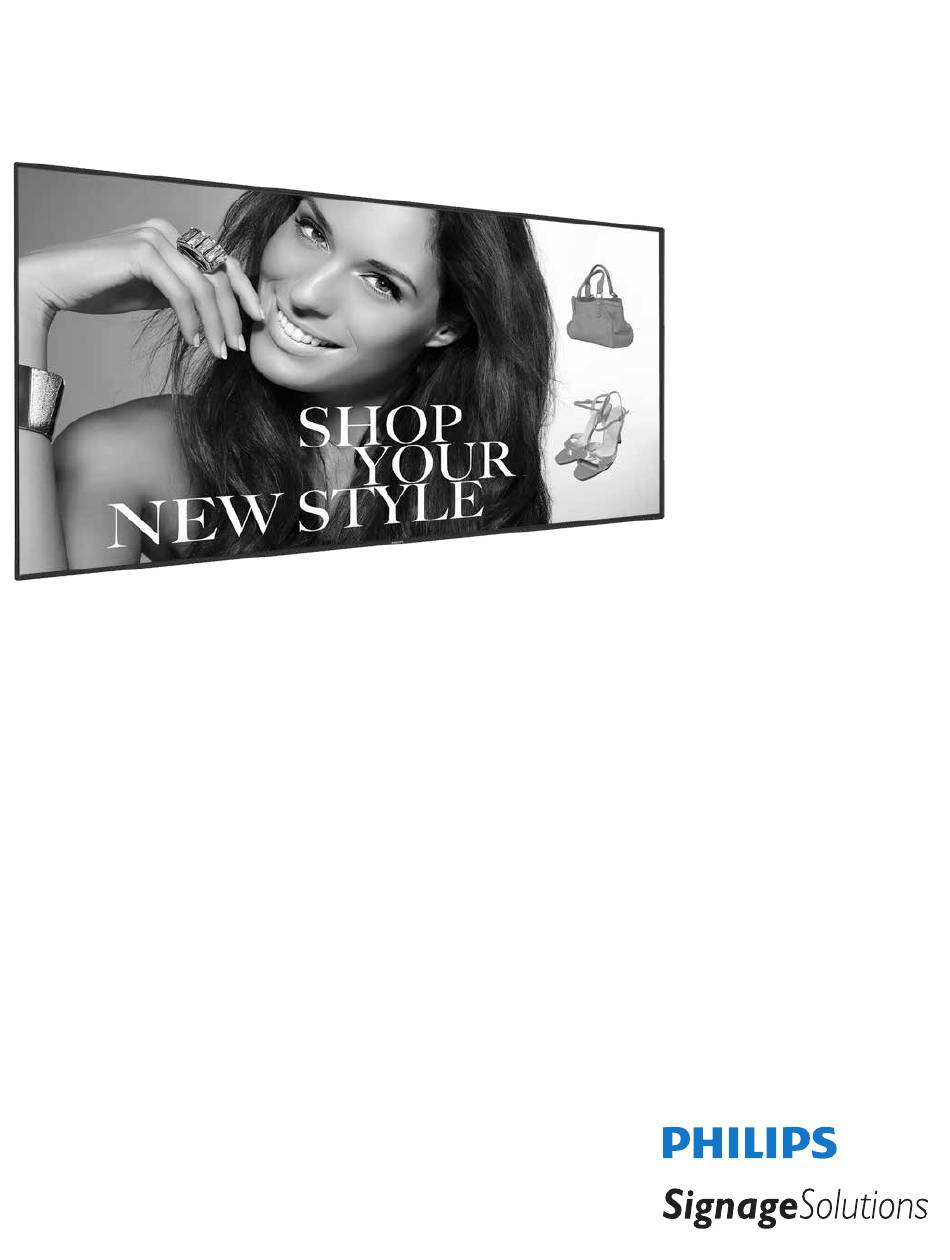

  • Page 1 BDL6520QL V1.00 www.philips.com/welcome User Manual (English)
  • Page 2 Read and follow these instructions when connecting and using your display: Operation: • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into ventilation holes or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • When positioning the display, make sure the power plug and outlet are easily accessible. • When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. • Do not subject the display to severe vibration or high impact conditions during operation. • Do not knock or drop the display during operation or transportation. Maintenance: • To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your display, grasp the frame to lift; do not lift the display by placing your hand or fingers on the LCD panel. • Unplug the display if you are not going to use it for an extensive period of time.
  • Page 3 BDL6520QL Read and follow these instructions when connecting and using your display: • Unplug the display if you are not going to use it for an extensive period of time. • Unplug the display if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids. • Consult a service technician if the display does not operate normally when you have followed the instructions in this manual. • The casing cover should be opened only by qualified service personnel. • Keep the display out of direct sunlight and away from stoves or any other heat sources. • Remove any object that could fall into the vents or prevent proper cooling of the display’s electronics. • Do not block the ventilation holes on the cabinet. • Keep the display dry. To avoid electric shock, do not expose it to rain or excessive moisture.
  • Page 4 BDL6520QL Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Use only an RF shielded cable that was supplied with the display when connecting this display to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE- CAUSING EQUIPMENT REGULATIONS. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A). To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be located near the equipment and easily accessible.
  • Page 5 BDL6520QL Electric, Magnetic and Electromagnetic Fields (“EMF”) 1. We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals. 2. One of our leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products. 3. We are committed to develop, produce and market products that cause no adverse health effects. 4. We confirm that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today. 5. We play an active role in the development of international EMF and safety standards, enabling us to anticipate further developments in standardization for early integration in its products. Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED.
  • Page 6 BDL6520QL China RoHS 中国电子信息产品污染控制标识要求 (中国RoHS法规标示要求) 产品中有毒有害物质或元素 的名称及含量。 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr 6+) (PBB) (PBDE) 外壳 液晶面板 电路板组件 附件 (遥控器，电源线，连接 线) 遥控器电池 O: 表示该有毒有害物质在该部件所有均质材料中的含量均在 GB/T26572-2011 标准规定的限量要求以下. X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 GB/T26572-2011 标准规定的限量要 求. 環保使用期限 此標識指期限(十年)，電子信息產品中含有的有毒有害物質或元素在正常使用的條件下不會發生外泄或突變...
  • Page 7 BDL6520QL North Europe (Nordic Countries) Information Placering/Ventilation VARNING: FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS. Placering/Ventilation ADVARSEL: SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. Paikka/Ilmankierto VAROITUS: SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA. Plassering/Ventilasjon ADVARSEL: NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE FOR STØMTILFØRSEL ER LETTE Å NÅ. End-of-Life Disposal Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations. For additional information on recycling contact www.eia.org (Consumer Education Initiative)
  • Page 8 BDL6520QL Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assisténcia técnica autorizada. Restriction on Hazardous Substances statement (India) This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule. E-Waste Declaration for India This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.

  • Page 9: Table Of Contents

    BDL6520QL Table Of Contents 4.4. Play multimedia files from USB device ......15 4.5. Play options ..................16 4.5.1. Playing music files ..........16 Unpacking and Installation ............1 4.5.2. Playing movie files ..........16 1.1. Unpacking ..................1 4.5.3. Playing photo files ..........16 1.2. Package Contents ................1 4.6. How to use Opera browser (HTML5) ....... 16 1.3. Installation Notes .................1 Change your settings ............. 18 1.4.

  • Page 10: Unpacking And Installation

    BDL6520QL Unpacking and Installation 1.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • Due to the size and weight of this display it is recommended for two people to move it. • After opening the carton, ensure that the contents are complete and in good condition. 1.2. Package Contents Please verify that you received the following items with your package content: • LCD display • CD ROM • Remote control with AAA batteries • Power cord (1.8 m) • VGA cable (1.8 m) CD ROM • RS232 cable (1.8 m) Quick start guide • Daisy chain cable (1.8 m) • Quick start guide...

  • Page 11: Mounting On A Wall

    BDL6520QL 1.4. Mounting on a Wall To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface that complies with UL1678 standard in North America. Protective Sheet VESA Grid Table Tabletop stand 1. Lay a protective sheet on a table, which was wrapped around the display when it was packaged, beneath the screen surface so as not to scratch the screen face. 2. Ensure you have all accessories for mounting this display (wall mount, ceiling mount, table stand, etc). 3. Follow the instructions that come with the base mounting kit. Failure to follow correct mounting procedures could result in damage to the equipment or injury to the user or installer.

  • Page 12: Using Of Remote Sensor And Power Status Indicator

    BDL6520QL 1.5. Using of remote sensor and power status indicator 1. Pull down the lens to have better remote control performance and easy to observe the light information of power status. 2. Push up the lens before mounting the display for video wall application. 3. Pull/push the lens until hearing the click sound. Push up to collapse the lens Push down to extend the lens...

  • Page 13: Parts And Functions

    BDL6520QL Parts and Functions 2.1. Control Panel MUTE INPUT MENU 1 2 3 4 5 6 7 8 [ ] button Remote control sensor and power status indicator Use this button to turn the display on or put the display to standby. • Receives command signals from the remote control. • Indicates the operating status of the display without OPS: [MUTE] button - Lights green when the display is turned on Switch the audio mute ON/OFF. - Lights red when the display is in standby mode...

  • Page 14: Input/Output Terminals

    BDL6520QL 2.2. Input/Output Terminals 11 13 AC IN COMPONENT IN (BNC) AC power input from the wall outlet. Component YPbPr video source input. MAIN POWER SWITCH Y/CVBS Switch the main power on/off. Video source input. AC OUT PC LINE IN AC power output supply to the AC IN jack of a media player. Audio input for VGA source (3.5mm stereo phone). RS232C IN / RS232C OUT SPEAKER SWITCH RS232C network input / output for the loop-through function. Internal speaker on/off switch. NOTE: A 2.5mm socket and a 2.5mm 4 Pole male plug is needed for AUDIO IN the monitor end.

  • Page 15: Remote Control

    BDL6520QL 2.3. Remote Control [ ] POWER button Turn the display on or put the display to standby. 2.3.1. General functions [PLAY] buttons Control playback of media files. ] SOURCE button Choose input source. Press [ ] or [ ] button to choose from Network Internet, SmartCMS, HDMI 1 HDMI DisplayPort DVI-D YPbPr , or . Press [ button to confirm and exit. ] HOME button Access the OSD menu.

  • Page 16: Inserting The Batteries In The Remote Control

    BDL6520QL 2.3.2. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Align the batteries according to the (+) and (–) indications inside the battery compartment. 3. Replace the cover. Caution: The incorrect use of batteries can result in leaks or bursting. Be sure to follow these instructions: • Place “AAA” batteries matching the (+) and (–) signs on each battery to the (+) and (–) signs of the battery compartment. • Do not mix battery types. • Do not combine new batteries with used ones. It causes shorter life or leakage of batteries. • Remove the dead batteries immediately to prevent them from liquid leaking in the battery compartment. Don’t touch exposed battery acid, as it can damage your skin.

  • Page 17: Connecting External Equipment

    BDL6520QL Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using COMPONENT video input Audio Out COMPONENT Out (YPbPr) DVD / VCR / VCD [AUDIO IN] [COMPONENT IN] (YPbPr) 3.1.2. Using Video Source input Audio Out Y/CVBS Out DVD / VCR / VCD...

  • Page 18: Using Hdmi Video Input

    BDL6520QL 3.1.3. Using HDMI video input DVD / VCR / VCD HDMI Out [HDMI IN] 3.2. Connecting a PC 3.2.1. Using VGA input VGA Out D-Sub 15 pin Audio Out [VGA IN] [VGA AUDIO IN] 3.2.2. Using DVI input DVI Out...

  • Page 19: Using Hdmi Input

    BDL6520QL 3.2.3. Using HDMI input HDMI Out [HDMI IN] 3.2.4. Using DisplayPort input DisplayPort Out [DisplayPort IN] 3.3. Connecting Audio Equipment 3.3.1. Connecting external speakers External speakers...

  • Page 20: Connecting An External Audio Device

    BDL6520QL 3.3.2. Connecting an external audio device Audio In Stereo Amplifier [AUDIO OUT] 3.4. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a video wall. NOTE: M aximum 25 displays (5x5) can be used in a daisy-chain configuration. 3.4.1. Display control connection Connect the [RS232C OUT] connector of DISPLAY 1 to the [RS232C IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [RS-232C] [RS-232C IN] [RS-232C OUT] [RS-232C IN] 3.4.2.

  • Page 21: Analog Video Connection

    BDL6520QL Connect the [DP OUT] connector of DISPLAY 1 to the [DP IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [DP] [DP IN] [DP OUT] [DP IN] Connect the [DVI OUT] connector of DISPLAY 1 to the [DVI IN] connector of DISPLAY 2. DVD / VCR / VCD DISPLAY 1 DISPLAY 2 [HDMI] [DVI IN] [DVI OUT] [DVI IN] 3.4.3. Analog video connection Connect the [DVI OUT / VGA OUT] connector of DISPLAY 1 to the [VGA IN] connector of DISPLAY 2. DISPLAY 1 DISPLAY 2 [VGA]...

  • Page 22: Ir Connection

    BDL6520QL 3.5. IR connection External IR Receiver DISPLAY 1 DISPLAY 2 [IR IN] [IR OUT] [IR IN] NOTE: T his display’s remote control sensor will stop working if the [IR IN] is connected. 3.6. IR Pass-through Connection [IR OUT] DVD / VCR / VCD [IR IN] (DVD / VCR / VCD) Remote Control 3.7.

  • Page 23: Operation

    BDL6520QL Operation DISPLAY 1 DISPLAY 2 NOTE: T he control button described in this section is mainly on the remote control unless specified otherwise. ROUTER [RJ-45] [RJ-45] [RJ-45] 4.1. Watch the Connected Video Source See page <?> for external equipments connection. NOTE: I f the apparatus does not return to DLNA mode due to 1. Press [ ] SOURCE button. external electrical disturbances (e.g. electrostatic discharge), user 2. Press [ ] or [ ] button to choose a device, then press [ intervention is required.

  • Page 24: How To Use Dlna-Dmr From Pc

    BDL6520QL 4.3.3. How to use DLNA-DMR from PC Advanced sharing settings Turn on 7. Go to , and check network discovery 1. Press [ ] HOME button, choose Network and press [ 8. Now, go to the directory of your media files. Choose the media button. Play To file by right click. On the submenu from , You can find all displays connected to your network.

  • Page 25: Play Options

    BDL6520QL 4.5. Play options 4.5.3. Playing photo files Photo 1. Choose in the top bar. 4.5.1. Playing music files Photo Music 1. Choose in the top bar. ] button. 2. Choose a photo thumbnail, then press Music Start a slideshow ] button. 2. Choose one music track, and press [ If there are multiple photos in a folder, choose a photo. Then, press • To play all the tracks in a folder, choose one music file.
  • Page 26 BDL6520QL Internet Web Address： http:// History www.google.com Bookmark . , @ ‘ Done w x y z Hide p q r s ? ! - < 123 www Backspace 3. Move the cursor to “  ” icon and press [ ] button. Internet Web Address： http://www.google.com History www.google.com...

  • Page 27: Change Your Settings

    BDL6520QL Change your settings 5.1.1. Picture Using the remote control: Picture style Picture Sound Backlight Tiling Colour Network Sharpness General settings Noise reduction m e n u MPEG artifact reducti... Picture enhancement Advanced Scan mode Format and edges Picture reset Picture style 1.

  • Page 28: Sound

    BDL6520QL 5.1.3. Tiling 5.1.2. Sound Picture Sound style Picture Enable Bass Sound Sound H monitors Tiling Treble V monitors Tiling Network Balance Network Position General settings Volume General settings Frame comp. Minimum volume Switch on delay Maximum volume Surround mode...

  • Page 29: Network

    BDL6520QL Example: 5 x 5 screen matrix (25 displays) 5.1.4. Network H monitors = 5 displays V monitors = 5 displays Picture Network settings H monitors Sound Digital Media Rendere... Tiling Network name Position Clear Internet memory Network General settings Frame comp. Network settings Choose to turn the frame compensation function on or off. If selected {Network configuration}: Choose how this display should assign {On}, the display will adjust the image to compensate for the width of addresses to the network resources.
  • Page 30 BDL6520QL Note: Factory default setting is “low power standby”, but user could not reset it to default after setting Eco mode to”Normal” by “Factory reset” Schedule 1 Status USB playlist in MENU. However, user can still change the ECO mode back to “low Source Schedule 2 HDMI 1 power standby” manually. Schedule 3 On time HDMI 2 Auto search Schedule 4 Off time DisplayPort • {Off} - Disable this function. Schedule 5...
  • Page 31 BDL6520QL Playlist setting RC lock 6. If {Source}  {USB} is chosen. Go to Choose to enable or disable the button function of the remote control. 0001/0002 Photo • {Unlock}: Enable the keyboard function. • {Lock all}: Lock all keyboard function. Photo • {Lock but volume}: Disable all the keyboard function except the Video ] and [ ] button. • {Lock but power}: Disable all the keyboard function except the [ ] POWER button.
  • Page 32 BDL6520QL NOTE: If the display is black screen or abnormal under DisplayPort source, please switch to 1.1a and turn AC off and on. Network control port Choose the embedded RS232 in PD set. Factory settings Reset your customized settings to the factory defaults except Monitor group, Minitor ID, Eco mode and Network setting.

  • Page 33: File Extension List

    BDL6520QL File extension list File Max. Frame Rate Max. Bit Rate Container Video codec Maximum resolution Audio codec Extensions (fps) (Mbps) MPEG-1 1920x1088 25p,30p,50i,60i MPEG-1(L1&L2), .mpg MPEG-2 1920x1088 25p,30p,50i,60i MPEG-1,2,2.5 L3, mpeg MPEG-4 ASP 1920x1088 25p,30p,50i,60i AAC/HE-AAC(v1&v2), .vob DVD-PCM,AC3 H.264 1920x1088 25p,30p,50p,60p,60i MPEG-2 1920x1088 25p,30p,50i,60i MPEG-1(L1&L2),...
  • Page 34 BDL6520QL .aif(mac) LPCM LPCM .aiff(mac) .aac .mp4 1024 AAC,HE-AAC(v1&v2) .m4a .pls Playlists .m3u .m4a 1024 AAC,HE-AAC(v1&v2) USB Photo file format type: JPEG, BMP, PNG, GIF NOTES: • Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table above. • Video content with a Bit rate or Frame rate larger than the rate specified in the table above can cause choppy video during playback.

  • Page 35: Input Mode

    BDL6520QL Input Mode VGA Resolution: Active Resolution Standard Refresh Rate Pixel Rate Aspect Ratio Stand for Mode Resolution H Pixels V Lines 60 Hz 25.175 MHz 480 72 Hz 31.5 MHz Video Graphic Array 75 Hz 31.5 MHz WVGA 400 70 Hz 33.75 MHz 16:9 Wide Video Graphic Array 60 Hz 40 MHz SVGA 600 Super VGA 75 Hz 49.5 MHz 60 Hz 65 MHz 1024 768 Extended Graphic Array 75 Hz 78.75 MHz...

  • Page 36: Pixel Defect Policy

    We strive to deliver the highest quality products and use some of the industry’s most advanced manufacturing processes whilst practicing stringent quality control. However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions. This notice explains the different types of pixel defects and defines the acceptable defect level for the LCD screen. In order to qualify for repair under warranty, the number of pixel defects must exceed a certain level as shown in the reference table. If the LCD screen is within specification a warranty exchange / claim back will be refused. Additionally, because some types or combinations of pixel defects are more noticeable than others, Philips sets even higher quality standards for those. 8.1. Pixels and Sub-Pixels A pixel, or picture element, is composed of three sub-pixels in the primary colors of red, green and subpixel blue.

  • Page 37: Dark Dot Defects

    Dark Dot Defects Black dot defects appear as pixels or sub-pixels that are always dark or “off ”. These are the examples of black dot defects: One dark dot Two adjacent dark dots = 1 pair of dark dots Two dark dots, specifications defines the minimum distance between dark dots 8.5. Proximity of Pixel Defects Because pixel and sub-pixels defects of the same type that are nearby one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. In the table below you can find specifications about: • Allowed amount of adjacent dark dots = (adjacent dark dots =1 pair of dark dots) • Minimum distance between dark dots • Total no. of all defective dots 8.6. Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub- pixel defects exceeding the tolerances listed in the following table.

  • Page 38: Cleaning And Troubleshooting

    BDL6520QL Cleaning and Troubleshooting 9.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. Placing any object near the top of the display could also result in heat related damage to the object as well as the display itself. • Be sure to disconnect all cables before moving the display. Moving the display with its cables attached may damage the cables and thus cause fire or electric shock. • Disconnect the power plug from the wall outlet as a safety precaution before carrying out any type of cleaning or maintenance procedure. Front Panel Cleaning Instructions • The front of the display has been specially treated. Wipe the surface gently using only a cleaning cloth or a soft, lint-free cloth.

  • Page 39: Troubleshooting

    BDL6520QL 9.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of the 2. Make sure the power switch is switched on. display is not switched on. 3. Connect a signal connection to the display. 3. The selected input has no connection. 4. The display is in standby mode. Interference displayed on the display or audible...

  • Page 40: Technical Specifications

    BDL6520QL Technical Specifications Display: Item Specifications Screen Size (Active Area) 1428.48 (H)x 803.52 (V) [mm](64.5’’ diagonal) Aspect Ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.744 (H) x 0.744 (V) [mm] Displayable colors 1.07G colors (8bit + FRC) Brightness (typical) 350 cd/m Contrast ratio (typical) 5000:1 Viewing angle 176 degrees In/Out Terminals: Item Specifications Speaker Output Internal Speakers 10W (L) + 10W (R) [RMS]/8Ω External Speakers 1 Way 1 Speaker System 82 dB/W/M/160 Hz ~ 13 KHz Audio Output Phone Jack x 1 0.5V [rms] (Normal) / 2 Channel (L+R) Audio Input RCA Jack x 2 0.5V [rms] (Normal) / 2 Channel (L+R) 3.5 mm Stereo x 1...
  • Page 41 BDL6520QL General: Item Specifications Power Supply AC 100 - 240V, 50 - 60Hz Power Consumption (Max) 170 W Power Consumption (typ.) 128 W Power Consumption (Standby & Off) <0.5W (RS232 in active) Dimensions [W x H x D] 1450.5 x 828.5 x 61.5 mm (Rear Cover)/68.8 (Handle) Weight 36.2 Kg Gross Weight 45.9 Kg Environmental Condition: Item Specifications Temperature Operational 0 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 5 ~ 95% RH (No condensation) Altitude Operational 0 ~ 3,000 m Storage / Shipment 0 ~ 9,000 m Internal Speaker:...
  • Page 42 2014 © Koninklijke Philips N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Specifications are subject to change without notice.
