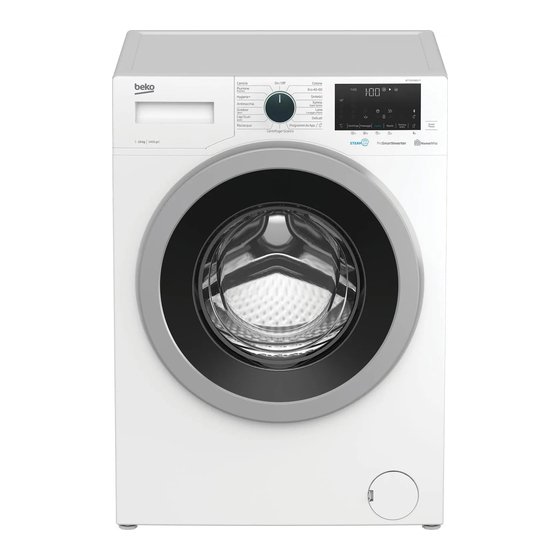

- Page 1 Washing Machine User Manual WTY101486SI-IT Document Number : 2820529382_EN/ 15-03-21.(15:09)
-
Page 2: General Safety Instructions
General safety instructions This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 Life and property safety Never place the product on a carpet-covered floor. Otherwise, lack of airflow beneath the machine will cause electrical parts to overheat. -
Page 3: Children's Safety
1.2 Children's safety This product can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. -
Page 4: Hot Surface Safety
Product should be unplugged during installation, maintenance, cleaning and repair procedures. If the power cable is damaged, it must be replaced by the manufacturer, authorised service or a similarly qualified person (preferably an electrician) or someone designated by the importer in order to avoid possible risks. 1.4 Hot surface safety The glass of the loading door gets too hot while washing at higher temperatures. -
Page 5: Important Instructions For Environment
Important instructions for environment 2.1 Compliance with WEEE Directive This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. -
Page 6: Technical Specifications
Technical specifications Supplier name or trademark Beko WTY101486SI-IT Model name 7149344600 Rated capacity (kg) Maximum spin speed (rpm) 1400 Built-in Height (cm) Width (cm) Depth (cm) Single Water inlet / Double Water inlet • / - • Available Electrical input (V/Hz) -
Page 7: Appropriate Installation Location
4.1 Installation • Apply to the nearest authorised service agent for the installation of your product. • Preparation of the location and electrical, tap water and waste water installations at the place of installation is under customer's responsibility. • Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures. -
Page 8: Connecting Water Supply
4.1.4 Connecting water supply It is necessary to have 10 – 80 liters of water flowing from the fully open tap in one minute to have your machine run smoothly. Attach a pressure reducing valve if water pressure is higher. CAUTION: Models with a single water inlet should not be connected to the hot water tap. -
Page 9: Adjusting The Feet
4.1.6 Adjusting the feet CAUTION: In order to ensure that the product operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet. Otherwise, the product may move from its place and cause crushing and vibration problems. -
Page 10: Preparing Laundry For Washing
4.2 Preparation 4.2.1 Sorting the laundry • Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature. • Always observe the instructions given on the garment care labels. 4.2.2 Preparing laundry for washing • Laundry items with metal attachments such as, underwiring, belt buckles or metal buttons will damage the machine. -
Page 11: Using Detergent And Softener
4.2.6 Using detergent and softener When using detergent, softener, starch, fabric dye, bleach and descaling agents; read the manufacturer's instructions written on the package and follow the dosages specified. Use measuring cup if available. The detergent drawer is composed of three compartments: –... - Page 12 If the product is equipped with a liquid detergent part: • When you want to use liquid detergent, press on the point shown to rotate the apparatus. The part that falls off will function as a barrier for the liquid detergent. If required, clean the apparatus with water when it is in place or by removing it.
-
Page 13: Tips For Efficient Washing
4.2.7 Tips for efficient washing Clothes Light Colours and Black/Dark Delicates/ Colours Whites Colours Woollens/Silks (Recommended (Recommended (Recommended temperature (Recommended temperature temperature range temperature range range based on soiling level: range based on soiling level: based on soiling level: based on soiling level: 40-90°C) cold -40°C) cold -40°C) -
Page 14: Operating The Product
4.3 Operating the product 4.3.1 Control panel 1 - Programme Selection knob 7 - End Time Setting button 2 - Temperature level lights 8 - Auxiliary Function button 3 3 - Spin level indicator lights 9 - Auxiliary Function button 2 4 - Display 10 - Auxiliary Function button 1 5 - Start / Pause button... -
Page 15: Programme And Consumption Table
4.3.3 Programme and consumption table Auxiliary functions Temperature Programme °C • • • • • 2,65 1400 Cold-90 • • • • • 1,90 1400 Cotone Cold-90 • • • • • 1,10 1400 Cold-90 40 *** 53,0 0,800 1400 40-60 40 *** 37,0 0,490 1400... -
Page 16: Programme Selection
The auxiliary functions in the table may vary according to the model of your machine. Water and power consumption may vary subject to the changes in water pressure, water hardness and temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in electric voltage. You can see the washing duration on the display of your machine while selecting a programme. - Page 17 • Cotone (Cottons) You can wash your durable cotton laundry (sheets, bedlinen, towels, bathrobes, underwear etc.) in this programme. When the quick wash function button is pressed, programme duration becomes notably shorter but effective washing performance is ensured with intense washing movements. If the quick wash function is not selected, superior washing and rinsing performance is ensured for your heavily soiled laundry.
- Page 18 • Camicie (Shirts) This programme is used to wash the shirts made from cotton, synthetic and synthetic blended fabrics altogether. It reduces wrinkles. When the quick wash function is selected, the Pre-treatment algorithm is executed. • Apply the pre-treatment chemical on your garments directly or add it together with the detergent when the machine starts to take water in the powder detergent compartment.
-
Page 19: Temperature Selection
Salad dressing Red wine Make-up Starch Machine oil Butter Baby food Curry Coal • Select the stain programme. • Select the stain you want to clean by locating it in the groups above and selecting the related group with the quick auxiliary function button. -
Page 20: Spin Speed Selection
4.3.7 Spin speed selection Whenever a new programme is selected, the recommended spin speed of the selected programme is displayed on the Spin Speed indicator. It is possible that the recommended spin speed value is not the maximum spin speed that can be selected for the current programme. -
Page 21: Auxiliary Functions
4.3.8.1 Auxiliary functions • Prelavaggio (Prewash) A Prewash is only worthwhile for heavily soiled laundry. Not using the Prewash will save energy, water, detergent and time. • Rapido (Fast+) After selecting a programme, you can press the Quick Wash setting key to shorten the programme duration. For some programmes, the duration can shorten by over 50%. -
Page 22: To Activate The Child Lock
• Anti-Crease+ This function is selected when the spin selection button is pressed and held for 3 seconds and the programme follow-up light for the relevant step turns on. When the function is selected, the drum rotates for up to 8 hours for preventing the laundry from creasing at the end of the programme. -
Page 23: Starting The Programme
In order for the End Time function is activated and the programme is completed at the end of the specified time, you must press Start/Pause button after adjusting the time. If you want to cancel End Time function, turn the knob to on and off position. machine. When you have activated the End Time function, do not add liquid detergent in the powder detergent compartment no 2. - Page 24 If the Remote Control Function is selected, the door will be locked. In order to open the door you must deactivate Remote Start Function by either pressing the Remote Start button or changing the programme position. Opening the loading door in case of power failure: In case of a power failure, you can use the loading door emergency handle under the pump filter lid to manually open the loading door.
-
Page 25: Changing The Programme Selection After Programme Has Started
If the temperature of the water inside the machine is above 50°C, you cannot deactivate the door lock for safety reasons, even if the water level is suitable. Switching the machine to pause mode: Press the Start/Pause button to switch the machine to pause mode. Pause symbol will flash on the display. Changing the programme selection after programme has started: The programme change is allowed when the current programme is running unless the Child Lock is enabled. - Page 26 To use the HomeWhiz function, the app must be installed on your smart device and your washing machine must be paired to your smart device via bluetooth. If your washing machine is not paired to your smart device it works as an appliance which does not have a HomeWhiz feature.
- Page 27 HomeWhiz Application may require you to type the product number shown on the product label. You can find the product label inside of the appliance door. The product number will be shown on the label. 4.3.15.2 Setting up a washing machine that is connected to someone else's account If the washing machine you want to use was previously introduced to the system with someone else‘s account, you must establish a new connection between your HomeWhiz Application and the appliance.
-
Page 28: Drum Illumination
Once you activate this function on the washing machine, it will remain enabled apart from certain conditions and allow you to control your washing mahine remotely via bluetooth. In certain cases, it deactivates itself for safety reasons: • When your washing machine undergoes a power interruption. •... -
Page 29: Maintenance And Cleaning
4.4 Maintenance and cleaning Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals. 4.4.1 Cleaning the detergent drawer Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent accumulation of powder detergent in time. -
Page 30: Draining Remaining Water And Cleaning The Pump Filter
4.4.5 Draining remaining water and cleaning the pump filter The filter system in your machine prevents solid items such as buttons, coins and fabric fibres clogging the pump impeller during discharge of washing water. Thus, the water will be discharged without any problem and the service life of the pump will extend. -
Page 31: Troubleshooting
Troubleshooting Please read the “Safety Instructions” section first! Problem Cause Solution Programmes do not start after the Start / Pause / Cancel button is not pressed. • Press Start / Pause / Cancel button. loading door is closed. It may be difficult to close the loading door in case of •... - Page 32 Problem Cause Solution Washing takes longer than Water pressure is low. • Product waits until taking in adequate amount specified in the user manual.(*) of water to prevent poor washing quality due to the decreased amount of water. Therefore, the washing time extends.
- Page 33 Problem Cause Solution Washing performance is poor: Insufficient amount of detergent is used. • Use the recommended amount of detergent Stains persist or the laundry is not appropriate for water hardness and the laundry. whitened. (**) Excessive laundry is loaded in. •...
- Page 34 Problem Cause Solution Detergent residue in the detergent Detergent was put in wet drawer. • Dry the detergent drawer before putting in drawer. (**) detergent. Detergent has gotten damp. • Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
- Page 35 Repair and repair attempts by end-users for parts not included in such list and/or not following the instructions in the user manuals for self-repair or which are available in support.beko.com, might give raise to safety issues not attributable to Beko, and will void the warranty of the product.
