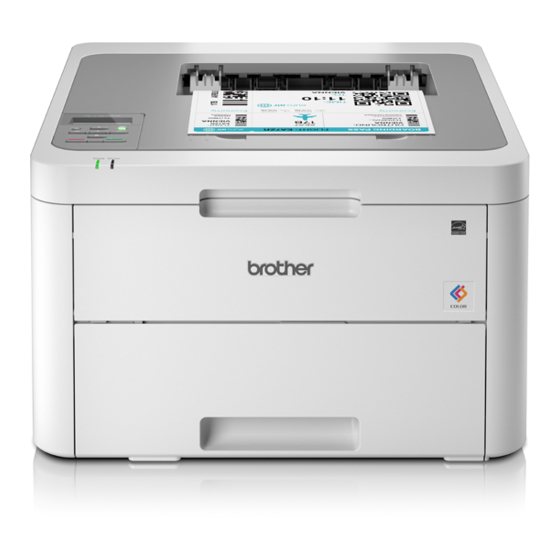

Brother HL-L3210CDW Quick Setup Manual

HL-L3210CW / HL-L3230CDN / HL-L3230CDW / HL-L3270CDW
Quick Setup Guide

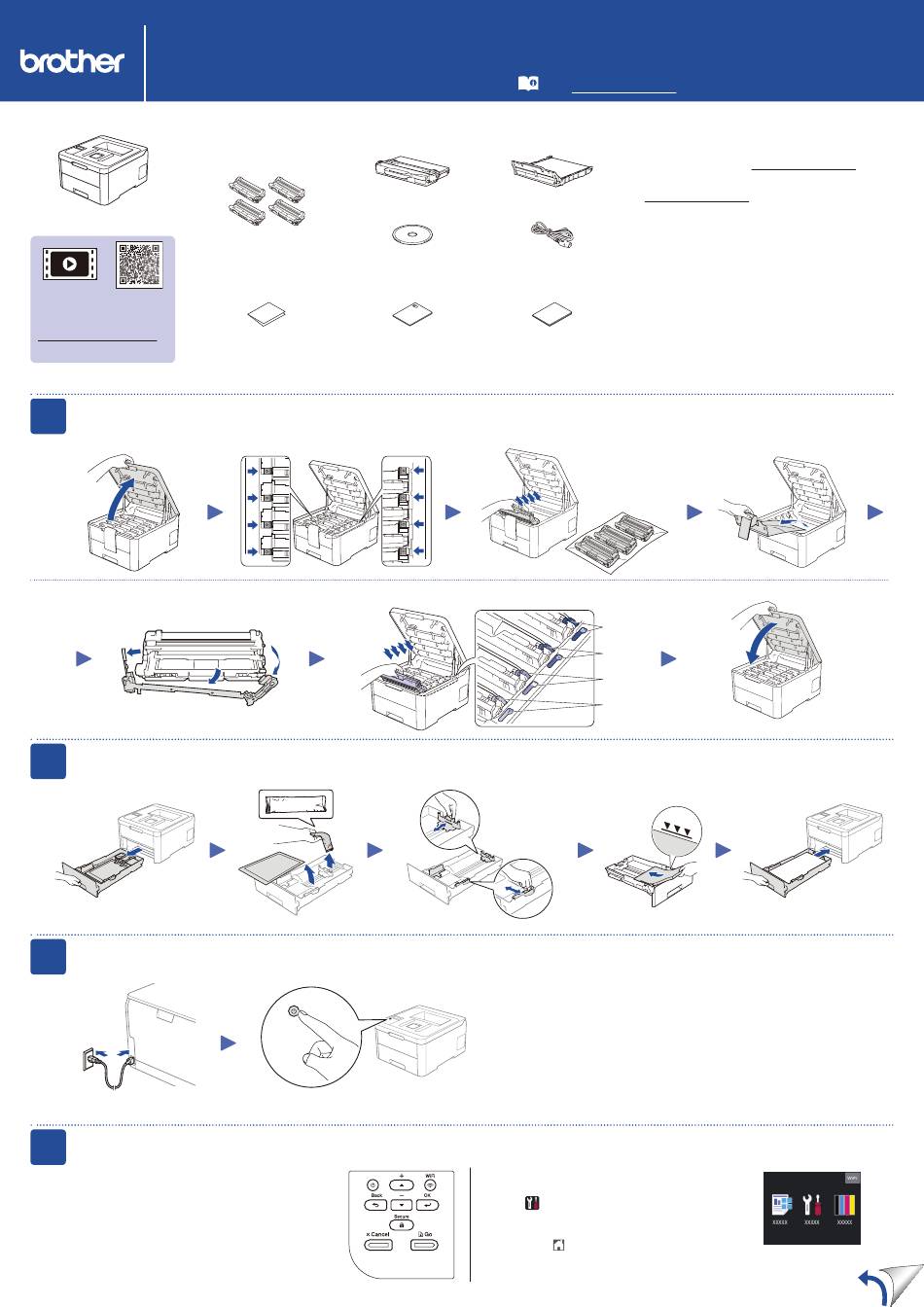

Unpack the machine and check the components
Drum Unit and Toner Cartridge
(Black, Cyan, Magenta, and Yellow)
Watch our Video FAQs for
help with setting up your
Brother machine:
support.brother.com/videos.
1
Remove the packing materials and re-install the drum unit and toner cartridge assembly
Remove all the blue packing tape.
Remove the orange part from each
cartridge.
2
Load paper in the paper tray
3
Connect the power cord and turn the machine on
Back
4
Select your language (if needed)
„ For LCD models
1.
Press ▼ or ▲ to select [Initial Setup], and
then press OK.
2.
Press ▼ or ▲ to select [Local Language], and
then press OK.
3.
Press ▼ or ▲ to select your language, and then
press OK.
4.
Press Cancel.
Waste Toner Box*
Brother Installation Disc
Assemblies*
Quick Setup Guide Product Safety Guide
Slide all eight yellow drum locks.
Push firmly.
x4
Front
Read the Product Safety Guide first, then read this Quick
Setup Guide for the correct installation procedure.
Not all models are available in all countries.
The latest manuals are available at the Brother Solutions
Center: support.brother.com/manuals.
NOTE:
* Already installed in the machine
• Manuals in Spanish for this model are available on the Brother
Belt Unit*
• The components included in the box may differ depending on your
• The available connection interfaces vary depending on the model.
• Interface cables are not included. You must purchase the correct
AC Power Cord
Reference Guide
• The illustrations in this Quick Setup Guide show the HL-L3230CDW.
(only for certain models)
• This machine's Reference Guide is either printed for you or is
BK
C
M
Y
Do not exceed this mark.
Adjust the paper
guides.
„ For Touchscreen models
1.
On the machine's Touchscreen, press
[Settings] > [All Settings] >
[Initial Setup] > [Local Language].
2.
Press your language.
3.
Press .
Solutions Center. (USA only): support.brother.com/manuals
Los manuales en español de este modelo están disponibles en
el Brother Solutions Center. (Solamente en los Estados Unidos):
support.brother.com/manuals
country.
interface cable if you require one.
USB cable
We recommend using a USB 2.0 cable (Type A/B) that is no
more than 6 feet (2 meters) long.
Network cable (HL-L3230CDN / HL-L3230CDW / HL-L3270CDW)
Use a straight-through Category 5 (or greater) twisted-pair cable.
available on the Brother Installation Disc included in the carton.
