Operating and installation
instructions
Induction cooktops
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ
M.-Nr. 11 373 090

Advertisement

Table of Contents
loading

Related Manuals for Miele KM 7999 FR

Summary of Contents for Miele KM 7999 FR

  • Page 1 Operating and installation instructions Induction cooktops To prevent the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time. en-AU, NZ M.-Nr. 11 373 090...

  • Page 2: Table Of Contents

    Symbols....................... 21 Before using for the first time ................22 Cleaning the cooktop for the first time..............22 Switching on the cooktop for the first time ............22 Miele@home ......................23 Con@ctivity......................26 Induction ......................29 How it works......................29 Cookware ......................
  • Page 3 Contents Booster ........................ 46 Assistant  ....................... 47 Timer........................50 Minute minder duration ..................50 Switching off automatically ................. 51 Additional functions ..................52 Stop & Go......................52 Recall........................52 Wipe protection ....................53 Demonstration mode................... 53 Displaying cooktop data ..................53 Safety features....................

  • Page 4: Warning And Safety Instructions

    “Installation”, as well as in the “Warning and Safety instructions”. Miele cannot be held liable for injury or damage caused by non- compliance with these instructions. Keep these instructions in a safe place and pass them on to any...
  • Page 5 This cooktop is not suitable for outdoor use.  It is intended only to cook food and keep it warm. Any other use is not supported by Miele and could be dangerous.  This cooktop is not intended for use by people (including children)
  • Page 6 Warning and Safety instructions Safety with children  Young children must not be allowed to use this appliance.  Older children may only use the appliance if its operation has been clearly explained to them and they are able to use it safely. They must be aware of the potential dangers caused by incorrect operation.
  • Page 7 Unauthorised installation, maintenance and repairs (including removal of any cover) can cause considerable danger for the user. Installation, maintenance and repairs must only be carried out by a Miele authorised technician.  Damage to the cooktop can compromise your safety. Check the appliance for visible signs of damage.
  • Page 8 The manufacturer's warranty will be invalidated if the appliance is not repaired by a Miele authorised service technician.  Faulty components must only be replaced by genuine Miele spare parts. The manufacturer can only guarantee the safety of the appliance when Miele replacement parts are used.
  • Page 9 Warning and Safety instructions  If the cooktop is installed behind a furniture door, do not close the door while the cooktop is in operation. Heat and moisture can build up behind the closed door. This can result in damage to the cooktop, the housing unit and the floor.
  • Page 10 Warning and Safety instructions Correct use  The cooktop gets hot when in use and remains hot for a while after being switched off. There is a danger of burning until the residual heat indicators go out.  Oil and fat can overheat and catch fire. Do not leave the cooktop unattended when cooking with oil and fat.
  • Page 11 Warning and Safety instructions  When the cooktop is switched on, either deliberately or by mistake, or when there is residual heat present, there is a risk of metal items placed on the cooktop heating up. Depending on the material, other items left on the appliance could also melt or catch fire.
  • Page 12 Warning and Safety instructions  Do not allow solid or liquid sugar, or pieces of plastic or aluminium foil to get onto the cooktop when it is hot, as they can damage the ceramic surface when it cools down. If this should occur, switch off the appliance and scrape off all the sugar, plastic or aluminium residues whilst still hot, using a shielded scraper blade suitable for use on glass.
  • Page 13 Warning and Safety instructions  To prevent damage to items which are susceptible to electromagnetic fields, e.g. credit cards, digital storage devices, pocket calculators, etc., do not leave them in the immediate vicinity of the cooktop.  Metal utensils stored in a drawer under the cooktop can become hot if the appliance is used intensively for a long time.
  • Page 14 Warning and Safety instructions Cleaning and care  Do not use a steam cleaning appliance to clean this appliance. The steam could reach the electrical components and cause a short circuit.  If the cooktop is built in over a pyrolytic oven, the cooktop should not be used whilst the pyrolytic process is being carried out, as this could trigger the overheating protection mechanism on the cooktop (see “Safety features - Overheating protection”).

  • Page 15: Caring For The Environment

    Caring for the environment Disposal of the packing Disposing of your old material appliance The transport and protective packaging Electrical and electronic appliances has been selected from materials which often contain valuable materials. They are environmentally friendly for also contain specific materials, disposal, and can normally be recycled.

  • Page 16: Overview

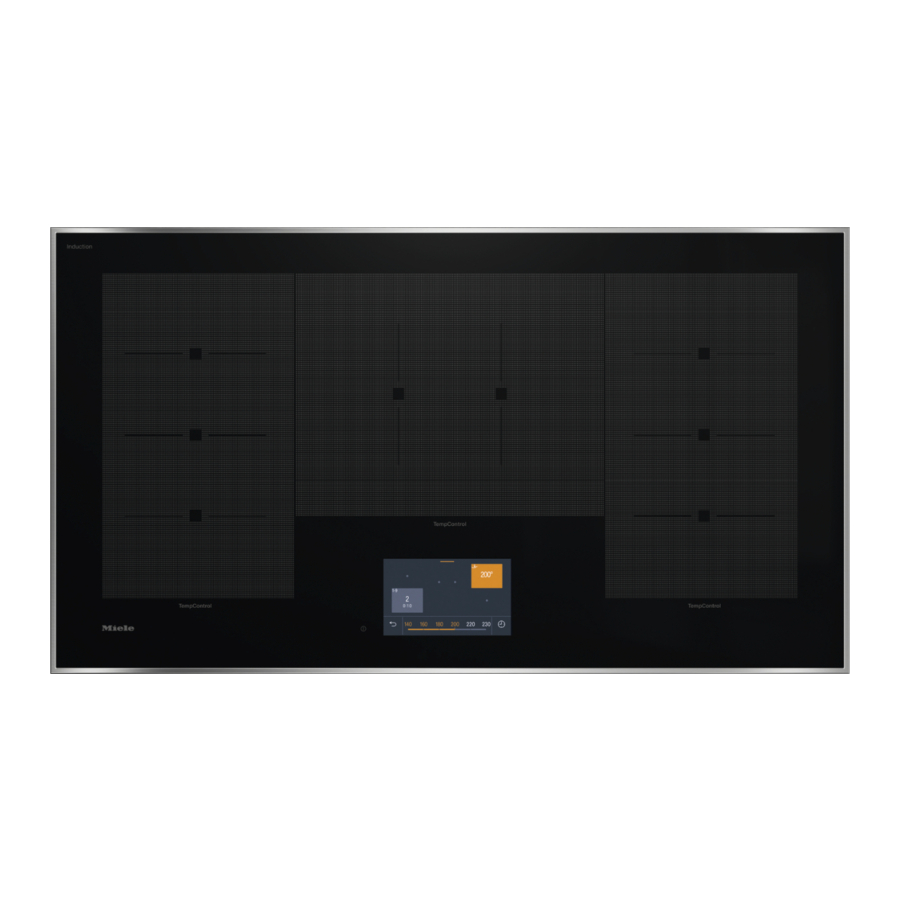

    Overview Cooktop Induction TempControl TempControl TempControl a PowerFlex Plus cooking area with TempControl b PowerFlex Plus cooking area with TempControl c PowerFlex Plus cooking area with TempControl d Sensors for TempControl e Touch display f On/Off sensor...
