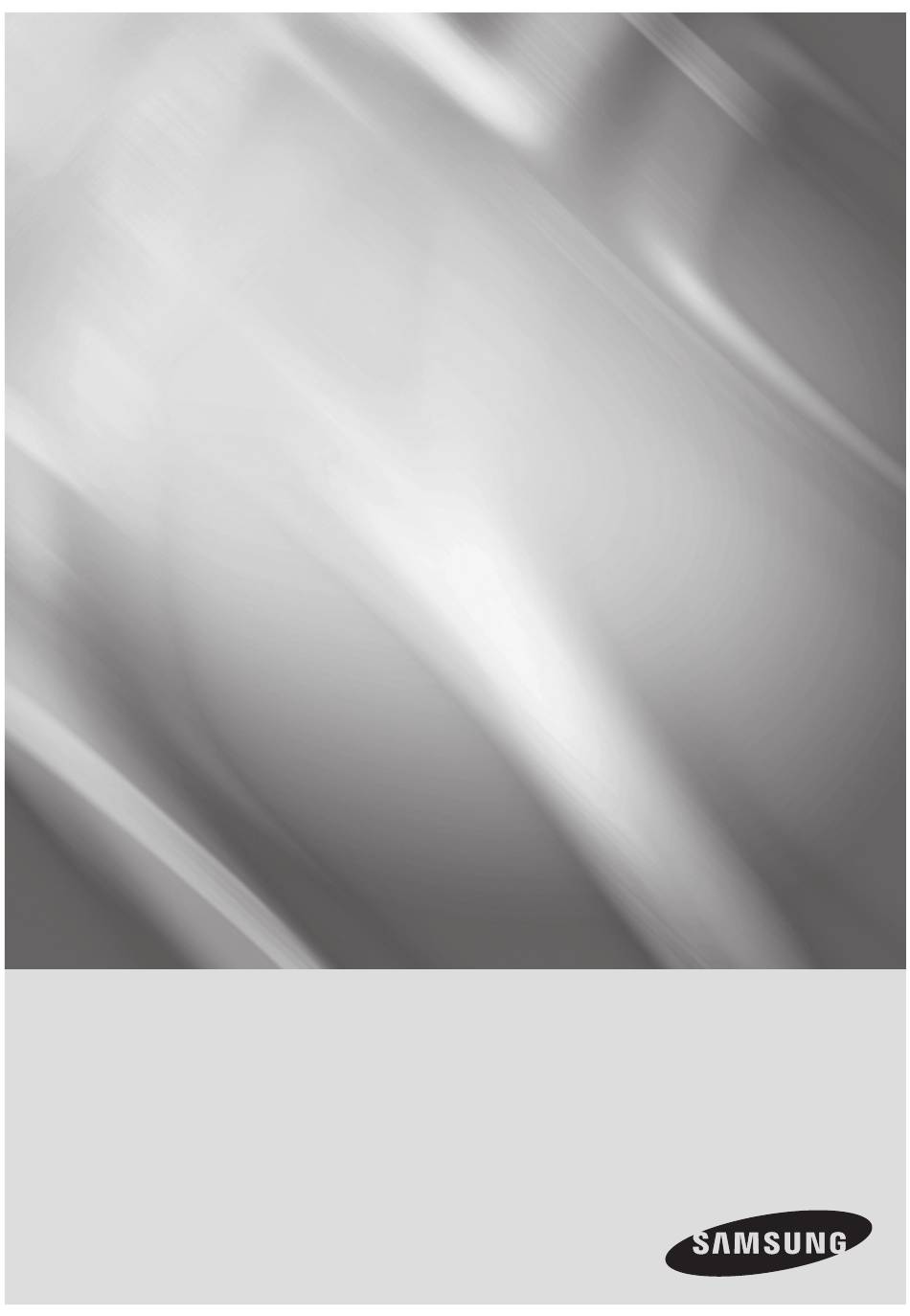

- Page 1 SCC-C6437N Smart Dome Camera User Manual imagine the possibilities Thanks you for purchasing this Samsung product. To receive a more complete service, please visit our website www.samsungsecurity.com...
- Page 2 overview CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.
- Page 3 Continued use in such a condition may cause fire or electric shock. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or attempted repair.) When cleaning, do not spray water directly onto parts of the product.
- Page 4 overview CAUTION Do not drop objects on the product or apply strong blows to it. Keep away from a location subject to excessive vibration or magnetic interference. Do not install in a location subject to high temperature (over 50°C), low temperature (below -10°C), or high humidity.
- Page 5 FCC STATEmENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : 1) This device may not cause harmful interference, and 2) This device must accept any interference received including interference that may cause undesired operation.
- Page 6 overview ImPORTANT SAFETy INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
-
Page 7: Table Of Contents
CONTENTS OvERvIEW Important Safety Instructions Contents Features What’s Included At a Glance INSTALLATION & Preparing Installation CONNECTION Installation Initial Setup Connecting With Other Device SETUP How to use the Keyboard Controller Main Menu Profile Camera Set Intelligent Video Privacy Zone Preset Auto Set Zone Set... -
Page 8: Overview
overview FEATURES With the state-of-the-art digital signal processing technology, full digital image processing and special algorithm of 600-line high resolution implemented High performance surveillance camera, equipped with x34 zoom lens and digital zoom IC, enabling monitoring up to 544 times DAY/NIGHT to improve the sensitivity by automatic conversion into the black and ... -
Page 9: At A Glance
AT A GLANCE CAmERA HOOK HOOK LENS FRAmE SET RS-485 ALARM IN POWER INPUT ALARM OUT Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have applied ethanol. English _... -
Page 10: Installation & Connection
installation & connection PREPARING INSTALLATION Use the ceiling installation template when you install the camera on the ceiling on your own. Run the cables through the “ ” shaped hole on the center of the template, and remove films on the adhesives, and then attach the template on the desired location on the ceiling. - Page 11 Use the three “SCREWS” to fix the “FRAmE SET” on a “CAmERA” installation position. FRAME SET SCREW SCREW ADAPTOR SCREW <Fixing Hole Diagram> Connect external cables to the “CONNECTORS(ALARm IN, POWER, RS-485, ALARm OUT)”and connect the “CONNECTOR” to the “ADAPTOR”. Insert the cable into the “FRAmE SET”, and close the “ADAPTOR”.
- Page 12 installation & connection Connect the “SAFETy WIRE” of the “CAmERA” to the “BRACKET WIRE” on the “FRAmE SET”. Arrange the “22P CONNECTOR” of the “CAmERA” in line with that of the “ADAPTOR”, push the “HOOK” on either end of the “CAmERA” in the “RACK” direction of the “FRAmE SET”...
- Page 13 Arrange the “COvER” arrow in line with the “FRAmE SET” arrow, and push in the “COvER”. Insert the “COvER” to the end, and turn the “COvER” clockwise. As shown in the figure below, turn it until you see the “BUTTON” hole and hear a click.
-
Page 14: Initial Setup
SW606 SW605 SW604 (x100) (x10) (x1) Communication Protocol Setup Use pins #1~#4 of SW603 to specify the communication protocol. A : SAMSUNG HALF PIN1 PIN2 PIN3 PIN4 Comp B : SAMSUNG FULL <Bottom of the camera holder> 1_ installation & connection... - Page 15 Baud Rate Setup Use pins #5, #6 of SW603 to set the baud rate. BAUD RATE PIN 5 PIN 6 4800 BPS 9600 BPS 19200 BPS 38400 BPS The factory default is 9600 BPS. Setting RS-422A/RS-485 Termination As it is shown in the structure map, when Controller and RS-422A/RS-485 is connected, it should be terminated according to the Cable feature of impedance on the each end of the transmitting line to transfer the signals in long distance by controlling the reflection of the signals to the lowest.
- Page 16 installation & connection n < 32 Termination SW1-ON Controller SW2-ON Termination CAM 1 CAM 2 CAM n-1 CAM n <RS-422A/RS-485 Full Duplex Organization> A communication error may occur if you connect multiple cameras that are assigned the same address in the network. 1_ installation &...
-
Page 17: Connecting With Other Device
CONNECTING WITH OTHER DEvICE MONITOR CONTROLLER/DVR ALARM IN POWER SOURCE ALARM OUT Connecting to a monitor Connect one end of the BNC video cable connector to the Video Output Terminal (VIDEO OUT). Connect the other end of the Video terminal on the connector to the Video Input rear of monitor Terminal of the monitor. - Page 18 installation & connection To connect ALARm IN Connect one end of the external device's signal line to a corresponding ALARM IN port of the monitor. Connect the other end of the signal line to the earth-grounding [GND] port. To connect ALARm OUT Connect one end of the external device's signal line to a corresponding ALARM OUT port of the monitor.
- Page 19 Connecting the adaptor cable Adaptor Board Power Supply Connect the cables as necessary, and turn on the camera to check if it works properly. Connect the adaptor to the power terminal of the camera. Plug the power cord of the adaptor into the wall outlet. English _1...
-
Page 20: Setup
setup Connect the camera to the keyboard controller or DVR, with which you can manipulate and change the settings of the camera. HOW TO USE THE KEyBOARD CONTROLLER Follow the steps below to set the camera menu using the controller. Open the Camera Setup screen. -
Page 21: Main Menu
mAIN mENU This is the first screen you ever see when you turn on the camera where you can set the camera environment to your needs. For selecting and saving each menu item, refer to “How to use the keyboard controller”. (page 20) PROFILE ... -
Page 22: Profile
setup PROFILE You can select one from the pre-determined configurations as appropriate to your specific camera installation environment. Your selection on each item in PROFILE will affect all other settings of the camera. STANDARD PROFILE Automatically optimizes the camera settings to the normal environment. - Page 23 CAmERA SETUP mENU STANDARD BACKLIGHT DAy/NIGHT GAmING Parent menu Sub-menus MEDIUM MEDIUM MEDIUM MEDIUM MEDIUM AUTO AUTO AUTO NIGHT BURST DAy/NIGHT BURST DAY/NIGHT DAY/NIGHT ATW2 ATW1 ATW1 ATW1 ATW1 mODE BLUE WHITE BAL NIGHT BRIGHTNESS Custom Setting MEDIUM Custom Setting MEDIUM Custom Setting mODE...
-
Page 24: Camera Set
setup CAmERA SET You can configure the general settings of the camera module. For selecting and saving each menu item, refer to “How to use the keyboard controller”. (page 20) Select <mAIN mENU> - <CAmERA SET>. The Camera Setup menu appears. CAMERA SET ... - Page 25 IRIS The IRIS menu is useful if you set to adjust the intensity of radiation incoming to the camera. [ 00 ] ----I---- LEVEL ALC : Adjust the open and close of the iris. BACKLIGHT - LEVEL : Select an overall brightness level. AREA USER <SIZE>...
- Page 26 setup As long as the DAY/NIGHT menu is set to AUTO in Camera Setup, the AGC menu is not available. As long as FLICKERLESS is set to ON, the AGC mode is not available. mOTION You can specify a level of AGC for controlling the camera motion. This is available only of the SENSE UP menu is set to AUTO.
- Page 27 FLICKERLESS This will prevent possible screen distortion due to a mismatch between the vertical sync frequency and the blinking frequency of the lighting; if set to <ON>, the shutter speed will be fixed to 1/100 second. If SHUTTER is set to FIX, SENSE UP to FIX, and AGC to FIX, the <FLICKERLESS> menu is not available.
- Page 28 setup NIGHT DAY DWELL TIME : Time required to determine the filter switch. MASK AREA : If there exists a bright MASK AREA spot light source in a night scene, you can specify the size and position as <SIZE> <LOCATION>...
- Page 29 WHITE BAL If you need to adjust the color according to the ambient illumination, you can use the <WHITE BAL> function. For selecting and saving each menu item, refer to “How to use the keyboard controller”. (page 20) Illumination is generally referred to as color temperature, which is represented in a measurement of kelvin (K).
- Page 30 setup Select <CAmERA SET> - <WHITE BAL>. Select a mode where you set the <WHITE BAL>. DAY : You can set the RED, and BLUE value in DAY mode. WHITE BAL The screen will be displayed in colors DAY/NIGHT according to your settings.
- Page 31 FOCUS mODE You can select a focus mode according to the angle that you adjusted for camera recording. DAY/NIGHT AUTO - AF : This will monitor the screen continuously WHITE BAL to focus automatically. If you adjust the focus FOCUS MODE ONEAF ZOOM SPEED manually, that will operate the same as in...
- Page 32 setup v-SyNC You can set the V-SYNC mode. - If you select <INT>, the camera will use the internal synchronization. - If selecting <LINE>, the camera will use an external power frequency for synchronization. The LL-PHASE can be adjusted as appropriate. AGC COLOR SUP AGC COLOR SUP You can adjust the color reproduction range...
-
Page 33: Intelligent Video
INTELLIGENT vIDEO You can enable the motion detection and tracking functions. For selecting and saving each menu item, refer to “How to use the keyboard controller”. (page 20) Select <mAIN mENU>-<INTELLIGENCE>. INTELLIGENCE Select each item and set appropriately. MOTION mOTION ADVANCED... -
Page 34: Privacy Zone
setup DISPLAy When selected <ON>, it displays the motion detected and detection of configured advanced function. SENSITIvITy Sets the sensitivity of motion sensor. RESOLUTION The bigger the resolution setting, the smaller the object that can be detected. ALARm OUT ALARM OUT When selected <ON>, it outputs alarm MOTION signal when the motion is detected and on a... -
Page 35: Preset
Select the <PIxEL LEvEL>. PRIVACY ZONE SET 1 Select the pixel level for the SIZE and LOCATION settings. <SET P/T/Z> PIXEL LEVEL [ 4 ] Select the <SIZE> and press [ENTER]. <SIZE> Using the joystick, set the size of the <LOCATION>... - Page 36 setup Select the preset number. PRESET 1/16 Select <POSITION> and adjust <PAN/ PRESET NO. 1 TILT/ZOOm> to the desired setup using the joystick. POSITION PRESET ID Set <PRESET ID> to <ON> and enter the PRESET SPEED [ 5 ] name.
-
Page 37: Auto Set
The preset position can be specified for a tilt range of between -6° and 90°. Those presets that are out of a tilt of 90° can not be specified. If you try to specify a preset position for a range exceeding a tilt of 90° using a controller (SSC-1000, 2000 or 5000), you will see a message of <SET AGAIN>... - Page 38 setup Select each item and set appropriately. AUTO PAN 1 POSITION : Set the starting and ending positions for the <AUTO PAN>. POSITION DIRECTION LEFT Move to the setting screen and adjust ENDLESS pan/tilt to the desired starting position, [10] SPEED and then press [ENTER].
- Page 39 Pattern Setup You can manually record your pan/tilt/zoom movements to a monitoring pattern for up to 2 minutes. For selecting and saving each menu item, refer to “How to use the keyboard controller”. (page 20) Select <mAIN mENU>-<AUTO SET>. PATTERN SET 1 Select the pattern number.
- Page 40 setup Auto Play Setup AUTO PLAY runs configured AUTO PAN, PATTERN, and SCAN functions automatically. For selecting and saving each menu item, refer to “How to use the keyboard controller”. (page 20) Select <mAIN mENU>-<AUTO SET>. AUTO SET Select the <AUTO PLAy>...
-
Page 41: Zone Set
ZONE SET You can set the north direction and the zone coverage. For selecting and saving each menu item, refer to “How to use the keyboard controller”. (page 20) Select <mAIN mENU>-<ZONE SET>. MAIN MENU PROFILE CAMERA SET INTELLIGENCE PRIVACY ZONE PRESET... -
Page 42: Alarm Set
setup ALARm SET It provides 8 alarm inputs and 3 alarm outputs. Detects alarm inputs from the external sensors cooperating with configured presets, patterns, and scan functions, and produces alarm outputs. Alarm’s dwell time is defined by the corresponding preset’s <DWELL TImE>... - Page 43 ALARM IN SET : Select the alarm sensor operation between <NO>, <NC> and <OFF>. ALARM OUT SET : Set the alarm out port matched to the alarm input port. AUTO SET : Sets the pattern and scan AUTO SET action for the corresponding alarm ALARM1...
-
Page 44: Clock Set
setup CLOCK SET Sets whether to display the clock on the screen and its time format. For selecting and saving each menu item, refer to “How to use the keyboard controller”. (page 20) Select <mAIN mENU>-<CLOCK SET>. CLOCK SET ... - Page 45 FACTORy DEFAULTS When selected, the <FACTORy DEFAULTS> screen appears and you can reset all settings to the factory default settings by selecting the <OK>. However, the protocol, baud rate, FACTORY DEFAULTS address and the language settings will not be reset. CANCEL Note that the resetting the system to the factory default will erase all settings data.
-
Page 46: Communication
Select each item and set appropriately. RS485 PRIORITY : Set the priority by selecting PRIORITY <HW> or <SW>. PROTOCOL SAMSUNG When selected <HW>, the protocol, HALF BAUD RATE 9600 baud rate and address settings will ADDRESS follow those settings of the adaptor switch. -
Page 47: Language
LANGUAGE You can set the language of the user interface. For selecting and saving each menu item, refer to “How to use the keyboard controller”. (page 20) Select <mAIN mENU>-<LANGUAGE>. LANGUAGE Select your language using the up/down keys. ENGLISH ... -
Page 48: Appendix
appendix appendix Shortcut KeyS Function DAY/NIGHT - DAY [PRESET] + [5] + [1] + [2] + [ENTER] DAY/NIGHT - NIGHT [PRESET] + [5] + [1] + [3] + [ENTER] DAY/NIGHT - AUTO [PRESET] + [5] + [1] + [4] + [ENTER] DAY/NIGHT - EXT [PRESET] + [5] + [1] + [5] + [ENTER] IRIS - ALC... -
Page 49: Specifications
SpeciFicAtionS item Description product type SMART DOME CAMERA power Source AC 24 V (60 Hz) power consumption tV Standard NTSC STANDARD COLOR SYSTEM image Sensor Super-HAD IT CCD 768(H) × 494(V) effective pixels Horizontal : 15, 734 Hz (INT) / 15, 750 Hz (L/L) tV line frequency Vertical : 59.94 Hz (INT) / 60 Hz (L/L) INT/LINE LOCK... - Page 50 appendix item Description PAN range : 360˚Endless Preset Pan Speed : 600˚/sec, maximum Manual Pan Speed : 0.01˚~ 180˚/sec Tilt range : -6˚~186˚ tiLt Preset Tilt Speed : 600˚/sec, maximum Manual Tilt Speed : 0.01˚~ 180˚/sec RS485(Half&Full Duplex)/RS422, remote control Data on Coaxial Cable Alarm Inputs : 8 IN Alarm...
-
Page 51: Product Appearance
proDuct AppeArAnce English _51...
