HP ProCurve Switch
Gigabit Stacking Kit Installation Guide
Introduction
The HP ProCurve Switch Gigabit Stacking Kit (HP J4116A) is used to provide
a 1000 Mbps stacking connection between any two HP ProCurve switches
that support the kit. The kit consists of two HP ProCurve Gigabit Stacking
Transceivers and a 0.5-meter shielded twisted-pair Stacking Cable.

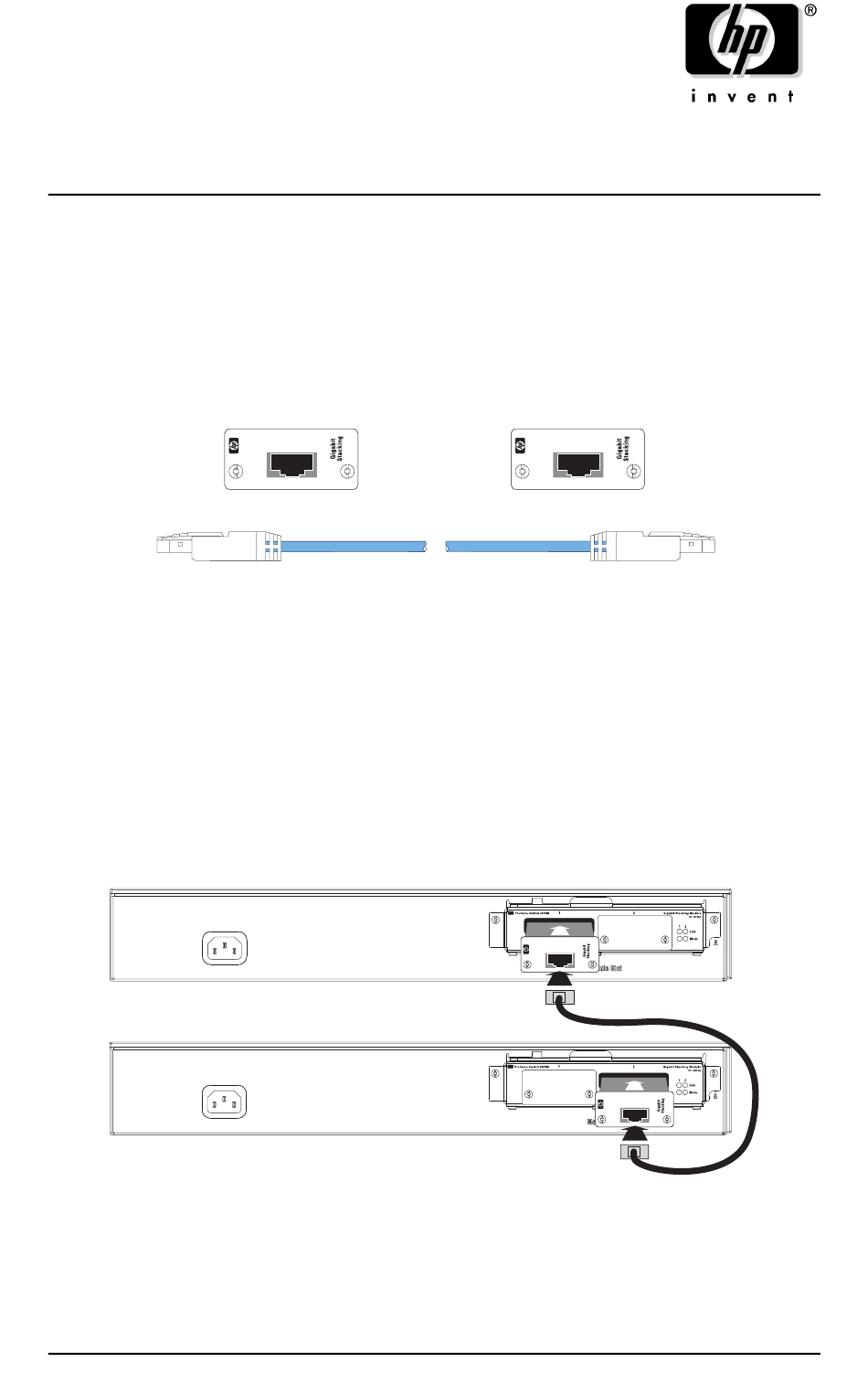

HP ProCurve Switch Gigabit Stacking Kit
Install each of the transceivers in the kit into either one of the transceiver
slots of two HP ProCurve Switch 2424M Gigabit Stacking Modules
(HP J4130A) or a transceiver slot in any other HP ProCurve switch that
supports these transceivers. If you are using the Gigabit Stacking Module,
the module is then installed into the module slot of an HP ProCurve Switch
2424M that you want to stack. The Gigabit Stacking Transceivers installed
in modules, or directly in switches, are then connected through the Stacking
Cable supplied in the kit as shown in the illustration below.
To connect another switch to these two requires another Gigabit Stacking
Kit.
1
Advertisement
Related Manuals for HP HPJ4116A
Summary of Contents for HP HPJ4116A
- Page 1 (HP J4130A) or a transceiver slot in any other HP ProCurve switch that supports these transceivers. If you are using the Gigabit Stacking Module, the module is then installed into the module slot of an HP ProCurve Switch 2424M that you want to stack. The Gigabit Stacking Transceivers installed in modules, or directly in switches, are then connected through the Stacking Cable supplied in the kit as shown in the illustration below.
-
Page 2: Installation Notes
This document describes how to install, verify, and troubleshoot the HP ProCurve Switch Gigabit Stacking Kit. Installation Notes: Please read these notes before proceeding. The illustrations in this document show the HP ProCurve Gigabit Stacking Transceivers being used in a small number of the HP networking devices that are designed to accept them. -
Page 3: Installation Steps
Installation Steps To install the HP Gigabit Stacking Kit, follow these steps: 1. Follow anti-static precautions when handling the Stacking Transceivers and Switch 2424M Gigabit Stacking Module (if used). When handling the transceivers (and module) and installing them in your switch, follow these procedures to avoid damage from static electricity: •... - Page 4 6. If the transceiver has been installed in a Switch 2424M Gigabit Stacking Module, reinstall the module into the Switch 2424M and make sure the switch is powered on, or simply power on the switch if you did not remove the module. For the Series 2300 and 2500 Switches, reset or reboot the switch to initialize and activate the transceiver.
- Page 5 Connect the Stacking Cable to the Transceiver Ports To connect the 0.5-meter Stacking Cable to the trans- ceiver: 1. Press the cable connector into the transceiver jack so that the connector snaps securely into place. 2. Repeat for the Stacking Transceiver in the other switch at the other end of the cable.
-
Page 6: Troubleshooting
2500 Switches Installation and Getting Started Guide (5969-2353). For the managed switches, you can also use the switch's console interface, the switch’s web browser interface, or HP TopTools for Hubs & Switches to troubleshoot and configure the Gigabit transceiver port. See the switch's Management and Configu-... -
Page 7: Customer Support Services
Complies with Canadian EMC Class A requirements The Gigabit Stacking Kit is designed for operation with the HP ProCurve Switch 2424M and the HP ProCurve Series 2300 and 2500 Switches. The kit components are listed in the Declaration of Conformity for those switches. - Page 8 Technical information in this document is subject to change without notice. ãCopyright Hewlett-Packard Company, 2000. All rights reserved. Reproduction, adaptation, or translation without prior written permission is prohibited except as allowed under the copyright laws. Printed in Singapore 10/2000 Manual Part Number J4116-90101 *J4116-90101*...
