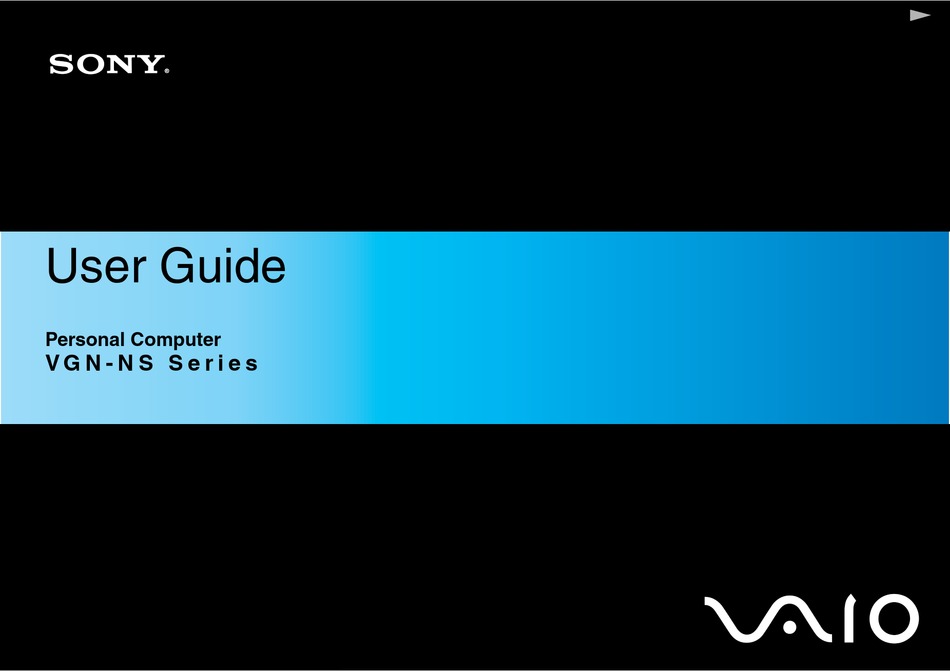

Page 1: User Guide
User Guide Personal Computer V G N - N S S e r i e s...
Page 2: Table Of Contents
Contents Before Use ...6 Documentation ...7 Ergonomic Considerations ...9 Getting Started ...11 Locating Controls and Ports...12 About the Indicator Lights ...18 Connecting a Power Source ...20 Using the Battery Pack ...21 Shutting Down Your Computer Safely ...29 Using Your VAIO Computer ...30 Using the Keyboard ...31 Using the Touch Pad ...33 Using Special-function Buttons ...34...
Page 3 Using Peripheral Devices ...66 Connecting External Speakers ...67 Connecting an External Display ...68 Selecting Display Modes...71 Using the Multiple Monitors Function ...73 Connecting an External Microphone ...76 Connecting a Universal Serial Bus (USB) Device...77 Connecting a Printer ...80 Connecting an i.LINK Device ...81 Customizing Your VAIO Computer ...83 Setting the Password ...84 Setting Up Your Computer with the VAIO Control Center...89...
Page 4 Precautions ...104 Handling the LCD Screen ...105 Using the Power Source ...106 Handling Your Computer ...107 Handling the Built-in MOTION EYE Camera...109 Handling Floppy Disks ...110 Handling Discs ...111 Using the Battery Pack ...112 Using Headphones ...114 Handling the Memory Stick ...115 Handling the Hard Disk ...116 Updating Your Computer ...117 Troubleshooting ...118...
Page 5 Speakers ...149 Touch Pad...151 Keyboard...152 Floppy Disks ...153 Audio/Video...154 Memory Stick ...156 Peripherals ...157 Support Options ...158 Sony Support Information ...159 Program Support Information...162 Trademarks ...173...
Page 6: Before Use
Information in the supplied manuals including this User Guide is intended for users of the VAIO computers with the Microsoft bit operating system. You may find differences in the information when your computer comes preinstalled with the 64-bit operating system. ® computer, and welcome to the on-screen User Guide. Sony has Before Use ®...
Page 7: Documentation
❑ Specifications — The online specifications describe the hardware and software configurations of your VAIO computer. To view the online specifications: Connect to the Internet. Go to the Sony online support web site at the following URLs: http://esupport.sony.com/EN/VAIO/ http://www.sony.ca/support/ http://esupport.sony.com/LA/ http://esupport.sony.com/BR/...
Page 8: Help And Support
Access your VAIO user guide, interactive help in the form of VAIO tutorials, how-to articles, the VAIO technology page, specifications, and system and software information. ❑ Troubleshoot my VAIO Maintain and troubleshoot your VAIO computer with VAIO Care, system restore, backup and recovery, and contact Sony support. Before Use...
Page 9: Ergonomic Considerations
Ergonomic Considerations You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations for both stationary and portable environments: ❑ Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard, touch pad, or external mouse.
Page 10 ❑ Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display as well.
Page 11: Getting Started
Getting Started This section describes how to get started using your VAIO computer. Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Be sure to start up your computer with only the supplied accessories connected and set up your system. Upon completion, connect one device (for example, a printer, an external hard disk drive, a scanner, and so on) at a time, following the manufacturers' instructions.
Page 12: Locating Controls And Ports
Locating Controls and Ports Take a moment to identify the controls and ports shown on the following pages. Front Muting (S1) button (page 34) AV MODE button (page 34) Num lock indicator (page 18) Caps lock indicator (page 18) Scroll lock indicator (page 18) Power button LCD screen...
Page 13 Built-in MOTION EYE camera (page 35) Built-in MOTION EYE camera indicator Built-in microphone (monaural) WIRELESS switch (page 63) WIRELESS indicator (page 18) SD memory card slot (page 57) SD memory card indicator (page 18) Power indicator (page 18) Charge indicator (page 18) Hard disk drive/Optical disc drive indicator Memory Stick indicator...
Page 14 Back DC IN port (page 20) Network (Ethernet) port (page 62) Modem port (page 60) Getting Started...
Page 15 Right Hi-Speed USB (USB 2.0) ports (page 77) Optical disc drive (page 38) Optical disc drive indicator (page 18) Drive eject button (page 38) Manual eject hole (page 137) Security slot Support high-/full-/low- speeds. Getting Started...
Page 16 Left Air vent Monitor port (page 68) Microphone jack (page 76) Headphones jack (page 67) Hi-Speed USB (USB 2.0) ports (page 77) i.LINK 4-pin (S400) port (page 81) ExpressCard/34 slot (page 48) Support high-/full-/low- speeds. Getting Started...
Page 17 Bottom Battery connector (page 21) Air vents Memory module compartment cover (page 100) Getting Started...
Page 18: About The Indicator Lights
About the Indicator Lights Your computer is equipped with the following indicator lights: Indicator Functions Power 1 Illuminates in green when the computer is on, blinks slowly in orange while the computer is in Sleep mode, and turns off when the computer is off or in Hibernate mode. Illuminates while the battery pack is charging.
Page 19 Indicator Functions WIRELESS Illuminates when the WIRELESS switch is turned on. On selected models only. Getting Started...
Page 20: Connecting A Power Source
Connecting a Power Source You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer. Using the AC Adapter ✍ Use only the supplied AC adapter for your computer. To use the AC adapter Plug one end of the power cord (1) into the AC adapter (3).
Page 21: Using The Battery Pack
Using the Battery Pack The battery pack supplied with your computer is not fully charged at the time of delivery. Installing the Battery Pack To install the battery pack Turn off the computer and close the LCD screen lid. Slide the battery LOCK switch (1) inward. Getting Started...
Page 22 Getting Started Slide the battery pack diagonally into the battery compartment until the projections (2) on either side of the battery compartment fit into the U-shaped cuts (3) on either side of the battery pack.
Page 23 Slide the battery LOCK switch outward to secure the battery pack on the computer. ✍ When your computer is directly connected to AC power and has a battery pack installed, it uses power from the AC outlet. This computer is designed to operate only with genuine Sony battery packs. Getting Started...
Page 24: Charging The Battery Pack
Charging the Battery Pack The battery pack supplied with your computer is not fully charged at the time of delivery. To charge the battery pack Install the battery pack. Connect the AC adapter to the computer. The charge indicator light turns on while the battery pack is charging. When the battery pack charges close to the maximum charge level you selected with the battery charge functions, the charge indicator turns off.
Page 25 Getting Started ✍ Keep the battery pack in your computer while it is directly connected to AC power. The battery pack continues to charge while you are using the computer. If the battery charge level falls below 10%, you should either connect the AC adapter to recharge the battery pack or shut down your computer and install a fully charged battery pack.
Page 26 To check the battery charge capacity Follow steps 1 to 4 in To enable the battery care function above and check detailed information. If the battery charge capacity is low, replace the battery pack with a new genuine Sony battery pack. Getting Started...
Page 27 Using the Battery Life Conserving Wallpaper You can conserve your battery life just by setting the specific wallpaper as your desktop background. To set the battery life conserving wallpaper Click Start, All Programs, and VAIO Control Center. Click Display and then Long Battery Life Wallpaper Setting. Click Set Long Battery Life Wallpaper.
Page 28: Removing The Battery Pack
Removing the Battery Pack You may lose data if you remove the battery pack while your computer is on and not connected to the AC adapter or if you remove the battery pack while the computer is in Sleep mode. To remove the battery pack Turn off the computer and close the LCD screen lid.
Page 29: Shutting Down Your Computer Safely
Shutting Down Your Computer Safely To avoid losing unsaved data, be sure to shut down your computer properly, as described below. To shut down your computer Turn off any peripherals connected to the computer. Click Start, the arrow next to the Lock button, and then Shut Down. Respond to any prompts warning you to save documents or to consider other users and wait for the computer to turn off automatically.
Page 30: Using Your Vaio Computer
Using Your VAIO Computer Using Your VAIO Computer This section describes how to get the most out of using your VAIO computer. ❑ Using the Keyboard (page 31) ❑ Using the Touch Pad (page 33) ❑ Using Special-function Buttons (page 34) ❑...
Page 31: Using The Keyboard
Using the Keyboard Your keyboard is very similar to a desktop computer keyboard, but has additional keys that perform model-specific tasks. Combinations and Functions with the Fn Key ✍ Some keyboard functions can be used only after the operating system is finished launching. Combinations/Feature Fn + % (F2): speaker switch Fn + 2 (F3/F4): speaker volume...
Page 32 Combinations/Feature Fn + (F12): hibernate Functions Provides the lowest level of power consumption. When you execute this command, the states of the system and the connected peripheral devices are saved to the hard disk drive and the system power is turned off. To return the system to its original state, use the power button to turn on the power.
Page 33: Using The Touch Pad
Using the Touch Pad You can point to, select, drag, and scroll objects on the screen using the touch pad. Action Description Point Slide your finger on the touch pad (1) to place the pointer (2) on an item or object. Click Press the left button (3) once.
Page 34: Using Special-Function Buttons
Using Special-function Buttons Your computer is equipped with special buttons to help you use specific functions of the computer. Special-function button Muting (S1) button AV MODE button Functions By default, the muting (S1) button turns the volume on and off. ✍...
Page 35: Using The Built-In Motion Eye Camera
Using the Built-in MOTION EYE Camera Your computer may be equipped with a built-in MOTION EYE camera. See the online specifications to find out whether your model is equipped with the built-in MOTION EYE camera. The built-in MOTION EYE camera adds video functionality to instant messaging software and video editing software and enables you to capture still images and movies with the preinstalled image capture software.
Page 36: To Capture A Still Image
Capturing Still Images To capture a still image Click Start, All Programs, ArcSoft WebCam Companion 2, and WebCam Companion 2 to launch the WebCam Companion 2. Click the Capture icon in the main window. Frame your subject in the viewfinder. Click the Capture button below the displayed image.
Page 37 Capturing Movies To capture a movie Click Start, All Programs, ArcSoft WebCam Companion 2, and WebCam Companion 2 to launch the WebCam Companion 2. Click the Record icon in the main window. Frame your subject in the viewfinder. Click the Record Video button below the displayed image to start movie recording. When finished, click the Record Video button once again to stop movie recording.
Page 38: Using The Optical Disc Drive
Using the Optical Disc Drive Your computer is equipped with an optical disc drive. To insert a disc Turn on the computer. Press the drive eject button (1) to open the drive. The drive tray slides out. Place a disc in the middle of the drive tray with the label side facing upward and gently push it down until the disc clicks into place.
Page 39 Using Your VAIO Computer Close the drive tray by pushing it in gently. Do not remove the optical disc when your computer is in a power saving mode (Sleep or Hibernate). Doing so may cause the computer to malfunction. ✍ If you plan to use an external optical disc drive, connect the drive before you launch any preinstalled disc operation program.
Page 40: Reading And Writing Optical Discs
Using Your VAIO Computer Reading and Writing Optical Discs ™ Your computer plays and records CDs, DVDs, and Blu-ray Disc media, depending on the model you purchased. Check your specifications for the type of optical disc drive installed on your model. Use the table below to see which types of media your optical disc drive supports.
Page 41 Video Music Extra DVD±RW/ ±R DL/RAM Blu-ray Disc Combo Blu-ray Disc P Supports writing data to DVD-R discs compliant with DVD-R for General Version 2.0/2.1. Supports writing data to DVD-RW discs compliant with DVD-RW Version 1.1/1.2. The DVD±RW/RAM disc drive on your computer does not support the DVD-RAM cartridge. Use non-cartridge discs or discs with a removable cartridge. Writing data to single-sided DVD-RAM discs (2.6 GB) compliant with DVD-RAM Version 1.0 is not supported.
Page 42 When you buy pre-recorded or blank discs for use with your VAIO computer, be sure to read the notices on the disc package carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO optical disc drives with discs that are not compliant with the official "CD,"...
Page 43 Using Your VAIO Computer Notes on writing data to a disc ❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc drive. ❑ Do not strike or shake your computer while the optical disc drive is writing data to a disc. ❑...
Page 44 Notes on playing discs To achieve optimum performance when playing discs, you should follow these recommendations. ❑ Some CD players and computer optical disc drives may not be able to play audio CDs created with the CD-R or CD-RW media. ❑...
Page 45: Playing Cds
Playing CDs To play an audio CD Insert a disc into the optical disc drive. If nothing appears on the desktop, click Start, All Programs, and the desired CD software to play the CD. If the Audio CD window appears, click to select an option. Copying Files to CDs To copy files to a disc Insert a recordable disc into the optical disc drive.
Page 46: Playing Dvds
Playing DVDs To play a DVD Close all running software applications. Insert a DVD into the optical disc drive. If nothing appears on the desktop, click Start, All Programs, and the desired DVD software to play the DVD. For instructions on how to use the software, see the help file included with your DVD software. Copying Files to DVDs To copy files to a disc Connect the AC adapter to the computer.
Page 47 Playing Blu-ray Disc Media The Blu-ray Disc playback function is available on selected models only. See the online specifications to find out the type of your optical disc drive, and then Reading and Writing Optical Discs To play a Blu-ray Disc media Close all running software applications.
Page 48: Using The Expresscard Module
Using the ExpressCard Module Your computer is equipped with an ExpressCard/34 slot players, and other audio/video devices. This slot can accommodate an ExpressCard/34 (34 mm wide) module Referred to as the ExpressCard slot and the ExpressCard module in this manual. Inserting an ExpressCard Module Use care when inserting or removing the ExpressCard module from the slot.
Page 49 To insert an ExpressCard module Locate the ExpressCard slot. Carefully slide the ExpressCard module into the slot until it clicks into place. Do not force it into the slot. ✍ If the module does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction. Make sure you use the most recent software driver provided by the ExpressCard module manufacturer.
Page 50: Removing An Expresscard Module
Removing an ExpressCard Module Follow the steps below to remove the ExpressCard module while your computer is on. If it is not removed properly, your system may not work properly. To remove an ExpressCard module ✍ To remove an ExpressCard module when your computer is off, skip steps 1 to 4. Double-click the Safely Remove Hardware icon on the taskbar.
Page 51: Using The Memory Stick
Using Your VAIO Computer Using the Memory Stick Memory Stick is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile phones, and other devices. Because it is removable, it can be used for external data storage.
Page 52 For the latest information about the Memory Stick, visit the Memory Stick web site at http://www.memorystick.com/en/. Your computer has been tested and found compatible with Sony branded Memory Stick with capacity of up to 16 GB that are available as of September 2008.
Page 53: Inserting A Memory Stick
Inserting a Memory Stick To insert a Memory Stick Locate the Memory Stick slot. Hold the Memory Stick with the arrow facing upward and pointing toward the slot. Carefully slide the Memory Stick into the slot until it clicks into place. The Memory Stick is automatically detected by your system and the contents on the Memory Stick are displayed.
Page 54 To view the contents on the Memory Stick Click Start and Computer to open the Computer window. Double-click the Memory Stick icon to view the list of data files saved in the Memory Stick. To format a Memory Stick The Memory Stick has been formatted in the factory default setting and is ready for use. If you want to reformat the media with your computer, follow these steps.
Page 55 Click Start. Follow the on-screen instructions. It may take time to format the Memory Stick depending on the media type. Using Your VAIO Computer...
Page 56: Removing A Memory Stick
Removing a Memory Stick Do not remove the Memory Stick while the Memory Stick indicator light is lit. If you do, you may lose data. Large volumes of data may take time to load, so make sure the indicator is unlit before removing the Memory Stick. To remove a Memory Stick Check that the Memory Stick indicator light is unlit.
Page 57: Using The Sd Memory Card
❑ SDHC memory card ❑ MultiMediaCard (MMC) For the latest information on compatible memory cards, see Sony Support Information support web site. Your computer has been tested and found compatible only with major memory cards available as of September 2008. However, not all memory cards that meet the same specifications as the compatible media are guaranteed of compatibility.
Page 58: Inserting An Sd Memory Card
Inserting an SD Memory Card To insert an SD memory card Locate the SD memory card slot. Hold the SD memory card with the arrow facing upward and pointing toward the slot. Carefully slide the SD memory card into the slot until it clicks into place. Do not force the card into the slot.
Page 59: Removing An Sd Memory Card
Removing an SD Memory Card Do not remove an SD memory card while the SD memory card indicator light is lit. If you do, the card or its data may become damaged. To remove an SD memory card Check that the SD memory card indicator light is unlit. Push in the SD memory card toward the computer and release.
Page 60: Using The Internet
Using the Internet Before using the Internet, you need to sign up with an Internet Service Provider (ISP) and set up devices required for connecting your computer to the Internet. The following types of Internet connection services may be available from your ISP: ❑...
Page 61: To Connect A Telephone Cable
To connect a telephone cable Plug one end of the phone cable (1) into the modem port Plug the other end into the wall jack (2). ✍ Your computer does not work with party lines, cannot be connected to a coin-operated telephone, and may not work with multiple telephone lines or a private branch exchange (PBX).
Page 62: Using The Network (Lan)
Using the Network (LAN) You can connect your computer to 1000BASE-T/100BASE-TX/10BASE-T-type networks with an Ethernet network cable. Connect one end of a network cable (not supplied) to the network (Ethernet) port on the computer and the other end to your network.
Page 63: Using The Wireless Lan (Wlan)
This eliminates the need to pull cables or wires through walls and ceilings. The Sony WLAN supports all normal Ethernet connectivity, but with the added benefits of mobility and roaming. You can still access information, Internet/intranet and network resources, even in the middle of a meeting, or as you move from one place to another.
Page 64 Using Your VAIO Computer ✍ In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Therefore, before activating the WLAN function, read the Safety Information carefully. WLAN uses the IEEE 802.11a /b/g standard or the IEEE 802.11n draft standard, which specifies the used technology.
Page 65 Using Your VAIO Computer The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions. The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.
Page 66: Using Peripheral Devices
Using Peripheral Devices Using Peripheral Devices You can add functionality to your VAIO computer by using the various ports on the computer. ❑ Connecting External Speakers (page 67) ❑ Connecting an External Display (page 68) ❑ Selecting Display Modes (page 71) ❑...
Page 67: Connecting External Speakers
Connecting External Speakers You can connect external sound output devices (not supplied), such as speakers or headphones, to your computer. To connect external speakers Plug the speaker cable (1) (not supplied) into the headphones jack (2) i. Plug the other end of the speaker cable to the external speaker (3). Turn down the volume of the speakers before you turn them on.
Page 68: Connecting An External Display
Connecting an External Display You can connect an external display (not supplied) to your computer. For example, you can use the computer with a computer display or a projector. ✍ Connect the power cord of your external display after connecting all other cables. Connecting a Computer Display You can connect a computer display (monitor) to your computer.
Page 69: Connecting A Multimedia Computer Display
Connecting a Multimedia Computer Display You can connect a multimedia computer display that includes built-in speakers and a microphone to your computer. To connect a multimedia computer display Plug the power cord of your multimedia computer display (1) into an AC outlet. Plug the display cable (2) (not supplied) into the monitor port (3) a on the computer.
Page 70: Connecting A Projector
Connecting a Projector You can connect a projector (for example, the Sony LCD projector) to your computer. To connect a projector Connect the power cord (1) of your projector into an AC outlet. Plug a display cable (2) (not supplied) into the monitor port (3) a on the computer.
Page 71: Selecting Display Modes
Using Peripheral Devices Selecting Display Modes You can select which display to use as the primary monitor when an external display (desktop monitor, etc.) is connected to your computer. The procedure for selecting a display depends on the video controller used in the computer. See the online specifications for detailed information on the video controller.
Page 72: To Select A Display
To select a display Models with the Intel Graphics Media Accelerator Right-click on the desktop and select Personalize. Click Display Settings. Follow the on-screen instructions to change the settings. ✍ You may not be able to display the same contents on your computer screen and the external display or projector at the same time, depending on the type of your external display or projector.
Page 73: Using The Multiple Monitors Function
Using the Multiple Monitors Function The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you have an external display connected to the monitor port, your computer screen and the external display can function as a single desktop.
Page 74 To use the Multiple Monitors function To find out which video controller your model includes, see the online specifications. Models with the Intel Graphics Media Accelerator Right-click on the desktop and select Personalize. Click Display Settings. Follow the on-screen instructions to change the settings. ✍...
Page 75 Using Peripheral Devices ✍ You can also change the muting (S1) button assignment to activate the Multiple Monitors function with the muting (S1) button. To change the muting (S1) button assignment, press and hold the muting (S1) button to display the window for changing the assignment. For details on the muting (S1) button, see Using Special-function Buttons (page 34).
Page 76: Connecting An External Microphone
Connecting an External Microphone If you need to use a sound input device (for example, to chat over the Internet), you need to plug in an external microphone (not supplied). To connect an external microphone Plug the microphone cable (1) into the microphone jack (2) m. ✍...
Page 77: Connecting A Universal Serial Bus (Usb) Device
Connecting a Universal Serial Bus (USB) Device To protect your computer and/or USB devices from damage, observe the following: ❑ When moving the computer with USB devices connected, avoid exposing the USB ports to shock or impact. ❑ Do not put the computer into a bag or carrying case when it has USB devices connected. Connecting a USB Mouse To connect a USB mouse Choose the USB port (1)
Page 78: Connecting A Usb Floppy Disk Drive
Connecting a USB Floppy Disk Drive You can purchase a USB floppy disk drive and connect it to your computer. To connect a USB floppy disk drive Choose the USB port (1) you prefer to use. Plug the USB floppy disk drive cable (2) into the USB port. Your USB floppy disk drive (3) is now ready for use.
Page 79: Disconnecting A Usb Floppy Disk Drive
Disconnecting a USB floppy disk drive You can disconnect a USB floppy disk drive when your computer is on or off. Disconnecting the drive when the computer is in a power saving mode (Sleep or Hibernate) may cause the computer to malfunction. To disconnect a USB floppy disk drive ✍...
Page 80: Connecting A Printer
Connecting a Printer You can connect a Windows-compatible printer to your computer to print documents. Connecting a Printer Using the USB Port You can connect a USB printer compatible with your version of Windows to the computer. To connect a printer using the USB port Plug the power cord (1) of your printer into an AC outlet.
Page 81: Connecting An I.link Device
Connecting an i.LINK Device Notes on connecting i.LINK devices ❑ Your computer is equipped with an i.LINK port, which you can use to connect an i.LINK device, such as a digital video camcorder. ❑ The i.LINK port on your computer does not supply power to an external device. If the external device requires external power, be sure to connect it to a power source.
Page 82: Connecting A Digital Video Camcorder
On Sony digital video cameras, ports labeled DV Out, DV In/Out, or i.LINK are i.LINK-compatible. The Sony digital video camcorder shown here is an example. Your digital video camcorder may need to be connected differently. You cannot access the pictures stored on a Memory Stick when using an i.LINK connection.
Page 83: Customizing Your Vaio Computer
Customizing Your VAIO Computer This section briefly describes how to change the main settings of your VAIO computer. Among other things, you will learn how to use and customize the look of your Sony software and utilities. ❑ Setting the Password (page 84) ❑...
Page 84: Setting The Password
Setting the Password Use one of the BIOS functions to set the password. Once you have set the password, you will be prompted to enter the password after the VAIO logo appears to start your computer. The power-on password allows you to protect your computer from unauthorized access. Adding the Power-on Password The power-on password is provided to protect your computer from unauthorized access.
Page 85 To add the power-on password (machine password) Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 86 To add the power-on password (user password) Make sure you set the machine password before setting the user password. Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 87: Changing/Removing The Power-On Password
Changing/Removing the Power-on Password To change or remove the power-on password (machine password) Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 88 To change or remove the power-on password (user password) Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If not, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 89: Setting Up Your Computer With The Vaio Control Center
Setting Up Your Computer with the VAIO Control Center The VAIO Control Center utility allows you to access system information and to specify preferences for system behavior. To use the VAIO Control Center Click Start, All Programs, and VAIO Control Center. Select the desired control item and change the settings.
Page 90: Using The Power Saving Modes
Using the Power Saving Modes You can take advantage of the power management settings to conserve battery life. In addition to the normal operating mode, your computer has two distinct power saving modes: Sleep and Hibernate. When using battery power, you should be aware that the computer will automatically enter Hibernate mode if the remaining battery life becomes short, regardless of the power management setting you select.
Page 91: Using Sleep Mode
Using Sleep Mode Sleep mode turns off the LCD screen and places the storage device(s) and the CPU into a low power consumption mode. The orange power indicator light blinks slowly in this mode. If you do not intend to use your computer for a long period of time while it is disconnected from AC power, place the computer into Hibernate mode or turn it off.
Page 92 If the computer is not used for a certain period of time, it will enter Sleep mode. To modify this, you can change the Sleep mode settings. To change the Sleep mode settings Right-click the power status icon on the taskbar and select Power Options. Click Change plan settings under the current power plan.
Page 93: Using Hibernate Mode
Using Hibernate Mode In Hibernate mode, the state of the system is saved on the hard disk drive and power is turned off. Even when the battery runs down, no data will be lost. The power indicator light is unlit in this mode. ✍...
Page 94: To Return To Normal Mode
To return to Normal mode Press the power button. The computer returns to its normal state. If you press and hold the power button for more than four seconds, your computer will turn off automatically. ✍ It takes more time to return to Normal mode from Hibernate mode than from Sleep mode. Customizing Your VAIO Computer...
Page 95: Managing Power With The Vaio Power Management
Managing Power with the VAIO Power Management Power management helps you set up power plans for running on AC or battery power to suit your requirements for power consumption. The VAIO Power Management is a software application developed exclusively for VAIO computers. With this software application, you can enhance the Windows power management functions to ensure better operation of your computer and longer battery life.
Page 96: Vaio Power Management Viewer
VAIO Power Management Viewer You can view performance with the power plan that was modified with the VAIO Power Management. To start the VAIO Power Management Viewer Click Start, All Programs, and VAIO Control Center. Click Power Management and VAIO Power Management Viewer. Customizing Your VAIO Computer...
Page 97: Upgrading Your Vaio Computer
❑ You should not touch the connectors or open the memory module compartment cover. For the type of module and the amount of memory installed on your model, see the online specifications. For assistance, contact an authorized Sony Service Center. To find the nearest center or agent, see Sony Support Information (page 159).
Page 98: Adding And Removing Memory
Adding and Removing Memory If you want to expand the functionality of your computer, you can increase the amount of memory by installing optional memory modules. Before you upgrade your computer's memory, read the notes and procedures in the following pages. Notes on adding/removing memory modules ❑...
Page 99 ❑ Do not open the memory module package before you are ready to change the module. The package protects the module from ESD. ❑ Use the special bag supplied with the memory module or wrap the module in aluminum foil to protect it from ESD. ❑...
Page 100: Removing And Installing A Memory Module
Removing and Installing a Memory Module To change or add a memory module Shut down the computer and disconnect all peripheral devices. Unplug the computer and remove the battery pack. Wait about an hour until the computer cools down. Unscrew the screw (indicated by the arrow below) on the bottom of the computer and remove the memory module compartment cover.
Page 101 Touch a metal object to discharge static electricity. Remove the currently installed memory module as follows: ❑ Pull the latches in the direction of the arrows (1). The memory module is released. ❑ Make sure that the memory module tilts up and then pull it out in the direction of the arrow (2). Remove the new memory module from its packaging.
Page 102 Slide the memory module into the memory module slot and push it in until it clicks into place. Do not touch any other components on the motherboard. If you want to install only one memory module, be sure to use the slot closer to the back of your computer. Be sure to insert the connector edge of the memory module into the slot while aligning the notch on the module with the small projection in the open slot.
Page 103: Viewing The Amount Of Memory
Viewing the Amount of Memory To view the amount of memory Turn on the computer. Click Start, All Programs, and VAIO Control Center. Click System Information and System Information. You can view the amount of system memory in the right pane. If the additional memory does not appear, repeat the installation procedure and restart the computer.
Page 104: Precautions
Precautions Precautions This section describes safety guidelines and precautions to help you protect your VAIO computer from potential damage. ❑ Handling the LCD Screen (page 105) ❑ Using the Power Source (page 106) ❑ Handling Your Computer (page 107) ❑ Handling the Built-in MOTION EYE Camera (page 109) ❑...
Page 105: Handling The Lcd Screen
❑ Do not change the LCD screen orientation setting in the Tablet PC Settings window even when there are change options available for selection, as this may make your computer unstable. Sony assumes no liability for any malfunctions arising from changes to the settings.
Page 106: Using The Power Source
❑ When the AC adapter is not used, unplug it from the AC outlet. ❑ Use the AC adapter supplied with your computer or genuine Sony products. Do not use any other AC adapter as it may cause a malfunction.
Page 107: Handling Your Computer
Handling Your Computer ❑ Clean the cabinet with a soft cloth, which is dry or lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your computer.
Page 108 If any problems occur, unplug the computer and contact an authorized Sony Service Center. To find the nearest center or agent, see Sony Support Information ❑ Make sure you disconnect the AC adapter and remove the battery pack before cleaning your computer.
Page 109: Handling The Built-In Motion Eye Camera
Handling the Built-in MOTION EYE Camera The following precautions apply to the models equipped with a built-in MOTION EYE camera. See the online specifications to find out whether your model is equipped with the camera. ❑ Do not touch the lens protection cover of the built-in MOTION EYE camera, as it may cause scratches on the cover and such scratches will appear on the captured images.
Page 110: Handling Floppy Disks
Handling Floppy Disks ❑ Do not open the shutter manually and touch the internal components of the floppy disk. ❑ Keep floppy disks away from magnets. ❑ Keep floppy disks away from direct sunlight and other sources of heat. ❑ Keep floppy disks away from any liquid. Do not let them get wet. When you are not using your floppy disk, always remove it from the floppy disk drive and put it in a storage case.
Page 111: Handling Discs
Handling Discs ❑ Do not touch the surface of the disc. ❑ Fingerprints and dust on the surface of a disc may cause read errors. Always hold the disc by its edges and central hole, as shown below: ❑ Proper care of the disc is essential to its continuous reliability. Do not use solvents (such as benzine, thinner, alcohol, commercially available cleaners, or anti-static spray) which may cause damage to the disc.
Page 112: Using The Battery Pack
❑ Do not charge the battery pack in any way other than as described in this user guide or as designated by Sony in writing. ❑ For your safety, Sony recommends using the genuine Sony battery pack and AC adapter that are provided with this product.
Page 113 ❑ If you have not used the battery pack for a considerable amount of time, the remaining battery life may become short. However, this is normal and does not indicate a malfunction, because the battery pack will gradually discharge over time even when not in use.
Page 114: Using Headphones
Using Headphones ❑ Road safety – Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play loud music while walking, especially at pedestrian crossings.
Page 115: Handling The Memory Stick
Handling the Memory Stick ❑ Do not touch the Memory Stick connector with your finger or metallic objects. ❑ Use only the adhesive label supplied with the Memory Stick as a label. ❑ Do not bend, drop, or expose the Memory Stick. ❑...
Page 116: Handling The Hard Disk
Handling the Hard Disk The hard disk drive has a high storage density and reads or writes data in a short time. However, it can be easily damaged by mechanical vibration, shock, or dust. Although the hard disk drive has the internal safety device to prevent losing data due to mechanical vibration, shock, or dust, you should be careful when handling your computer.
Page 117: Updating Your Computer
Updating Your Computer Be sure to install the latest updates on your computer with the following software applications so that the computer can run more efficiently. ❑ Windows Update Click Start, All Programs, and Windows Update and then follow the on-screen instructions. ❑...
Page 118: Troubleshooting
Troubleshooting This section describes how to solve common problems you might encounter when using your VAIO computer. Many problems have simple solutions. Try these suggestions before visiting the Sony online support web site at the following URLs: http://esupport.sony.com/EN/VAIO/ for customers in USA http://www.sony.ca/support/...
Page 119 Troubleshooting ❑ Floppy Disks (page 153) ❑ Audio/Video (page 154) ❑ Memory Stick (page 156) ❑ Peripherals (page 157)
Page 120: Computer
❑ Remove any extra memory modules you may have installed since purchase. ❑ Check that you are using the supplied Sony AC adapter. For your safety, use only the genuine Sony rechargeable battery pack and AC adapter, which are supplied by Sony for your VAIO computer.
Page 121: What Should I Do If The Green Power Indicator Light Turns On But My Screen Remains Blank
What should I do if the green power indicator light turns on but my screen remains blank? ❑ Press the Alt+F4 keys several times to close the application window. An application error may have occurred. ❑ Press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down button and Restart. ❑...
Page 122: Why Doesn't My Computer Enter Sleep Or Hibernate Mode
❑ If the problem persists after performing the above, it means the installed battery pack is not compatible. Remove the battery pack and contact an authorized Sony Service Center. To find the nearest center or agent, see Sony Support Information (page 159).
Page 123 ❑ If the problem persists after performing the above, it means the installed battery pack is not compatible. Remove the battery pack and contact an authorized Sony Service Center. To find the nearest center or agent, see Sony Support Information (page 159).
Page 124: How Can I Change The Boot Device Order
What should I do if I cannot remember the power-on password? If you have forgotten the power-on password, contact an authorized Sony Service Center to reset it. A reset fee will be charged. To find the nearest center or agent, see Sony Support Information How can I change the boot device order? You can use one of the BIOS functions to change the boot device order.
Page 125: To The Computer
Why doesn't my screen turn off after the automatic turn-off time has passed? The VAIO original screen saver disables the timer setting, which you can select using the Windows power options, for your screen to turn off. Select a screen saver other than the VAIO original screen saver. What should I do if I cannot boot my computer from the USB floppy disk drive connected to the computer? To boot your computer from the USB floppy disk drive, you need to change the boot device.
Page 126: System Security
System Security How can I protect my computer against security threats, such as viruses? The Microsoft Windows operating system is preinstalled on your computer. The best way to protect your computer against security threats, such as viruses, is to download and install the latest Windows updates regularly. You can get important Windows updates by doing the following: Your computer must be connected to the Internet to download the updates.
Page 127: Battery
Troubleshooting Battery How do I find the battery charging status? See Charging the Battery Pack (page 24). When is my computer using AC power? When your computer is directly connected to the AC adapter, it uses AC power, even if the battery pack is installed. When should I recharge the battery pack? ❑...
Page 128: Can My Computer Enter Hibernate Mode While Using Battery Power
Troubleshooting Should I be concerned that the installed battery pack is warm? No, it is normal for the battery pack to be warm when it is powering your computer. Can my computer enter Hibernate mode while using battery power? Your computer can enter Hibernate mode while using battery power, but some software programs and peripheral devices prevent the system from entering Hibernate mode.
Page 129: Built-In Motion Eye Camera
Built-in MOTION EYE Camera The following Q & A entries apply to models with a built-in MOTION EYE camera only. See the online specifications to find out whether your model is equipped with the camera. Why does the viewer window show no images or poor-quality images? ❑...
Page 130 Why do captured images contain dropped frames and audio interruptions? ❑ The effect settings on your software application may cause dropped frames. See the help file included with your software application for more information. ❑ There may be more software applications running than your computer can handle. Exit the applications that you are not currently using.
Page 131: Why Can't I Use The Built-In Motion Eye Camera
Why is the video input from the built-in MOTION EYE camera suspended for a few seconds? The video input may be suspended for a few seconds if: ❑ a shortcut key with the Fn key is used. ❑ the CPU load increases. This is normal and does not indicate a malfunction.
Page 132: Internet
❑ Make sure the telephone cable is working. Plug the cable into an ordinary telephone and listen for a dial tone. ❑ Make sure that the telephone number the program is dialing is correct. ❑ Make sure the software you are using is compatible with your computer's modem. (All preinstalled Sony programs are compatible.) ❑...
Page 133: Why Is My Modem Connection Slow
Troubleshooting Why is my modem connection slow? Your computer is equipped with a V.92/V.90 compatible modem. Many factors may influence modem connection speed, including telephone line noise or compatibility with telephone equipment, such as fax machines or other modems. If you think your modem is not connecting properly to other PC-based modems, fax machines, or your ISP, do any of the following: ❑...
Page 134: Networking
Networking What should I do if my computer cannot connect to a wireless LAN access point? ❑ Connection capability is affected by distance and obstructions. You may need to move your computer away from obstructions or closer to any access point you may be using. ❑...
Page 135: What Should I Do If I Cannot Access The Internet
What should I do if I cannot access the Internet? ❑ Check the access point settings. See the manual that came with your access point for more information. ❑ Make sure your computer and the access point are connected to one another. ❑...
Page 136: How Do I Avoid Data Transfer Interruptions
❑ Wireless LAN communication uses divided frequency bands known as channels. Third-party wireless LAN access point channels may be preset to different channels from Sony devices. ❑ If you are using a wireless LAN access point, see connectivity information contained in the manual that came with your access point.
Page 137: Optical Discs
Optical Discs Why does my computer freeze when I try to read a disc? The disc that your computer is trying to read may be dirty or damaged. Follow these steps: Press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down button and Restart to restart the computer. Remove the disc from the optical disc drive.
Page 138 What should I do if I cannot play a disc properly on my computer? ❑ Make sure the disc is inserted into the optical disc drive with the label facing upward. ❑ Make sure the necessary program(s) is installed according to the manufacturer's instructions. ❑...
Page 139 Click Device Manager on the left pane. The Device Manager window appears with a listing of your computer's hardware devices. If an "X" or an exclamation point appears on the listed device, you may need to enable the device or reinstall the drivers.
Page 140 What should I do if I cannot play Blu-ray Disc media or my computer becomes unstable during Blu-ray Disc playback? This Q & A entry applies to selected models only. See the online specifications to find out the type of your optical disc drive, and then Reading and Writing Optical Discs (page 40) to find out about the supported disc media.
Page 141: Display
Display Why did my screen go blank? ❑ Your computer screen may go blank if the computer loses power or enters a power saving mode (Sleep or Hibernate). If the computer is in LCD (Video) Sleep mode, press any key to bring the computer back into Normal mode. See Using the Power Saving Modes (page 90) ❑...
Page 142: Why Doesn't My Screen Display A Video
Why doesn't my screen display a video? ❑ If the display output is directed to the external display and the external display is disconnected, you cannot display a video on your computer screen. Stop video playback, change the display output to the computer screen, and then restart video playback.
Page 143 What should I do if the LCD brightness of my screen changes? ❑ The LCD brightness setting, adjusted with the Fn+F5/F6 keys, is temporary and may be restored to the original setting when your computer returns to Normal mode from Sleep or Hibernate mode. To save your preference for the brightness, follow these steps: Right-click the power status icon on the taskbar and select Power Options.
Page 144 ❑ On models with an ATI video controller, you may find your computer screen temporarily goes blank: ❑ When you connect or disconnect the AC adapter ❑ Immediately after you start the computer with battery power To save your preference for the brightness, follow these steps: Click Start and Control Panel.
Page 145: What Should I Do If The External Display Remains Blank
What should I do if the external display remains blank? If you cannot change the display output with the Fn+F7 keys, you need to change the settings for the external display with the VAIO Control Center. To change the settings, launch the VAIO Control Center, select the control item for the external display, and then click to select the check box for changing the options to detect the external display.
Page 146: Printing
Printing What should I do if I cannot print a document? ❑ Make sure your printer is on, and the printer cable is securely connected to the ports on the printer and your computer. ❑ Make sure your printer is compatible with the Windows operating system installed on your computer. ❑...
Page 147: Microphone
Microphone What should I do if my microphone does not work? ❑ If you are using an external microphone, make sure the microphone is turned on and is properly plugged into the microphone jack on your computer. ❑ Your sound input device may have been incorrectly configured. To configure the sound input device, follow these steps: Close all open programs.
Page 148: Mouse
Mouse What should I do if my computer does not recognize my mouse? ❑ Make sure your mouse is securely plugged into the port. ❑ Restart your computer with your mouse connected. What should I do if the pointer does not move when I use my mouse? ❑...
Page 149: Speakers
Speakers What should I do if my external speakers do not work? ❑ If you are using a program that has its own volume control, make sure the volume control is properly set. See the program's help file for more information. ❑...
Page 150 What should I do if I do not hear sound from the built-in speakers? ❑ If you are using a program that has its own volume control, make sure the volume control is properly set. See the program's help file for more information. ❑...
Page 151: Touch Pad
Touch Pad What should I do if the touch pad does not work? ❑ You may have disabled the touch pad before connecting a mouse to your computer. See Using the Touch Pad ❑ Make sure that a mouse is not connected to your computer. ❑...
Page 152: Keyboard
Keyboard What should I do if the keyboard configuration is wrong? The language layout of your computer's keyboard is labeled on the packaging box. If you choose a different regional keyboard when you complete the Windows setup, the key configuration will be mismatched. To change the keyboard configuration, follow these steps: Click Start and Control Panel.
Page 153: Floppy Disks
Floppy Disks Why doesn't the Safely Remove Hardware icon appear on the taskbar when the drive is connected? Your computer does not recognize the floppy disk drive. First, make sure the USB cable is properly connected to the USB port. If you need to secure the connection, wait a few moments for the computer to recognize the drive. If the icon still does not appear, follow these steps: Close all programs that are accessing the floppy disk drive.
Page 154: Audio/Video
✍ i.LINK is a trademark of Sony Corporation used only to designate that a product contains an IEEE 1394 connection. The procedure to establish an i.LINK connection may vary, depending on a software application, an operating system, and a compatible i.LINK device. Not all products with an i.LINK connection can communicate with each other.
Page 155 How do I change the sound output device? If you do not hear sound from the device connected to a port, such as the USB port, HDMI output port, optical output port, or headphones jack, you need to change the device for sound output. Close all open programs.
Page 156: Memory Stick
Use of recorded music requires permission from the copyright holders. Sony is not responsible for music files that cannot be recorded from a CD or downloaded from other sources. Can I copy images from a digital camera using Memory Stick? Yes, and you can view video clips that you have recorded with Memory Stick-compatible digital cameras.
Page 157: Peripherals
Peripherals What should I do if I cannot connect a USB device? ❑ If applicable, check the USB device is turned on and using its own power supply. For example, if you are using a digital camera, check if the battery is charged. If you are using a printer, check if the power cable is connected properly to the AC outlet.
Page 158: Support Options
Support Options Support Options This section contains information on where to go for answers to questions about your VAIO computer and the preinstalled software. ❑ Sony Support Information (page 159) ❑ Program Support Information (page 162)
Page 159: Sony Support Information
This service provides instant access to information on commonly encountered problems. Type a description of the problem and the Knowledge Database searches for the corresponding solutions online. You can visit the Sony online support web site at the following URLs: http://esupport.sony.com/EN/VAIO/ http://www.sony.ca/support/...
Page 160 For customers in Latin American countries or areas Customer Information Center If you do not find the information you are looking for at our site, you may call Sony directly. In order to receive the fastest and most efficient services, have the following information readily available: Your VAIO computer model You can find it at the lower right corner of the display on the notebook.
Page 161 ❑ In Chile: 800-261-800 From mobile phones: 02-754-6333 ❑ In Venezuela: 0-800-1-SONY-00 (0-800-1-7669-00) ❑ In Panama: 800-2050 or 800-7669 (800-SONY) ❑ In Brazil: In capital and metropolitan areas: 4003 SONY (7669) In other areas: 0800 880 SONY (7669) ❑ In Bolivia: 800-10-0228...
Page 162: Program Support Information
Program Support Information Depending on the computer model and particular configuration you purchased, your computer may not include all of the software programs listed below. Contacts for Sony software products are listed below: ❑ For customers in USA Web site http://esupport.sony.com/EN/VAIO/...
Page 163 Click to Disc Sony Electronics Inc. At the touch of a button, Click to Disc allows you to automatically burn DVDs from a digital video (DV) device. Create DVDs by capturing video contents straight from a DV device or by importing video from stored files — and you can also edit the video.
Page 164 ™ Magic-i Visual Effects ArcSoft, Inc. A smart and simple webcam application designed to enhance users' video chat experience through frames, effects, and themes. ❑ For customers in USA and Canada Web site http://www.arcsoft.com/support/ ® Microsoft Internet Explorer, Movie Maker, Media Player, Works Microsoft Corp.
Page 165 ® Microsoft Office Professional 2007 60-Day Trial Version This trial software will work only for 60 days after you first use it. You will not be able to use the software if you do not activate it as described the first time you use the software.
Page 166 ® ™ Microsoft Windows Live OneCare This trial software will work for ninety (90) days after you first use it. You will not be able to use the software if you do not activate it as described the first time you use the software. You can activate the software by Internet: Internet service charges may apply. If you want to keep using the software after the 90-day trial period, you must buy a subscription.
Page 167 Protector Suite QL UPEK, Inc. Protector Suite QL allows you to easily setup your fingerprint sensor equipped on your computer. Protector Suite QL supports fingerprint logon, fast user switching, file encryption, registering forms and more. ❑ For customers in USA and Canada Web site http://www.upek.com/ ®...
Page 168 ™ SmartWi Connection Utility Sony Electronics Inc. SmartWi Connection Utility allows you to easily switch between the various wireless components (wireless LAN, wireless ® WAN, and Bluetooth technology connectivity) that came with your computer. For contacts about the software, see Program Support Information ™...
Page 169 ® VAIO Hardware Diagnostic Sony Electronics Inc. For contacts about the software, see Program Support Information ® VAIO Launcher Sony Electronics Inc. For contacts about the software, see Program Support Information ™ VAIO Media plus Sony Electronics Inc. VAIO Media plus brings multimedia to your network, enabling you to share music, video, and still image files between ®...
Page 170 VAIO computer model. For contacts about the software, see Program Support Information (page (page (page ® computer up to date by regularly checking the Sony online support web site for (page Support Options 162). 162). 162).
Page 171 For contacts about the software, see Program Support Information VAIO Wireless Wizard Sony Electronics Inc. Sony networking wizard that helps guide you through setting up your network connection. For contacts about the software, see Program Support Information Vegas Movie Studio Sony Electronics Inc.
Page 172 ® ® WinDVD BD for VAIO InterVideo, Inc. ❑ For customers in USA and Canada Web site http://www.intervideo.com/jsp/Support.jsp Telephone 1-800-772-6735 ® ® WinDVD for VAIO InterVideo, Inc. ❑ For customers in USA and Canada Web site http://www.intervideo.com/jsp/Support.jsp Telephone 1-800-772-6735 ® Yahoo! Yahoo! Inc.
Page 173: Trademarks
SD Logo is a trademark. SDHC Logo is a trademark. The ExpressCard word mark and logos are owned by the PCMCIA and any use of such marks by Sony Corporation is under license. MultiMediaCard is a trademark of MultiMediaCard Association.
Page 174 Trademarks All other names of systems, products, and services are trademarks of their respective owners. In the manual, the ™ or ® marks may not be specified. Features and specifications are subject to change without notice. All other trademarks are trademarks of their respective owners.

This manual is also suitable for:

Vgn-ns205n/s Vgn-ns210e Vgn-ns210e/l Vgn-ns210e/p Vgn-ns210e/s Vgn-ns210e/w ... Show all

Sony VGN-NS205N User Manual

Quick Links

User Guide

Related Manuals for Sony VGN-NS205N

Summary of Contents for Sony VGN-NS205N

This manual is also suitable for:

Table of Contents
