Sealey CH30110V Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Warning!
instruction Hot surface
manual
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user's responsibility to check the following:
‰
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and
9
all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products. You may obtain an RCD by contacting your local Sealey stockist. If the heater is used in the course of business duties, it
must be maintained in a safe condition and routinely PAT (Portable Appliance Test) tested.
Electrical safety information, it is important that the following information is read and understood.
Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
9
regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
Ensure that the voltage rating on the appliance suits the power supply to be used.
9
DO NOT pull or carry the appliance by the power cable.
8
DO NOT pull the plug from the socket by the cable.
8
DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or
8
replaced immediately by a qualified electrician.
This product is fitted with a EN 60309 (110volt 32amp) plug.
9
If the cable or plug is damaged during use, switch the electricity supply and remove from use.
9
Replace a damaged plug with a EN 60309 (110volt 32amp) plug If in doubt contact a qualified
9
electrician.
a) Connect the GREEN/YELLOW earth wire to the earth terminal 'E'.
b) Connect the BROWN live wire to the live terminal 'L'.
c) Connect the BLUE neutral wire to the neutral terminal 'N'.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
9
Sealey recommend that repairs are carried out by a qualified electrician.
1.2. GENERAL SAFETY
CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given to where
children and vulnerable children are present.
WARNING! To reduce the risk of fire, keep textiles, curtains or any other flammable material a minimum distance of 2m from
‰
the air outlet.
WARNING! Disconnect the heater from the mains power supply before carrying out any servicing or maintenance.
‰
Maintain the heater in good order and clean condition for best and safest performance. Replace or repair damaged parts.
9
Locate heater in a suitable work area and keep area clean, tidy and free from unrelated materials. Ensure there is adequate
9
lighting and keep the immediate area in front of the outlet grille clear.
Allow the unit to cool before storage. When not in use, disconnect from the mains power supply and store in a safe, cool, dry,
9
childproof area.
Use this heater on a horizontal and stable surface.
9
DO NOT use the heater where there are flammable liquids, solids or gases such as petrol, solvents, aerosols etc, or where heat
8
sensitive materials may be stored.
DO NOT place the heater near items that may be damaged by heat, allow at least 2m clearance in front of the heater.
8
DO NOT allow the heater to get wet as this may cause an electric shock, causing damage to the heater and possible personal
8
injury.
DO NOT use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless
8
constant supervision is provided.
DO NOT let power lead hang over an edge (i.e. table), or touch a hot surface, lie in the beam of heat, or run under a carpet.
8
DO NOT use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
8
DO NOT operate the heater when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT insert or allow objects to enter any openings of heater as this may cause an electric shock, fire or damage to heater.
8
DO NOT use heater if the power cord, plug or the heater is damaged, or if the heater has become wet.
8
DO NOT use the heater for any purpose other than for which it is designed.
8
WARNING! If a fuse blows, ensure it is replaced with an identical fuse type and rating.
‰
WARNING! If supply trips at consumer unit, ensure correct rating of supply and appliance. If further tripping occurs consult a
‰
qualified electrician.
© Jack Sealey Limited

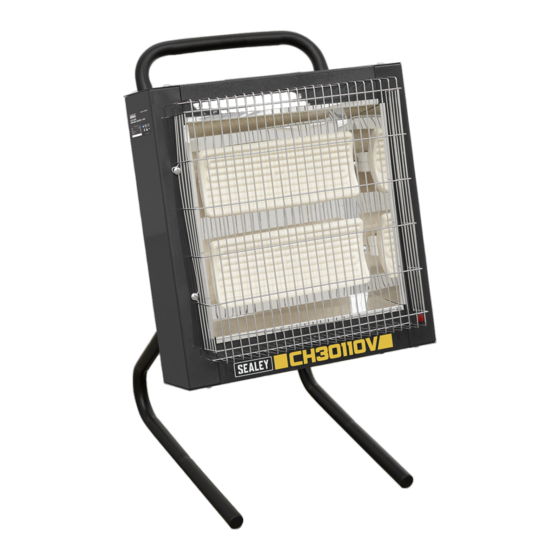

1.2/2.4KW CERAMIC HEATER - 110V
MODEL NO:
DO NOT Indoor use only
cover
Original Language Version
CH30110V
Warning!
Electricity
Brown
Blue(N)
(L)
Cable
Yellow/
restraint
Green
(E)
CH30110V Issue:1 28/07/21
