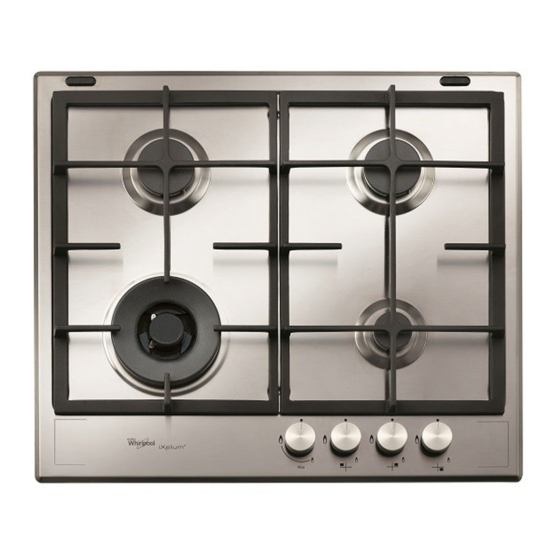

GMF6422IXL
60CM 4 Burner Gas Cooktop
FEATURES & BENEFITS
IXELIUM
Thanks to an exclusive nano-technology treatment,
the iXelium cooktop is extremely easy to clean. Unlike a
standard steel top, iXelium prevents food residuals from
sticking to the surface so all you need to do to remove
dirt is a soft sponge and non aggressive detergent. The
result is a cooking surface which will remain shiny over
time without scratches.
HIGH EFFICIENCY BURNERS
This model features 5 unique verticle flame burners that
enable fast cooking, while at the same time decreasing
energy consumption and CO2 emissions.
POWERFUL RAPID BURNER
Whirlpool's high powered rapid burner is included for
extra strength cooking.
CAST IRON TRIVETS & WOK SUPPORT
Traditional Cast Iron for a premium finish, durability and
long lasting quality features, including Wok Support.
LASER ETCHED SERIGRAPHY
The sleek design includes laser etched serigraphy on the
control panel settings and logo.
DISTRIBUTED BY ARISIT PTY LTD
40-50 Mark Anthony Drive,
Dandenong South VIC 3175
Ph: 1300 762 219
Fax: 03 9768 0838
Website: www.arisit.com
TECHNICAL SPECIFICATIONS
MAIN COLOUR FINISH
Stainless Steel Ixelium
PRODUCT DIMENSIONS
W 590mm x H 41mm x D 510mm
CUT OUT DIMENSIONS
W 560mm x H 38mm x D 480mm
PACKAGE DIMENSIONS
W 670mm x H 155mm x D 595mm
BURNERS
4, Black
CONTROLS
4 Front Knobs
TRIVETS
2 Cast Iron
IGNITION
Electric
SAFETY
Flame Failure
ELECTRICAL RATING
10amps
ELECTRICAL CONNECTION Plug and Supplied
INSTALLATION
Built-In
NET WEIGHT
10.5kg
WARRANTY
2 Years - parts and labour
ACCESSORIES INCLUDED
LPG Jets Included
COUNTRY OF ORIGIN
Italy
BURNER SPECIFICATIONS
FRONT RHS:
Auxiliary
POT SIZE:
8cm to 14cm
NPG:
1.00kPa, 0.90mm & 3.60Mj/h
Pressure, Injector & Rate
ULPG:
2.75kPa, 0.52mm & 3.60Mj/h
Pressure, Injector & Rate
REAR RHS:
Semi-Rapid
POT SIZE:
16cm to 22cm
NPG:
1.00kPa, 1.17mm & 6.30Mj/h
Pressure, Injector & Rate
ULPG:
2.75kPa, 0.67mm & 6.30Mj/h
Pressure, Injector & Rate
REAR LHS:
Rapid
POT SIZE:
24cm to 26cm
NPG:
1.00kPa, 1.40mm & 10.80Mj/h
Pressure, Injector & Rate
ULPG:
2.75kPa, 0.85mm & 10.80Mj/h
Pressure, Injector & Rate
FRONT LHS:
Semi-Rapid
POT SIZE:
16cm to 22cm
NPG:
1.00kPa, 1.17mm & 6.30Mj/h
Pressure, Injector & Rate
ULPG:
2.75kPa, 0.67mm & 6.30Mj/h
Pressure, Injector & Rate
MIDDLE:
2 Crown
POT SIZE:
24cm to 26cm
NPG:
1.00kPa, 1.92mm & 17.28Mj/h
Pressure, Injector & Rate
ULPG:
2.75kPa, 1.08mm & 17.28Mj/h
Pressure, Injector & Rate
