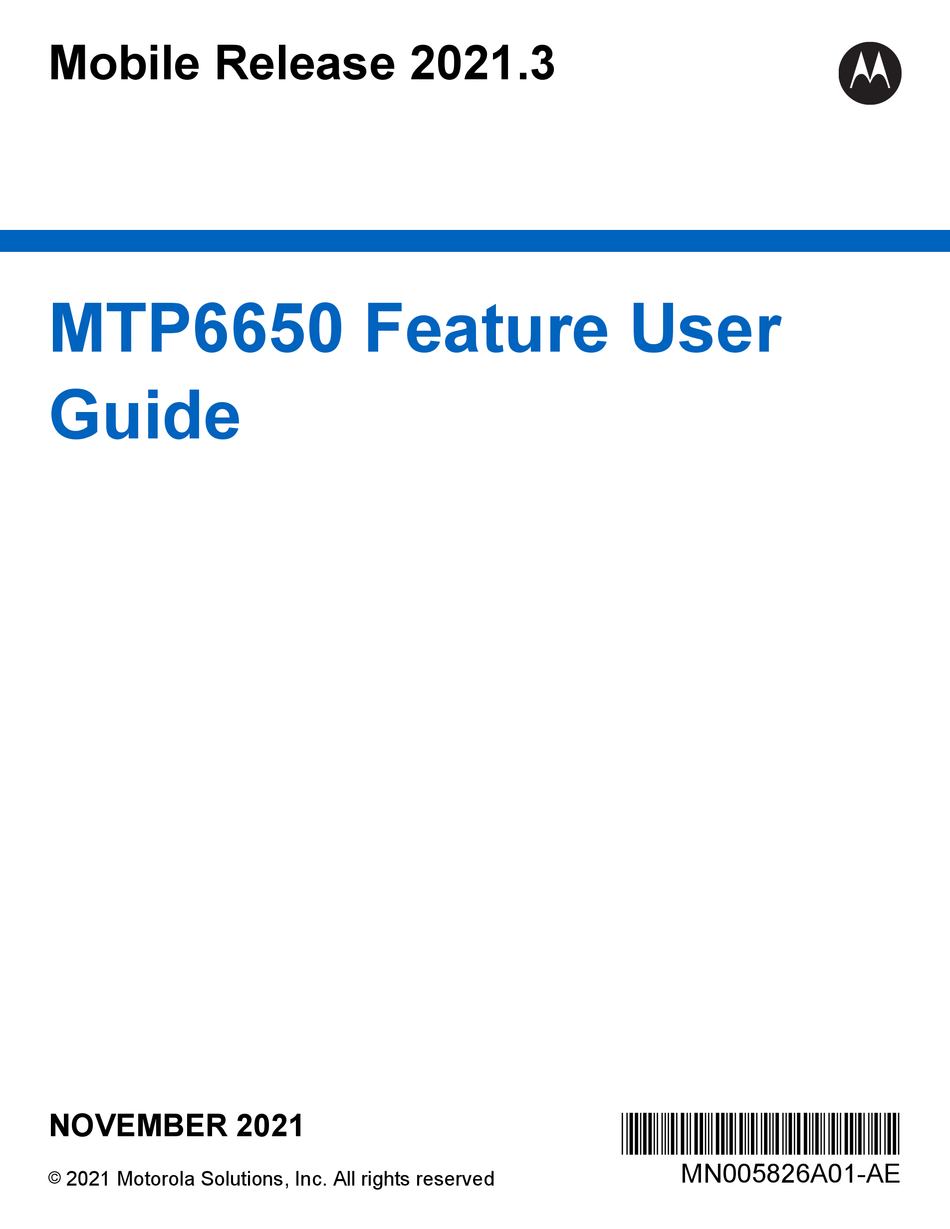

Mobile Release 2021.3
MTP6650 Feature User
Guide
NOVEMBER 2021
*MN005826A01*
MN005826A01-AE
©
2021 Motorola Solutions, Inc. All rights reserved

Advertisement

Table of Contents
loading

Related Manuals for Motorola MTP6650

Summary of Contents for Motorola MTP6650

  • Page 1 Mobile Release 2021.3 MTP6650 Feature User Guide NOVEMBER 2021 *MN005826A01* MN005826A01-AE © 2021 Motorola Solutions, Inc. All rights reserved...

  • Page 2: Table Of Contents

    2.1.4 Removing the Battery....................22 2.1.5 Charging the Battery....................22 2.1.6 Battery Charging Indications..................23 2.1.7 Low Battery Indication....................24 2.2 MTP6650 Controls and Indicators..................24 2.3 Powering On the Radio......................27 2.4 Writing Text..........................27 2.4.1 Text Entry Icons....................... 28 2.4.2 Selecting Text Entry Modes..................28 2.4.3 Selecting Text Entry Methods and Languages............
  • Page 3 MN005826A01-AE Contents 2.7.1 Configurable Idle Screen..................34 2.8 Status Icons........................... 34 2.9 Holding Your Radio........................39 2.10 High or Low Audio Toggle....................40 2.10.1 Using High Audio....................40 2.10.2 Using Low Audio....................40 2.11 During a Call........................41 2.12 Selecting Talkgroups......................41 2.12.1 Talkgroup Icons Selection..................41 2.13 Entering TMO or DMO Mode....................43 2.14 Using Timed Talkgroup Change..................
  • Page 4 MN005826A01-AE Contents 3.3.4.1 Preempting Group Calls................55 3.3.5 Selecting DMO Communications Options..............55 3.3.6 Private Call With Presence Check................56 3.3.7 DMO Private Priority Call..................56 3.3.8 Talkgroup for Individual Calls...................56 3.3.9 Network Monitor.......................57 3.3.9.1 Enabling Network Monitor................57 3.3.10 Communication through Repeaters............... 57 3.3.11 Communication Through Gateways...............58 3.3.12 Gateway and Repeater Synchronization...............
  • Page 5 MN005826A01-AE Contents 4.3.1.3 Sending Store and Forward Messages............70 4.3.1.4 Delivery Report..................71 4.3.2 Inbox........................72 4.3.2.1 Receiving New Messages................73 4.3.2.2 Opening the Inbox..................73 4.3.2.3 Using Submenus in Inbox and Outbox............73 4.3.2.4 Embedded Number..................75 4.3.2.5 Storing Numbers from Messages...............75 4.3.2.6 Calling Numbers from Messages............... 75 4.3.2.7 Making Group Calls on the Talkgroup of the Message Sender....
  • Page 6 MN005826A01-AE Contents 4.4.3 Deleting Numbers....................86 4.4.4 Deleting Contacts.....................87 4.4.5 Checking Capacity....................87 4.4.6 Dialing through the Contact List................87 4.5 Pictures..........................87 4.5.1 Starting the Picture Browser..................88 4.5.2 Navigation in the Picture Browser................88 4.5.3 Zoom Levels......................89 4.5.4 Adding/Editing Comments to Pictures..............89 4.5.5 Sending Pictures through Bluetooth from the Picture Browser........90 4.6 Bluetooth..........................90 4.6.1 Bluetooth Settings....................90...
  • Page 7 MN005826A01-AE Contents 4.9.3.1 Viewing Air Encryption State..............99 4.9.3.2 Deleting User Keys..................99 4.9.4 K Validity........................ 100 4.9.4.1 Verifying K Validity................... 100 4.9.5 SCK (Air Interface Encryption Class 2)..............100 4.9.5.1 TMO SCK....................100 4.9.5.2 DMO SCK....................101 4.9.5.3 Changing DMO SCK................101 4.9.6 Covert Mode......................
  • Page 8 MN005826A01-AE Contents 4.10.8.1 Setting Font Level.................. 110 4.10.8.2 Setting Large Idle Font................111 4.10.8.3 Setting Screen Saver................111 4.10.8.4 Setting Backlight..................111 4.10.8.5 Setting Brightness.................. 112 4.10.8.6 Setting LCD Off..................112 4.10.8.7 Setting Wallpaper...................112 4.10.9 Time and Date..................... 113 4.10.9.1 Setting Time and Date on the Display............113 4.10.9.2 Setting the Time Format.................113 4.10.9.3 Setting the Time Manually..............113 4.10.9.4 Setting the Date Format.................
  • Page 9 MN005826A01-AE Contents 4.11.1 Setting Operations Parameters................122 4.11.1.1 Standard Home Group................122 4.11.2 Scan........................122 4.11.2.1 Activating Talkgroup Scanning...............123 4.11.2.2 Setting Talkgroups in the Active Scan List..........123 4.11.2.3 Setting Scan Lists.................. 123 4.11.2.4 Deleting Talkgroups from Scan Lists............. 124 4.11.3 My Groups......................124 4.11.3.1 Adding Favorite Folders.................
  • Page 10 MN005826A01-AE Contents 4.18 Networks..........................133 4.18.1 Selecting Network Operation Mode..............133 4.18.2 Network Select.....................133 4.18.2.1 Selecting Your Network................133 4.18.2.2 Using Select Net Registration..............133 4.18.2.3 Using Any Network Registration............134 4.18.3 Talkgroup Network Select..................134 4.18.3.1 Selecting Your Talkgroup Network............134 4.18.3.2 Using Select TG Net Registration............134 4.18.3.3 Using Prefer TG Net Registration............
  • Page 11 MN005826A01-AE Contents 5.3 Buffer Full Overwrite Policy....................143 5.4 Call-Out..........................144 5.4.1 Types of Call-Out Alerts..................144 5.4.2 Call-Out Modes Interaction..................145 5.4.3 Call-Out Service Phases..................146 5.5 Collaborative Messaging..................... 146 5.6 DTMF Overdial........................146 5.7 Global Positioning System (GPS) Location Service............147 5.7.1 Enhance GPS Performance...................147 5.7.2 Location Report Backlog..................148 5.7.3 GPS Icon........................148...
  • Page 12 MN005826A01-AE Contents 5.19.4.2 Creating Bookmarks through the Bookmarks Pane....... 157 5.19.4.3 Using Bookmarks................... 157 5.19.4.4 Creating Hotkeys..................157 5.19.4.5 Using Hotkeys..................158 5.19.4.6 Saving Pages..................158 5.19.4.7 Selecting Saved Pages................158 5.19.5 Disabled Packet Data Service................158 5.19.6 Disabled Browser Entry..................158 5.19.7 Browser Keys Usage...................

  • Page 13: List Of Figures

    List of Figures List of Figures Figure 1: Charger Mode Screen ......................24 Figure 2: MTP6650 Controls and Indicators ..................25 Figure 3: Default Home Screen with Icons .................... 33 Figure 4: Trunked Mode Operation ....................... 48 Figure 5: Direct Mode Operation ......................54 Figure 6: Communication through Repeaters ..................58...

  • Page 14: List Of Tables

    List of Tables Table 1: Special Notations ........................18 Table 2: Battery Icons ..........................24 Table 3: MTP6650 Controls and Indicators ................... 25 Table 4: Text Entry Screen Icons ......................28 Table 5: Keys Usage ..........................29 Table 6: Other Keys ..........................30 Table 7: Display .............................33...

  • Page 15: Safety Information

    Exposure and Product Safety Guide for Portable Two-Way Radios which contains important operating instructions for safe usage and RF energy awareness and control for Compliance with applicable standards and Regulations. For a list of Motorola Solutions-approved antennas, batteries, and other accessories, visit the following website: http://www.motorolasolutions.com Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada.

  • Page 16: Applying For Canadian License

    Applying for Canadian License Applying for Canadian License The operation of your Motorola Solutions radio is subject to the Radio communications Act and must comply with rules and regulations of the Federal Government's department of Industry Canada. Industry Canada requires that all operators using Private Land Mobile frequencies obtain a radio license before operating their equipment.

  • Page 17: Intellectual Property And Regulatory Notices

    License Rights The purchase of Motorola Solutions products shall not be deemed to grant either directly or by implication, estoppel or otherwise, any license under the copyrights, patents or patent applications of Motorola Solutions, except for the normal non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.

  • Page 18: Chapter 1: General Information

    MN005826A01-AE Chapter 1 : General Information Chapter 1 General Information Icon Conventions The documentation set is designed to give the reader more visual clues. The following graphic icons are used throughout the documentation set. DANGER: The signal word DANGER with the associated safety icon implies information that, if disregarded, will result in death or serious injury.

  • Page 19: Chapter 2: Getting Started

    MN005826A01-AE Getting Started Chapter 2 Getting Started Familiarize yourself with basic information on how to use the radio. Before Power On Read this section before you power on your radio for the first time. 2.1.1 Attaching the Antenna Procedure: 1 Insert the screw-in base of the antenna into the antenna terminal on the top of the radio. 2 Turn clockwise until tight.

  • Page 20: Installing The Microsd Card

    MN005826A01-AE Chapter 2 : Getting Started • Micro Secure Digital High Capacity Card (microSDHC card) with a capacity from 4 GB to 32 GB. NOTE: The radio only supports the following characters to compose file names: 1 Numeric digits. 2 English alphabetic characters. 3 Space.

  • Page 21: Installing The Battery

    MN005826A01-AE Chapter 2 : Getting Started 5 Carefully insert the microSD card into the microSD card holder ensuring that the gold contact area is facing down. 6 Close the microSD card holder and slide to the right to lock it. 7 Close the SIM card holder and slide towards the top of the radio to lock it.

  • Page 22: Removing The Battery

    MN005826A01-AE Chapter 2 : Getting Started 2.1.4 Removing the Battery Prerequisites:Turn off the radio. Procedure: 1 Push up and hold the latch at the bottom of the battery. 2 Slide the battery toward the bottom of the radio. 2.1.5 Charging the Battery You can charge a battery separately or attached to a radio.

  • Page 23: Battery Charging Indications

    IMPORTANT: Use only Motorola Solutions approved-chargers which provide optimal performance. Using other chargers may fail to fully charge, or reduce the life of the battery. Do not charge the battery in a hazardous area.

  • Page 24: Low Battery Indication

    The low battery alert can be programmed to be 5, 10, or 20 % of remaining capacity by your service provider. The default setting is 5 %. The service provider also configures how frequently the alert repeats. MTP6650 Controls and Indicators The MTP6650 radio specifications are available at https://www.motorolasolutions.com/mtp6650.

  • Page 25: Figure 2: Mtp6650 Controls And Indicators

    MN005826A01-AE Chapter 2 : Getting Started Figure 2: MTP6650 Controls and Indicators Table 3: MTP6650 Controls and Indicators Annotation Description Emergency button Press and hold the Emergency button to start Emergency Operations. By default, when your radio is off, press and hold to power on in Emergency...
  • Page 26 MN005826A01-AE Chapter 2 : Getting Started Annotation Description Rotary Knob • Rotate to set the volume. • Press and rotate to select a different talkgroup. • Press and hold the Rotary Knob to lock or unlock it. Powering the radio off and on also unlocks a locked Rotary Knob.

  • Page 27: Powering On The Radio

    MN005826A01-AE Chapter 2 : Getting Started Annotation Description Provides connection for accessories. NOTE: Turn off the radio before connecting accessories. Display Features a high resolution of 240 x 320 pixels and 65,536 colors. Supports scalable fonts and high color images. Menu key •...

  • Page 28: Text Entry Icons

    MN005826A01-AE Chapter 2 : Getting Started 2.4.1 Text Entry Icons In the text entry screen, icons tell you which text entry mode and method you are using. A character counter displayed on the text entry icon indicates the amount of characters that can be entered. Press the # key to toggle through the text entry modes.

  • Page 29: Keys Usage

    MN005826A01-AE Chapter 2 : Getting Started • TAP – Enter letters, numbers, and symbols by pressing an alphanumeric key one or more times. • iTAP – Allows the radio to predict each word as you press an alphanumeric key. NOTE: You can use these methods in the languages programmed in the radio. 2.4.4 Keys Usage List of keys and characters in Alphanumeric Mode (TAP/iTAP).

  • Page 30: Writing In Itap Alphanumeric

    MN005826A01-AE Chapter 2 : Getting Started Table 6: Other Keys Description Any numeric key • In TAP press any key to reject word completion and continue with text entry A new completion will be displayed, if available, after the time-out for TAP expires.

  • Page 31: Writing In Tap Alphanumeric

    MN005826A01-AE Chapter 2 : Getting Started 5 Press 3 key. The alternative row opens and shows D E F 3. 6 Continue entering the letters by pressing one key for each letter. Press 2, 8, 4, and 3 keys. NOTE: Automatic shift to upper case is used at the beginning of a message, after punctuation followed by space, or for the first letter of a word created as a new contact entry.

  • Page 32: Adding Words To The Dictionary

    MN005826A01-AE Chapter 2 : Getting Started 3 Enter the word. Scroll the alternate line for a word option. Each option is successively highlighted and partially locked. 4 Enter the second part of the word. The first part remains unchanged (locked). The newly entered letters are highlighted and then locked while you scroll to the next word option.

  • Page 33: Locking Or Unlocking The Keys Or Buttons

    MN005826A01-AE Chapter 2 : Getting Started Procedure: 1 Enter the PUK code at the prompt. NOTE: The PUK is a master code provided by your service provider. For radios with general PUK authentication, the PUK length is a fixed 8-digit code. For radios with BSI PUK authentication, the PUK length is configurable by your service provider up to a maximum of 8-digit code.

  • Page 34: Configurable Idle Screen

    MN005826A01-AE Chapter 2 : Getting Started The color of the Soft key area changes according to the mode the radio is in. Table 8: Colors of the Soft Key Area Color Mode or State Light blue Normal TMO and DMO Modes Light red Emergency Mode or Disaster Alert Call Olive...

  • Page 35: Table 9: Status Icons

    MN005826A01-AE Chapter 2 : Getting Started Depending on your service provider settings, status icons can appear in normal or large size. By default, they are large on the home screen and normal when browsing though the radio menu. Table 9: Status Icons Icon Description Trunked Mode Operation (TMO)
  • Page 36 MN005826A01-AE Chapter 2 : Getting Started Icon Description • Solid – when the radio has detected the repeater (for example, when the radio receives a presence signal). • Blinking – when the radio has not detected the repeater or during attachment. •...
  • Page 37 MN005826A01-AE Chapter 2 : Getting Started Icon Description Emergency – Indicates that the radio is in Emergency Operation. • Solid – Emergency Operations initiated. • Blinking – the radio is in emergency receiving state. Disaster Alert Call – Indicates that the radio is in Disaster Alert Call. List Scrolling –...
  • Page 38 MN005826A01-AE Chapter 2 : Getting Started Icon Description SIM End-to-End Encryption (E2EE) in TMO Indicates that the SIM Card E2EE is enabled in TMO Mode. SIM End-to-End Encryption (E2EE) in DMO Indicates that the SIM Card E2EE is enabled in DMO Mode. Numbers 1 and 2 point to the type of DMO Encryption keys that has been selected.

  • Page 39: Holding Your Radio

    MN005826A01-AE Chapter 2 : Getting Started Icon Description Bluetooth Connected – Indicates that Bluetooth is enabled and at least one device is connected. Bluetooth Disconnected • Solid – Indicates that Bluetooth is enabled, but no device is connected. • Blinking indicates one of the following: Bluetooth is enabled and the radio is in the Discoverable Mode.

  • Page 40: High Or Low Audio Toggle

    MN005826A01-AE Chapter 2 : Getting Started When radio is toggled to high audio during emergency Full Duplex Private Calls (FDPC) mode, hold you radio a vertical position with its top microphone 5–10 cm away from your mouth. Speak into the top microphone.

  • Page 41: During A Call

    MN005826A01-AE Chapter 2 : Getting Started 2.11 During a Call During the call, label of the right Soft key indicates the next possible change. Accessory default setup Table 10: During the Call Soft Key Label Audio Setting Spkr Audio goes to the main speaker (Speaker HIGH is displayed) Erpce Audio goes to the earpiece (Speaker LOW is displayed) Audio goes to the Personal Hands Free (Speaker LOW is displayed)
  • Page 42 MN005826A01-AE Chapter 2 : Getting Started Icon Talkgroups in Common Folders Talkgroups in Favorite Folders In DMO Mode Display when the talkgroup selected is a SIM TMO talkgroup. Single network is available. Not displayed in common folders. In TMO Mode Display when the talkgroup selected is a normal TMO talkgroup.

  • Page 43: Entering Tmo Or Dmo Mode

    MN005826A01-AE Chapter 2 : Getting Started Icon Talkgroups in Common Folders Talkgroups in Favorite Folders Display when the radio is locked to a current network selection that is a single network while the current selected ISI talkgroup or Any Net talkgroup allows multiple networks. NOTE: In common folders, no TMO talkgroups are shown when in DMO mode.

  • Page 44: One-Touch Buttons

    MN005826A01-AE Chapter 2 : Getting Started Procedure: 1 Select Yes to accept or No to reject the new configuration update. NOTE: A timer is set when the prompt is displayed. Request is automatically rejected if there is no user response to the prompt when the timer runs out. When the OTAP installation prompt is accepted, your radio updates with the new configuration as received over OTAP.
  • Page 45 MN005826A01-AE Chapter 2 : Getting Started Feature Description Home Talkgroup on Home Selects only home network and home talkgroup network. Network Inactive One Touch Key 0 The one-touch function assigned to the 0 key remains inactive until you long press the button twice. NOTE: A single long press on the 0 button calls out the + symbol.
  • Page 46 MN005826A01-AE Chapter 2 : Getting Started Feature Description Timed Talkgroup Change Makes a predefined talkgroup the selected talkgroup for a specified amount of time. While you are using the predefined talkgroup, the second press of the One-Touch Button results in: •...
  • Page 47 MN005826A01-AE Chapter 2 : Getting Started Feature Description Toggle Transmit Inhibit Turns TXI on or off. Mode (TXI) Turn Bluetooth Indoor Lo- Activates Bluetooth Indoor Location. cation On or Off Turn Bluetooth On or Off Turns Bluetooth on or off. Turn Repeater Mode On Turns Repeater Mode on or off.

  • Page 48: Chapter 3: Modes

    MN005826A01-AE Chapter 3 : Modes Chapter 3 Modes This chapter contains information on available modes that the radio can operate in. Trunked Mode Operation Trunked Mode Operation (TMO) requires the switching and management infrastructure. TMO enables various voice and data communication types. Examples are group calls and short data service messages.

  • Page 49: Receiving Group Calls In Idle

    MN005826A01-AE Chapter 3 : Modes 2 Wait for the Talk Permit tone (if configured) and then speak into the microphone. Release the PTT button to listen. NOTE: To cancel making a group call, do one the following actions before the talk permit is granted (depending on your service provider’s settings): •...

  • Page 50: Preempting Group Calls

    MN005826A01-AE Chapter 3 : Modes 3.1.5.1 Preempting Group Calls NOTE: Your radio can only support either the D-PTT Tone feature or D-PTT Preempt Group Call feature at a time. Procedure: 1 Your radio receives a Group Call. 2 Press the PTT button twice on the radio or the Remote Control Unit (RCU). Call preempt is triggered.

  • Page 51: Dgna Auto Reselect Group

    MN005826A01-AE Chapter 3 : Modes 3.1.6.3 DGNA Auto Reselect Group DGNA Auto Reselect allows your radio to return to the previous selected talkgroup. Your network operator assigns a talkgroup to your radio through DGNA. When the assigned talkgroup is deassigned, your radio automatically returns to the previous talkgroup.

  • Page 52: Assistance Call

    MN005826A01-AE Chapter 3 : Modes 3.1.8 Assistance Call This feature allows you to make private calls to ask for assistance in normal and noncritical situations. To initiate an assistance call, you can select the target address from up to five configured numbers. NOTE: Your service provider can configure the number, priority, and the type of the call (simplex or duplex).

  • Page 53: Exiting Local Site Trunking

    MN005826A01-AE Chapter 3 : Modes • Display shows the Local Area Service message. • Display icons and soft keys turn olive. NOTE: Noticeable only on the color display. • Any call in progress is dropped upon entering Local Site Trunking Mode. If configured by your service provider, this message/alert is periodically repeated to remind you that your radio is still operating in Local Site Trunking Mode.

  • Page 54: Direct Mode Operation

    MN005826A01-AE Chapter 3 : Modes Direct Mode Operation Direct Mode Operation (DMO) is a mode of simplex operation where radios communicate directly without the need of a network. NOTE: For those who use DMO mode, you are recommended to apply DMO SCK for data confidentiality.

  • Page 55: Receiving Group Calls In Idle

    MN005826A01-AE Chapter 3 : Modes 3.3.3 Receiving Group Calls in Idle Procedure: 1 Your radio receives a Group Call. NOTE: The incoming Group Call is signaled by a Receiving Group Call tone. 2 To respond, press and hold the PTT button. 3.3.4 D-PTT Preempt Group Call NOTE: This is a Software Selling Feature.

  • Page 56: Private Call With Presence Check

    MN005826A01-AE Chapter 3 : Modes • MS - MS – Your radio can communicate only with other radios within its range. • Gateway – Your radio uses a gateway to communicate with the infrastructure. • Automatic – Your radio uses the first available gateway for that talkgroup. •...

  • Page 57: Network Monitor

    MN005826A01-AE Chapter 3 : Modes • Displays the Individual Calls Only message 3.3.9 Network Monitor NOTE: This is a Software Selling Feature. This feature allows the radio to monitor for Trunked Mode Operation (TMO) individual calls while maintaining Direct Mode Operation (DMO) services. When Network Monitor is active, the radio receives direct calls addressed to the selected DMO talkgroup, private DMO calls, Short Data Service (SDS) messages, and also private TMO calls.

  • Page 58: Communication Through Gateways

    MN005826A01-AE Chapter 3 : Modes Figure 6: Communication through Repeaters When the radio detects a potential repeater signal or connects to a repeater, it plays a tone, displays the Repeater available message, and shows an appropriate icon. When the radio loses connection with the repeater, it plays a tone, displays the Repeater not available message, and the repeater icon is blinking.

  • Page 59: Gateway And Repeater Synchronization

    MN005826A01-AE Chapter 3 : Modes Radio behavior when radio loses connection with the gateway: • A tone is sound. • Gateway not available message is displayed. • The gateway icon is blinking. 3.3.12 Gateway and Repeater Synchronization To communicate using gateways or repeaters, the radio requires synchronization with a gateway or a repeater.

  • Page 60: Emergency Operations

    MN005826A01-AE Chapter 3 : Modes You can deactivate the mode by selecting Menu→Networks→TXI Mode→Deactivate, pressing One- Touch Button, or implicitly when initiating an Emergency Call. NOTE: RF Transmissions from the radio are prevented under the following conditions: • TXI Mode is activated. •...

  • Page 61: Emergency Group Call

    MN005826A01-AE Chapter 3 : Modes 3.5.2 Emergency Group Call The Emergency Group Call has the highest communication priority and it is a pre-emptive call. Emergency Group Call is available in both TMO and DMO. During Emergency Operations, start Emergency Group Call by pressing the Emergency button. The radio can also support Hot Microphone operation, which allows the Emergency Call to be conducted without pressing the PTT button.

  • Page 62: Non-Tactical Emergency

    MN005826A01-AE Chapter 3 : Modes 3.5.3 Non-Tactical Emergency In Non-Tactical Emergency, the radio switches to a designated Emergency talkgroup when starting Emergency Operations. This talkgroup is used for the complete duration of the Emergency Operation. Changing talkgroups is not allowed at this point. In Trunked Mode Operation (TMO), the radio can make Emergency Non-Tactical Group Calls without sending attachments.

  • Page 63: Alternating Hot Microphone

    MN005826A01-AE Chapter 3 : Modes Pressing End soft key or End key ends the Hot Microphone operation. 3.5.7 Alternating Hot Microphone The Alternating Hot Microphone is an enhancement of the Hot Microphone. After activation, the radio alternately enters transmission phases (your microphone is active) and reception phases (you can only listen) for an amount of time precisely determined by your service provider.

  • Page 64: Invisible Emergency

    MN005826A01-AE Chapter 3 : Modes If you turn off the radio in the Silent Emergency Mode, the radio switches to pseudo power off state. In this state, the radio appears to be turned off. However, the radio is still on and in the Silent Emergency Mode.

  • Page 65: Emergency Mode By Dialing

    MN005826A01-AE Chapter 3 : Modes 3.5.11 Emergency Mode by Dialing This feature allows you to trigger Emergency Mode by dialing a predefined number. It initiates the same emergency services as when you use the Emergency button. Your radio can store up to eight emergency numbers.

  • Page 66: Exiting Emergency Operations

    MN005826A01-AE Chapter 3 : Modes • Emergency Call • Emergency Short Data Service (SDS) Status • Location Information Protocol reports 3.5.14 Exiting Emergency Operations Prerequisites:Make sure that your radio is engaged in Emergency Operations. Procedure: 1 Perform one of the following actions: •...

  • Page 67: Setting Monitor Option

    MN005826A01-AE Chapter 3 : Modes 3.6.1 Setting Monitor Option Procedure: 1 From the home screen, press Options. 2 Press Monitor. 3 Select one of the following options: • Off – Your radio works as a repeater only, no operation is available. •...

  • Page 68: Chapter 4: Main Menu

    MN005826A01-AE Chapter 4 : Main Menu Chapter 4 Main Menu This chapter contains information on items in the main menu. You can enter the menu items during a call. If not programmed otherwise by your service provider the radio exits the menu, when a new call starts. IMPORTANT: Some menu items are model-specific and may not be activated or available on your radio.

  • Page 69: Messages

    MN005826A01-AE Chapter 4 : Main Menu Menu Icon Description Browser Starts the WAP browser. Man Down (henceforth known as Fall Alert) Allows you to activate the Man Down (Fall Alert) feature. Security Lets you turn on/off and verify security features, and change passwords. Setup Allows you to customize your radio.

  • Page 70: New Message

    MN005826A01-AE Chapter 4 : Main Menu For details on writing a text message, see Writing Text on page 27 4.3.1 New Message This menu item allows you to create a new message. 4.3.1.1 Sending Messages to Private or Phone Procedure: 1 From the home screen, press the Menu key.

  • Page 71: Delivery Report

    MN005826A01-AE Chapter 4 : Main Menu 4 Enter your message and press Send. 5 Select one of the following options: • Private – To choose the destination number from the contact list, enter the private number or press abc. • Phone –...

  • Page 72: Inbox

    MN005826A01-AE Chapter 4 : Main Menu 4.3.1.4.1 Viewing Delivery Reports Procedure: 1 From the home screen, press the Menu key. 2 Select Messages→Inbox. 3 Find a required message and select Read. 4 Press the Menu key. 5 Select the required message and press the OK button. 6 Select Delivery Status.

  • Page 73: Receiving New Messages

    MN005826A01-AE Chapter 4 : Main Menu Icon Description Read (Old) Protected Message Protected Message Sender Information in Message View – name or number Time and Date Stamp in Message View – arrival time and date Delivery Status Received – delivery status for Store and Forward messages 4.3.2.1 Receiving New Messages When you receive a new message, your radio displays the New Message icon, an animation, and...
  • Page 74 MN005826A01-AE Chapter 4 : Main Menu 4 Use the submenus for the following options: Option Actions Saving messages as templates a Select Store. b Change the default name of the template and press OK. Deleting messages a Select Delete. b To confirm, select Yes. Deleting all messages from the inbox or a Select Delete All.

  • Page 75: Embedded Number

    MN005826A01-AE Chapter 4 : Main Menu Option Actions • Expired and unread • Failed due to an unknown error Protecting the message from being de- Select Protect. leted or overwritten Removing the message protection Select Unprotect. NOTE: Message protection is en- abled in the inbox and Call Out inbox.

  • Page 76: Making Group Calls On The Talkgroup Of The Message Sender

    MN005826A01-AE Chapter 4 : Main Menu 3 Highlight the required message and select Read. 4 Press the PTT button. The radio displays a list of numbers, including the number of the sender. 5 To call, select the required number and do one of the following: •...

  • Page 77: Outbox

    MN005826A01-AE Chapter 4 : Main Menu • Adjust the volume level using the rotary knob. When you perform an action using OTB, your radio displays a notification on the selected action. If the OTB function is not supported while in immediate text message, your radio displays Service Restricted.

  • Page 78: Call-Out Icons

    MN005826A01-AE Chapter 4 : Main Menu 4.3.4.1 Call-Out Icons Table 18: Call-Out Icons Icon Description Read (Old) Call-Out Message in Inbox Unread (New) Call-Out Message in Inbox Read (Old) Protected Call-Out Message in Inbox Unread (New) Protected Call-Out Message in Inbox Read (Old) Call-Out Message in Outbox Read (Old) Protected Call-Out Message in Outbox 4.3.5...

  • Page 79: Managing User-Defined Templates

    MN005826A01-AE Chapter 4 : Main Menu Option Actions Sending the message to a talkgroup Select the required talkgroup from the Talk- Group List. Sending the message to an address in a Press abc. your contact list b Select the name of the recipient. Sending the message to a contact or a Enter the contact number.

  • Page 80: Sending Predefined Templates

    MN005826A01-AE Chapter 4 : Main Menu 2 Select Messages→Predefined. 3 Highlight the required template and press Menu key. 4 Select View. 4.3.8.2 Sending Predefined Templates Procedure: 1 From the home screen, press the Menu key. 2 Select Messages→Predefined. 3 Highlight the required template and do one of the following: •...

  • Page 81: Targeted Status Messages

    MN005826A01-AE Chapter 4 : Main Menu 2 Select Messages→Send Status. 3 Send status messages by using one of the following options: Option Actions Sending existing status messages a Select the required status message. b Perform one of the following actions: •...

  • Page 82: Additional Address

    MN005826A01-AE Chapter 4 : Main Menu Procedure: 1 Use one of the following options: Option Actions The radio is in RMS mode Go to step The radio is not in the a Perform one of the following actions: RMS mode •...

  • Page 83: Selecting Additional Address

    MN005826A01-AE Chapter 4 : Main Menu • To deactivate the feature, select Off. 4.3.11.2 Selecting Additional Address Procedure: 1 From the home screen, press the Menu key. 2 Select Messages→Additional Address→Select Address. The radio displays a list of aliases. 3 Highlight your alias and press Select. 4.3.11.3 Viewing Additional Address Procedure:...

  • Page 84: Deleting Additional Address

    MN005826A01-AE Chapter 4 : Main Menu 3 Highlight the alias. 4 Press Menu key. 5 Select Edit. 6 Press Change. 7 Enter new values of the Alias and ISSI/ITSI/GSSI fields, press Done key. The changed alias appears in the list of available aliases. There is no possibility to have two Additional Address items with the same Additional Address Alias.

  • Page 85: Creating Contacts

    MN005826A01-AE Chapter 4 : Main Menu Type Each contact must be assigned to one of the following types: Table 19: Contact Types Contact Icon Description Private Cannot have a speed dial number. Mobile Home Work PABX Other Pickers Indicate more than one number in a contact. # (number) Each contact entry must contain a number.

  • Page 86: Editing Contacts

    MN005826A01-AE Chapter 4 : Main Menu 6 If needed, highlight Speed # and press Change. Enter the speed dial number (1–1000) and press OK. NOTE: If the entered number exist, the radio displays Overwrite?. Press Yes to confirm, or No to enter the speed dial number again. 7 Press Done.

  • Page 87: Deleting Contacts

    MN005826A01-AE Chapter 4 : Main Menu 4.4.4 Deleting Contacts Procedure: 1 From the home screen, press Contacts key. 2 Highlight a contact you want to delete. 3 Press the Menu key. 4 Select Delete contact. 5 Select Yes. 4.4.5 Checking Capacity When and where to use:To see how many numbers are stored in the radio.

  • Page 88: Starting The Picture Browser

    MN005826A01-AE Chapter 4 : Main Menu Picture Browser displays pictures only in the JPEG format, that is files with .jpg and .jpeg extensions. Also, the browser does not open pictures whose size exceeds 10 MB – File too large message is displayed.

  • Page 89: Zoom Levels

    MN005826A01-AE Chapter 4 : Main Menu I want to... Action Display the next picture. Press the Right Navigation key. Zoom a picture in by one level. Perform one of the following actions: • Press the * key. • Rotate the Rotary Knob clockwise. Zoom a picture out by one level.

  • Page 90: Sending Pictures Through Bluetooth From The Picture Browser

    MN005826A01-AE Chapter 4 : Main Menu To add a new or edit an existing comment assigned to a picture. Procedure: 1 From the home screen, press the Menu key. 2 Select Pictures. 3 Highlight the required picture. 4 Press the Menu key. 5 Select Comment.

  • Page 91: Configuring Bluetooth Settings

    NOTE: This setting does not affect the Motorola Solutions headset with PTT (NNTN8143_ or NNTN8191_) as it is always in the GC Optimized mode.

  • Page 92: Pairing Bluetooth Devices With Your Radio

    MN005826A01-AE Chapter 4 : Main Menu 4.6.3 Pairing Bluetooth Devices with Your Radio Pairing is a process that creates a link between two Bluetooth-enabled devices. Once paired, devices remember each other and every subsequent connection between them is authenticated automatically. When and where to use:To scan for available Bluetooth-enabled devices and to connect with them.

  • Page 93: Managing Devices

    MN005826A01-AE Chapter 4 : Main Menu 4.6.4.2 Managing Devices Procedure: 1 From the home screen, press the Menu key. 2 Select Bluetooth→Devices. 3 Highlight the required device and press the Menu key. • Name – shows the name of the device (up to 32 characters long). The name is editable only if it has not been pre-set by the service provider.

  • Page 94: Sending Files Through Bluetooth From My Received Files

    MN005826A01-AE Chapter 4 : Main Menu 4.6.5.2 Sending Files through Bluetooth from My Received Files By using this procedure, you can send any files stored in My Received Files. Alternatively, for sending only pictures (JPEG files), you can use the Picture Browser. Procedure: 1 From the home screen, press the Menu key.

  • Page 95: Disconnecting All Devices

    MN005826A01-AE Chapter 4 : Main Menu 2 Select Setup→Bluetooth→My Received Files. A list of all files received appears. 3 Press the Menu key. 4 Select one of the following options: • Details – Displays details of the file: name, size, reception date and time. •...

  • Page 96: Connecting Firearms Devices

    MN005826A01-AE Chapter 4 : Main Menu Procedure: 1 From the home screen, press the Menu key. 2 Select Bluetooth→Indoor Location. 3 Select Beacons Found. 4 Select the preferred beacon. The screen displays details of the beacon. 4.6.8 Connecting Firearms Devices Prerequisites:Only pre-approved firearms devices can be used.

  • Page 97: Setting Man Down (Fall Alert)

    MN005826A01-AE Chapter 4 : Main Menu For easier localization of the radio, visual and audible indications are started until they are deactivated. If the Emergency Hot Microphone is on, the additional audio indication is not played. To exit Man Down (Fall Alert), exit the Emergency Mode by pressing and holding the Exit Soft key, or press the PTT button.

  • Page 98: Changing Pin Codes

    MN005826A01-AE Chapter 4 : Main Menu 4.9.1.2 Changing PIN Codes NOTE: This feature is only available when enabled by your service provider. Procedure: 1 From the home screen, press the Menu key. 2 Select Security→Change Code. 3 Radio prompts for the Old Code. NOTE: By default the PIN code are all zeros (depending on the length of the PIN code).

  • Page 99: Setting Keylock On Startup

    MN005826A01-AE Chapter 4 : Main Menu 4.9.2.3 Setting Keylock on Startup Procedure: 1 From the home screen, press the Menu key. 2 Select Security→Keylock Setup→Start Locked. 3 Select On or Off. 4.9.3 Air Encryption NOTE: This is a Software Selling Feature. This menu item allows you only to view air encryption state.

  • Page 100: K Validity

    MN005826A01-AE Chapter 4 : Main Menu 4.9.4 K Validity Key (K) is a secret key the infrastructure uses to authenticate the radio in the system. It is part of the authentication that provides service confidentiality between your radio and the system. 4.9.4.1 Verifying K Validity Procedure:...

  • Page 101: Dmo Sck

    MN005826A01-AE Chapter 4 : Main Menu 4.9.5.2 DMO SCK Your service provider can enable SCKs in DMO. The SCKs used in DMO are called DMSCKs. 4.9.5.2.1 Verifying DMSCK Validity When and where to use:To ensure that the DMSCKs in the radio are valid and can be used for the air interface encryption.

  • Page 102: Activating Covert Mode

    MN005826A01-AE Chapter 4 : Main Menu • Backlight (in Display menu item) When the Covert Mode is turned on: • All tones are set to Off (corresponding to All Tones menu entry). • Group audio is set to Spkr Cntrl (corresponding to Audio Toggle menu entry). •...

  • Page 103: Sds Remote Control

    MN005826A01-AE Chapter 4 : Main Menu Play loud tone until user interaction The radio plays a loud tone as in the Man Down (henceforth known as Fall Alert) feature until you unlock the keypad (if needed) and press the appropriate soft key labeled Exit. The tone is played through the speaker even if an accessory is attached.

  • Page 104: Vibrate

    MN005826A01-AE Chapter 4 : Main Menu 4.10.1 Vibrate This sub-menu allows you to determine if your radio vibrates, or rings, or vibrates and then rings when receiving a call. 4.10.1.1 Setting Detail Vibrate Procedure: 1 From the home screen, press the Menu key. 2 Select Setup→Vibrate→Custom..

  • Page 105: Set Volume

    MN005826A01-AE Chapter 4 : Main Menu 4 Scroll to the desired style and press Select. NOTE: New ring style is played immediately for a few seconds. If necessary, adjust the volume level. 4.10.3 Set Volume This menu item allows you to adjust the Speaker and Earpiece tone volumes. 4.10.3.1 Setting Volume Procedure:...

  • Page 106: Data Setup

    MN005826A01-AE Chapter 4 : Main Menu 4.10.5 Data Setup This menu item allows you to set up your radio to transmit and receive data from the external device. To connect your radio accessory connector to the external device, use the PMKN4124 (for E2E KVL) or PMKN4127 (for AIE and Authentication KVL) cable.

  • Page 107: Howling Suppression

    MN005826A01-AE Chapter 4 : Main Menu 3 Select a required profile. 4.10.6.2 Howling Suppression The howling suppression is a mode increasing the stability of the acoustic feedback loop. The radio eliminates howling caused by the feedback loop from the receiving radios to the sending radio in simplex calls.

  • Page 108: Tones

    MN005826A01-AE Chapter 4 : Main Menu • Keypad • Tones • Call-Out The Volume Control Mode is configurable using the Customer Programming Software (CPS). NOTE: When a volume control capable Bluetooth device is connected, the radio always uses the Common setting. You can configure the maximum volume offsets (dB) and the volume range (dB) through CPS.

  • Page 109: Talk Permit

    MN005826A01-AE Chapter 4 : Main Menu 4.10.7.2.1 Setting All Tones Procedure: 1 From the home screen, press the Menu key. 2 Select Setup→Tones→All Tones. 3 Select one of the following options: • On – Activates all the tones. • Off – Deactivate all the tones. 4.10.7.3 Talk Permit You can set a different tone upon pressing the PTT button.

  • Page 110: D-Ptt Tones

    MN005826A01-AE Chapter 4 : Main Menu For each notification, your radio generates an unread message tone with the amber LED color indication. 4.10.7.5.1 Setting Periodic Alert Procedure: 1 From the home screen, press the Menu key. 2 Select Setup→Tones→Periodic Alert. 3 Select one of the following options: •...

  • Page 111: Setting Large Idle Font

    MN005826A01-AE Chapter 4 : Main Menu 3 Select one of the following options: • 1 – Small font size • 2 – Medium font size • 3 – Large font size • 4 – Extra large font size In some languages, the number of available font levels can be decreased. 4.10.8.2 Setting Large Idle Font When and where to use:To enable/disable large font on the home screen.

  • Page 112: Setting Brightness

    MN005826A01-AE Chapter 4 : Main Menu • Semi Auto – Backlight is turned on when you are switching on the radio, pressing assigned button to the backlight feature, or charging. • Disabled – backlight is disabled and the display is always dimmed. 4.10.8.5 Setting Brightness When and where to use:To set the luminance of the display and the keypad in an environment with...

  • Page 113: Time And Date

    MN005826A01-AE Chapter 4 : Main Menu • On – To activate this feature. • Off – To deactivate this feature. 4.10.9 Time and Date This sub-menu controls the displayed time and date on the home screen. NOTE: If the Home Display Text Message feature is enabled, Home Mode Display Text may cover time and date, depending on the Configurable Idle Screen settings.

  • Page 114: Setting The Date Format

    MN005826A01-AE Chapter 4 : Main Menu 4.10.9.4 Setting the Date Format Prerequisites:If Menu→Setup→Time & Date→Display is set to Time & Date or Date Only. Procedure: 1 From the home screen, press the Menu key. 2 Select Setup→Time & Date→Format→Format Date. 3 Select (D –...

  • Page 115: Energy Economy

    Class 4. The RF Power icon indicates when the radio uses this feature. NOTE: Class 3 is a feature available only for MTP6650. Class 3 can be used together with Class 3L, and the allowable transmit power depends on the combination of classes.

  • Page 116: Accessory (Accry) Setup

    • CORE Earpiece – Select an earpiece from the list of the CORE accessories. • Other RSM/PHF – Select an accessory from the list of the non-Motorola Solutions accessories. • RSM Earpiece – Specify if the accessory is connected to the RSM.

  • Page 117: Rotary Knob

    MN005826A01-AE Chapter 4 : Main Menu 2 Select Setup→Book on Setup. 3 Select one of the following options: • Book on Accept – Radio accepts all the book on requests. • Book on Reject – Radio rejects all the book on requests without any notification. 4.10.14 Rotary Knob This menu item allows you to set all the related functionality of the Rotary Knob.

  • Page 118: Setting In Keypad Lock

    MN005826A01-AE Chapter 4 : Main Menu 4.10.14.3 Setting In Keypad Lock When and where to use:To set behavior of the rotary knob when the keypad is locked. Procedure: 1 From the home screen, press the Menu key. 2 Select Setup→Rotary Knob→In Keypad Lock. 3 Select one of the following options: •...

  • Page 119: Setting Rotary Knob Function Keys

    MN005826A01-AE Chapter 4 : Main Menu 3 Select one of the following options: • On – You need to confirm the talkgroup selection by pressing Select or pressing the PTT button to immediately start a call on a new talkgroup. •...

  • Page 120: Usb Settings

    MN005826A01-AE Chapter 4 : Main Menu • Vibrate – enables/disables vibration. Select one of the following options: • Always Ring Only – no vibrations • Normal Settings – as defined in the Vibrate menu • Display→Flip Display – to adjust your radio display settings when Car Kit is used. Select one of the following options: •...

  • Page 121: Default Setting

    MN005826A01-AE Chapter 4 : Main Menu The radio only supports the following characters to compose file names: • Numeric digits • English alphabetic characters • Space • Non-alphabetic characters: ! # $ % & ' ( ) - @ ^ _ ` { } ~. NOTE: Before using non-alphabetic characters, make sure your computer system supports them.

  • Page 122: Setting Operations Parameters

    MN005826A01-AE Chapter 4 : Main Menu 4.11.1 Setting Operations Parameters When and where to use:If you want to define the radio mode and the talkgroup at the radio startup, and when changing modes TMO → DMO and TMO → Repeater. Procedure: 1 From the home screen, press the Menu key.

  • Page 123: Activating Talkgroup Scanning

    MN005826A01-AE Chapter 4 : Main Menu 4.11.2.1 Activating Talkgroup Scanning When and where to use:If you want to monitor any TMO Group Call in the defined talkgroup list. Procedure: 1 From the home screen, press the Menu key. 2 Select Group Setup→Scan→Scanning. 3 Select Select List and then a list name.

  • Page 124: Deleting Talkgroups From Scan Lists

    MN005826A01-AE Chapter 4 : Main Menu 4.11.2.4 Deleting Talkgroups from Scan Lists Procedure: 1 From the home screen, press the Menu key. 2 Select Group Setup→Scan→Scan Lists. 3 Highlight the required scan list and press Menu→Edit. 4 Highlight the required talkgroup and press Menu→Delete. 4.11.3 My Groups This sub-menu allows you to select/edit your favorite group list.

  • Page 125: Deleting Talkgroup From Favorite Folders

    MN005826A01-AE Chapter 4 : Main Menu • Delete Folder – Deletes selected folder. Press Yes. NOTE: You cannot delete the last favorite folder. 4.11.3.4 Deleting Talkgroup from Favorite Folders Procedure: 1 From the home screen, press the Menu key. 2 Select Group Setup→My Groups. 3 Select required favorite folder.

  • Page 126: Favorites

    MN005826A01-AE Chapter 4 : Main Menu • Always • Busy • No Answer • Not Reachable NOTE: The settings in the Config sub-menu is only enabled when On is selected in Enable Config. • Last Result – Display the radio's response of the last sent call forwarding. 4.13 Favorites Favorites contains shortcuts to frequently used talkgroups and contact numbers that are organized in...

  • Page 127: Adding Talkgroups To Favorites

    MN005826A01-AE Chapter 4 : Main Menu Option Actions Making simplex calls in TMO or DMO a Press and hold the PTT button. b Wait for the Talk Permit tone before talk- ing. c Release the PTT button to listen. Making duplex calls in TMO a Press the Send key to initiate the call.

  • Page 128: Deleting Items From Favorites Folder

    MN005826A01-AE Chapter 4 : Main Menu 4.13.6 Deleting Items from Favorites Folder When and where to use:To delete a single contact number or a talkgroup from a favorite folder. Procedure: 1 From the home screen, press the Menu key. 2 Select Favorites. 3 Select a folder containing the item you want to remove.

  • Page 129: Viewing Talkgroup Subaddresses

    MN005826A01-AE Chapter 4 : Main Menu • Radio Storage – Displays the amount of free and total space available in the internal radio memory. • SD card Storage – Displays the amount of free and total space available on the microSD card.

  • Page 130: Viewing Recent Calls

    MN005826A01-AE Chapter 4 : Main Menu 4.15.1 Viewing Recent Calls Procedure: 1 From the home screen, press the Menu key. 2 Select Recent Calls. 3 Select one of the following options: • Dialed • Received • Missed 4 Select a required call from the list. 5 Press the Menu key.

  • Page 131: Deleting Recent Calls

    MN005826A01-AE Chapter 4 : Main Menu • Missed 4 Press Store. NOTE: If Store is not assigned to the Left Soft key, the number is already stored in your contact list. 5 Perform one of the following actions: • To store the number as a new entry, select [New Contact]. •...

  • Page 132: Editing Menu Shortcut Lists

    MN005826A01-AE Chapter 4 : Main Menu 3 Highlight All Tones and press and hold Menu until Assign Shortcut for: All Tones is displayed. 4 Select Yes and Shortcuts Key: 1 is displayed. 5 Press Done. NOTE: To use this shortcut, from the home screen, press Menu and the key 1. 4.16.2 Editing Menu Shortcut Lists Procedure:...

  • Page 133: Networks

    MN005826A01-AE Chapter 4 : Main Menu 2 Select RUI→Log off. 3 Press Accept. 4.18 Networks This menu item allows you to switch between the radio operation modes. 4.18.1 Selecting Network Operation Mode Procedure: 1 From the home screen, press the Menu key. 2 Select Networks.

  • Page 134: Using Any Network Registration

    MN005826A01-AE Chapter 4 : Main Menu 2 Select Networks→Network Sel→Select Net. 3 Select the required network from the list. Your radio registers to the selected network. 4.18.2.3 Using Any Network Registration When and where to use:Your radio has lost its home network coverage and wants to increase the number of networks it can scan and register.

  • Page 135: Using Any Tg Net Registration

    MN005826A01-AE Chapter 4 : Main Menu multiple talkgroup linked networks. Use this feature to select a network that is most preferred. The selected network is the first priority for scanning and registration. Procedure: 1 From the home screen, press the Menu key. 2 Select Networks→TG Net Sel→Prefer TG Net.

  • Page 136: Viewing Testpage

    MN005826A01-AE Chapter 4 : Main Menu 3 Scroll to view the results about the last time your location was calculated. NOTE: To refresh your position: • Select Position – The radio refreshes its position automatically. • Press Refresh 4.19.3 Viewing Testpage Procedure: 1 From the home screen, press the Menu key.

  • Page 137: Viewing Backlog Reports

    MN005826A01-AE Chapter 4 : Main Menu • On – Activates location report backlog recording. • Off – Deactivates location report backlog recording. 4.19.5.2 Viewing Backlog Reports Procedure: 1 From the home screen, press the Menu key. 2 Select Location→Backlog→Reports. The radio displays the number of backlog reports stored. 4.19.5.3 Deleting All Backlog Reports Procedure:...

  • Page 138: Viewing Encryption Status

    MN005826A01-AE Chapter 4 : Main Menu • Failed Transfer – The percentage of failed sent/received packets. NOTE: N.A. – Standby packet data session. 4.20.2 Viewing Encryption Status Procedure: 1 From the home screen, press the Menu key. 2 Select Packet Data→Encryption. 3 The encryption state of the ongoing packet data session is displayed: •...

  • Page 139: Setting Clear Call Alarm

    MN005826A01-AE Chapter 4 : Main Menu Option Actions b Select Encryption On to enable or En- cryption Off to disable encryption. Your radio displays prompts indicating your current encryption state: an appropriate status icon and the Encryption On or Encryption Off message. 4.21.2 Setting Clear Call Alarm When and where to use:The Clear Call Alarm menu is used to configure an alarm tone to notify on...

  • Page 140: Setting Opta Filter

    MN005826A01-AE Chapter 4 : Main Menu 4.21.5 Setting OPTA Filter When and where to use: Use this menu item to define which characters are masked when the OPTA name is displayed. Procedure: 1 From the home screen, press the Menu key. 2 Select Crypto Menu→OPTA Filter.

  • Page 141: Chapter 5: Features

    MN005826A01-AE Features Chapter 5 Features Ambience Listening (AL) Call Ambience Listening Call allows a dispatcher to make a special call that allows listening to the conversations and background noises within the range of the microphone of a particular radio. The call is set up without any indication to the affected radio, and any lower priority ongoing voice call or packet data transfer may be preempted.

  • Page 142: Bluetooth Interactions

    MN005826A01-AE Chapter 5 : Features • Send and receive files using OPP. • Allow your radio to detect BTLE iBeacons. • Allow radio collaboration with various Bluetooth sensors or data capture devices, for example biometric sensors, bar code scanners, or firearm devices. •...

  • Page 143: Bluetooth Smart Proximity Pairing

    MN005826A01-AE Chapter 5 : Features is configured to use specific sensor devices, they can then be added in the same manner as audio devices, for example; by selecting Add Device from the Bluetooth menu. Devices on page 5.2.4 Bluetooth Smart Proximity Pairing With the use of Proximity Pairing, you can instantly connect your radio with Bluetooth Low Energy (BTLE) devices.

  • Page 144: Call-Out

    MN005826A01-AE Chapter 5 : Features Call-Out NOTE: This is a Software Selling Feature. For those who use DMO mode, you are recommended to apply DMO SCK for data confidentiality. This feature allows you to receive Call-Out alerts. On receiving the Call-Out messages, the radio interrupts current services and attends to the Call-Out alert without any further delay.

  • Page 145: Call-Out Modes Interaction

    MN005826A01-AE Chapter 5 : Features The Normal Call-Out mode is ended when the validity timer runs out. Storm Plan An alert message that is sent by a dispatcher to a group of radios. To raise its reliability, it is sent several times.

  • Page 146: Call-Out Service Phases

    MN005826A01-AE Chapter 5 : Features 5.4.3 Call-Out Service Phases In the Call-Out mode there are following phases: Alerting Phase Alerting users by using the LED pattern, vibration pattern, alert tone and volume level configured for the first matching sub address that contain the indication profile setting. The radio receives a Call-Out message.

  • Page 147: Global Positioning System (Gps) Location Service

    MN005826A01-AE Chapter 5 : Features Global Positioning System (GPS) Location Service NOTE: This is a Software Selling Feature. The Global Positioning System (GPS) Location Service feature uses information from GPS satellites orbiting the Earth to determine the approximate geographical location of your radio. The GPS Location Service availability, accuracy, and the position calculation time vary depending on the environment in which you use the radio.

  • Page 148: Location Report Backlog

    MN005826A01-AE Chapter 5 : Features • Stay in the open – The GPS feature works best where there is nothing between your radio and a large amount of open sky. If possible, go outside, away from tall buildings and foliage. While the performance in a building is improved by moving closer to windows, glass with certain sun shielding films may block satellite signals.

  • Page 149: Different Location Displays

    MN005826A01-AE Chapter 5 : Features 5.7.4 Different Location Displays Table 22: Different Location Displays Latitude/Longi- Irish Coordi- UTM Coordi- MGRS Coordi- UK Coordinates tude nates nates nates Time Time Time Time Time Latitude 2-Letter Code 1-Letter Code 3-Letter Code 3-Letter Code and 2-Letter Code Longitude...

  • Page 150: Home Mode Display Text Message

    MN005826A01-AE Chapter 5 : Features 20 m for 50% of location reports. 50 m for 95% of location reports. NOTE: The presented values depend on variety of factors, for example the view on the sky. To optimize the GPS performance the radio should have the clearest possible view of the open sky.

  • Page 151: Phone And Pabx Calls

    MN005826A01-AE Chapter 5 : Features Option Actions Making simplex calls in TMO or DMO a Press and hold the PTT button. b Wait for the Talk Permit tone before talk- ing. c Release the PTT button to listen. Making duplex calls in TMO a Press the Send key.

  • Page 152: Ms-Isdn

    MN005826A01-AE Chapter 5 : Features • Press the PTT button. • Press the Send key. 2 To end the call, press the End key. 5.10 MS-ISDN This feature adds to your radio ISDN number. You can choose between MS-ISDN and ISSI to address the call, send the message or pre-defined templates.

  • Page 153: Radio Messaging System Icons

    MN005826A01-AE Chapter 5 : Features 5.12.1 Radio Messaging System Icons Table 23: RMS Icons Icon Description RMS Status Received Indicates a new RMS status message just arrived. RMS Status Sent RMS Box Read Message RMS Box Unread Message 5.13 Radio User Assignment (RUA) and Radio User Identity (RUI) NOTE: This is a Software Selling Feature.

  • Page 154: Sim Card End-To-End Encryption

    MN005826A01-AE Chapter 5 : Features 5.14 SIM Card End-to-End Encryption The following table presents interactions occurring between radios with and without SIM cards. SIM cards provide End-to-End Encryption. NOTE: SIM card End-to-End Encryption supports the Federal Office for Information Security of Germany (BSI) feature only.

  • Page 155: Viewing The Talkgroup Speed Number

    It is recommended to Permanent Disable your radio only when you do not expect to recover it. If it is recovered then a Permanent Disable radio can be reactivated by returning it to Motorola Solutions. 5.18...

  • Page 156: Wireless Application Protocol (Wap)

    MN005826A01-AE Chapter 5 : Features 5.19 Wireless Application Protocol (WAP) NOTE: This is a Software Selling Feature. Wireless Application Protocol (WAP) is a standard for application layer network communications in a wireless communication environment such as TETRA network. The protocol is used to access the mobile web from a radio through a WAP browser.

  • Page 157: Creating Bookmarks Through The Navigate Pane

    MN005826A01-AE Chapter 5 : Features 5.19.4.1 Creating Bookmarks through the Navigate Pane Procedure: 1 Enter the browser and browse to the required page. 2 Press Menu to enter the browser menu. 3 Select Mark Page. 4 The screen displays the title and URL of the marked page. 5 To save it: a Press Save (or Select) to save the page in bookmarks.

  • Page 158: Using Hotkeys

    MN005826A01-AE Chapter 5 : Features 6 Click Assign. The display shows the bookmark and its assigned hotkey. 5.19.4.5 Using Hotkeys Procedure: 1 Enter the browser. 2 Press and hold a hotkey to download the corresponding bookmarked page from the web. 5.19.4.6 Saving Pages When and where to use:Save a page for off-line browsing.

  • Page 159: Browser Keys Usage

    MN005826A01-AE Chapter 5 : Features • During PIN lock. • Service provider has not configured this feature. • When the radio is disabled. NOTE: • Browser entry is enabled during Ambience Listening (AL) Call. If you navigate to previously stored pages, the AL state remains. •...

  • Page 160: Browser Menu Panes Overview

    MN005826A01-AE Chapter 5 : Features Key Press Action End key Press to deactivate the browser. Send key Disabled in browser active state. Rotary Knob Used for volume adjustment only. Emergency button Deactivates the browser. The radio enters Emergency Mode. 5.19.8 Browser Menu Panes Overview The browser menu includes the following panes: Table 26: Browser Menu Panes...

  • Page 161: Advanced

    MN005826A01-AE Chapter 5 : Features • Advanced... – see following section. 5.19.10 Advanced... From the Navigation pane select Advanced... to see the following options: • Settings... Downloads – for setting download preferences. You may deactivate the downloading of images and objects. The browser displays a special icon instead of the images and objects. Scroll Mode –...

  • Page 162: Working With The Options Pane For Selected Bookmarks

    MN005826A01-AE Chapter 5 : Features 5.19.11.1 Working with the Options Pane for Selected Bookmarks Procedure: 1 From the Bookmarks pane select More..2 Scroll to a bookmark. 3 Press Menu to open the Options pane for that bookmark. 4 Select one of the following options: •...

  • Page 163: Navigating To Recently Visited Urls

    MN005826A01-AE Chapter 5 : Features 5.19.12.1 Navigating to Recently Visited URLs Procedure: 1 Select the URL. 2 Press OK. 5.19.13 Tools Pane Procedure: 1 From the Tools pane select More... 2 Scroll to a document. 3 Select Menu key to open the Options pane for that document. 4 Select one of the following options: •...

  • Page 164: Wap Push

    MN005826A01-AE Chapter 5 : Features Mode Soft Key Action Numeric Enter numbers and symbols. http mode Enter. 5.19.16 WAP Push NOTE: This is a Software Selling Feature. Wireless Application Protocol (WAP) Push allows WAP content to be pushed to a radio. This push is carried out by sending a specially formatted (Push Access Protocol) XML document to the Push Proxy Gateway, that in turn forwards the document to the radio.
  • Page 165 MN005826A01-AE Chapter 5 : Features 4 Select Go to to view the message in the browser.

  • Page 166: Appendix A: Tones

    MN005826A01-AE Appendix A : Tones Appendix A Tones The radio has two tone packs: Classic Tones (default) and New Tones. Your service provider decides which one is enabled. To listen to the tone samples, click NOTE: Some radio tones are model-specific and may not be available on your radio. Table 29: Radio Tones New Tone Classic Tone...
  • Page 167 MN005826A01-AE Appendix A : Tones New Tone Classic Tone Tone Description Emergency – The Emergency Call received. Emergency 2 – The Emergency Call received (optional tone) Low Battery – The battery charge level is low. Over the Air 1 – Single D-PTT tone. Over the Air 2 –...

  • Page 168: Appendix B: Led Indications

    MN005826A01-AE Appendix B : LED Indications Appendix B LED Indications Table 30: LED Status Indications Indication Status Solid green • In use • Repeating call Blinking green • In service or idle • Switching modes from TMO to DMO Solid red •...

  • Page 169: Appendix C: Troubleshooting

    MN005826A01-AE Troubleshooting Appendix C Troubleshooting Your radio displays the following messages: Table 32: Displayed Messages Message Message Description Attachment Failed Your radio could not perform talkgroup attachment. It keeps on trying. If it does not succeed, try another talk- group. Authenticate Failure Your radio could not register on an authenticated system (for example, the Authentication Key is incorrect, or au-...
  • Page 170 MN005826A01-AE Appendix C : Troubleshooting Message Message Description File cannot be received, The file cannot be received because the memory for storage unavailable its storage is inaccessible. See File Storage Not Available. File Invalid The picture you are trying to open is damaged. File Storage Not Available Memory for file storage is inaccessible.
  • Page 171 MN005826A01-AE Appendix C : Troubleshooting Message Message Description No Group • Attachment failed. Your radio detached from current talkgroup. Please wait until it attaches again to the cur- rent talkgroup. • Displayed when you are out of the normal coverage area of your selected talkgroup.
  • Page 172 MN005826A01-AE Appendix C : Troubleshooting Message Message Description TalkGrp ... cannot be deleted Your service provider set this group so you cannot delete it from the favorite talkgroup folder. Try Again Later The requested service is temporarily unavailable. Radio Disabled Check with your service provider.

  • Page 173: Appendix D: Maintenance

    Extending Battery Life A battery is an expendable part and may need replacing during the life of the radio. To ensure maximum service life of your radio, always replace the battery with a genuine Motorola Solutions replacement. Battery Charging Temperature If, during charging, the temperature is out of range, the battery might not be fully charged since the charging is temporarily stopped until the temperature becomes suitable.

  • Page 174: Looking After Your Radio

    MN005826A01-AE Appendix D : Maintenance Looking after Your Radio Never leave your radio or battery in extreme temperatures, for example, behind a windscreen in direct sunlight. The radio is submersible (compliant with the IP67 standard) – but only with the battery and the antenna attached.

Table of Contents
