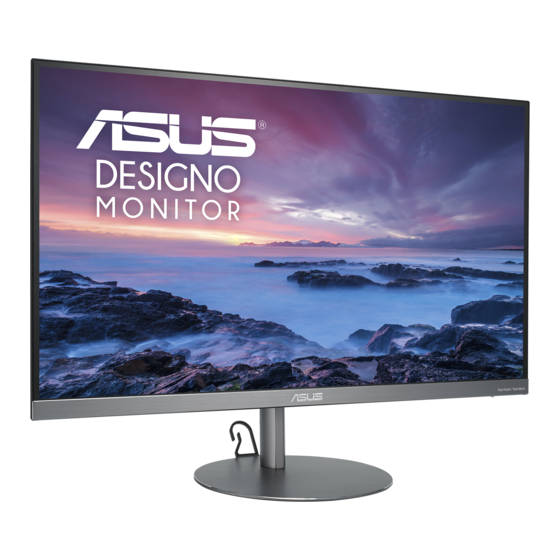

  • Page 1 MZ279HL Series LCD Monitor User Guide...
  • Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Page 3: Table Of Contents

    Table of contents Notices ......................iv Safety Information ..................v Care & Cleaning ..................vii Takeback Services ..................viii Welcome! ..................1-1 Package contents ................. 1-1 Assembling the monitor base ............. 1-2 Connect cables ................1-3 1.4.1 Rear of the LCD monitor ..........1-3 Monitor introduction ..............

  • Page 4: Notices

    Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation.

  • Page 5: Safety Information

    Safety Information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.
  • Page 6 • This product complies with the “India E-Waste (Management) Rules, 2016” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1 % by weight in homogenous materials and 0.01 % by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.

  • Page 7: Care & Cleaning

    Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning.

  • Page 8: Takeback Services

    These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.

  • Page 9: Welcome

    ® Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual...

  • Page 10: Assembling The Monitor Base

    Assembling the monitor base Have the front of the monitor face down on a table. Attach the base to the arm. Turn the screw clockwise to secure the base. Install the cable tie mount to the arm. • We recommend that you cover the table surface with soft cloth to prevent damage to the monitor.

  • Page 11: Connect Cables

    1.4.1 Rear of the LCD monitor HDMI-2 HDMI-1 HDMI-2 HDMI-1 5-way button Earphone jack Power indicator HDMI-2 port Stereo speakers HDMI-1 port Cable tie mount 10. VGA port Kensington lock 11. DC-IN port Audio-IN port ASUS LCD Monitor MZ279HL Series...

  • Page 12: Monitor Introduction

    Monitor introduction 1.5.1 Using the 5-way button Use the 5-way button on the back of the monitor to adjust the image settings and more. Move the 5-way button into 5 different positions to activate various functions. Menu Close Power Off Volume Blue Light Filter Menu:...

  • Page 13: Quickfit Function

    Paper size: Provides users to view their documents in real size on the screen. Letter Letter EXIT Photo size: Provides photographers and other users to accurately view and edit their photos in real size on the screen. 8x10 ASUS LCD Monitor MZ279HL Series...

  • Page 14: Eyecheck Function

    1.5.3 EyeCheck Function The EyeCheck function contains three patterns: (1) Snellen Chart (2) Amslter Grid (3) Astigmatism. Snellen Chart L0.7 L0.3 L0.1 L0.8 L0.4 L0.9 L0.5 L1.0 L0.2 L0.6 L1.2 move the 5-way button down • To switch between P1~P3, Amslter Grid While focusing at the center point, to check all lines should be straight.

  • Page 15: Adjusting The Monitor

    • The recommended angle and height adjustments are the following: -5˚ to +22˚ 30˚ 30˚ • Tilt angle: -5˚ to 22˚ • Swiveling angle: +30˚ to -30˚ 100 mm • Adjustable height: 100mm • It is normal that the monitor slightly shakes while you adjust the viewing angle. ASUS LCD Monitor MZ279HL Series...

  • Page 16: Osd (On-Screen Display) Menu

    OSD (On-Screen Display) menu 3.1.1 How to reconfigure ASUS MZ279 Splendid Standard Mode HDMI-1 1920 x 1080 @ 60Hz Scenery mode Standard Mode Theater Mode Game Mode Night View Mode sRGB Mode Reading Mode Darkroom Mode BACK/EXIT MOVE/ENTER Push the 5-way button twice to activate the OSD menu.

  • Page 17: Osd Function Introduction

    Reading Mode: This is the best choice for book reading with • SPLENDID™ Video Intelligence Technology. Darkroom Mode: This is the best choice for a weak ambient • light environmen with SPLENDID™ Video Intelligence Technology. ASUS LCD Monitor MZ279HL Series...
  • Page 18 In the Reading Mode, the Saturation, SkinTone, ASCR, Contrast, and Color Temp. functions are not user-configurable. Blue Light Filter In this function, you can adjust the blue light filter level. ASUS MZ279 Blue Light Filter Standard Mode HDMI-1 1920 x 1080 @ 60Hz Level 0...
  • Page 19 Cool, Normal, Warm, and User Mode. • In the User Mode, colors of R (Red), G (Green), and B (Blue) are user- configurable; the adjusting range is from 0 ~ 100. • Skin Tone: Select the desired skin color. Available options: Reddish, Natural, and Yellowish. ASUS LCD Monitor MZ279HL Series...
  • Page 20 Image You can adjust the image Sharpness, Trace Free, Aspect Control, VividPixel, ASCR, Adaptive-Sync, Position, Focus, and Auto Adjust from this main function. ASUS MZ279 Image Standard Mode HDMI-1 1920 x 1080 @ 60Hz Sharpness Trace Free Aspect Control VividPixel...
  • Page 21 • OverScan is only available for HDMI input. • VividPixel: ASUS Exclusive Technol ogy that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0~100. ASCR: Select ON or OFF to enable or disable dynamic contrast •...
  • Page 22 Sound Adjust the sound settings to your preference. ASUS MZ279 Sound Standard Mode HDMI-1 1920 x 1080 @ 60Hz Volume AudioWizard BACK/EXIT MOVE/ENTER Volume: Adjusts the output volume level. • • AudioWizard: Select the preset sound mode. Available options: Music Mode, Movie Mode, Gaming Mode, and User Mode.
  • Page 23 GamePlus: The GamePlus Function provides a toolkit and creates a better gaming environment for users when playing different types of games. Particularly, Crosshair function is specially designed for new gamers or beginners interested in First Person Shooter (FPS) games. ASUS LCD Monitor MZ279HL Series...
  • Page 24 To activate GamePlus: • Select ON to enter the GamePlus main menu. • Move the 5-way button to select between Crosshair, Timer, and FPS Counter function. • Push the 5-way button to confirm the function you choose. Move the 5-way button to go back. GamePlus Main Menu GamePlus —...
  • Page 25 Information: Display the monitor information. Power Indicator: Turn the power LED indicator on/off. • • Power Key Lock: Disable/Enable the power key. • All Reset: Select YES to revert all settings to the factory default mode. 3-10 ASUS LCD Monitor MZ279HL Series...
  • Page 26 Shortcut Assign the specific function to the two shortcut keys. ASUS MZ279 Shortcut Standard Mode HDMI-1 1920 x 1080 @ 60Hz Shortcut Blue Light Filter Shortcut Splendid Brightness Auto Adjust Contrast Color Temp. Volume GamePlus BACK/EXIT MOVE/ENTER (Shortcut ASUS MZ279 Shortcut Standard Mode HDMI-1 1920 x 1080 @ 60Hz...

  • Page 27: Specifications

    CE, CB, BSMI, FCC, CCC, CU(EAC), VCCI, RCM, UL/cUL, MSIP(KCC), KC(EK), Energy Star 7.0, HDMI, DP, Windows 7/8/10 Regulation approvals WHQL, China Energy Label, E-Standby, GEMS, J-Moss, EPEAT (SILVER), RoHS, WEEE, EuP(Energy Saving Only) *Specifications subject to change without notice. 3-12 ASUS LCD Monitor MZ279HL Series...

  • Page 28: Troubleshooting (Faq)

    Troubleshooting (FAQ) Problem Possible Solution Power LED is not ON • Press the 5-way button to check if the monitor is turned on. • Check if the adapter and power cord are properly connected to the monitor and the power outlet. • Check the Power Indicator function in the OSD menu.

  • Page 29: Supported Timing List

    SVGA 832x624@75Hz 1152 x 667 49.714 74.533 57.27 * Modes not listed in the table may not be supported. For optimal resolution, we recommend that you choose a mode listed in the table above. 3-14 ASUS LCD Monitor MZ279HL Series...

  • Page 30: Product Dimensions

    Product Dimensions Unit: mm(inch) 3-15 Chapter 3: General Instruction...
