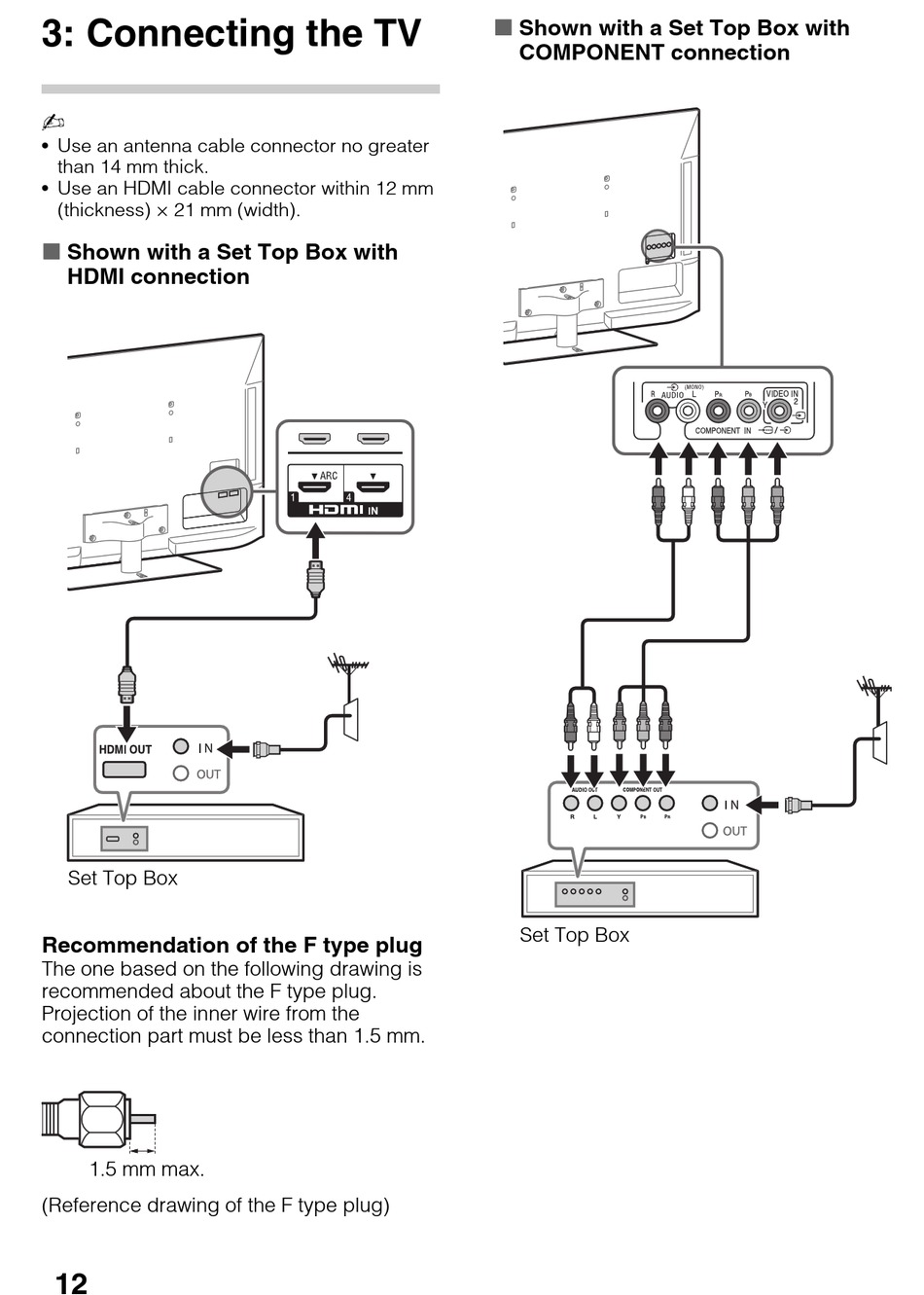

3: Connecting the TV

~
• Use an antenna cable connector no greater
than 14 mm thick.
• Use an HDMI cable connector within 12 mm
(thickness) × 21 mm (width).
x Shown with a Set Top Box with
HDMI connection
Set Top Box
Recommendation of the F type plug
The one based on the following drawing is
recommended about the F type plug.
Projection of the inner wire from the
connection part must be less than 1.5 mm.
1.5 mm max.
(Reference drawing of the F type plug)
12
x
Shown with a Set Top Box with
COMPONENT connection
Set Top Box
