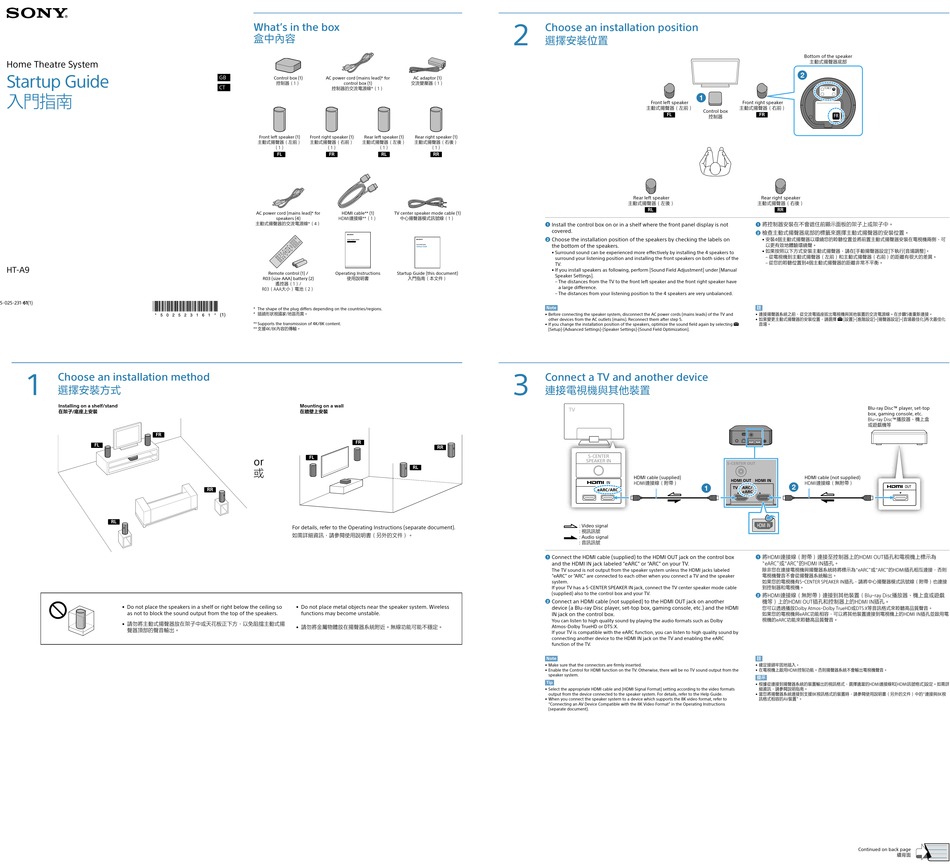

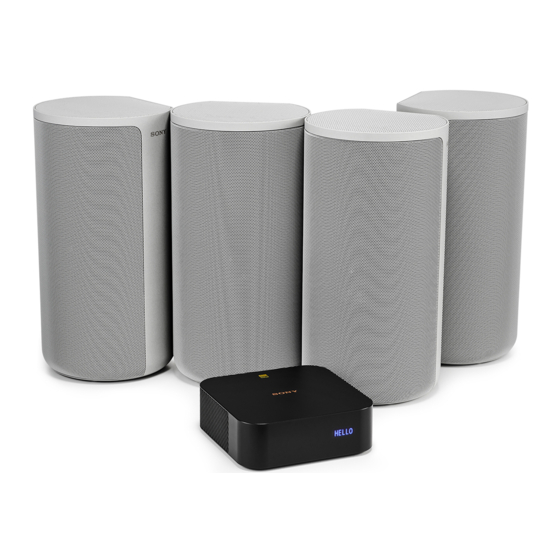

Sony HT-A9 Startup Manual

Home Theatre System
Startup Guide
入門指南
HT-A9
5-025-231-61(1)
1
Choose an installation method
選擇安裝方式
Installing on a shelf/stand
在架子/底座上安裝
FR
FL
RL
• Do not place the speakers in a shelf or right below the ceiling so
as not to block the sound output from the top of the speakers.
• • 請勿將主動式揚聲器放在架子中或天花板正下方，以免阻擋主動式揚
聲器頂部的聲音輸出。
What's in the box
盒中內容
GB
Control box (1) AC power cord (mains lead)* for
控制器（1） control box (1)
CT
控制器的交流電源線*（1）
Front left speaker (1) Front right speaker (1) Rear left speaker (1)
主動式揚聲器（左前）• 主動式揚聲器（右前）• 主動式揚聲器（左後）•
（1） （1） （1）
FL FR RL
AC power cord (mains lead)* for HDMI cable** (1)
speakers (4) HDMI連接線**（1）
主動式揚聲器的交流電源線*（4）
Home Theatre System
Remote control (1) / Operating Instructions
R03 (size AAA) battery (2) 使用說明書
遙控器（1）/•
R03（AAA大小）電池（2）
* The shape of the plug differs depending on the countries/regions.
*• 插頭形狀視國家/地區而異。
** Supports the transmission of 4K/8K content.
**•支援4K/8K內容的傳輸。
Mounting on a wall
在牆壁上安裝
FR
or FL
或
RR
For details, refer to the Operating Instructions (separate document).
如需詳細資訊，請參閱使用說明書（另外的文件）。
• Do not place metal objects near the speaker system. Wireless
functions may become unstable.
• • 請勿將金屬物體放在揚聲器系統附近。無線功能可能不穩定。
2
Choose an installation position
選擇安裝位置
AC adaptor (1)
交流變壓器（1）
Rear right speaker (1)
主動式揚聲器（右後）•
（1）
RR
TV center speaker mode cable (1)
中心揚聲器模式訊號線（1）
 Install the control box on or in a shelf where the front panel display is not
covered.
 Choose the installation position of the speakers by checking the labels on
the bottom of the speakers.
Home Theatre System
Startup Guide
• Surround sound can be experienced more effectively by installing the 4 speakers to
surround your listening position and installing the front speakers on both sides of the
TV.
• If you install speakers as following, perform [Sound Field Adjustment] under [Manual
Startup Guide (this document)
Speaker Settings].
入門指南（本文件）
– The distances from the TV to the front left speaker and the front right speaker have
a large difference.
– The distances from your listening position to the 4 speakers are very unbalanced.
Note
• Before connecting the speaker system, disconnect the AC power cords (mains leads) of the TV and
other devices from the AC outlets (mains). Reconnect them after step 5.
• If you change the installation position of the speakers, optimize the sound field again by selecting
[Setup]-[Advanced Settings]-[Speaker Settings]-[Sound Field Optimization].
3
Connect a TV and another device
連接電視機與其他裝置
RR
RL

Connect the HDMI cable (supplied) to the HDMI OUT jack on the control box
and the HDMI IN jack labeled "eARC" or "ARC" on your TV.
The TV sound is not output from the speaker system unless the HDMI jacks labeled
"eARC" or "ARC" are connected to each other when you connect a TV and the speaker
system.
If your TV has a S-CENTER SPEAKER IN jack, connect the TV center speaker mode cable
(supplied) also to the control box and your TV.

Connect an HDMI cable (not supplied) to the HDMI OUT jack on another
device (a Blu-ray Disc player, set-top box, gaming console, etc.) and the HDMI
IN jack on the control box.
You can listen to high quality sound by playing the audio formats such as Dolby
Atmos-Dolby TrueHD or DTS:X.
If your TV is compatible with the eARC function, you can listen to high quality sound by
connecting another device to the HDMI IN jack on the TV and enabling the eARC
function of the TV.
Note
• Make sure that the connectors are firmly inserted.
• Enable the Control for HDMI function on the TV. Otherwise, there will be no TV sound output from the
speaker system.
Tip
• Select the appropriate HDMI cable and [HDMI Signal Format] setting according to the video formats
output from the device connected to the speaker system. For details, refer to the Help Guide.
• When you connect the speaker system to a device which supports the 8K video format, refer to
"Connecting an AV Device Compatible with the 8K Video Format" in the Operating Instructions
(separate document).
Front left speaker Front right speaker
主動式揚聲器（左前） 主動式揚聲器（右前）
Control box
FL FR
控制器
Rear left speaker
主動式揚聲器（左後） 主動式揚聲器（右後）
RL


註
• • 連接揚聲器系統之前，從交流電插座拔出電視機與其他裝置的交流電源線。在步驟5後重新連接。
• • 如果變更主動式揚聲器的安裝位置，請選擇•
音場。
S-CENTER OUT
HDMI cable (supplied)
HDMI OUT HDMI IN
HDMI連接線（附帶）
TV ARC/
eARC
: Video signal
: 視訊訊號
: Audio signal
: 音訊訊號


註
• • 確定接頭牢固地插入。
• • 在電視機上啟用HDMI控制功能。否則揚聲器系統不會輸出電視機聲音。
提示
• • 根據從連接到揚聲器系統的裝置輸出的視訊格式，選擇適當的HDMI連接線和[HDMI訊號格式]設定。如需詳
細資訊，請參閱說明指南。
• • 當您將揚聲器系統連接到支援8K視訊格式的裝置時，請參閱使用說明書（另外的文件）中的"連接與8K視
訊格式相容的AV裝置"。
Bottom of the speaker
主動式揚聲器底部
TV FR
FR
Rear right speaker
RR
將控制器安裝在不會遮住前顯示面板的架子上或架子中。
檢查主動式揚聲器底部的標籤來選擇主動式揚聲器的安裝位置。
• • 安裝4個主動式揚聲器以環繞您的聆聽位置並將前置主動式揚聲器安裝在電視機兩側，可
以更有效地體驗環繞聲。
• • 如果按照以下方式安裝主動式揚聲器，請在[手動揚聲器設定]下執行[音場調整]。
• – 從電視機到主動式揚聲器（左前）和主動式揚聲器（右前）的距離有很大的差異。
• – 從您的聆聽位置到4個主動式揚聲器的距離非常不平衡。
•[設置]-[進階設定]-[揚聲器設定]-[音場最佳化]再次最佳化
Blu-ray Disc™ player, set-top
box, gaming console, etc.
Blu-ray•Disc™播放器、機上盒
或遊戲機等
HDMI cable (not supplied)
12V
HDMI連接線（無附帶）
將HDMI連接線（附帶）連接至控制器上的HDMI•OUT插孔和電視機上標示為•
"eARC"或"ARC"的HDMI•IN插孔。
除非您在連接電視機與揚聲器系統時將標示為"eARC"或"ARC"的HDMI插孔相互連接，否則
電視機聲音不會從揚聲器系統輸出。
如果您的電視機有S-CENTER•SPEAKER•IN插孔，請將中心揚聲器模式訊號線（附帶）也連接
到控制器和電視機。
將HDMI連接線（無附帶）連接到其他裝置（Blu-ray•Disc播放器、機上盒或遊戲
機等）上的HDMI•OUT插孔和控制器上的HDMI•IN插孔。
您可以透過播放Dolby•Atmos-Dolby•TrueHD或DTS:X等音訊格式來聆聽高品質聲音。
如果您的電視機與eARC功能相容，可以將其他裝置連接到電視機上的HDMI•IN插孔並啟用電
視機的eARC功能來聆聽高品質聲音。
Continued on back page
續背面
