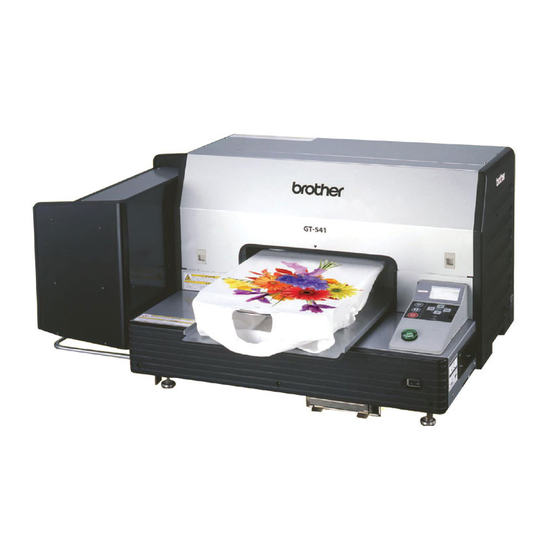

Brother GT-541 Replacing Main Board Battery

Hide thumbs Also See for GT-541:

Download this manual

For Technical Assistance Please Call Toll Free

Website:

Replacing Main Board Battery when panel reads

Step1. Front Right Panel Cover removal

Panel Remove Info

A. See or ask to be sent Cover removal instructions if needed...

B. Verify that machine is powered off and unplugged from power outlet!

Email:

tsupport@brother.com

http://www.brother-usa.com/garmentprinters

"Error 1070 Battery Life."

Select hyperlinks to open forms and ServTool.

– Click here to see!

1-877-4BROTHER

Page 1 For Technical Assistance Please Call Toll Free 1-877-4BROTHER Email: tsupport@brother.com Website: http://www.brother-usa.com/garmentprinters Replacing Main Board Battery when panel reads “Error 1070 Battery Life.” Select hyperlinks to open forms and ServTool. Step1. Front Right Panel Cover removal – Click here to see! Panel Remove Info A.
Page 2 NOTE: Depending on manufacture date of board battery position may vary newer boards will have battery in vertical position as shown… Battery is a remove and replaces part. Battery can be purchased at Radio Shack; type CR2032. C. Once battery is replaced install control box cover and connect panel. a.
Page 3 Step 1: open Service Tool and select Printer Parts Exchange and press next. Step 2: select Lithium Battery and press Next Step 3: Verify the following on next dialog box and then select next,...
Page 4 Step 4: 1. Select your printer from the drop down menu. 2. If your printer is not shown or found click on Re-search Printer 3. Once all is confirmed select next. Step 5: Check box for Use this PC’s Date and Time then select next.
Page 5 Step 6: Will state Time and Date has been set so simply select next. Step 7: Battery Exchange Information will be set and select next. Step 7: Confirmation that Battery Exchange Information has been set select next. Step 8: Shows main menu and confirms that Battery exchange has been complete, Press Cancel.
