D-Link DWL-120+ Quick Installation Manual

2.4ghz usb wireless adapter
Hide thumbs Also See for DWL-120+:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual, Manual
This product works with the following operating
Windows XP, Windows
system software:
2000, Windows Me, Windows 98se

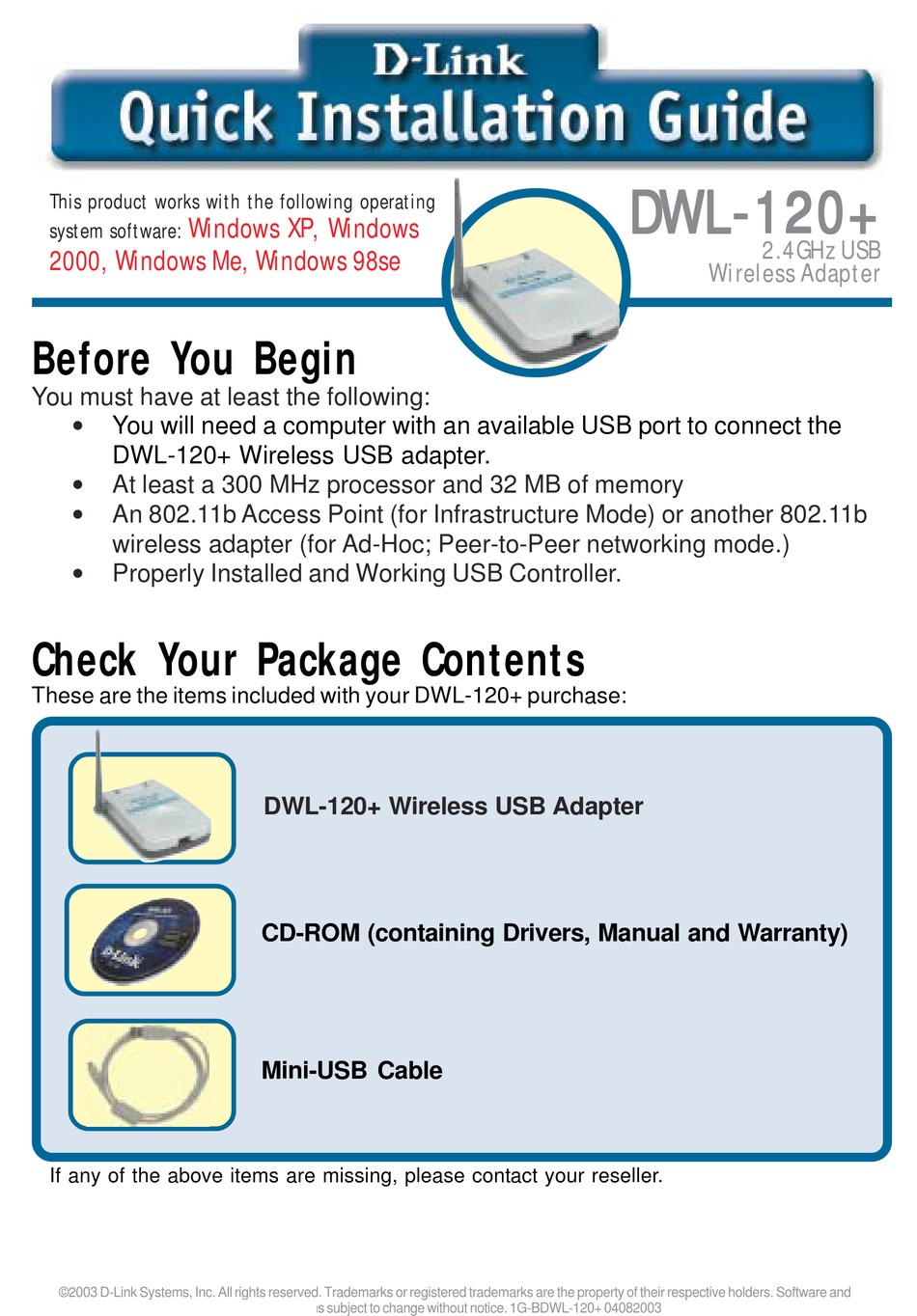

Before You Begin

You must have at least the following:
You will need a computer with an available USB port to connect the
DWL-120+ Wireless USB adapter.
At least a 300 MHz processor and 32 MB of memory
An 802.11b Access Point (for Infrastructure Mode) or another 802.11b
wireless adapter (for Ad-Hoc; Peer-to-Peer networking mode.)
Properly Installed and Working USB Controller.
Check Your Package Contents
These are the items included with your DWL-120+ purchase:
If any of the above items are missing, please contact your reseller.
©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and
DWL-120+ Wireless USB Adapter
CD-ROM (containing Drivers, Manual and Warranty)
Mini-USB Cable
specifications subject to change without notice. 1G-BDWL-120+ 04082003
D D D D D WL-120+
WL-120+
WL-120+
WL-120+
WL-120+
2.4GHz USB
Wireless Adapter
