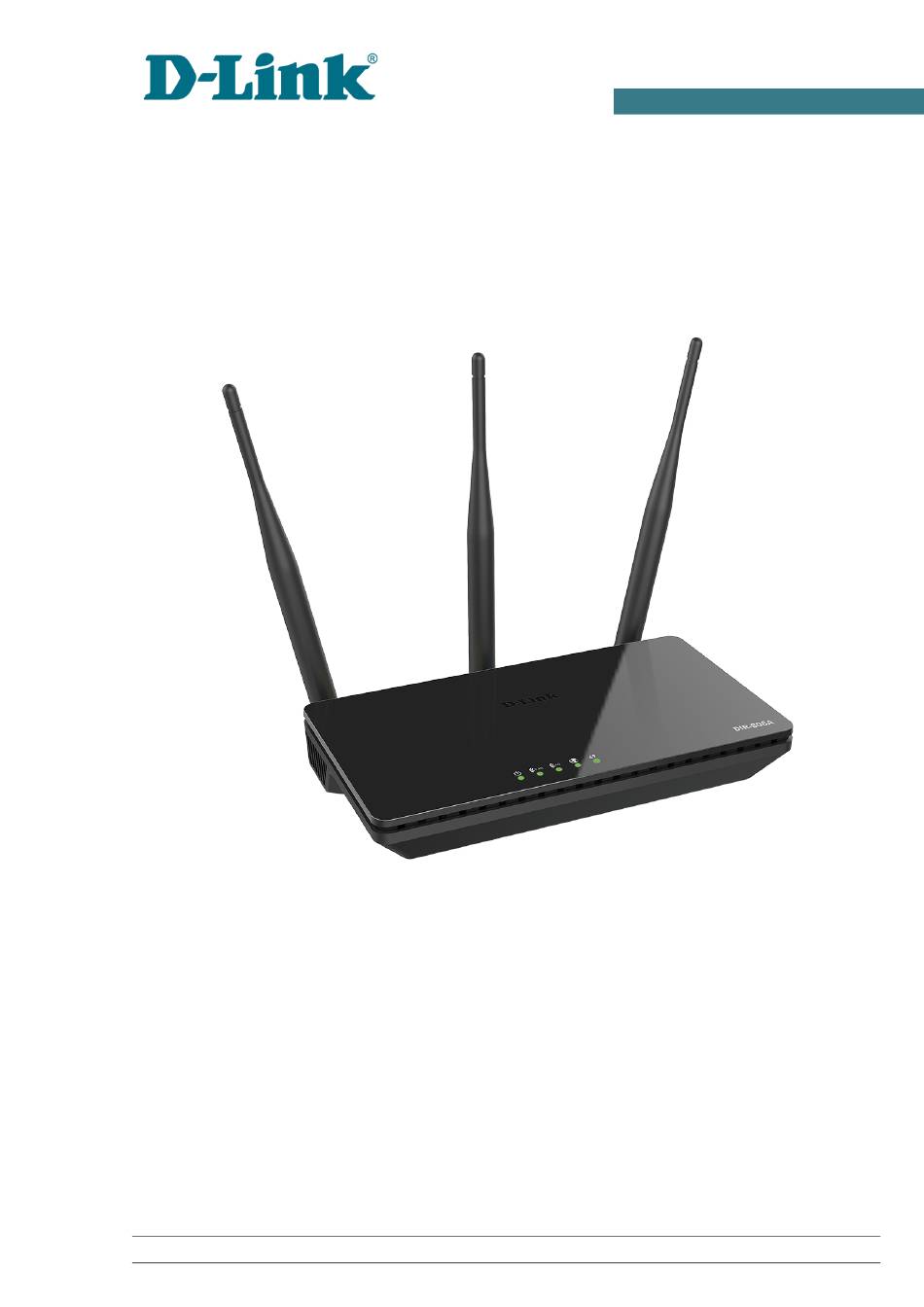

User Manual
DIR-806A

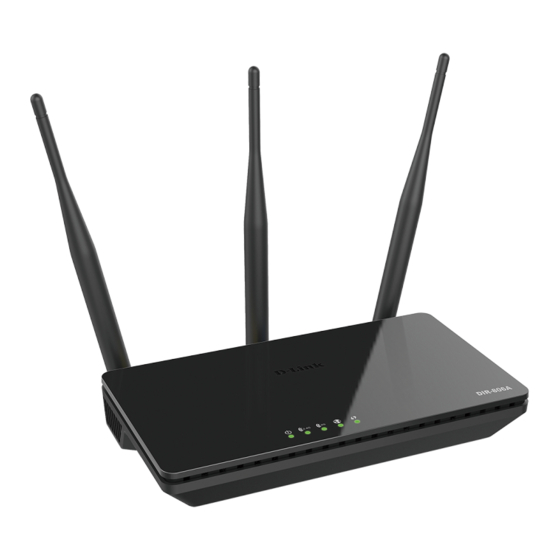

Wireless AC750 Dual Band Router
October 2017

Advertisement

Table of Contents
loading

Related Manuals for D-Link DIR-806A

Summary of Contents for D-Link DIR-806A

  • Page 1 User Manual DIR-806A Wireless AC750 Dual Band Router October 2017...

  • Page 2: Table Of Contents

    DIR-806A Wireless AC750 Dual Band Router User Manual Contents Chapter 1. Introduction..........5 Contents and Audience............5 Conventions..............5 Document Structure............5 Chapter 2. Overview..........6 General Information............6 Specifications*.............7 Product Appearance............12 Upper Panel..............12 Back Panel...............13 Delivery Package............14 Chapter 3. Installation and Connection......15 Before You Begin............15 Connecting to PC............16...
  • Page 3 DIR-806A Wireless AC750 Dual Band Router User Manual Connections Setup............64 WAN..............64 Creating Dynamic IPv4 or Static IPv4 WAN Connection....65 Creating Dynamic IPv6 or Static IPv6 WAN Connection....70 Creating PPPoE WAN Connection..........74 Creating PPTP or L2TP WAN Connection........79 Creating PPPoE IPv6 or PPPoE Dual Stack WAN Connection....83 LAN..............89...
  • Page 4 DIR-806A Wireless AC750 Dual Band Router User Manual Chapter 5. Operation Guidelines........177 Safety Rules and Conditions..........177 Wireless Installation Considerations........178 Chapter 6. Abbreviations and Acronyms......179 Page 4 of 180...

  • Page 5: Chapter 1. Introduction

    Chapter 2 gives an overview of the router's hardware and software features, describes its appearance and the package contents. Chapter 3 explains how to install the router DIR-806A and configure a PC in order to access its web-based interface. Chapter 4 describes all pages of the web-based interface in detail.

  • Page 6: Chapter 2. Overview

    Also you are able to connect the wireless router DIR-806A to a cable or DSL modem or to a private Ethernet line and use a high-speed Internet connection to successfully fulfill a wide range of professional tasks.

  • Page 7: Specifications

    DIR-806A Wireless AC750 Dual Band Router User Manual Specifications Hardware Processor · MT7620A (580MHz) · 64MB, DDR2 Flash · 8MB, SPI Interfaces · 10/100BASE-TX WAN port · 4 10/100BASE-TX LAN ports · LEDs POWER · 2.4G WLAN · 5G WLAN ·...
  • Page 8 DIR-806A Wireless AC750 Dual Band Router User Manual Software · Firewall functions Network Address Translation (NAT) · Stateful Packet Inspection (SPI) · IP filter · MAC filter · URL filter · · Prevention of ARP and DDoS attacks · Virtual servers ·...
  • Page 9 DIR-806A Wireless AC750 Dual Band Router User Manual Wireless Module Parameters · Transmitter output power 802.11a (typical at room temperature 25 °C) 15dBm at 6, 9, 12, 18, 24, 36, 48, 54Mbps The maximum value of the transmitter · 802.11b (typical at room temperature 25 °C) output power depends upon the radio 15dBm at 1, 2, 5.5, 11Mbps...
  • Page 10 DIR-806A Wireless AC750 Dual Band Router User Manual Wireless Module Parameters · 802.11n (typical at PER = 10% (1000-byte PDUs)) 2.4GHz, HT20 -90dBm at MCS0 -89dBm at MCS1 -87dBm at MCS2 -84dBm at MCS3 -81dBm at MCS4 -77dBm at MCS5...
  • Page 11 DIR-806A Wireless AC750 Dual Band Router User Manual Wireless Module Parameters · Modulation schemes 802.11a: BPSK, QPSK, 16QAM, 64QAM with OFDM · 802.11b: DQPSK, DBPSK, DSSS, CCK · 802.11g: BPSK, QPSK, 16QAM, 64QAM with OFDM · 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM ·...

  • Page 12: Product Appearance

    DIR-806A Wireless AC750 Dual Band Router User Manual Product Appearance Upper Panel Figure 1. Upper panel view. Mode Description The router is powered on. Solid green POWER The router is powered off. No light The router's WLAN of the relevant band is on.

  • Page 13: Back Panel

    DIR-806A Wireless AC750 Dual Band Router User Manual Back Panel Figure 2. Back panel view. Port Description A button to set up a secure wireless connection (the WPS function) and to restore the factory default settings. To use the WPS function: with the device turned on, push the button WPS/RESET and release.

  • Page 14: Delivery Package

    • “Quick Installation Guide” (brochure). • The “User Manual” and “Quick Installation Guide” documents are available on D-Link website (see www.dlink.ru). Using a power supply with a different voltage rating than the one included will cause damage and void the warranty for this product.

  • Page 15: Chapter 3. Installation And Connection

    DIR-806A Wireless AC750 Dual Band Router User Manual CHAPTER 3. INSTALLATION AND CONNECTION Before You Begin Please, read this manual prior to installing the device. Make sure that you have all the necessary information and equipment. Operating System Configuration of the wireless dual band router with a built-in 4-port switch...

  • Page 16: Connecting To Pc

    DIR-806A Wireless AC750 Dual Band Router User Manual Connecting to PC PC with Ethernet Adapter 1. Make sure that your PC is powered off. 2. Connect an Ethernet cable between any of LAN ports located on the back panel of the router and the Ethernet port of your PC.
  • Page 17 DIR-806A Wireless AC750 Dual Band Router User Manual 3. In the Local Area Connection Properties window, on the General tab, select the Internet Protocol (TCP/IP) line. Click the Properties button. Figure 4. The Local Area Connection Properties window. Page 17 of 180...
  • Page 18 DIR-806A Wireless AC750 Dual Band Router User Manual 4. Select the Obtain an IP address automatically and Obtain DNS server address automatically radio buttons. Click the OK button. Figure 5. The Internet Protocol (TCP/IP) Properties window. 5. Click the ОК button in the connection properties window.

  • Page 19: Obtaining Ip Address Automatically In Os Windows 7

    DIR-806A Wireless AC750 Dual Band Router User Manual Obtaining IP Address Automatically in OS Windows 7 1. Click the Start button and proceed to the Control Panel window. 2. Select the Network and Sharing Center section. (If the Control Panel has the category...
  • Page 20 DIR-806A Wireless AC750 Dual Band Router User Manual 3. In the menu located on the left part of the window, select the Change adapter settings line. Figure 7. The Network and Sharing Center window. Page 20 of 180...
  • Page 21 DIR-806A Wireless AC750 Dual Band Router User Manual 4. In the opened window, right-click the relevant Local Area Connection icon and select the Properties line in the menu displayed. Figure 8. The Network Connections window. Page 21 of 180...
  • Page 22 DIR-806A Wireless AC750 Dual Band Router User Manual 5. In the Local Area Connection Properties window, on the Networking tab, select the Internet Protocol Version 4 (TCP/IPv4) line. Click the Properties button. Figure 9. The Local Area Connection Properties window.
  • Page 23 DIR-806A Wireless AC750 Dual Band Router User Manual 6. Select the Obtain an IP address automatically and Obtain DNS server address automatically radio buttons. Click the OK button. Figure 10. The Internet Protocol Version 4 (TCP/IPv4) Properties window. 7. Click the OK button in the connection properties window.

  • Page 24: Pc With Wi-Fi Adapter

    DIR-806A Wireless AC750 Dual Band Router User Manual PC with Wi-Fi Adapter 1. Connect the power cord to the power connector port on the back panel of the router, then plug the power adapter into an electrical outlet or power strip.

  • Page 25: Configuring Wi-Fi Adapter In Os Windows Xp

    3. Search for available wireless networks. 4. In the opened Wireless Network Connection window, select the wireless network DIR- 806A (for operating in the 2.4GHz band) or DIR-806A-5G (for operating in the 5GHz band) and click the Connect button. 5. In the opened window, enter the network key (see WPS PIN on the barcode label on the bottom panel of the device) in the Network key and Confirm network key fields and click the Connect button.

  • Page 26: Configuring Wi-Fi Adapter In Os Windows 7

    DIR-806A Wireless AC750 Dual Band Router User Manual Configuring Wi-Fi Adapter in OS Windows 7 1. Click the Start button and proceed to the Control Panel window. 2. Select the Network and Sharing Center section. (If the Control Panel has the category...
  • Page 27 User Manual 6. In the opened Wireless Network Connection window, select the wireless network DIR- 806A (for operating in the 2.4GHz band) or DIR-806A-5G (for operating in the 5GHz band) and click the Connect button. Figure 14. The list of available networks.

  • Page 28: Connecting To Web-Based Interface

    (create a WAN connection, change the parameters of the wireless network, specify the settings of the firewall, etc.). For security reasons, DIR-806A with default settings cannot connect to the Internet. To get started, please set your own password used to access the web-based interface and, if needed, configure other settings recommended by your ISP.
  • Page 29 DIR-806A Wireless AC750 Dual Band Router User Manual If you configured the device previously, after access to the web-based interface the login page opens. Enter the username (admin) in the Username field and the password you specified in the Password field, then click the LOGIN button.

  • Page 30: Web-Based Interface Structure

    DIR-806A Wireless AC750 Dual Band Router User Manual Web-based Interface Structure Summary Page On the Summary page, detailed information on the device state is displayed. Figure 18. The summary page. Page 30 of 180...
  • Page 31 DIR-806A Wireless AC750 Dual Band Router User Manual The Device Information section displays the model and hardware version of the router, the firmware version, and other data. To contact the technical support group (to send an e-mail), left-click the support e-mail address.

  • Page 32: Home Page

    DIR-806A Wireless AC750 Dual Band Router User Manual Home Page The Home page displays links to the most frequently used pages with device's settings. Figure 19. The Home page. Other settings of the router are available in the menu in the left part of the page.

  • Page 33: Menu Sections

    DIR-806A Wireless AC750 Dual Band Router User Manual Menu Sections To configure the router use the menu in the left part of the page. In the Initial Configuration section you can run the Initial Configuration Wizard. The Wizard allows you to configure the router for operation in the needed mode and specify all parameters necessary for getting started (for the description of the Wizard, see the Initial Configuration Wizard section, page 35).

  • Page 34: Notifications

    DIR-806A Wireless AC750 Dual Band Router User Manual Notifications The router's web-based interface displays notifications in the top right part of the page. Figure 20. The web-based interface notifications. Click the icon displaying the number of notifications to view the complete list and click the relevant button.

  • Page 35: Chapter 4. Configuring Via Web-Based Interface

    DIR-806A Wireless AC750 Dual Band Router User Manual CHAPTER 4. CONFIGURING WEB-BASED INTERFACE Initial Configuration Wizard To start the Initial Configuration Wizard, go to the Initial Configuration section. On the opened page, click the OK button and wait until the factory default settings are restored.
  • Page 36 DIR-806A Wireless AC750 Dual Band Router User Manual You can finish the wizard earlier and go to the menu of the web-based interface. To do this, click the ADVANCED SETTINGS button. On the opened page, change the default settings: specify the administrator password in the Admin password field and the name of the wireless network in the 2.4GHz and 5GHz bands in the Network name 2.4GHz (SSID) and Network name 5GHz...

  • Page 37: Selecting Operation Mode

    DIR-806A Wireless AC750 Dual Band Router User Manual Selecting Operation Mode In order to connect your device to a wired ISP, on the Device mode page, from the Connection method list, select the Wired connection value. Then from the Work mode list select the Router value.
  • Page 38 DIR-806A Wireless AC750 Dual Band Router User Manual In order to connect your device to a wired router for adding a wireless network to the existing local network, on the Device mode page, from the Connection method list, select the Wired connection value.
  • Page 39 DIR-806A Wireless AC750 Dual Band Router User Manual In order to let wired PCs connected to your device access the network of a wireless router, on the Device mode page, from the Connection method list, select the Wi-Fi value. Then from the Work mode list select the Client value.

  • Page 40: Changing Lan Ipv4 Address

    This configuration step is available for the Access point, Repeater, and Client modes. 1. If the LAN IPv4 address of DIR-806A coincides with the LAN IPv4 address of the router to which it connects, then set another LAN IPv4 address of DIR-806A in the IP address field.

  • Page 41: Wi-Fi Client

    DIR-806A Wireless AC750 Dual Band Router User Manual Wi-Fi Client This configuration step is available for the WISP Repeater, Repeater, and Client modes. 1. On the Wi-Fi Client page, in the Wireless Networks section, select the network to which you want to connect. When you select a network, the Network name (SSID) and BSSID fields are filled in automatically.
  • Page 42 DIR-806A Wireless AC750 Dual Band Router User Manual If you connect to a hidden network, from the Connecting to network list select the Connect to hidden network value. Enter the network name to the Network name (SSID) field. Then select a needed value from the Network authentication list and then, if needed, enter the password in the relevant field.

  • Page 43: Creating Wan Connection

    DIR-806A Wireless AC750 Dual Band Router User Manual Creating WAN Connection This configuration step is available for the Router and WISP Repeater modes. You should configure your WAN connection in accordance with data provided by your Internet service provider (ISP). Make sure that you have obtained all necessary information prior to configuring your connection.

  • Page 44: Static Ipv4 Connection

    DIR-806A Wireless AC750 Dual Band Router User Manual Static IPv4 Connection Figure 33. The page for configuring Static IPv4 WAN connection. Fill in the following fields: IP address, Netmask, Gateway IP address, and DNS IP address. Page 44 of 180...

  • Page 45: Static Ipv6 Connection

    DIR-806A Wireless AC750 Dual Band Router User Manual Static IPv6 Connection Figure 34. The page for configuring Static IPv6 WAN connection. Fill in the following fields: IP address, Prefix and Gateway IP address. Page 45 of 180...

  • Page 46: Pppoe, Ipv6 Pppoe, Pppoe Dual Stack, Pppoe + Dynamic Ip (Pppoe Dual Access) Connections

    DIR-806A Wireless AC750 Dual Band Router User Manual PPPoE, IPv6 PPPoE, PPPoE Dual Stack, PPPoE + Dynamic IP (PPPoE Dual Access) Connections Figure 35. The page for configuring PPPoE WAN connection. In the Username field enter the login and in the Password field enter the password provided your ISP.

  • Page 47: Pppoe + Static Ip (Pppoe Dual Access) Connection

    DIR-806A Wireless AC750 Dual Band Router User Manual PPPoE + Static IP (PPPoE Dual Access) Connection Figure 36. The page for configuring PPPoE + Static IP (PPPoE Dual Access) WAN connection. In the Username field enter the login and in the Password field enter the password provided your ISP.

  • Page 48: Pptp + Dynamic Ip Or L2Tp + Dynamic Ip Connection

    DIR-806A Wireless AC750 Dual Band Router User Manual PPTP + Dynamic IP or L2TP + Dynamic IP Connection Figure 37. The page for configuring PPTP + Dynamic IP WAN connection. In the Username field enter the login and in the Password field enter the password provided by your ISP.

  • Page 49: Pptp + Static Ip Or L2Tp + Static Ip Connection

    DIR-806A Wireless AC750 Dual Band Router User Manual PPTP + Static IP or L2TP + Static IP Connection Figure 38. The page for configuring PPTP + Static IP WAN connection. In the Username field enter the login and in the Password field enter the password provided by your ISP.

  • Page 50: Configuring Wireless Network

    DIR-806A Wireless AC750 Dual Band Router User Manual Configuring Wireless Network This configuration step is available for the Router, Access point, WISP Repeater, and Repeater modes. On the Wireless Network 2.4 GHz page, in the Network name field, specify your own name for the wireless network or leave the value suggested by the router.

  • Page 51: Configuring Lan Ports For Iptv/Voip

    DIR-806A Wireless AC750 Dual Band Router User Manual Configuring LAN Ports for IPTV/VoIP This configuration step is available for the Router and WISP Repeater modes. On the IPTV page, select the Is an STB connected to the device checkbox. Figure 41. The page for selecting a LAN port to connect an IPTV set-top box.
  • Page 52 DIR-806A Wireless AC750 Dual Band Router User Manual On the VoIP page, select the In an IP phone connected to the device checkbox. Figure 42. The page for selecting a LAN port to connect an VoIP phone. Select a free LAN port for connecting your IP phone.

  • Page 53: Changing Web-Based Interface Password

    DIR-806A Wireless AC750 Dual Band Router User Manual Changing Web-based Interface Password On this page, you should change the default administrator password. You may set any password except admin. Use digits, Latin letters (uppercase and/or lowercase), and other characters available in the US keyboard layout.
  • Page 54 If problems of connection have not been solved, contact the technical support of your ISP (as a rule, the technical support phone is provided with the agreement) or the D-Link technical support (the phone number will be displayed on the page after several attempts of checking the connection).

  • Page 55: Connection Of Multimedia Devices

    IPTV set-top box or IP phone. Contact your ISP to clarify if you need to configure DIR-806A in order to use these devices. To start the Wizard, on the Home page, select the Connection of Multimedia Devices section.
  • Page 56 DIR-806A Wireless AC750 Dual Band Router User Manual If you need to configure a connection via VLAN, click the ADVANCED MODE button. Figure 46. The Multimedia Devices Connection Wizard. The advanced mode. In the WAN section, click the Add icon Figure 47.
  • Page 57 DIR-806A Wireless AC750 Dual Band Router User Manual To deselect the port or wireless interface in the advanced mode, select the No value from the Bridged with drop-down list of the element corresponding to the needed LAN port or interface.

  • Page 58: Statistics

    DIR-806A Wireless AC750 Dual Band Router User Manual Statistics The pages of this section display data on the current state of the router: network statistics • IP addresses leased by the DHCP server • the routing table • data on devices connected to the router's network and its web-based interface •...

  • Page 59: Dhcp

    DIR-806A Wireless AC750 Dual Band Router User Manual DHCP The Statistics / DHCP page displays the information on computers that have been identified by hostnames and MAC addresses and have got IP addresses from the DHCP server of the device, as well as the IP address expiration periods (the lease time).

  • Page 60: Routing Table

    DIR-806A Wireless AC750 Dual Band Router User Manual Routing Table The Statistics / Routing Table page displays the information on routes. The table contains destination IP addresses, gateways, subnet masks, and other data. Figure 50. The Statistics / Routing Table page.

  • Page 61: Clients

    DIR-806A Wireless AC750 Dual Band Router User Manual Clients On the Statistics / Clients page, you can view the list of devices connected to the local network of the router. Figure 51. The Statistics / Clients page. For each device the following data are displayed: the IP address, the MAC address, and the network interface to which the device is connected.

  • Page 62: Multicast Groups

    DIR-806A Wireless AC750 Dual Band Router User Manual Multicast Groups The Statistics / Multicast Groups page displays addresses of active multicast groups (including IPTV channels and groups for transferring service information) to which the device is subscribed, and the interface through which the device is subscribed.

  • Page 63: Clients And Session

    DIR-806A Wireless AC750 Dual Band Router User Manual Clients and Session On the Statistics / Clients and Session page, you can view information on current sessions in the router's network. For each session the following data are displayed: the protocol for network packet transmission, the source IP address and port, and the destination IP address and port.

  • Page 64: Connections Setup

    DIR-806A Wireless AC750 Dual Band Router User Manual Connections Setup In this menu you can configure basic parameters of the router's local area network and configure connection to the Internet (a WAN connection). On the Connections Setup / WAN page, you can create and edit connections used by the router.

  • Page 65: Creating Dynamic Ipv4 Or Static Ipv4 Wan Connection

    DIR-806A Wireless AC750 Dual Band Router User Manual Creating Dynamic IPv4 or Static IPv4 WAN Connection To create a connection of the Dynamic IPv4 or Static IPv4 type, click the Add button on the Connections Setup / WAN page in the Connections List section. On the opened page, go to the All Settings tab.
  • Page 66 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 56. The page for creating a new Static IPv4 connection. The Ethernet section. Parameter Description Ethernet A MAC address assigned to the interface. This parameter is mandatory if your ISP uses MAC address binding. In the field, enter the MAC address registered by your ISP upon concluding the agreement.
  • Page 67 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 57. The page for creating a new Static IPv4 connection. The Authorization via 802.1x Protocol section. Parameter Description Authorization via 802.1x Protocol Enable authorization Move the switch to the right to allow authorization in the ISP's via 802.1x protocol...
  • Page 68 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 58. The page for creating a new Static IPv4 connection. The IPv4 section. Parameter Description IPv4 For Static IPv4 type IP address Enter an IP address for this WAN connection. Netmask Enter a subnet mask for this WAN connection.
  • Page 69 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 59. The page for creating a new Static IPv4 connection. The Miscellaneous section. Parameter Description Miscellaneous If the switch is moved to the right, the network address translation function is enabled. Do not disable the function unless your ISP requires this.

  • Page 70: Creating Dynamic Ipv6 Or Static Ipv6 Wan Connection

    DIR-806A Wireless AC750 Dual Band Router User Manual Creating Dynamic IPv6 or Static IPv6 WAN Connection To create a connection of the Dynamic IPv6 or Static IPv6 type, click the Add button on the Connections Setup / WAN page in the Connections List section. On the opened page, go to the All Settings tab.
  • Page 71 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 61. The page for creating a new Static IPv6 connection. The Ethernet section. Parameter Description Ethernet A MAC address assigned to the interface. This parameter is mandatory if your ISP uses MAC address binding. In the field, enter the MAC address registered by your ISP upon concluding the agreement.
  • Page 72 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 62. The page for creating a new Static IPv6 connection. The IPv6 section. Parameter Description IPv6 For Static IPv6 type IPv6 Address Enter an IPv6 address for this WAN connection. The length of the subnet prefix. The value 64 is used usually.
  • Page 73 DIR-806A Wireless AC750 Dual Band Router User Manual Parameter Description Primary IPv6 DNS Enter addresses of the primary and secondary IPv6 DNS servers in server/Secondary IPv6 the relevant fields. DNS server Figure 63. The page for creating a new Static IPv6 connection. The Miscellaneous section.

  • Page 74: Creating Pppoe Wan Connection

    DIR-806A Wireless AC750 Dual Band Router User Manual Creating PPPoE WAN Connection click the Add button on the Connections Setup / To create a connection of the PPPoE type, WAN page in the Connections List section. On the opened page, go to the All Settings tab.
  • Page 75 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 65. The page for creating a new PPPoE connection. The Ethernet section. Parameter Description Ethernet A MAC address assigned to the interface. This parameter is mandatory if your ISP uses MAC address binding. In the field, enter the MAC address registered by your ISP upon concluding the agreement.
  • Page 76 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 66. The page for creating a new PPPoE connection. The PPP section. Parameter Description Move the switch to the right if you don't need to enter a username Without authorization and password to access the Internet.
  • Page 77 DIR-806A Wireless AC750 Dual Band Router User Manual Parameter Description Move the switch to the right if you want the router to keep you connected to your ISP even when the connection has been inactive Keep Alive for a specified period of time. If the switch is moved to the right, the LCP interval and LCP fails fields are available.
  • Page 78 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 67. The page for creating a new PPPoE connection. The Miscellaneous section. Parameter Description Miscellaneous If the switch is moved to the right, the network address translation function is enabled. Do not disable the function unless your ISP requires this.

  • Page 79: Creating Pptp Or L2Tp Wan Connection

    DIR-806A Wireless AC750 Dual Band Router User Manual Creating PPTP or L2TP WAN Connection To create a connection of the PPTP or L2TP type, click the Add button on the Connections Setup / WAN page in the Connections List section. On the opened page, go to the All Settings tab.
  • Page 80 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 69. The page for creating a new PPTP connection. The PPP section. Parameter Description Move the switch to the right if you don't need to enter a username Without authorization and password to access the Internet.
  • Page 81 DIR-806A Wireless AC750 Dual Band Router User Manual Parameter Description Select a required authentication method from the drop-down list or Authentication protocol leave the AUTO value. Select a method of MPPE encryption. No encryption: MPPE encryption is not applied. •...
  • Page 82 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 70. The page for creating a new PPTP connection. The Miscellaneous section. Parameter Description Miscellaneous If the switch is moved to the right, the network address translation function is enabled. Do not disable the function unless your ISP requires this.

  • Page 83: Creating Pppoe Ipv6 Or Pppoe Dual Stack Wan Connection

    DIR-806A Wireless AC750 Dual Band Router User Manual Creating PPPoE IPv6 or PPPoE Dual Stack WAN Connection To create a connection of the PPPoE IPv6 or PPPoE Dual Stack type, click the Add button on the Connections Setup / WAN page in the Connections List section. On the opened page, go to the All Settings tab.
  • Page 84 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 72. The page for creating a new PPPoE IPv6 connection. The Ethernet section. Parameter Description Ethernet A MAC address assigned to the interface. This parameter is mandatory if your ISP uses MAC address binding. In the field, enter the MAC address registered by your ISP upon concluding the agreement.
  • Page 85 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 73. The page for creating a new PPPoE IPv6 connection. The PPP section. Parameter Description Move the switch to the right if you don't need to enter a username Without authorization and password to access the Internet.
  • Page 86 DIR-806A Wireless AC750 Dual Band Router User Manual Parameter Description Move the switch to the right if you want the router to keep you connected to your ISP even when the connection has been inactive Keep Alive for a specified period of time. If the switch is moved to the right, the LCP interval and LCP fails fields are available.
  • Page 87 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 74. The page for creating a new PPPoE Pv6 connection. The IP section. Parameter Description Select a method for IPv6 address assignment from the drop-down Get IPv6 list or leave the Automatically value.
  • Page 88 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 75. The page for creating a new PPPoE IPv6 connection. The Miscellaneous section. Parameter Description Miscellaneous For the PPPoE Dual Stack type only. If the switch is moved to the right, the network address translation function is enabled.

  • Page 89: Lan

    DIR-806A Wireless AC750 Dual Band Router User Manual To configure the router's local interface, go to the Connections Setup / LAN page. IPv4 Go to the IPv4 tab to change IPv4 address, configure the built-in DHCP server, or specify MAC address and IP address pairs.
  • Page 90 DIR-806A Wireless AC750 Dual Band Router User Manual Parameter Description DHCP An operating mode of the router's DHCP server. Server: the router assigns IP addresses to clients automatically in accordance with the specified parameters. When this value is selected, the Start IP, End IP, Lease time fields and the DNS relay switch are displayed on the tab.
  • Page 91 DIR-806A Wireless AC750 Dual Band Router User Manual In the Static DHCP section, you can specify MAC address and IP address pairs (set a fixed IPv4 address in the local area network for a device with a certain MAC address). The router assigns IP addresses in accordance with the specified pairs only when the DHCP server is enabled (in the DHCP section, the Server value is selected from the Mode drop-down list).

  • Page 92: Ipv6

    DIR-806A Wireless AC750 Dual Band Router User Manual IPv6 Go to the IPv6 tab to change IPv6 address of the router and configure IPv6 addresses assignment settings. Figure 79. Configuring the local interface. The IPv6 tab. The IP section. Parameter Description Select the needed value from the drop-down list.
  • Page 93 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 80. Configuring the local interface. The IPv6 tab. The DHCP section. Parameter Description DHCP Select a mode of IPv6 address assignment from the drop-down list. Server: the router assigns IPv6 addresses to clients automatically in accordance with the specified parameters.

  • Page 94: Wi-Fi

    DIR-806A Wireless AC750 Dual Band Router User Manual Wi-Fi In this menu you can specify all needed settings for your wireless network. Basic Settings In the Wi-Fi / Basic Settings section, you can change basic parameters for the wireless interface of the router and configure the basic and additional wireless networks.
  • Page 95 DIR-806A Wireless AC750 Dual Band Router User Manual Parameter Description Move the switch to the right to let the router search for a free Enable periodic channel in certain periods of time. When the switch is moved to the scanning right, the Scanning period field is available for editing.
  • Page 96 DIR-806A Wireless AC750 Dual Band Router User Manual To edit the settings of the basic wireless network, in the Access Points section, left-click the needed network. On the opened page, change the needed parameters and click the APPLY button. Also you can create an additional wireless network. To do this, click the Add button in the Access Points section.
  • Page 97 DIR-806A Wireless AC750 Dual Band Router User Manual Parameter Description Wi-Fi Network A name for the wireless network. The name can consist of digits and Network name (SSID) Latin characters. If the switch is moved to the right, other users cannot see your Wi-Fi Hide SSID network.
  • Page 98 DIR-806A Wireless AC750 Dual Band Router User Manual In the Security Settings section, you can change security settings of the wireless network. By default, the WPA2-PSK network authentication type of both bands of the wireless network is specified. WPS PIN from the barcode label is used as the network key.
  • Page 99 DIR-806A Wireless AC750 Dual Band Router User Manual Authentication type Description A mixed type of authentication. When this value is selected, devices WPA-PSK/WPA2-PSK using the WPA-PSK authentication type and devices using the mixed WPA2-PSK authentication type can connect to the wireless network.
  • Page 100 DIR-806A Wireless AC750 Dual Band Router User Manual Parameter Description For Open authentication type only. To activate WEP encryption, move the switch to the right. Upon that Enable encryption WEP the WEP type and Default key ID drop-down lists, the Encryption key WEP as HEX switch, and four Encryption key fields are displayed on the page.
  • Page 101 DIR-806A Wireless AC750 Dual Band Router User Manual When the WPA-PSK, WPA2-PSK, or WPA-PSK/WPA2-PSK mixed value is selected, the following fields are displayed on the page: Figure 85. The WPA2-PSK value is selected from the Network authentication drop-down list. Parameter Description A password for WPA encryption.
  • Page 102 DIR-806A Wireless AC750 Dual Band Router User Manual When the WPA, WPA2, or WPA/WPA2 mixed value is selected, the following settings are displayed on the page: Figure 86. The WPA2 value is selected from the Network authentication drop-down list. Parameter...

  • Page 103: Client Management

    DIR-806A Wireless AC750 Dual Band Router User Manual Client Management On the Wi-Fi / Client Management page, you can view the list of wireless clients connected to the router. Figure 87. The page for managing the wireless clients. If you want to disconnect a wireless device from your WLAN, select the checkbox in the line containing the MAC address of this device and click the DISCONNECT button.

  • Page 104: Wps

    DIR-806A Wireless AC750 Dual Band Router User Manual On the Wi-Fi / WPS page, you can enable the function for configuration of the WLAN and select a method for connection to the WLAN. The WPS function helps to configure the protected wireless network automatically. Devices connecting to the wireless network via the WPS function must support the WPS function.
  • Page 105 DIR-806A Wireless AC750 Dual Band Router User Manual When the WPS function is enabled, the Information section is available on the page. Parameter Description The state of the WPS function: Configured (all needed settings are specified; these settings • will be used upon establishing the wireless connection)

  • Page 106: Using Wps Function Via Web-Based Interface

    DIR-806A Wireless AC750 Dual Band Router User Manual Using WPS Function via Web-based Interface To connect to the basic wireless network via the PIN method of the WPS function, follow the next steps: 1. Move the Enable WPS switch to the right.

  • Page 107: Using Wps Function Without Web-Based Interface

    DIR-806A Wireless AC750 Dual Band Router User Manual Using WPS Function without Web-based Interface You can use the WPS function without accessing the web-based interface of the router. To do this, you need to configure the following router's settings: 1. Specify relevant security settings for the wireless network of the router.

  • Page 108: Wmm

    DIR-806A Wireless AC750 Dual Band Router User Manual On the Wi-Fi / WMM page, you can enable the Wi-Fi Multimedia function. The WMM function implements the QoS features for Wi-Fi networks. It helps to improve the quality of data transfer over Wi-Fi networks by prioritizing different types of traffic.
  • Page 109 DIR-806A Wireless AC750 Dual Band Router User Manual To edit the parameters of an Access Category, left-click the relevant line. In the opened window, change the needed parameters. Figure 90. The window for changing parameters of the WMM function. Parameter Description Arbitrary Inter-Frame Space Number.
  • Page 110 DIR-806A Wireless AC750 Dual Band Router User Manual Click the SAVE button. To disable the WMM function, move the Enable switch to the left. Page 110 of 180...

  • Page 111: Client

    DIR-806A Wireless AC750 Dual Band Router User Manual Client On the Wi-Fi / Client page, you can configure the router as a client to connect to a wireless access point or to a WISP. To configure the 2.4GHz band or 5GHz band, go to the relevant tab.
  • Page 112 DIR-806A Wireless AC750 Dual Band Router User Manual When the Open, WEP-64, or WEP-128 authentication type is selected, the following settings are displayed on the page: Parameter Description For Open authentication type only. To activate WEP encryption, move the switch to the right. Upon that...
  • Page 113 An encryption method: TKIP, AES, or TKIP+AES. When you have configured the parameters, click the APPLY button. When connecting to a wireless access point, the wireless channel of DIR-806A will switch to the channel of the access point to which you have connected.

  • Page 114: Additional

    DIR-806A Wireless AC750 Dual Band Router User Manual Additional On page of the Wi-Fi / Additional section, you can define additional parameters for the WLAN of the router. To configure the 2.4GHz band or 5GHz band, go to the relevant tab.
  • Page 115 DIR-806A Wireless AC750 Dual Band Router User Manual Parameter Description Available on the 2.4GHz tab. The 802.11b and 802.11g protection function is used to minimize collisions between devices of your wireless network. Select a value from the drop-down list. Auto: The protection function is enabled and disabled automatically...

  • Page 116: Mac Filter

    DIR-806A Wireless AC750 Dual Band Router User Manual MAC Filter On the Wi-Fi / MAC Filter page, you can define a set of MAC addresses of devices which will be allowed to access the WLAN, or define MAC addresses of devices which will not be allowed to access the WLAN.
  • Page 117 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 94. The window for adding a rule for the MAC filter. You can specify the following parameters: Parameter Description Frequency band From the drop-down list, select a band of the wireless network.

  • Page 118: Advanced

    DIR-806A Wireless AC750 Dual Band Router User Manual Advanced In this menu you can configure advanced settings of the router: create groups of ports for VLANs • enable and configure the SNMP agent of the router • add name servers •...

  • Page 119: Vlan

    DIR-806A Wireless AC750 Dual Band Router User Manual VLAN On the Advanced / VLAN page, you can create and edit groups of ports for virtual networks (VLANs). By default, 2 groups are created in the router's system: lan: it includes ports 1-4. You cannot delete this group.
  • Page 120 DIR-806A Wireless AC750 Dual Band Router User Manual Parameter Description Enable Move the switch to the right to allow using this group of ports. The type of the VLAN. Untagged NAT. The group of this type is an external connection with address translation.

  • Page 121: Snmp

    DIR-806A Wireless AC750 Dual Band Router User Manual SNMP On the Advanced / SNMP page, you can enable and configure the SNMP agent of the router. The SNMP agent is a service which sends data on the state and settings of the device where is it enabled to the SNMP manager (the network management system of your ISP or system administrator).
  • Page 122 DIR-806A Wireless AC750 Dual Band Router User Manual In order to disable the SNMP agent, move the SNMP service status switch to the left and click the APPLY button. If the SNMP manager operates over SNMPv2c, create a read-only community which will be used by the SNMP manager to get data on the device.
  • Page 123 DIR-806A Wireless AC750 Dual Band Router User Manual In the opened window, specify the needed parameters: Parameter Description Name Specify a username for access from the SNMP manager. Select a required authentication method from the drop-down list or Authentication protocol leave the None value if authentication is not required.

  • Page 124: Dns

    DIR-806A Wireless AC750 Dual Band Router User Manual On the Advanced / DNS page, you can add DNS servers to the system. Figure 100. The Advanced / DNS page. DNS servers are used to determine the IP address from the name of a server in Intranets or the Internet (as a rule, they are specified by an ISP or assigned by a network administrator).
  • Page 125 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 101. The window for adding a DNS record. In the IP address field, specify a host from the internal or external network. You can choose a device connected to the router's LAN at the moment. To do this, select the relevant IP address from the drop-down list (the field will be filled in automatically).

  • Page 126: Ports Settings

    DIR-806A Wireless AC750 Dual Band Router User Manual Ports Settings On the Advanced / Ports Settings page, you can configure or disable autonegotiation of speed and duplex mode or manually configure speed and duplex mode for each Ethernet port of the router.
  • Page 127 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 103. The window for changing the settings of the router's port. In the opened window, specify the needed parameters: Parameter Description Data transfer mode. auto Select the value to enable autonegotiation.
  • Page 128 DIR-806A Wireless AC750 Dual Band Router User Manual Parameter Description Flow Control Move the switch to the right to enable the flow control function for the port. Symmetric flow control Move the switch to the left to disable the flow control function for the port.

  • Page 129: Redirect

    DIR-806A Wireless AC750 Dual Band Router User Manual Redirect On the Advanced / Redirect page, you can enable notifications on the reason of the Internet connection failure. Notifications will be displayed in the browser window when a user is attempting to open a web site on the Internet.

  • Page 130: Ddns

    DIR-806A Wireless AC750 Dual Band Router User Manual DDNS On the Advanced / DDNS page, you can define parameters of the DDNS service, which allows associating a domain name with dynamic IP addresses. Figure 105. The Advanced / DDNS page.
  • Page 131 DIR-806A Wireless AC750 Dual Band Router User Manual To edit parameters of the existing DDNS service, select the relevant line in the table. In the opened window, change the needed parameters and click the SAVE button. To remove an existing DDNS service, select the checkbox located to the left of the relevant line in the table and click the Delete button.

  • Page 132: Routing

    DIR-806A Wireless AC750 Dual Band Router User Manual Routing On the Advanced / Routing page, you can add static routes (routes for networks that are not connected directly to the device but are available through the interfaces of the device) into the system.
  • Page 133 DIR-806A Wireless AC750 Dual Band Router User Manual In the opened window, you can specify the following parameters: Parameter Description Protocol A protocol that the route will use. From the drop-down list, select an interface through which the destination network can be accessed. If you have selected the Auto...

  • Page 134: Tr-069 Client

    DIR-806A Wireless AC750 Dual Band Router User Manual TR-069 Client On the Advanced / TR-069 Client page, you can configure the router for communication with a remote Auto Configuration Server (ACS). The TR-069 client is used for remote monitoring and management of the device.
  • Page 135 DIR-806A Wireless AC750 Dual Band Router User Manual Parameter Description Inform Settings Move the switch to the right so the router may send reports (data on Enable the device and network statistics) to the ACS. Interval Specify the time period (in seconds) between sending reports.

  • Page 136: Remote Access

    DIR-806A Wireless AC750 Dual Band Router User Manual Remote Access On the Advanced / Remote Access page, you can configure access to the web-based interface of the router. By default, the access from external networks to the router is closed. If you need to allow access to the router from the external network, create relevant rules.
  • Page 137 DIR-806A Wireless AC750 Dual Band Router User Manual Parameter Description A host or a subnet to which the rule is applied. You can specify an IP address IPv4 or IPv6 address. For the IPv4-based network only. Mask The mask of the subnet.

  • Page 138: Upnp Igd

    DIR-806A Wireless AC750 Dual Band Router User Manual UPnP IGD On the Advanced / UPnP IGD page, you can enable the UPnP IGD protocol. The router uses the UPnP IGD protocol for automatic configuration of its parameters for network applications requiring an incoming connection to the router.

  • Page 139: Udpxy

    DIR-806A Wireless AC750 Dual Band Router User Manual UDPXY On the Advanced / UDPXY page, you can allow the router to use the built-in UDPXY application. The UDPXY application transforms UDP traffic into HTTP traffic. This application allows devices which cannot receive UDP streams to access stream video.
  • Page 140 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 114. The UDPXY application status page. Page 140 of 180...

  • Page 141: Igmp/Alg/Passthrough

    DIR-806A Wireless AC750 Dual Band Router User Manual IGMP/ALG/Passthrough On the Advanced / IGMP/ALG/Passthrough page, you can allow the router to use IGMP and RTSP, enable the SIP ALG and PPPoE/PPTP/L2TP/IPsec pass through functions. IGMP is used for managing multicast traffic (transferring data to a group of destinations). This protocol allows using network resources for some applications, e.g., for streaming video, more...
  • Page 142 DIR-806A Wireless AC750 Dual Band Router User Manual The following elements are available on the page: Parameter Description Select a version of IGMP from the drop-down list. Such a setting IGMP allows to enable multicasting from the WAN connection selected in the IGMP section on the Connections Setup / WAN page.

  • Page 143: Ipsec

    DIR-806A Wireless AC750 Dual Band Router User Manual IPsec On the Advanced / IPsec page, you can configure VPN tunnels based on IPsec protocol. IPsec is a protocol suite for securing IP communications. Figure 116. The Advanced / IPsec page.
  • Page 144 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 117. The page for adding an IPsec tunnel. The General Settings section. You can specify the following parameters: Parameter Description General Settings Move the switch to the right to allow a remote host with any public IP address to connect to the router via IPsec protocol.
  • Page 145 DIR-806A Wireless AC750 Dual Band Router User Manual Parameter Description Select a WAN connection through which the tunnel will pass. When Interface the Automatic value is selected, the router uses the default WAN connection. The NAT Traversal function allows VPN traffic to pass through the NAT-enabled router.
  • Page 146 DIR-806A Wireless AC750 Dual Band Router User Manual Parameter Description Maximum Segment Size of a TCP packet. This parameter influences the size of a TCP packet which will be sent from a remote host to the router. TCP MSS If the Manual value is selected, you can specify the parameter in the TCP MSS Value field.
  • Page 147 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 118. The page for adding an IPsec tunnel. The First Phase / The Second Phase sections. Parameter Description The First Phase First phase Select encryption algorithm from the drop-down list. encryption algorithm Hashing algorithm Select hashing algorithm from the drop-down list.
  • Page 148 DIR-806A Wireless AC750 Dual Band Router User Manual Parameter Description Move the switch to the right to enable the PFS option (Perfect Forward Secrecy). If the is moved to the right, a new encryption key Enable PFS exchange will be used for Phase 2. This option increases the security level of data transfer.

  • Page 149: Firewall

    DIR-806A Wireless AC750 Dual Band Router User Manual Firewall In this menu you can configure the firewall of the router: add rules for IP filtering • create virtual servers • define a DMZ • configure the MAC filter • specify restrictions on access to certain web sites.
  • Page 150 DIR-806A Wireless AC750 Dual Band Router User Manual Figure 121. The page for adding a rule for IP filtering. Page 150 of 180...
  • Page 151 DIR-806A Wireless AC750 Dual Band Router User Manual You can specify the following parameters: Parameter Description General Settings Move the switch to the right to enable the rule. Enable rule Move the switch to the left to disable the rule.
  • Page 152 DIR-806A Wireless AC750 Dual Band Router User Manual Parameter Description End IPv4 address / The destination host end IPv4 or IPv6 address. End IPv6 address Subnet IPv4 address / The destination subnet IPv4 or IPv6 address. The field is displayed Subnet IPv6 address when the Subnet value is selected from the Set as drop-down list.

  • Page 153: Virtual Servers

    DIR-806A Wireless AC750 Dual Band Router User Manual Virtual Servers On the Firewall / Virtual Servers page, you can create virtual servers for redirecting incoming Internet traffic to a specified IP address in the local area network. Figure 122. The Firewall / Virtual Servers page.
  • Page 154 DIR-806A Wireless AC750 Dual Band Router User Manual You can specify the following parameters: Parameter Description General Settings A name for the virtual server for easier identification. You can Name specify any name. Select a virtual server template from the drop-down list, or select...
  • Page 155 DIR-806A Wireless AC750 Dual Band Router User Manual Click the APPLY button. To edit the parameters of an existing server, select the relevant line in the table. On the opened page, change the needed parameters and click the APPLY button.

  • Page 156: Dmz

    DIR-806A Wireless AC750 Dual Band Router User Manual A DMZ is a host or network segment located “between” internal (local) and external (global) networks. In the router, the DMZ implements the capability to transfer a request coming to a port of the router from the external network to a specified host of the internal network.

  • Page 157: Mac Filter

    DIR-806A Wireless AC750 Dual Band Router User Manual MAC Filter On the Firewall / MAC Filter page, you can configure MAC-address-based filtering for computers of the router's LAN. Figure 125. The Firewall / MAC Filter page. Select the needed action from the drop-down list in the Default mode section to configure...
  • Page 158 DIR-806A Wireless AC750 Dual Band Router User Manual In the opened window, you can specify the following parameters: Parameter Description Move the switch to the right to enable the rule. Enable rule Move the switch to the left to disable the rule.

  • Page 159: Url Filter

    DIR-806A Wireless AC750 Dual Band Router User Manual URL Filter On the Firewall / URL Filter page, you can specify restrictions on access to certain web sites. Figure 127. The Firewall / URL Filter page. To enable the URL filter, in the General Settings section, move the Enable switch to the right,...

  • Page 160: System

    DIR-806A Wireless AC750 Dual Band Router User Manual System In this menu you can do the following: change the password used to access the router's settings • restore the factory default settings • create a backup of the router's configuration •...

  • Page 161: Configuration

    DIR-806A Wireless AC750 Dual Band Router User Manual Configuration On the System / Configuration page, you can change the password for the administrator account used to access the web-based interface of the router and to access the device settings via TELNET,...
  • Page 162 DIR-806A Wireless AC750 Dual Band Router User Manual The following buttons are also available on the page: Control Description Click the button to restore the factory default settings. Also you can Factory restore the factory defaults via the hardware WPS/RESET button (see the Back Panel section, page 13).

  • Page 163: Firmware Update

    To enable the automatic check for firmware updates, in the Remote update section, move the Check for updates automatically switch to the right and click the APPLY SETTINGS button. By default, in the Remote server URL field, the D-Link update server address (fwupdate.dlink.ru) is specified.

  • Page 164: Local Update

    DIR-806A Wireless AC750 Dual Band Router User Manual Local Update Attention! Do not turn off the router before the firmware update is completed. This may cause the device breakdown. To update the firmware of the router locally, follow the next steps: 1.

  • Page 165: Remote Update

    DIR-806A Wireless AC750 Dual Band Router User Manual Remote Update Attention! Do not turn off the router before the firmware update is completed. This may cause the device breakdown. To update the firmware of the router remotely, follow the next steps: 1.

  • Page 166: Log

    DIR-806A Wireless AC750 Dual Band Router User Manual On the System / Log page, you can set the system log options and configure sending the system log to a remote host. Figure 130. The System / Log page. To enable logging of the system events, move the Logging switch to the right. Then specify the needed parameters.
  • Page 167 DIR-806A Wireless AC750 Dual Band Router User Manual Parameter Description The IP or URL address of the host from the local or global network, Server to which the system log will be sent. A port of the host specified in the Server field. By default, the value Port 514 is specified.

  • Page 168: Ping

    DIR-806A Wireless AC750 Dual Band Router User Manual Ping On the System / Ping page, you can check availability of a host from the local or global network via the Ping utility. The Ping utility sends echo requests to a specified host and receives echo replies.

  • Page 169: Traceroute

    DIR-806A Wireless AC750 Dual Band Router User Manual Traceroute On the System / Traceroute page, you can determine the route of data transfer to a host via the traceroute utility. Figure 132. The System / Traceroute page. To determine the route, specify the following parameters:...

  • Page 170: Telnet

    DIR-806A Wireless AC750 Dual Band Router User Manual Telnet On the System / Telnet page, you can enable or disable access to the device settings via TELNET from your LAN. By default, access is enabled. Figure 133. The System / Telnet page.

  • Page 171: System Time

    DIR-806A Wireless AC750 Dual Band Router User Manual System Time On the System / System Time page, you can manually set the time and date of the router or configure automatic synchronization of the system time with a time server on the Internet.
  • Page 172 DIR-806A Wireless AC750 Dual Band Router User Manual When the router is powered off or rebooted, the system time is reset to the default value. If you have set automatic synchronization for the system time, the internal clock of the device will be configured after connecting to the Inter net.

  • Page 173: Yandex.dns

    DIR-806A Wireless AC750 Dual Band Router User Manual Yandex.DNS This menu is designed to configure the Yandex.DNS service. Yandex.DNS is a web content filtering service which provides the DNS server, protects a computer against malicious web sites, and blocks access to adult web sites.
  • Page 174 DIR-806A Wireless AC750 Dual Band Router User Manual When the service is enabled, the Default Mode section is displayed on the page. Select the needed choice of the radio button to configure filtering for all devices of the router's network: Protection off: when this value is selected, the service provides the DNS server with no •...

  • Page 175: Devices And Rules

    DIR-806A Wireless AC750 Dual Band Router User Manual Devices and Rules On the Yandex.DNS / Devices and Rules page, you can specify a filtering mode for each device separately. Figure 136. The Yandex.DNS / Devices and Rules page. In the Known Clients section, the devices connected to the local network of the router at the moment and their relevant filtering mode are displayed.
  • Page 176 DIR-806A Wireless AC750 Dual Band Router User Manual In the opened window, you can specify the following parameters: Parameter Description MAC address The MAC address of a device from the router's LAN. IP address The IP address of a device from the router's LAN.

  • Page 177: Chapter 5. Operation Guidelines

    DIR-806A Wireless AC750 Dual Band Router User Manual CHAPTER 5. OPERATION GUIDELINES Safety Rules and Conditions Please carefully read this section before installation and connection of the device. Make sure that the power adapter and cables are not damaged. The device should be used only as intended in accordance with the documents.

  • Page 178: Wireless Installation Considerations

    RF noise in your home or office. To maximize your wireless range, follow the guidelines below. 1. Keep the number of walls and ceilings between the DIR-806A device and other network devices to a minimum – each wall or ceiling can reduce your wireless network range by 3- 90 feet (1-30 meters).

  • Page 179: Chapter 6. Abbreviations And Acronyms

    DIR-806A Wireless AC750 Dual Band Router User Manual CHAPTER 6. ABBREVIATIONS AND ACRONYMS Access Category Advanced Encryption Standard Address Resolution Protocol BSSID Basic Service Set Identifier Cyclic Redundancy Check DDNS Dynamic Domain Name System DDoS Distributed Denial of Service DHCP...
  • Page 180 DIR-806A Wireless AC750 Dual Band Router User Manual PPPoE Point-to-point protocol over Ethernet PPTP Point-to-point tunneling protocol Pre-shared key Quality of Service RADIUS Remote Authentication in Dial-In User Service Routing Information Protocol Request To Send RTSP Real Time Streaming Protocol...

Table of Contents
