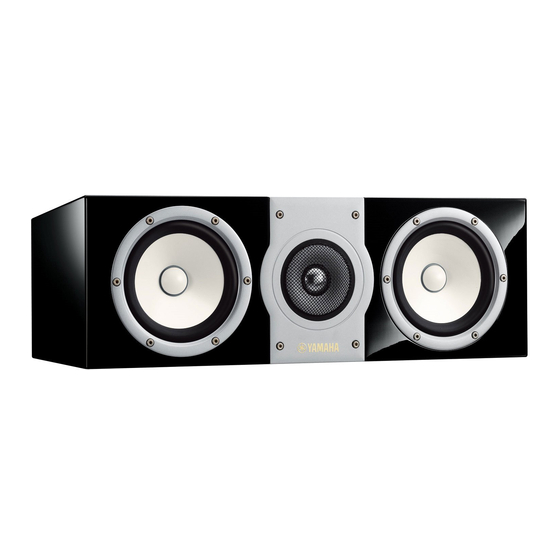

- Page 1 NS-C901 SPEAKER ENCEINTE OWNER’S MANUAL MODE D’EMPLOI BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ...
-
Page 2: Placing The Speaker
• Secure placement or installation is the owner’s • Do not place the speaker where foreign objects such as responsibility. water drips might fall. It might cause a ire, damage to Yamaha shall not be liable for any accident caused the speaker, and/or personal injury. by improper placement or installation of the speak- • Do not place the speaker where it is liable to be knocked over or struck by falling objects. Stable placement will also ensure better sound performance. PLACING THE SPEAKER The grille is detached from the speaker and packed sepa- rately. Be careful not to lose it. -
Page 3: Connection To Your Amplifier
CONNECTION TO YOUR AMPLIFIER Before making connection, make sure that the amplifier is switched off. ■ CONNECTIONS Loosen You need a commercially available speaker cable. Tighten The size and/or material of a speaker cable affects on the sound quality. Therefore, we recommend you to purchase Red (+) Black (–) a high-quality speaker cable to exert the performance of this unit. Bare wire Notes • Connect the (+) terminals on the ampliier and the speaker using one side of the cable. -
Page 4: Attaching The Grille
SPECIFICATIONS ATTACHING THE GRILLE The speaker and the grille are packed separately. Type .........2-way bass relex speaker system To attach the grille, line up the four salients (magnet) on the non magnetic shielding type reverse side of the grille with the four corresponding pegs. Driver ..........13 cm (5”) cone woofer x 2 3 cm (1”) Aluminum dome tweeter Impedance ..............6 Ω Frequency Response ....56 Hz to 50 kHz (–10 dB) to 100 kHz (–30 dB) Nominal Input Power ............. 50 W Maximum Input Power ..........200 W Sensitivity ............90 dB/2.83 V/m Crossover Frequency ..........4.2 kHz Dimensions (W x H x D) ......500 x 170 x 271 mm (19-5/8” x 6-3/4” x 10-5/8”) Weight ............8.4 kg (18.5 lbs.) Notes • Speciications subject to change without notice due to • When the grille is not attached, take care not to product improvements. - Page 5 Printed in Indonesia ZH67590 © 2013 Yamaha Corporation...
